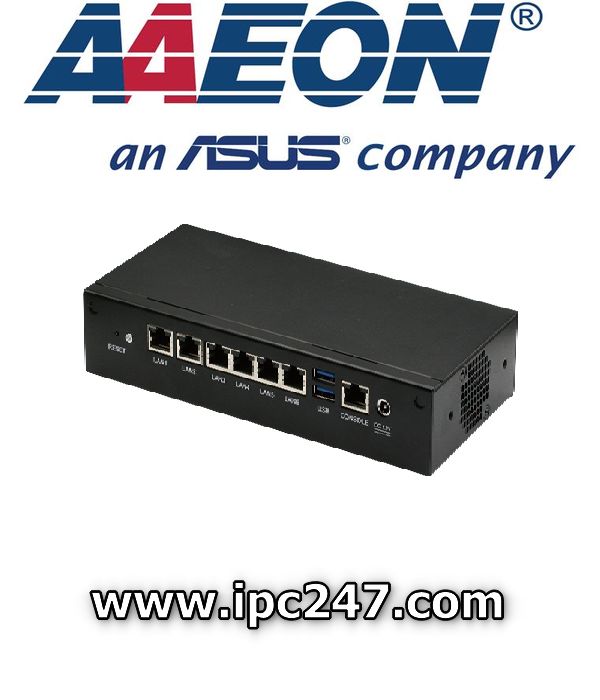

Thiết bị mạng cho máy tính để bàn
(FWS-2360)
- Desktop Network Appliance with Intel® Atom™ Processor C3000 Series
Overview
- AAEON’s FWS-2360 desktop network appliance is a ready-to-go white box solution with fiber optic technology for faster connection speeds. Powered by the Intel® Atom™ Processor C3000 Series (formerly Denverton), it offers QAT, Intel’s latest security and compression technology. This user friendly device is the perfect system for wireless gateway, SD-WAN, IPS, WAN Optimization, NFV and vCPE applications as it can be expanded to offer WiFi and 4G LTE, and it’s fitted with a range of mass storage connections.
Intel QAT
- Intel QuickAssist Technology speeds up the process of encrypting and the compressing secure information, meaning end users can send private information with complete confidence. With the high-powered CPUs used in the FWS-2360, this work is also isolated from the rest of the system’s functions, allowing the device to continue its other functions without losing speed.
1GbE Fiber/ Copper Ports
- With a pair of fiber/copper SFP GbE ports and four conventional LAN ports, the FWS-2360 has a rich array of I/O capabilities. The SFP GbE ports provide exceptional speed, while the conventional ports allow the FWS-2360 to support a LAN bypass function for up to two pairs for four LAN ports to ensure network traffic availability.
Versatility of Use
- Whether the end user is an SMB or home office needing wired connectivity or a cafe or small hotel with customers demanding a powerful WiFi signal, the FWS-2360 can easily carry the software needed to keep multiple computers and devices hooked up and running smoothly.
Features
- Desktop Network Appliance
- Intel® Atom™ C3000 Series Processor Supports Dual and Quad Core
- DDR4 SODIMM/ ECC DIMM (Dual Core 1 Slot Quad Core 2 Slot)
- 4 Copper(88E1543) + 2 Copper(I211), optional 4 Copper(88E1543) + 2 Fiber(I210)
- 2 Pairs Bypass Support
- Mini PCIe with SIM Slot Support
- Internal 2.5” SATA HDD Bay x 1 (Optional)
- eMMC Support up to 16GB
- RJ-45 Console x 1
- USB 3.2 Gen 1 x 2 (Internal USB 2.0 x 1)
Specifications [FWS-2360]
| SYSTEM | |
| FORM FACTOR | Desktop Network Appliance |
| PROCESSOR | Intel® Atom™ Processor C3000 Series supports dual and quad core |
| CHIPSET | SoC |
| SYSTEM MEMORY | DDR4 SODIMM ECC DIMM (Dual core 1 slot Quad core 2 Slot) Up to 32GB |
| NETWORK | |
| ETHERNET | Intel® X553 (Marvell 88E1543) RJ45 x 4 Default Intel® i211 GbE x 2 ( Intel® i210 SFP x 2 Optional) |
| BYPASS | Supports up to 2 pairs bypass function |
| DISPLAY | |
| GRAPHICS CONTROLLER | — |
| CONNECTOR | — |
| STORAGE | |
| HDD | 2.5” HDD Bay x 1 |
| CF/CFAST/MSATA | SATA 6.0 Gb/s port x 1(Onboard eMMC up to 16GB optional) |
| INTERNAL/ EXPANSION INTERFACE | |
| PCIE SLOT | — |
| MINI-PCIE SLOT | Mini-Card socket (full-size) x 2 (1 with SIM socket) |
| KB MOUSE | Reserved pin-header |
| USB | Dual Core: USB 3.2 Gen 1 x 1 + USB2.0 x 1 |
| MISCELLANEOUS | |
| RTC | Internal RTC |
| WATCHDOG TIMER | 1~255 steps by software programmable |
| SOFTWARE BUTTON | — |
| TPM | (TPM v1.2 9660/TPM2.0 9665 Optional) |
| GPIO | (4 bits input, 4bits output optional) |
| FAN | System fan x 1 |
| MTBF (HOURS) | 149683 Hours |
| COLOR | Black |
| PHYSICAL & ENVIRONMENTAL SPEC | |
| POWER REQUIREMENT | 12V DC Power in connector |
| OPERATING TEMPERATURE | 32°F ~ 104°F (0°C ~ 40°C ) |
| STORAGE TEMPERATURE | -4°F ~ 140°F (-20°C ~ 60°C) |
| OPERATING HUMIDITY | 10%~80% relative humidity, non-condensing |
| STORAGE HUMIDITY | 10%~80% @40°C; non-condensing |
| VIBRATION | 0.5 Grms/ 5 ~ 500Hz / operation (2.5″ HDD) 1.5 Grms/ 5 ~ 500Hz / non operation |
| SHOCK | 10 G peak acceleration (11 m sec. duration), operation 20 G peak acceleration (11 m sec. duration), non operation |
| DIMENSION (W X D X H) | 8.66” x 4.13” x 1.73” (220mm x 105mm x 44mm) |
| I/O | |

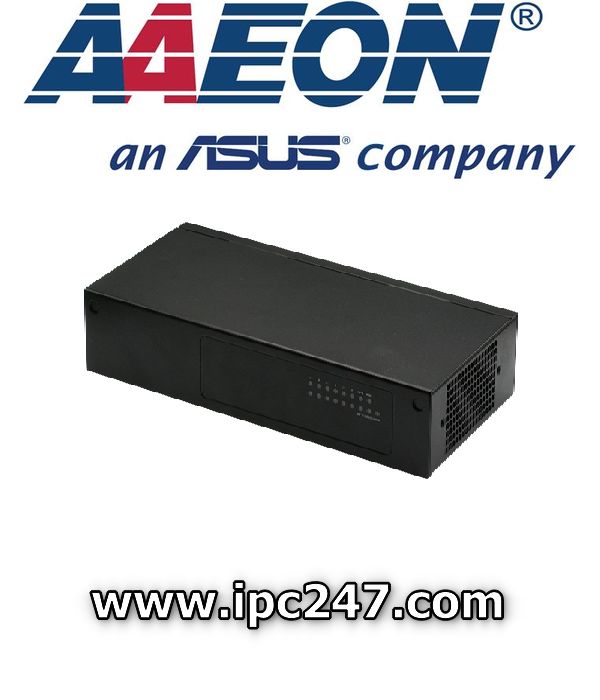

| FRONT PANEL | Power LED x 1 Status LED x 1 Storage Active LED x 1 Bypass LED x 2 LAN LED x 12 |

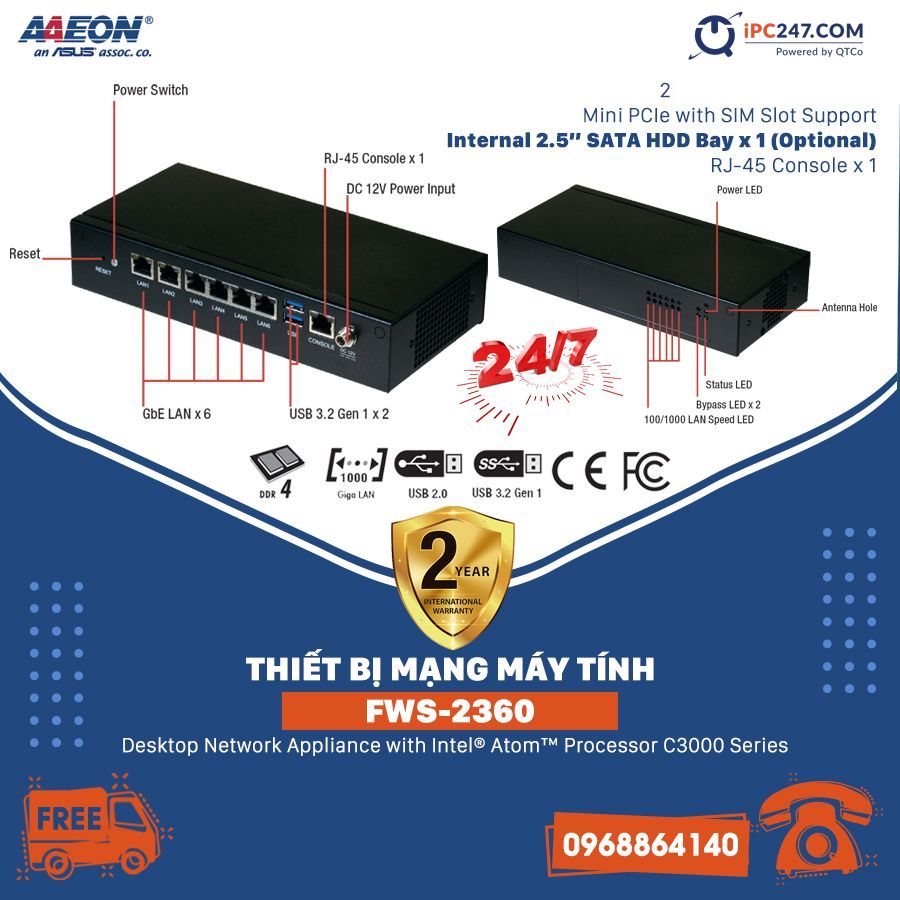

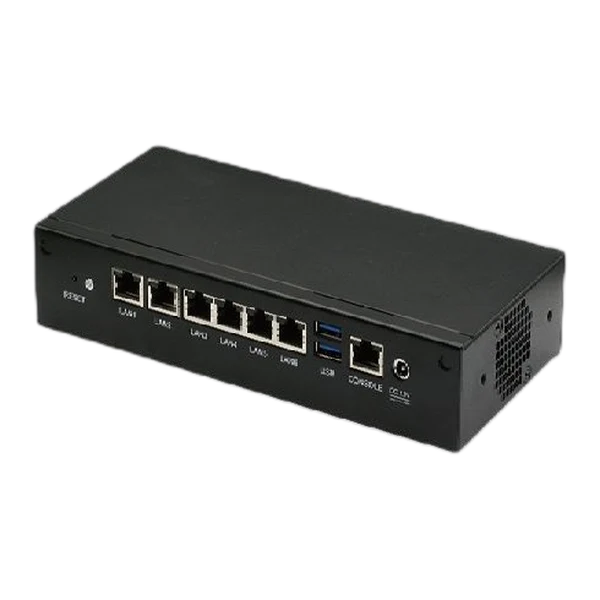

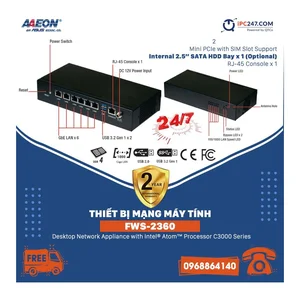

| REAR PANEL | USB 3.2 Gen 1 Port x 2 RJ-45 Port x 6 (Optional RJ-45 x 4 + SFP x 2) RJ-45 Console x 1 12V DC Power Input x 1 Software Reset Button x 1 Power Button x 1 (Antenna Hole x 4 Optional) |
Ordering Information [FWS-2360]
| PART NUMBER | FWS-2360E6-A10-00 |
|---|---|
| CPU | Intel® Atom® C3558 |
| RAM | 260-pin DDR4 SODIMM/ECC socket x 2 |
| BYPASS | 2 pairs |
| MINI-CARD SLOT | Full Size x 2 (PCIe + USB), 1 with SIM socket |
| STORAGE | 2.5” HDD Bay x 1 |
| LAN | 6 Intel® X553 (Marvell 88E1543) RJ45 x 4 Default Intel® i211 GbE x 2 |
| USB | USB 3.2 Gen 1 x 2 |
| CONSOLE | RJ-45 console x 1 |
| SYSTEM FAN | 1 |
| TPM | — |
| DISPLAY | — |
| MOUNTING | Desktop |
| POWER | DC |
Downloads [FWS-2360]
Packing List
- Power Adapter
- SATA Cable
- SATA Power Cable
- FWS-2360
Optional Accessories
| 1702031803 | Power Cord, 3P-250V/10A, 180D, 1.8M, VDE, YP12/YC-12 |
| 1702031802 | Power Cord, 3P-250V/10A, 180D, 1.8M, USA, YP12/YC-12 |
| 170203180B | Power Cord, 3P-250V/10A, 180D, 1.8M, China, YP-03/YC-12 |
| 170203180E | Power Cord, 3P-125V/7A, 1.8M, PSE, YP12/YC-12 |
| 1700091805 | Console Cable |
