Thiết bị mạng cho máy tính để bàn
(FWS-2276)
- Desktop 4 LAN Ports Network Appliance with Intel® Celeron® Processor N3350
Overview
- Designed to offer customers more choice and allow AAEON to respond more quickly to requests for customized systems, the FWS-2276 board and chassis is compatible with the existing FWS-2272, and both appliances effectively handle Software Defined-WAN (SD-WAN), Virtual Customer Premise Equipment (vCPE) technology, Unified Threat Management (UTM), Virtual Private Networking (VPN), Intrusion Detection and Prevention Systems (IDS, IPS), Firewall technology, and Load Balancing applications.
- The differences between the two systems are that while the FWS-2272 offers wireless WiFi/3G/LTE support, the FWS-2276 features a 2.5” SATA HDD Bay and a bypass function to safeguard the flow of network traffic in the event of software complications or loss of power. However, since the system boards and chassis are cross-compatible, buyers can custom-order appliances with the features they need to suit their requirements.
- The FWS-2276 is powered by an Intel® Celeron® Processor N3350 processor and has onboard LPDDR4 2GB memory and 8GB eMMC. Measuring only 165 x 92 x 40mm, the appliance is small enough for even the most crowded offices. Despite its modest dimensions, it still houses two USB3.0 ports and a console port alongside its four LAN ports.
- The system features an innovative housing design that allows the chassis to be removed by undoing a single screw. This user-friendly detail means any necessary maintenance work can be carried out quickly and easily.
Features
- Desktop Network Appliance
- Intel® Celeron® Processor N3350
- Onboard LPDDR4 2 GB Memory
- Gigabit Ethernet x 4 (Intel® i211)
- 1 Pair Bypass
- Internal 2.5” SATA HDD Bay x 1
- Onboard 8 GB eMMC
- RJ-45 Console x 1
- USB 3.2 Gen 1 x 2
Specifications [FWS-2276]
| SYSTEM | |
| FORM FACTOR | Desktop Network Appliance |
| PROCESSOR | Intel® Celeron® Processor N3350 |
| CHIPSET | SoC |
| SYSTEM MEMORY | Onboard LPDDR4 2GB memory |
| NETWORK | |
| ETHERNET | Intel® i211 GbE x 4 |
| BYPASS | 1 pair bypass function |
| DISPLAY | |
| GRAPHICS CONTROLLER | Intel® HD graphics integrated |
| CONNECTOR | — |
| STORAGE | |
| HDD | 2.5” HDD Bay x 1 |
| CF/CFAST/MSATA | Onboard 8GB eMMC, SATA 6.0 Gb/s port x 1 |
| INTERNAL/ EXPANSION INTERFACE | |
| PCIE SLOT | — |
| MINI-PCIE SLOT | — |
| KB MOUSE | — |
| USB | USB 3.2 Gen 1 x 2 |
| MISCELLANEOUS | |
| RTC | Internal RTC |
| WATCHDOG TIMER | 1~255 steps by software programmable |
| SOFTWARE BUTTON | — |
| TPM | (TPM v1.2 9660/TPM2.0 9665 Optional) |
| GPIO | 4 bits input, 4bits output optional |
| FAN | 1 |
| MTBF (HOURS) | 166,000 |
| COLOR | Black |
| PHYSICAL & ENVIRONMENTAL SPEC | |
| POWER REQUIREMENT | 12V DC Power |
| OPERATING TEMPERATURE | 32°F ~ 104°F (0°C ~ 40°C ) |
| STORAGE TEMPERATURE | -4°F ~ 140°F (-20°C ~ 60°C) |
| OPERATING HUMIDITY | 10%~80% relative humidity, non-condensing |
| STORAGE HUMIDITY | 10%~80% @40°C; non-condensing |
| VIBRATION | 0.5 Grms/ 5 ~ 500Hz / operation (2.5″ HDD) 1.5 Grms/ 5 ~ 500Hz / non operation |
| SHOCK | 10 G peak acceleration (11 m sec. duration), operation 20 G peak acceleration (11 m sec. duration), non operation |
| DIMENSION (W X D X H) | 6.5” x 3.62” x 1.57” (165mm x 92mm x 40mm) |
| I/O | |

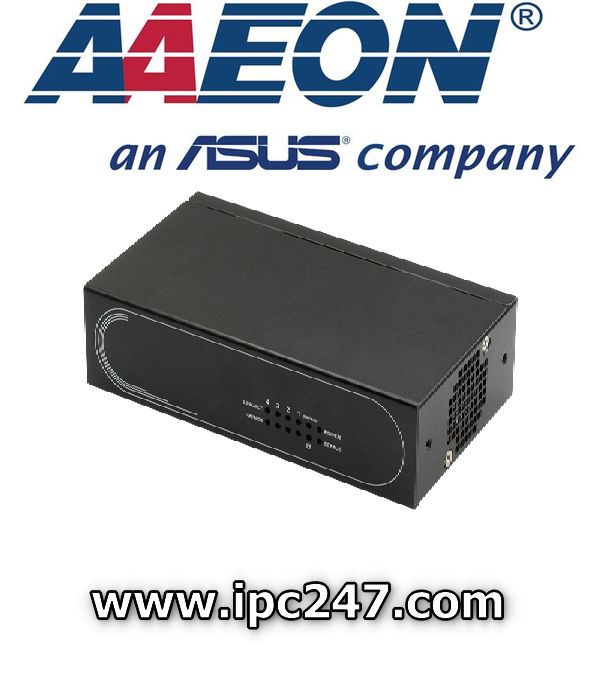

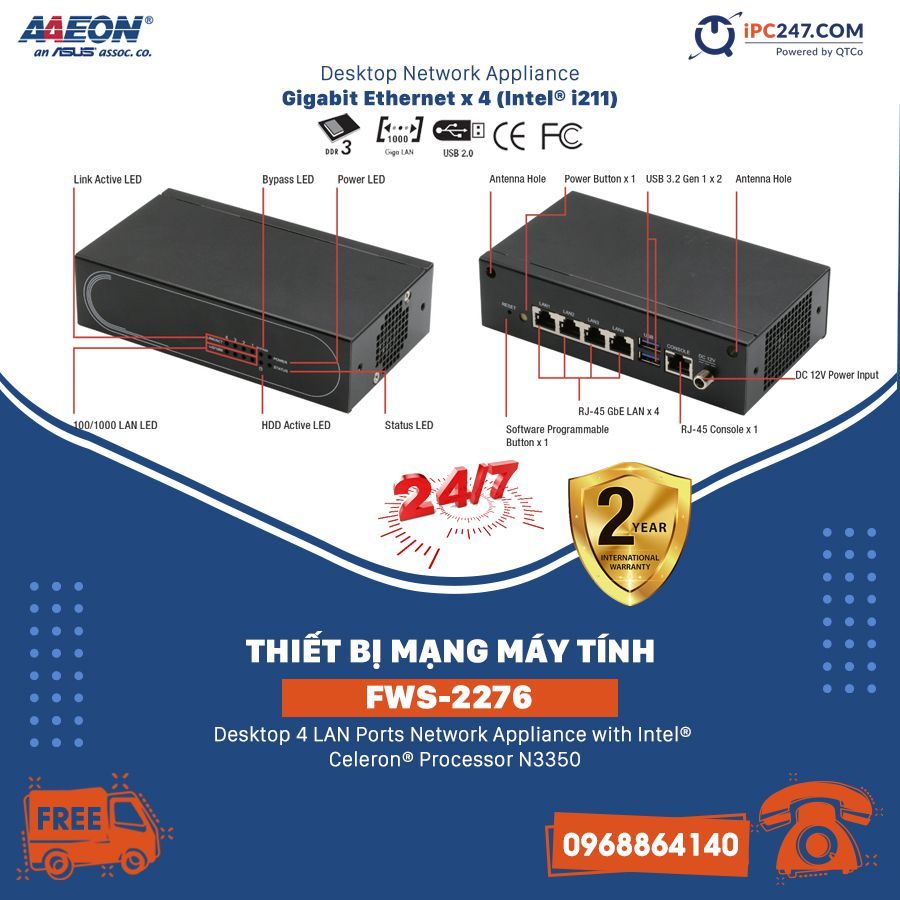

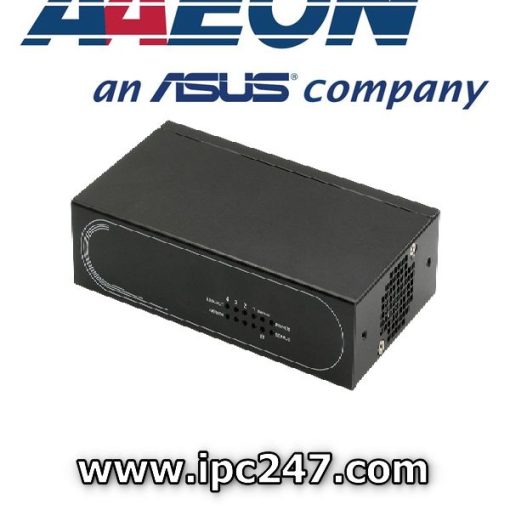

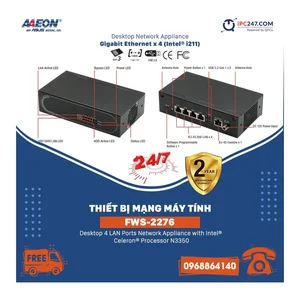

| FRONT PANEL | Power LED x 1 Status LED x 1 HDD Active LED x 1 Bypass LED x 1 LAN LEDs x 8 |

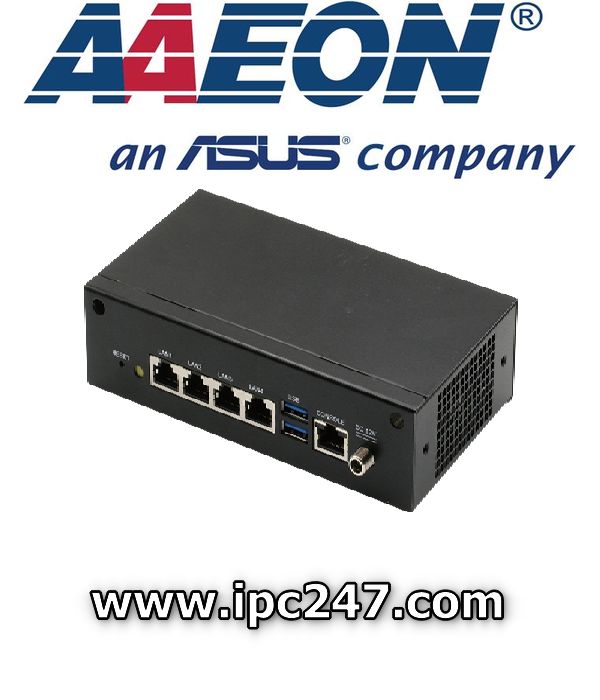

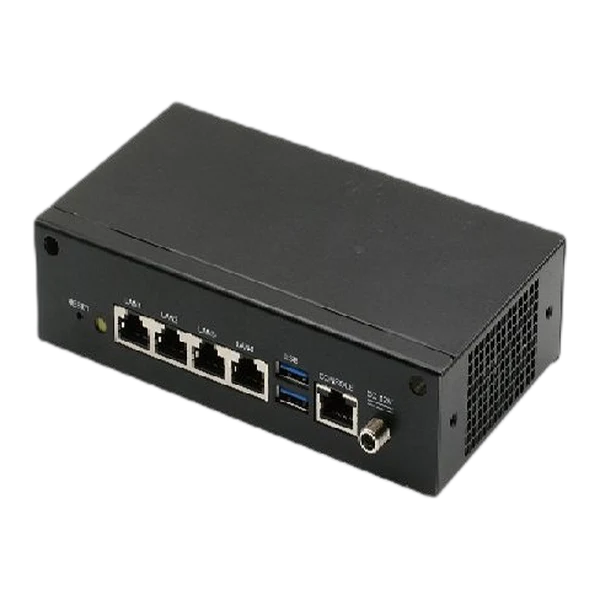

| REAR PANEL | USB 3.2 Gen 1 Port x 2 RJ-45 Port x 4 RJ-45 Console x 1 12V DC Power Input x 1 Software Programmable Button x 1 Antenna Hole x 2 Optional |
Ordering Information [FWS-2276]
| PART NUMBER | FWS-2276E4- A10-A10-000 |
|---|---|
| CPU | Intel® Celeron® N3350 |
| MEMORY | Onboard LPDDR4 2GB memory |
| MINI-CARD SLOT | — |
| STORAGE | 2.5” HDD Bay x 1,Onboard 8GB eMMC |
| DISPLAY | — |
| LAN | Intel® i211 GbE x 4 |
| USB | USB 3.2 Gen 1 x 2 |
| CONSOLE | RJ-45 console x 1 |
| BYPASS | 1 pairs |
| TPM | — |
| FAN | 1 |
| MOUNTING | Desktop |
| POWER | DC |
| NOTE | * Please contact AAEON for other optional specifications. |
Downloads [FWS-2276]
Packing List
- SATA Cable x 1
- SATA Power Cable x 1
- Power Adapter
- FWS-2276
Optional Accessories
| 1700091805 | Console Cable |
| 1702031802 | Power Cord, 3P-250V/10A, 180D, 1.8M, USA, YP22/YP12 |
| 1702031803 | Power Cord, 3P-250V/10A, 180D, 1.8M, VDE, YP22/YP12 |
| 170203180B | Power Cord, 3P-250V/10A, 180D, 1.8M, China, YP-03/YC-12 |
| 170203180E | Power Cord, 3P-250V/10A, 180D, 1.8M, PSE, YP12/YC-12 |
