Thiết bị mạng cho máy tính để bàn
(FWS-2272)
- Desktop 4 LAN Ports Network Appliance with Intel® Celeron® N3350 Processor SoC
Overview
AAEON’s newest offering, the FWS-2272, is an ultra-compact network appliance which boasts the smallest physical design on the current market, and is powered by Intel® N3350 SoC, formerly Apollo Lake. Designed to consolidate networks in a secure and virtualized environment, the FWS-2272 is easy to optimize and implement, providing dual support for both wireless and wired connections. Its compact design is consolidated by a tough steel casing and an aluminum heatsink to pre-empt airflow, which is ideal for wiring closets, conference rooms, or small offices requiring reliable performance and quiet operation.
The FWS-2272 is designed to address the needs of home offices, small and medium businesses, and branch offices, facilitating network applications including Firewall, VPN, Load Balancing, Software defined WAN (SD-WAN), Unified Threat Management (UTM), Wireless Network Access Controller (NAC) and Virtual Customer Premise Equipment (vCPE) quickly and easily without complicated configuration.
Applications
- Network Appliance/ Network Computing Platform
- Virtual Customer Premises Equipment (vCPE) Gateway Controller
- Fanless Wireless/ Wired Security Gateway Controller
Features
- Intel® Celeron® N3350 Processor SoC
- Onboard LPDDR4 1 GB Memory
- 10/100/1000Base-TX x 4
- Onboard 8GB eMMC, SATA 6.0 Gb/s Port x 1
- Mini-Card Slot (with SIM Socket) x 1
- RJ-45 Console x 1, USB 3.2 Gen 1 x 2
Specifications [FWS-2272]
| SYSTEM | |
| FORM FACTOR | Desktop Network Appliance |
| PROCESSOR | Intel® Celeron® N3350 Processor |
| CHIPSET | Intel® Celeron® N3350 Processor |
| SYSTEM MEMORY | Onboard LPDDR4 1GB memory. Optional BOM SKU supports 204-pin DDR3L SODIMM x 1, up to 8GB |
| NETWORK | |
| ETHERNET | Intel® i211, Gigabit Ethernet x 4 |
| BYPASS | — |
| DISPLAY | |
| GRAPHICS CONTROLLER | Intel® HD Graphics 505 Intergrated |
| CONNECTOR | — |
| STORAGE | |
| HDD | — |
| CF/CFAST/MSATA | Onboard 8GB eMMC SATA 6.0 Gb/s port x 1, for SATA DOM |
| INTERNAL/ EXPANSION INTERFACE | |
| PCIE SLOT | — |
| MINI-PCIE SLOT | Mini-Card socket (full-size) with SIM socket x 1 |
| KB MOUSE | — |
| USB | USB 3.2 Gen 1 x 2 |
| MISCELLANEOUS | |
| RTC | Internal RTC |
| WATCHDOG TIMER | 1~255 steps by software programmable |
| SOFTWARE BUTTON | — |
| TPM | (TPM v1.2 9660/TPM2.0 9665 Optional) |
| GPIO | Reserved internal pin header 8-bit Digital I/O interface (4-in /4-out) |
| FAN | Fanless |
| MTBF (HOURS) | 162,469 |
| COLOR | Silver |
| PHYSICAL & ENVIRONMENTAL SPEC | |
| POWER REQUIREMENT | 12V DC Power in connector |
| OPERATING TEMPERATURE | 32°F ~ 104°F (0°C ~ 40°C ) |
| STORAGE TEMPERATURE | -4°F ~ 140°F (-20°C ~ 60°C) |
| OPERATING HUMIDITY | 10%~80% relative humidity, non-condensing |
| STORAGE HUMIDITY | 10%~80% @40°C; non-condensing |
| VIBRATION | 0.5 Grms/ 5 ~ 500Hz / operation (SATA DOM) 1.5 Grms/ 5 ~ 500Hz / non operation |
| SHOCK | 10 G peak acceleration (11 m sec. duration), operation 20 G peak acceleration (11 m sec. duration), non operation |
| DIMENSION (W X D X H) | 6.1″ x 3.62″ x 1.26″ (155mm x 92mm x 32mm) |
| I/O | |

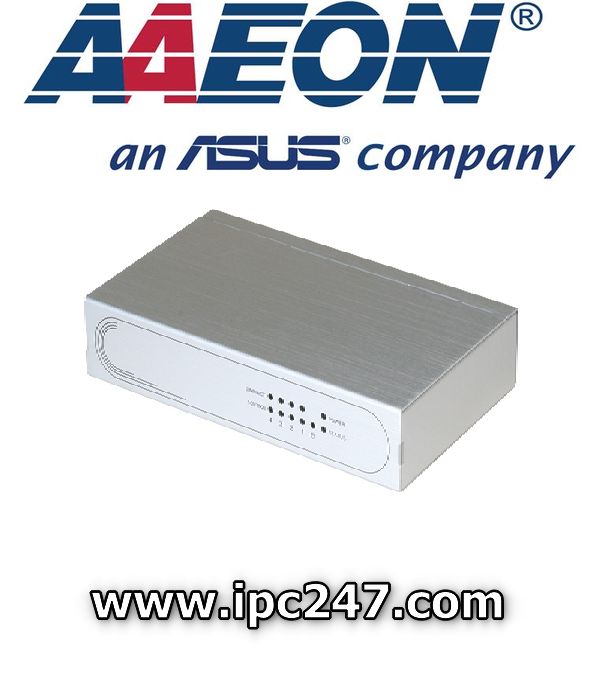

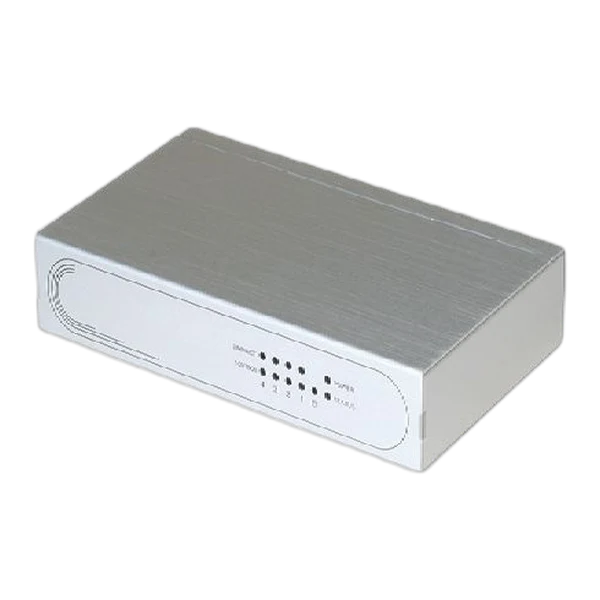

| FRONT PANEL | Power LED x 1 Status LED x 1 Storage Activ x 1 LAN LED x 8 |

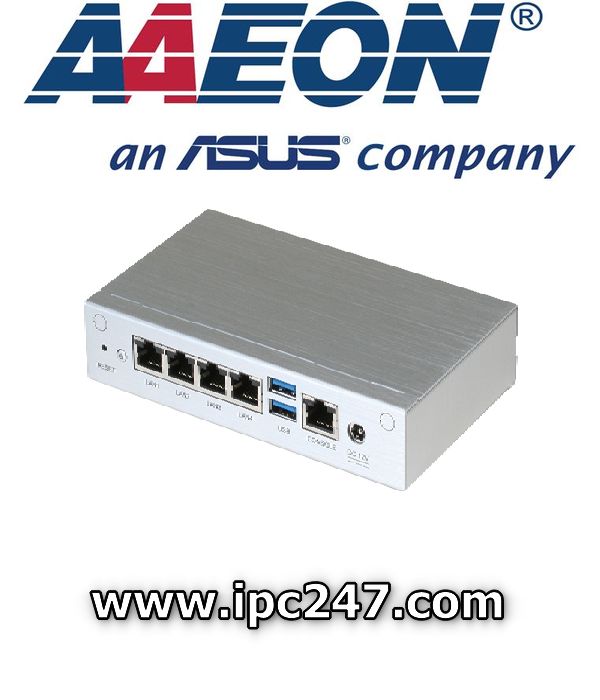

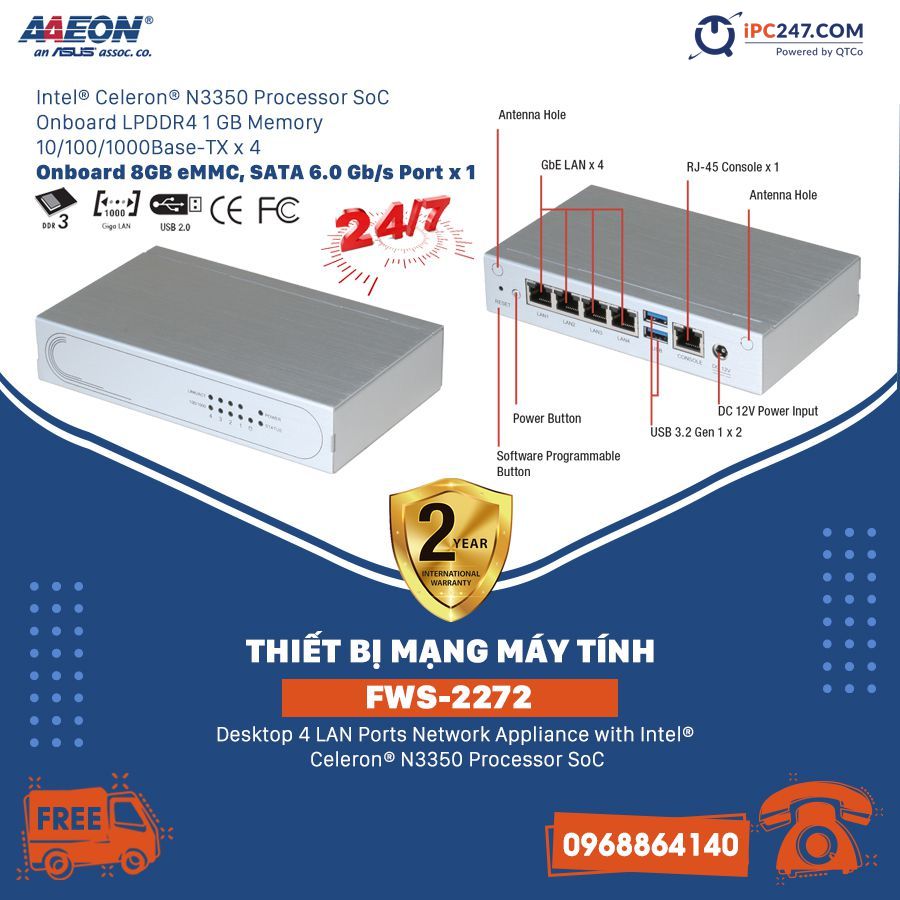

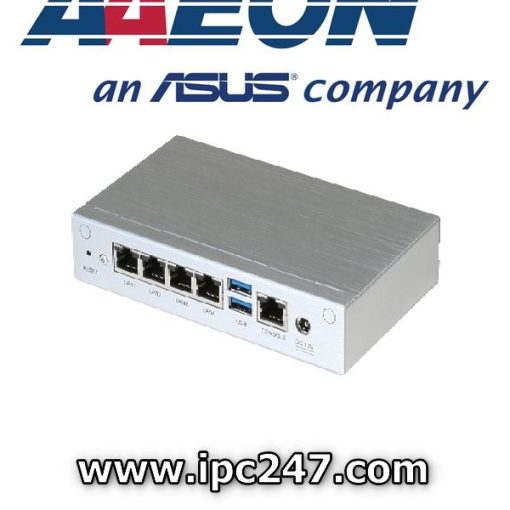

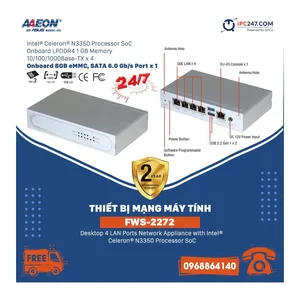

| REAR PANEL | USB 3.2 Gen 1 Port x 2 RJ-45 Port x 4 RJ-45 Console x 1 12V DC Power Input x 1 Software Reset Button x 1 Power Button x 1 Antenna Hole x 2 |
Ordering Information [FWS-2272]
| PART NUMBER | FWS-2272E4-A10-A10-00 |
|---|---|
| CPU | Intel® Celeron® N3350 |
| MEMORY | Onboard 1GB LPDDR4 |
| BYPASS | — |
| MINI-CARD SLOT | Full Size (USB Only)+ SIM socket x 1 |
| STORAGE | Onboard 8GB eMMC, SATA 6.0 Gb/s Port x 1 |
| LAN | 4 |
| USB | USB 3.2 Gen 1 x 2 |
| CONSOLE | RJ-45 x 1 |
| SYSTEM FAN | Fanless |
| TPM | — |
| DISPLAY | — |
| MOUNTING | Desktop |
| POWER | DC |
Downloads [FWS-2272]
Packing List
- Power Adapter
- FWS-2272
Optional Accessories
| 1700091805 | Console Cable |
| 1702021832 | Power Cord, 2P/2P, 1.8M, USA |
| 1702021836 | Power Cord, 2P/2P, 1.8M, EU |
