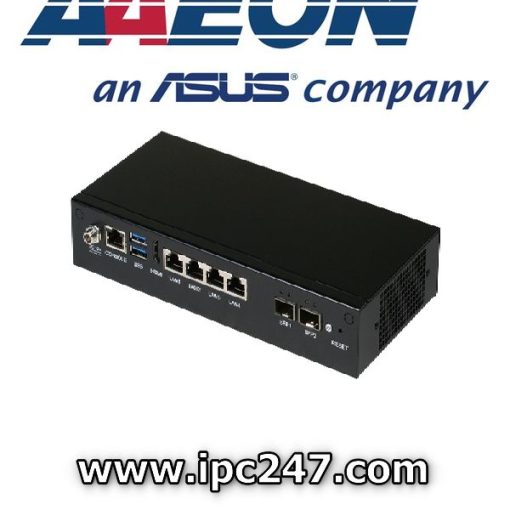

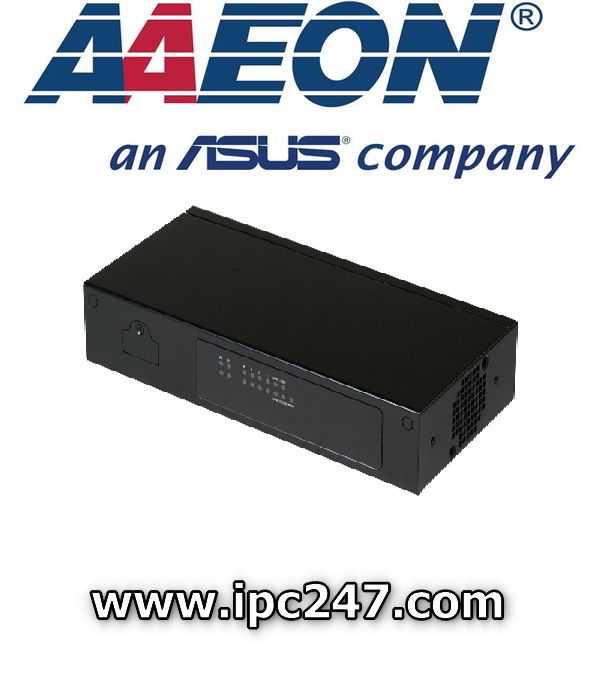

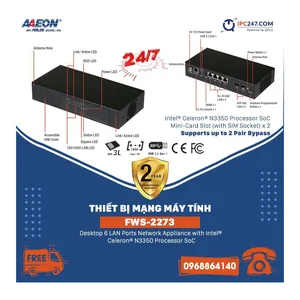

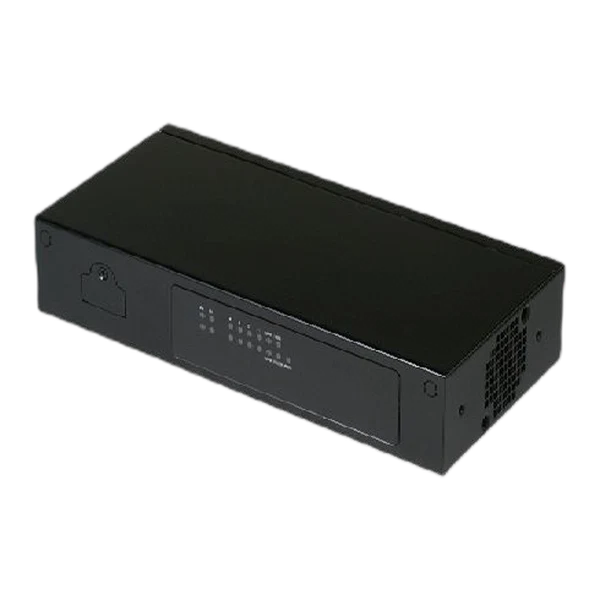

Thiết bị mạng cho máy tính để bàn
(FWS-2273)
- Desktop 6 LAN Ports Network Appliance with Intel® Celeron® N3350 Processor SoC
Overview
- AAEON’s latest desktop network appliance, the FWS-2273, represents a major step forward in the field of affordable, hard-hitting connectivity and network security. Energy efficient and user friendly, this device supports a variety of mass storage solutions and can be expanded to offer WiFi and 4G LTE, making it ideal for wireless gateway and vCPE applications.
1 GbE Fiber/ Copper Ports
- With a pair of fiber SFP GbE ports and four copper LAN ports, the FWS-2273 has a rich array of I/O capabilities. The fiber ports provide exceptional speed, while the conventional ports allow the FWS-2273 to support a LAN bypass function for up to two pairs for four LAN ports to ensure network traffic availability.
Customer-Friendly Housing
- Thanks to the FWS-2273’s innovative housing, which can be removed by undoing a single screw, maintenance has never been easier. Easily accessible SIM and Mini-card covers make system expansion a simple task, and the system’s optional 1U rack-mount brackets mean this device can even be installed in server cabinets.
Versatility of Use
- Whether the end user is an SMB or home office needing wired connectivity or a cafe or small hotel with customers demanding a powerful WiFi signal, the FWS-2273 can easily carry the software needed to keep multiple computers and devices hooked up and running smoothly.
Features
- Intel® Celeron® N3350 Processor SoC
- 10/100/1000Base-TX x 6 (4 x RJ-45, 2 x SFP connector )
- Supports up to 2 Pair Bypass
- CF Socket x 1, SATA 6.0 Gb/s Port x 1 for 2.5” HDD/SSD
- Mini-Card Slot (with SIM Socket) x 2
- RJ-45 Console x 1, USB 3.2 Gen 1 x 2
Specifications [FWS-2273]
| SYSTEM | |
| FORM FACTOR | Desktop Network Appliance |
| PROCESSOR | Intel® Celeron® N3350 Processor |
| CHIPSET | Intel® Celeron® N3350 Processor |
| SYSTEM MEMORY | 204-pin DDR3L SODIMM x 1, up to 8GB |
| NETWORK | |
| ETHERNET | Intel® i211, Gigabit Ethernet x 4 Intel® i210, SFP x 2 |
| BYPASS | Supports up to 2 pairs bypass function |
| DISPLAY | |
| GRAPHICS CONTROLLER | Intel® HD Graphics 505 Intergrated |
| CONNECTOR | HDMI x 1 |
| STORAGE | |
| HDD | 2.5” HDD Bay x 1 |
| CF/CFAST/MSATA | CompactFlash™ socket x 1 (Co-lay for BOM Optional CFast™ socket x 1) SATA 6.0 Gb/s port x 1 |
| INTERNAL/ EXPANSION INTERFACE | |
| PCIE SLOT | — |
| MINI-PCIE SLOT | Mini-Card socket (full-size) with SIM socket x 2 |
| KB MOUSE | Reserved pin-header |
| USB | USB 3.2 Gen 1 x 2 |
| MISCELLANEOUS | |
| RTC | Internal RTC |
| WATCHDOG TIMER | 1~255 steps by software programmable |
| SOFTWARE BUTTON | — |
| TPM | (TPM v1.2 9660/TPM2.0 9665 Optional) |
| GPIO | Reserve internal pin header 8-bit Digital I/O interface (4-in /4-out) |
| FAN | Fanless, reserved pin header for system fan |
| MTBF (HOURS) | 109725 |
| COLOR | Black |
| PHYSICAL & ENVIRONMENTAL SPEC | |
| POWER REQUIREMENT | 12V DC Power in connector |
| OPERATING TEMPERATURE | 32°F ~ 104°F (0°C ~ 40°C ) |
| STORAGE TEMPERATURE | -4°F ~ 140°F (-20°C ~ 60°C) |
| OPERATING HUMIDITY | 10%~80% relative humidity, non-condensing |
| STORAGE HUMIDITY | 10%~80% @40°C; non-condensing |
| VIBRATION | 0.5 Grms/ 5 ~ 500Hz / operation (2.5″ HDD) 1.5 Grms/ 5 ~ 500Hz / non operation |
| SHOCK | 10 G peak acceleration (11 m sec. duration), operation 20 G peak acceleration (11 m sec. duration), non operation |
| DIMENSION (W X D X H) | 8.66” x 4.13” x 1.73” (220mm x 105mm x 44mm) |
| I/O | |

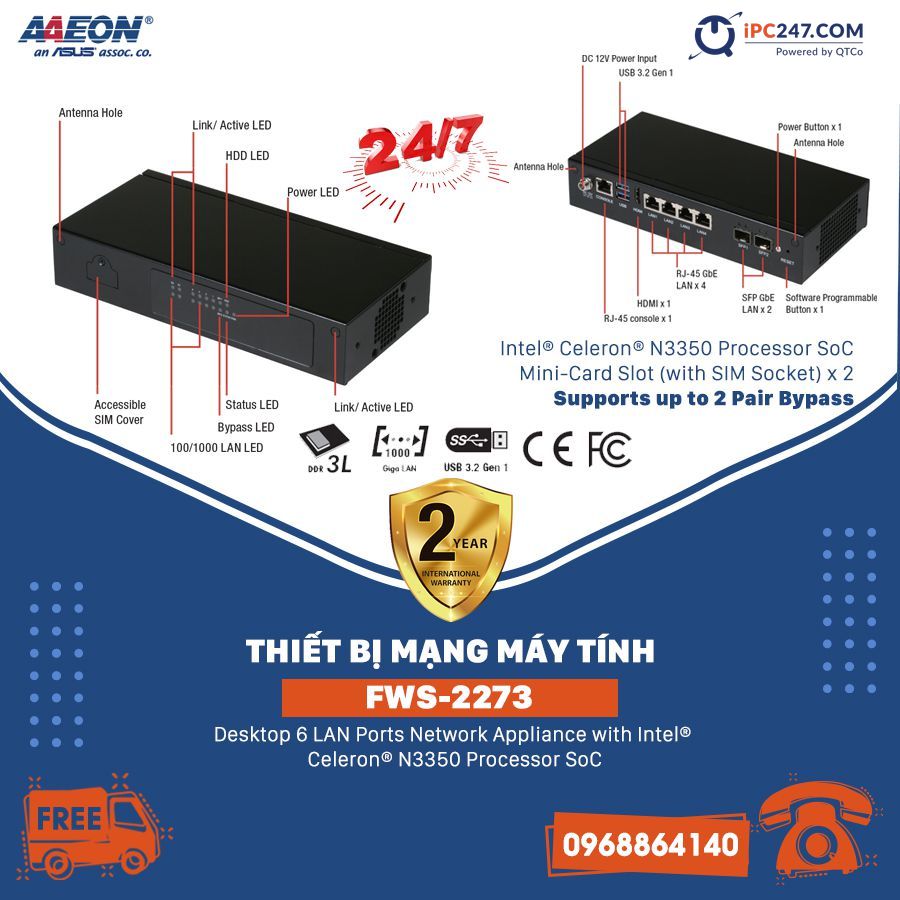

| FRONT PANEL | Power LED x 1 Status LED x 1 Storage Active LED x 1 Bypass LED x 2 LAN LED x 12 |

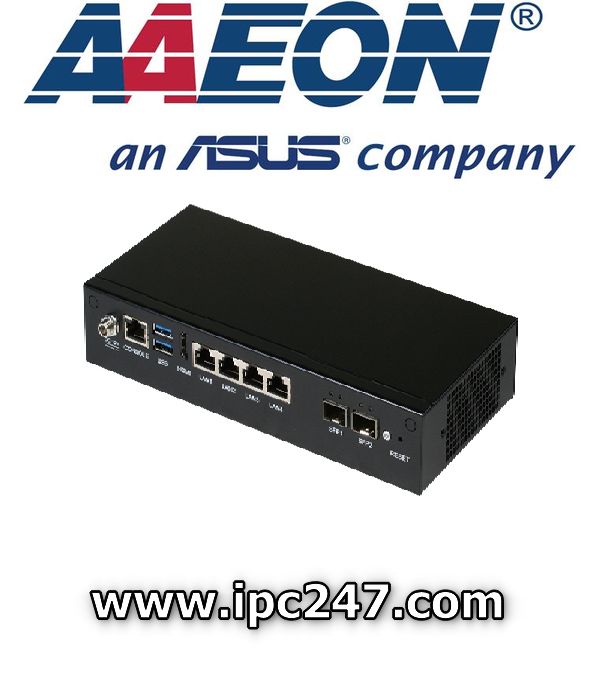

| REAR PANEL | USB 3.2 Gen 1 Port x 2 RJ-45 Port x 4 SFP x 2 RJ-45 Console x 1 12V DC Power Input x 1 Software Reset Button x 1 Power Button x 1 HDMI x 2 Antenna Hole x 2 |
Ordering Information [FWS-2273]
| PART NUMBER | FWS-2273E7-A10-A10-00 |
|---|---|
| CPU | Intel® Celeron® N3350 |
| RAM | 204-pin DDR3L SODIMM socket x 1 |
| BYPASS | 2 pairs |
| MINI-CARD SLOT | Full Size x 1 (PCIe + USB) with SIM socket Full Size x 1 (USB signal) with SIM socket |
| STORAGE | CF socket x 1 2.5” HDD Bay x 1 |
| LAN | 6 |
| USB | USB 3.2 Gen 1 x 2 |
| CONSOLE | RJ-45 x 1 |
| SYSTEM FAN | Fanless |
| TPM | — |
| DISPLAY | HDMI x 1 |
| MOUNTING | Desktop |
| POWER | DC |
Downloads [FWS-2273]
Packing List
- SATA Cable x 1
- SATA Power Cable x 1
- Power Ada ter
- FWS-2273
Optional Accessories
| 1700091805 | Console Cable |
| 1702031802 | Power Cord, 3P-250V/10A, 180D, 1.8M, USA, YP22/YP12 |
| 1702031803 | Power Cord, 3P-250V/10A, 180D, 1.8M, VDE, YP22/YP12 |
| 170203180B | Power Cord, 3P-250V/10A, 180D, 1.8M, China, YP-03/YC-12 |
| 170203180E | Power Cord, 3P-250V/10A, 180D, 1.8M, PSE, YP12/YC-12 |
