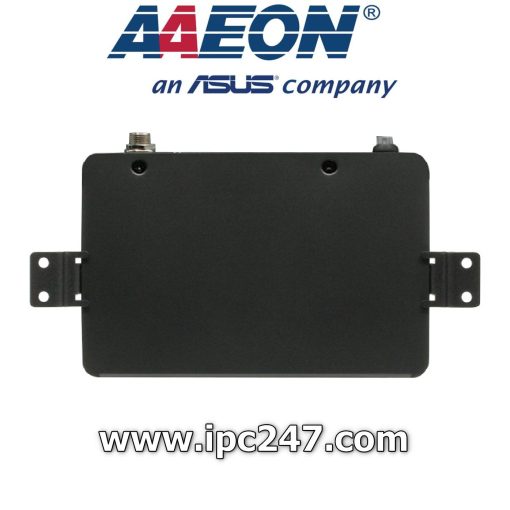

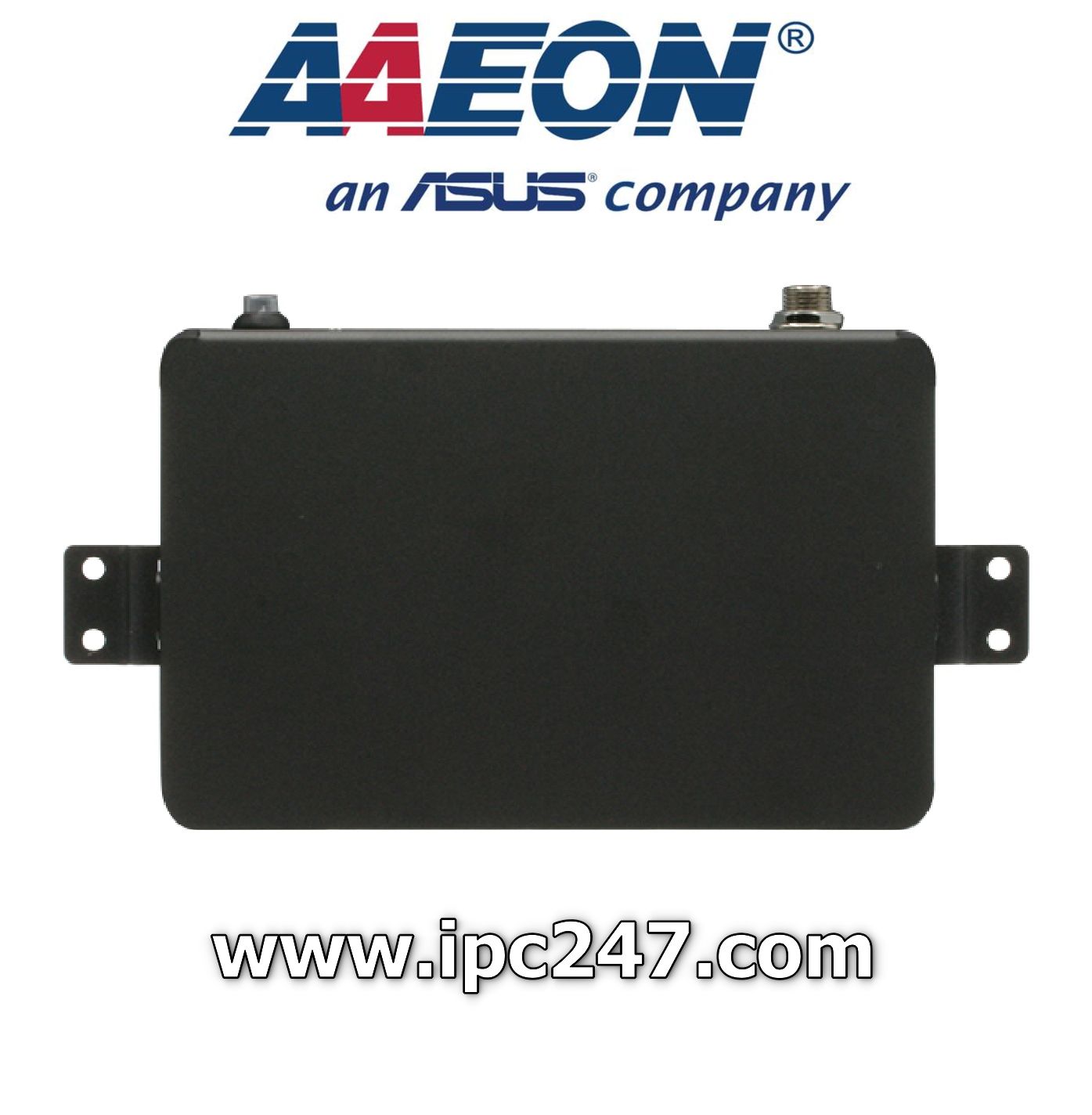

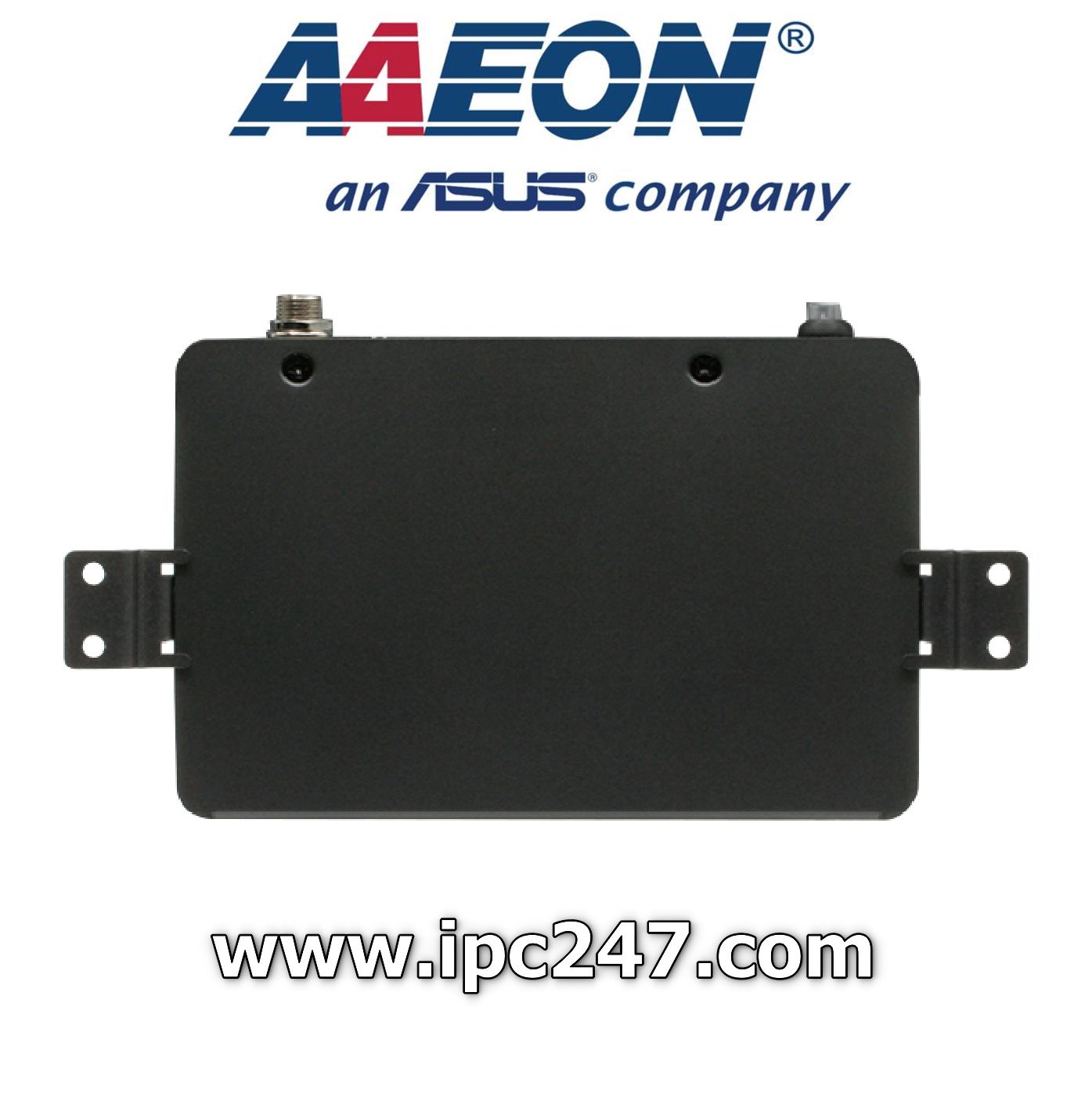

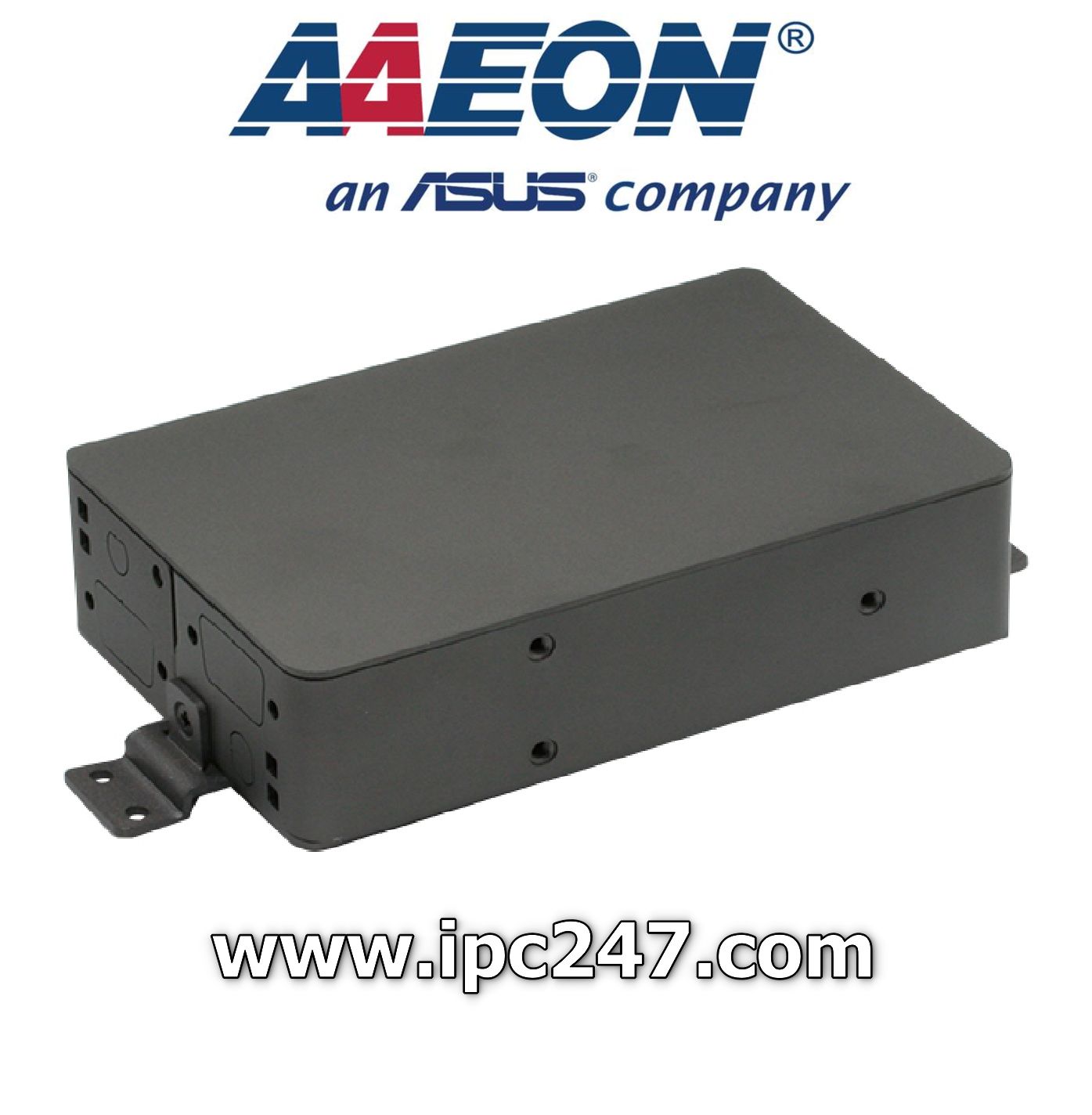

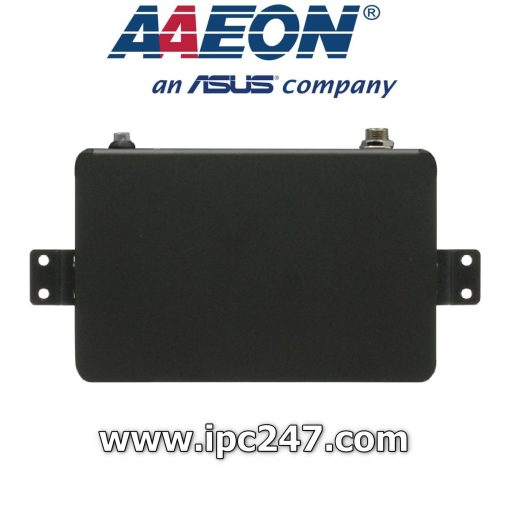

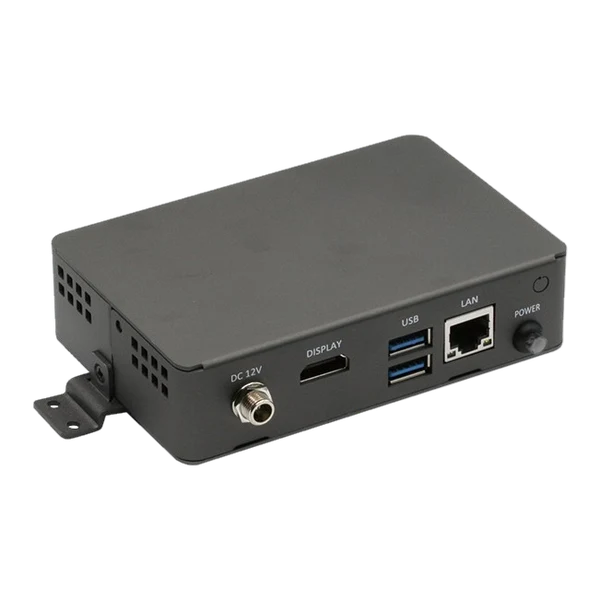

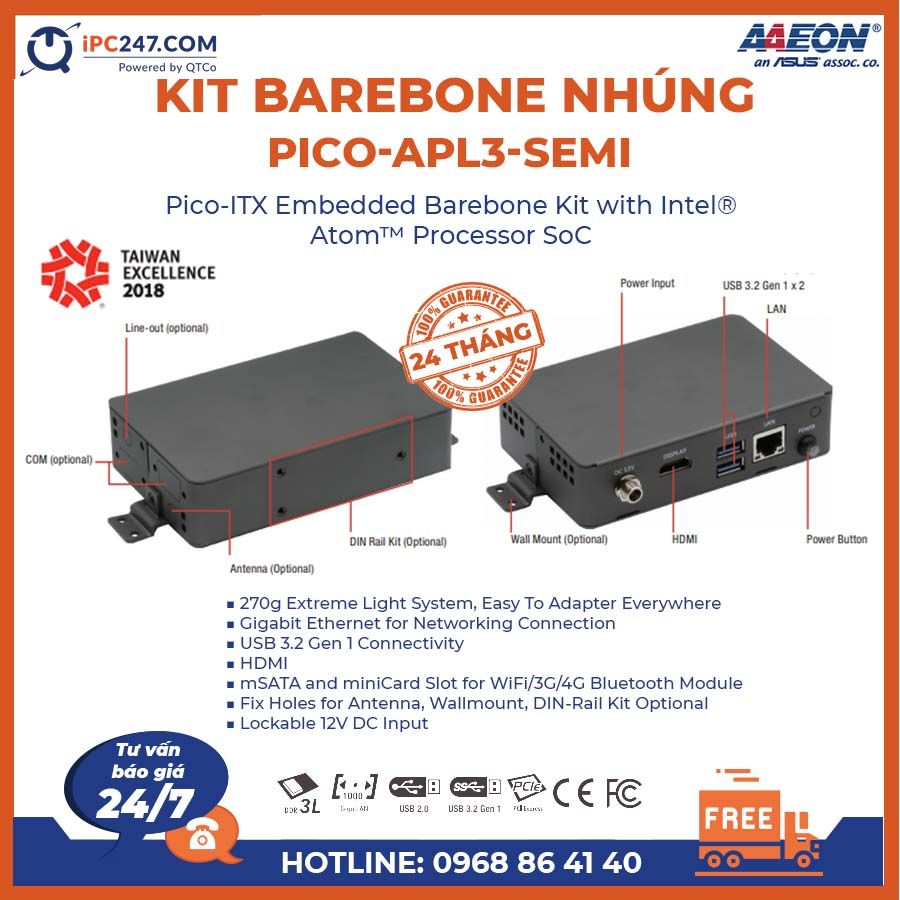

Kit Barebone nhúng PICO-APL3-SEMI (Pico-ITX)
Pico-ITX Embedded Barebone Kit with Intel® Atom™ Processor SoC
Overview
Pico-ITX Embedded Barebone Kit with Intel® Atom™ Processor SoC
Features
- 180g Extreme Light System, Easy To Adapter Everywhere
- Gigabit Ethernet for Networking Connection
- USB 3.2 Gen 1 Connectivity
- HDMI
- M.2 2280 (B) M.2 2230 (E) Slot for WiFi/3G/4G Bluetooth Module
- Fix Holes for Antenna, Wallmount, DIN-Rail Kit Optional
- Lockable 12V DC Input
Specifications [PICO-APL3-SEMI]
| SYSTEM | |
| FORM FACTOR | Pico-ITX |
| PROCESSOR | Intel® Pentium® N4200 (4C. 1.1 GHz, up to 2.5 GHz, TDP 6W) Intel® Celeron® N3350 (2C. 1.1 GHz, up to 2.4 GHz, TDP 6W) *Wait for E3900 series in 2019 within ATRF according |
| SYSTEM MEMORY | DDR3L, memory down, up to 4GB |
| CHIPSET | Intel® SoC |
| ETHERNET | Realtek 8111G x 1 10/100/1000Mbps, RJ-45 x 1 |
| BIOS | AMI BIOS |
| WAKE ON LAN | Yes |
| WATCHDOG TIMER | 255 Levels |
| EXPANSION INTERFACE | M.2 2230 E key (For WIFI/BT Module) |
| POWER REQUIREMENT | Normal: +12V |
| POWER SUPPLY TYPE | Lockable |
| POWER CONSUMPTION | N4200 @ 4GB DRAM/eMMC 32GB, 12V @1.1A (Full Loading) |
| SYSTEM SIZE | W/O heat sink: 4.8″ x 3.15″ x 1.18″ (122 x 80 x 30 mm) W/ heat sink: 4.8″ x 3.15″ x 1.73″ (122 x 80 x 44 mm) |
| GROSS WEIGHT | W/O heat sink: 0.4 lb (165g) W/ heat sink: 0.89 lb (407g) |
| OPERATING TEMPERATURE | 32°F~ 122°F (0°C ~ 50°C), 0.5 m/s airflow |
| STORAGE TEMPERATURE | -40˚F ~ 176˚F (-40˚C ~ 80˚C) |
| HUMIDITY | 0% ~ 90% relative humidity, non-condensing |
| MTBF | 110,000 |
| DISPLAY | |
| CHIPSET | Intel® SoC |
| VIDEO OUTPUT | HDMI 1.4 |
| TOUCH | — |
| I/O | |
| STORAGE/SSD | M.2 2280 x 1 (B-Key) eMMC 32GB, up to 128GB (optional) |
| USB PORT | USB 3.2 Gen 1 x 2 (Rear IO) USB2.0 x 2 (Internal option) |
| SERIAL PORT | Optional |
| AUDIO | Optional |
| EXPANSION SLOT | RS-232 x 1, RS-232422/485 x 1 (Optional) |
| CERTIFICATION | |
| CERTIFICATION | CE, FCC |
Ordering Information [PICO-APL3-SEMI]
| PART NUMBER | PICO-APL3-SEMI-A10-FS01 | PICO-APL3-SEMI-A10-FS02 | PICO-APL3-SEMI-A10-FS03 | PICO-APL3-SEMI-A10-FS04 | PICO-APL3-SEMI-A10-FS05 | PICO-APL3-SEMI-A10-FS06 |
|---|---|---|---|---|---|---|
| CPU | Celeron® N3350 (Dual Core) | Celeron® N3350 (Dual Core) | Pentium® N4200 (Quad Core) | Celeron® N3350 (Dual Core) | Celeron® N3350 (Dual Core) | Pentium® N4200 (Quad Core) |
| MEMORY | On board DDR3L 2GB | On board DDR3L 4GB | On board DDR3L 4GB | On board DDR3L 2GB | On board DDR3L 4GB | On board DDR3L 4GB |
| THERMAL | W/ heat sink | W/ heat sink | W/ heat sink | W/O heat sink | W/O heat sink | W/O heat sink |
| DISPLAY | HDMI x 1 | HDMI x 1 | HDMI x 1 | HDMI x 1 | HDMI x 1 | HDMI x 1 |
| STORAGE | SATAIII x 1, M.2 2280 (B Key) x 1, eMMC 32GB | SATAIII x 1, M.2 2280 (B Key) x 1, eMMC 32GB | SATAIII x 1, M.2 2280 (B Key) x 1, eMMC 32GB | SATAIII x 1, M.2 2280 (B Key) x 1, eMMC 32GB | SATAIII x 1, M.2 2280 (B Key) x 1, eMMC 32GB | SATAIII x 1, M.2 2280 (B Key) x 1, eMMC 32GB |
| LAN | GbE x 1 | GbE x 1 | GbE x 1 | GbE x 1 | GbE x 1 | GbE x 1 |
| USB | USB 3.2 Gen 1 x 2 (Rear) | USB 3.2 Gen 1 x 2 (Rear) | USB 3.2 Gen 1 x 2 (Rear) | USB 3.2 Gen 1 x 2 (Rear) | USB 3.2 Gen 1 x 2 (Rear) | USB 3.2 Gen 1 x 2 (Rear) |
| EXPANSION SLOT | M.2 2230 (E Key) x 1 | M.2 2230 (E Key) x 1 | M.2 2230 (E Key) x 1 | M.2 2230 (E Key) x 1 | M.2 2230 (E Key) x 1 | M.2 2230 (E Key) x 1 |
| POWER | +12V (ATX) | +12V (ATX) | +12V (ATX) | +12V (ATX) | +12V (ATX) | +12V (ATX) |
| POWER TEMP | 0°C ~ 50°C @ 0.5 m/s airflow |
0°C ~ 50°C @ 0.5 m/s airflow |
0°C ~ 50°C @ 0.5 m/s airflow |
0°C ~ 50°C @ 0.5 m/s airflow |
0°C ~ 50°C @ 0.5 m/s airflow |
0°C ~ 50°C @ 0.5 m/s airflow |
| OTHERS | COM (Optional) Line-Out (Optional) | COM (Optional) Line-Out (Optional) | COM (Optional) Line-Out (Optional) | COM (Optional) Line-Out (Optional) | COM (Optional) Line-Out (Optional) | COM (Optional) Line-Out (Optional) |
Downloads [PICO-APL3-SEMI]
1. Datasheet:
2. Manual:
-PICO-APL3-SEMI Manual 4.0
-Quick Installation Guide
-PICO-APL3-SEMI (with Heatsink)
Packing List
- PICO-APL3-SEMI
Optional Accessories
| Part Number | Description | Qty. |
| 125530040C | (TF)Power Adapter.12V.40W.FSP.FSP040-DHAN3 | 1 |
| 1702031802 | Power Cord (US Type) | 1 |
| 1702031803 | Power Cord (European Type) | 1 |
| 170203180E | Power Cord (Japan Type) | 1 |
| 1701090122 | COM Port Cable | 2 |
| 1703100084 | Audio Line-Out | 1 |
| 9761SEMI00 | Wallmount Kit | 1 |
| 9761SEMI01 | DIN-Rail Kit | 1 |
