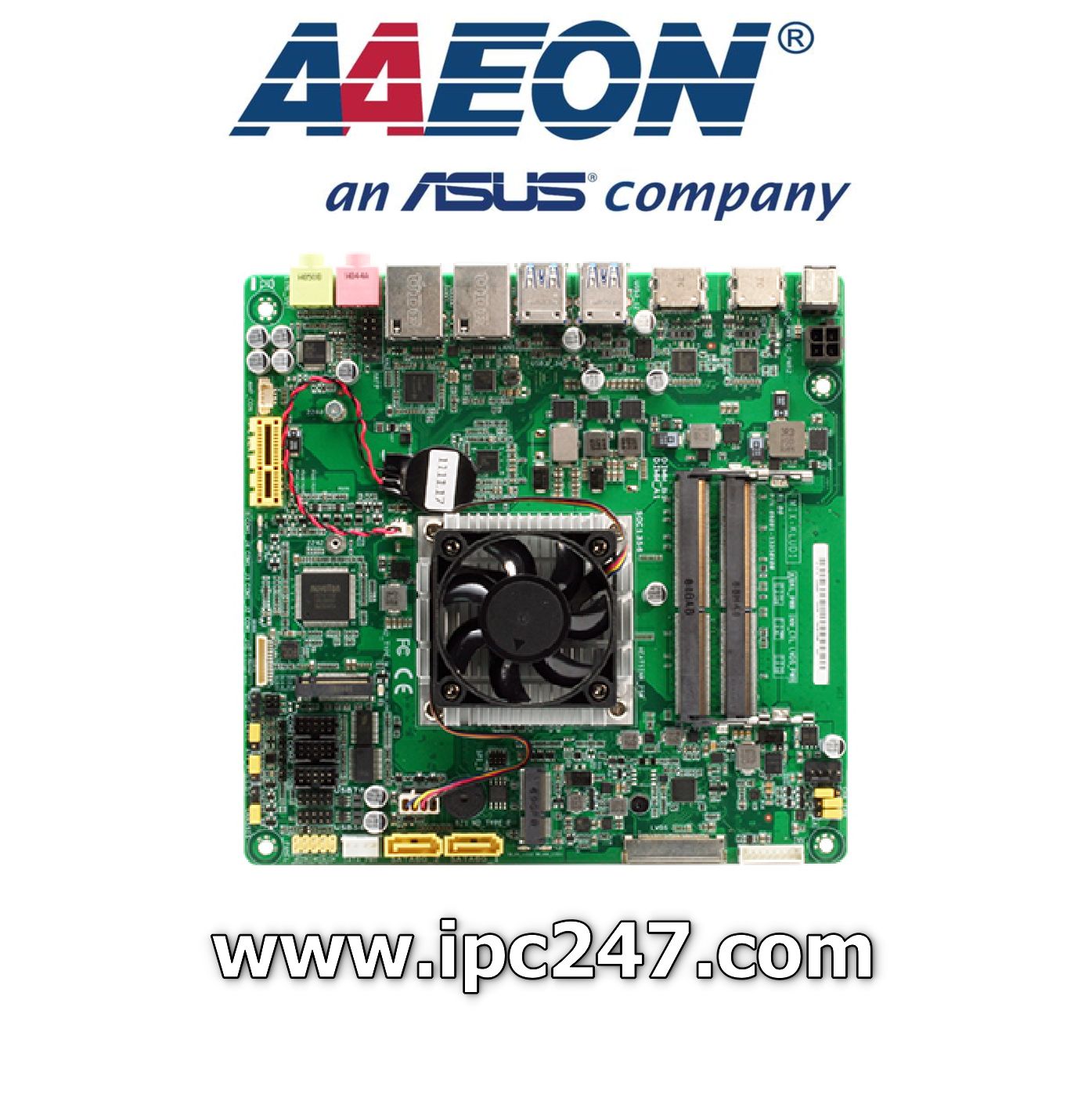

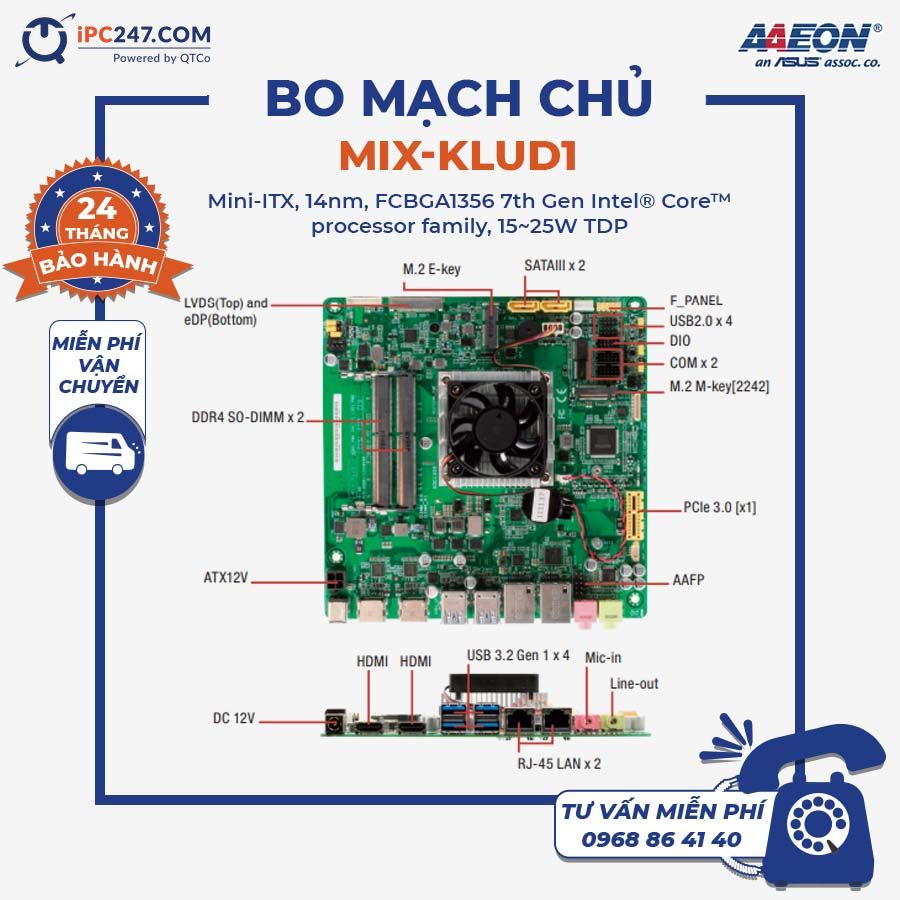

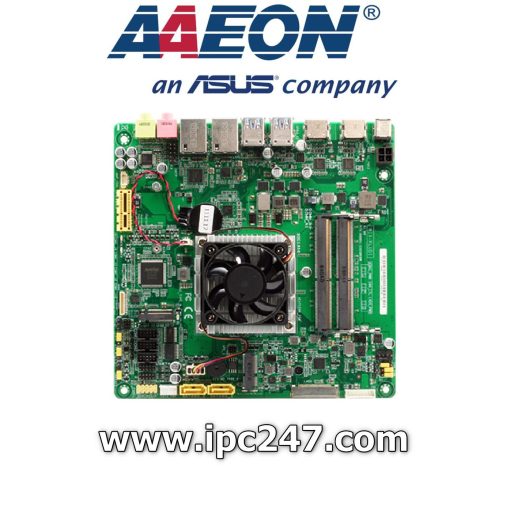

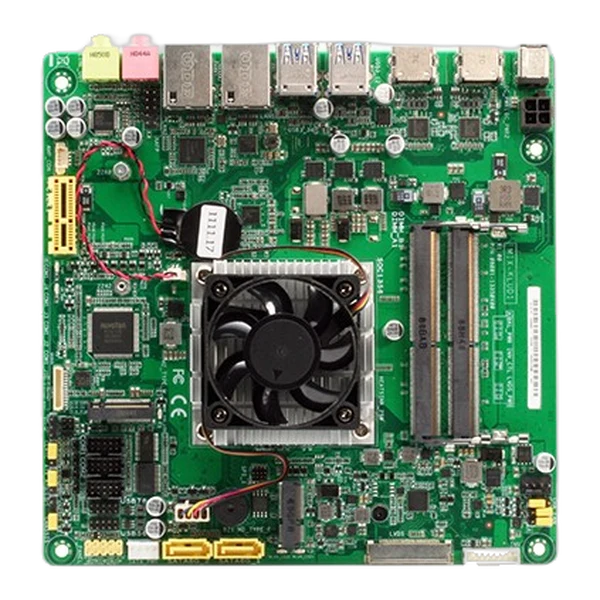

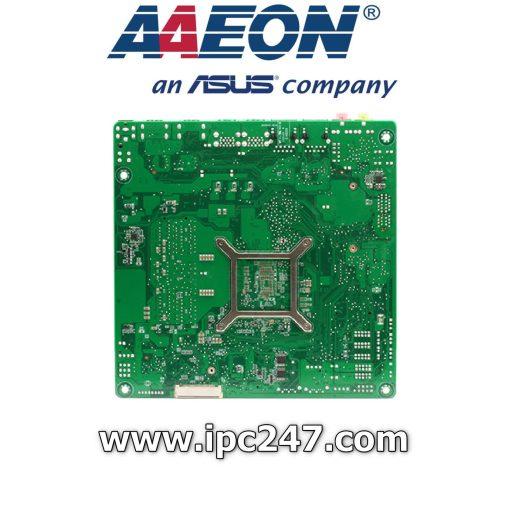

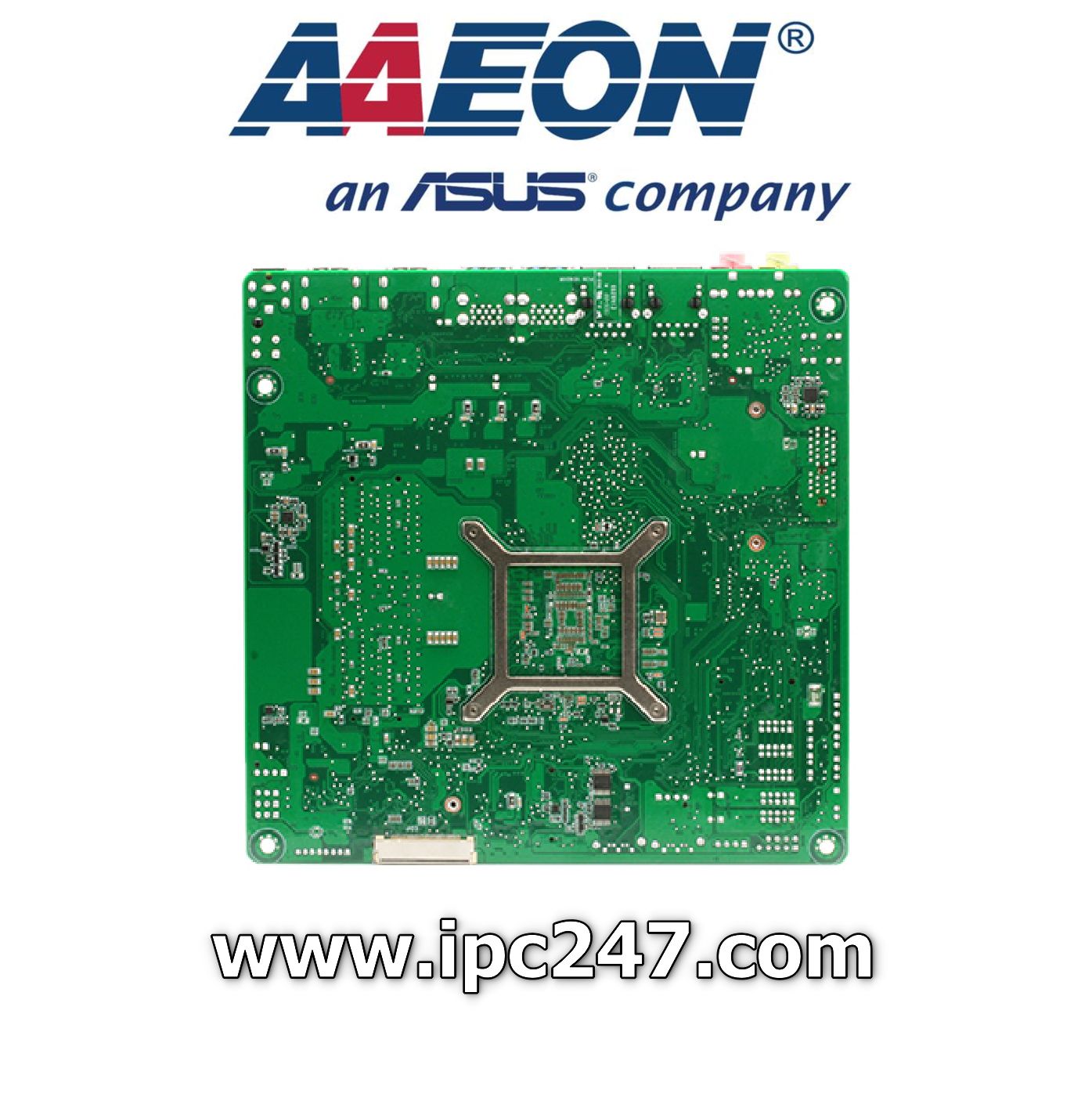

Bo mạch chủ Mini-ITX MIX-KLUD1
Mini-ITX, 14nm, FCBGA1356 7th Gen Intel® Core™ processor family, 15~25W TDP
Overview
The MIX-KLUD1 from AAEON is a powerful, thin industrial embedded motherboard design for machine controller applications from CNC mills to automated robotics. The MIX-KLUD1 offers a cost competitive design with flexibility and performance, supporting the 7th Generation Intel Core Processors and up to 32 GB of memory.
Powered by Intel
The MIX-KLUD1 supports the 7th Generation Intel Core (U-series) Processors, formerly Kaby Lake, to power high performance computing
Flexible Display Options
The MIX-KLUD1 supports a variety of display options including Dual HDMI and eDP or LVDS display outputs.
Built for the Task
AAEON offers our manufacturer services to provide customization and configuration options to match your specific needs.
Features
- DDR4 SODIMM x 2, Up to 32GB
- Three Independent Display: VGA x 1 or HDMI x 1, eDP x 1 or LVDS x 1
- Intel® LAN i211AT x 1, 219LM for iAMT 12.0 x 1
- M.2 Slot (M-key) x 1
- M.2 Slot (E-key) x 1
- PCIe3.0 [x1] x 1
- 12V DC
Specifications [MIX-KLUD1]
| SYSTEM | |
| PROCESSOR | 14nm 7th Generation Intel® Core™ i7-7600U, 2C/4T, 2.8/3.9(turbo)GHz, 4M, 300MHz/1.15GHz (Turbo) GFX, ~25W TDP Core™ i5-7300U, 2C/4T, 2.6/3.5(turbo)GHz, 3M, 300MHz/1.10GHz (Turbo) GFX, ~25W TDP Core™ i5-7200U, 2C/4T, 2.5/3.1(turbo)GHz, 3M, 300MHz/1.00GHz |
| CHIPSET | — |
| MEMORY | SODIMM x 2, max. 32GB, DDR4-2133 non-ECC, un-buffered memory |
| I/O CHIPSET | NCT6793D |
| ETHERNET | Intel® PCIe Gb L AN 219LM for vPro (i7-7600U/i5-7300U) x 1 Intel® PCIe Gb L AN 211AT x 1 |
| AUDIO | Realtek® ALC887 with Amp. |
| TPM | NPCT650ABBYX TPM2.0 onboard (default: No) |
| EXPANSION SLOT | PCIe 3.0 [x1] x 1 M.2 M key (22 x 80mm) x 1, SATA & PCIe [x4] M.2 E key (22 x 30mm) x 1 for Wireless-wifi module (PCIe+USB) |
| BIOS | 128Mbit Flash ROM, AMI BIOS |
| H/W MONITOR | Temperature Monitor on CPU/Chassis, Voltage Monitor on Vcore/5V/12V, Fan Monitor on CPU/Chassis |
| WATCHDOG TIMER | 1~255 step by software program |
| SMART FAN CONTROL | CPU Fan/Chassis Fan |
| WAKE ON LAN/ PXE | Yes (WOL/PXE) |
| POWER STATE | S3, S4, S5 |
| GRAPHICS | |
| GRAPHICS CHIPSET | Intel® UHD Graphics |
| GRAPHICS MULTI DISPLAY | HDMI x 2, eDP x 1 or LVDS x 1 |
| VGA | — |
| DVI | — |
| HDMI | HDMI 1.4 up to 4096 x 2340 @24Hz |
| DISPLAYPORT | — |
| LVDS | Up to 1920 x 1200 @ 60 Hz, Dual Channel 18/24 bit |
| EDP | UP to 4096 x 2304 @ 60Hz |
| BACKLIGHT CONTROL | Voltage/PWM; Max 1A |
| ENVIRONMENTAL & POWER & ME | |
| BATTERY | Lithium battery |
| POWER REQUIREMENT | 12V DC |
| OPERATING TEMPERATURE | 32°F ~ 131°F (0°C ~ 55°C) |
| STORAGE TEMPERATURE | -40°F ~ 185°F (-40°C ~85°C) |
| OPERATING HUMIDITY | 0% ~ 90%RH, non-condensing |
| CERTIFICATION | CE & FCC (Class A) |
| FORM FACTOR | Mini-ITX: 6.7” x 6.7” (170mm x 170mm) |
| WEIGHT | 1.1 lb (0.5 Kg) |
| MTBF (HOURS) | — |

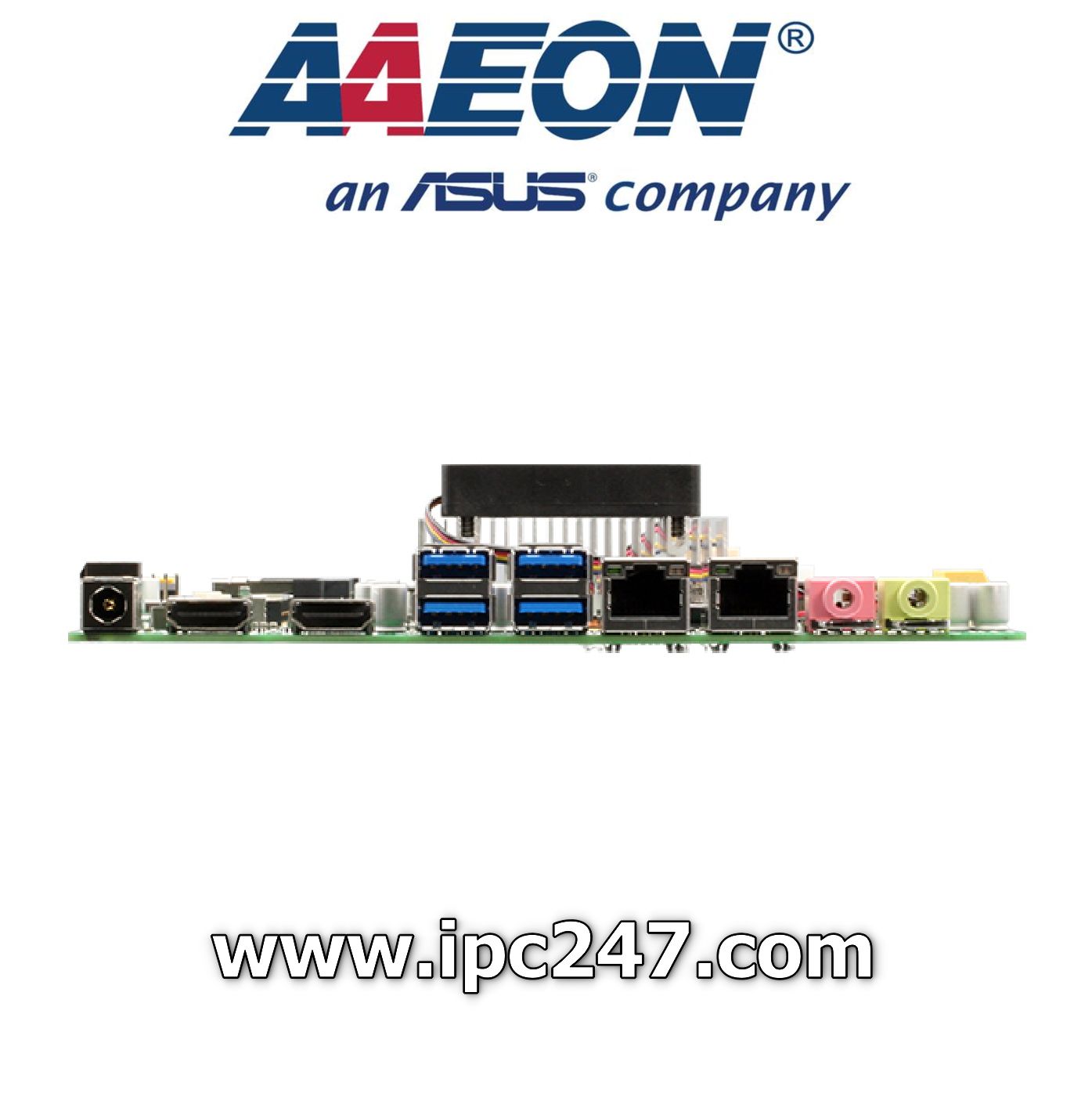

| REAR I/O PORTS | |
| USB | USB 3.2 Gen 1 (5 Gbps) x 4 |
| DISPLAY I/O | HMDI x 2 |
| AUDIO I/O | Mic-in x 1, Line-out x 1 |
| LAN I/O | LAN (RJ-45) port x 2 |
| SERIAL PORT | — |
| PS/2 PORT | — |
| OTHERS | DC Power Jack x 1 |
| INTERNAL I/O CONNECTORS | |
| STORAGE | M.2 M key (22 x 80mm) for PCIe [x4]/SATA storage x 1, SATA 6.0Gb/s x 2, 4-pin SATA power x 1 |
| USB | USB 2.0 pin header x 2 support additional 4 USB ports |
| DISPLAY I/O | 40-pin LVDS connector x 1, 40-pin eDP connector x 1, LCD backlight connector(inverter) x 1 |
| AUDIO I/O | Speaker for [email protected]Ω x 1, AAFP follow ASUS pin out x 1 |
| SERIAL PORT | Boxer header x 2 for COM (COM1: RS-232/422/485 supports 5V/12V/RI) |
| PS/2 PORT | — |
| PARALLEL PORT | — |
| DIO | 8-bit programmable (4-in/4-out) x 1 |
| FAN | 4-pin CPU Fan connector x 1, 4-pin Chassis Fan connector x 1 |
| POWER | — |
| OTHERS | Front Panel connector x 1, Chassis Intrusion x 1, Buzzer onboard x 1, CMOS jumper x 1 |
| OS | |
| OS SUPPORT | Windows® 10 64-bit |
Ordering Information [MIX-KLUD1]
| PART NUMBER | MIX-KLUD1-A10-7100-LV |
|---|---|
| CPU | i3-7100U |
| RAM | SODIMM x 2 |
| FAN/ FANLESS | Fanless |
| DISPLAY | HDMI x 2, LVDS |
| STORAGE | SATA3 x 2, M.2 (M-key) |
| LVDS | Dual Channel 18/24 bit |
| LAN | GbE x 2 |
| USB | USB 3.2 Gen 1 x 4, USB 2.0 x 4 |
| RS-232 | 1 |
| RS-232/422/485 | 1 |
| EXPANSION SLOT | PCIe[x1] x 1, M.2(M-key) x 1, M.2(E-Key) x 1 |
| POWER | 12V DC |
| TPM | — |
| TEMP | 32°F ~ 131°F (0°C ~ 55°C) |
Downloads [MIX-KLUD1]
1. Datasheet:
2. Manual: MIX-KLUD1 Manual 1.0
Packing List
- Heatsink/CPU Fan
- SATA Cable
- SATA Power Cable
- I/O Shield
- MIX-KLUD1
Optional Accessories
| Part Number | Description |
| 1709100201 | USB 2.0 Cable (10P, 200MM, p=2.00mm, w/bracket) |
| 1700100491 | USB 2.0 Cable (2 x 5P, 490mm, p=2.00mm) |
| 1709050201 | USB 2.0 Cable (5P, 220mm, p=2.00mm) |
| 1701100206 | COM Cable (200MM, p=2.00mm) |
| 1702150300 | SATA Power Cable (4P, 300MM p=2.54mm) |
| 1702151201 | SATA Power Cable (4P, 120MM, p=2.5mm) |
| 125590084A | Adapter 12V,84W/N3 |
