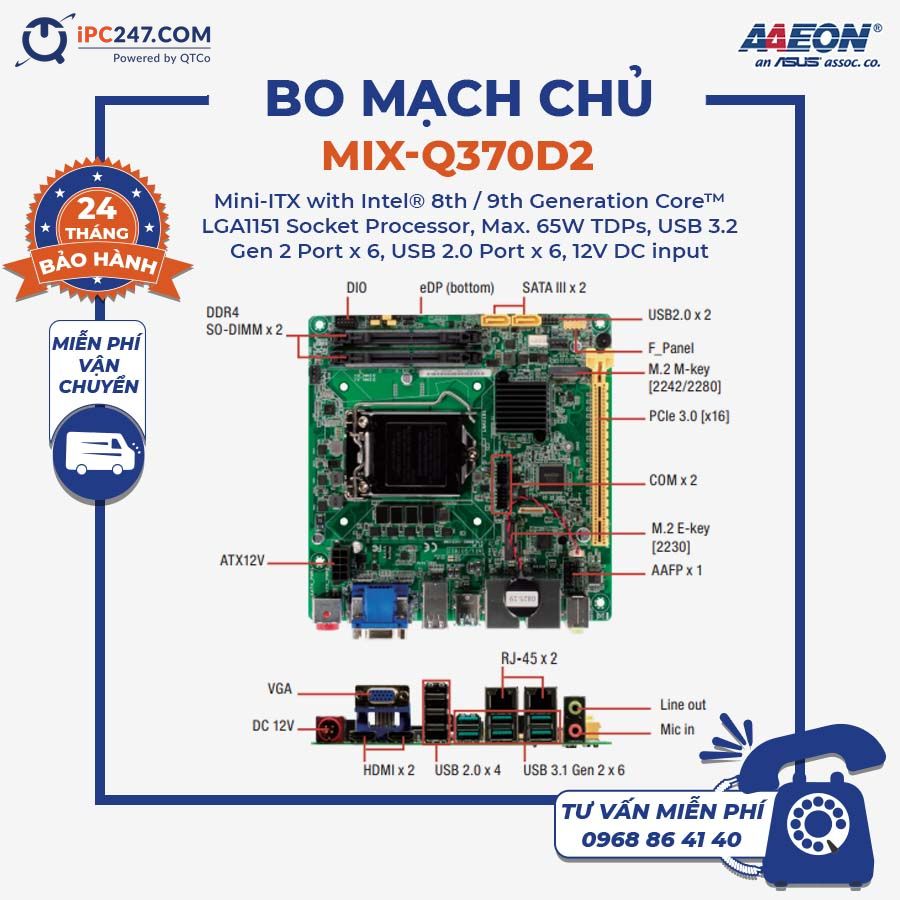

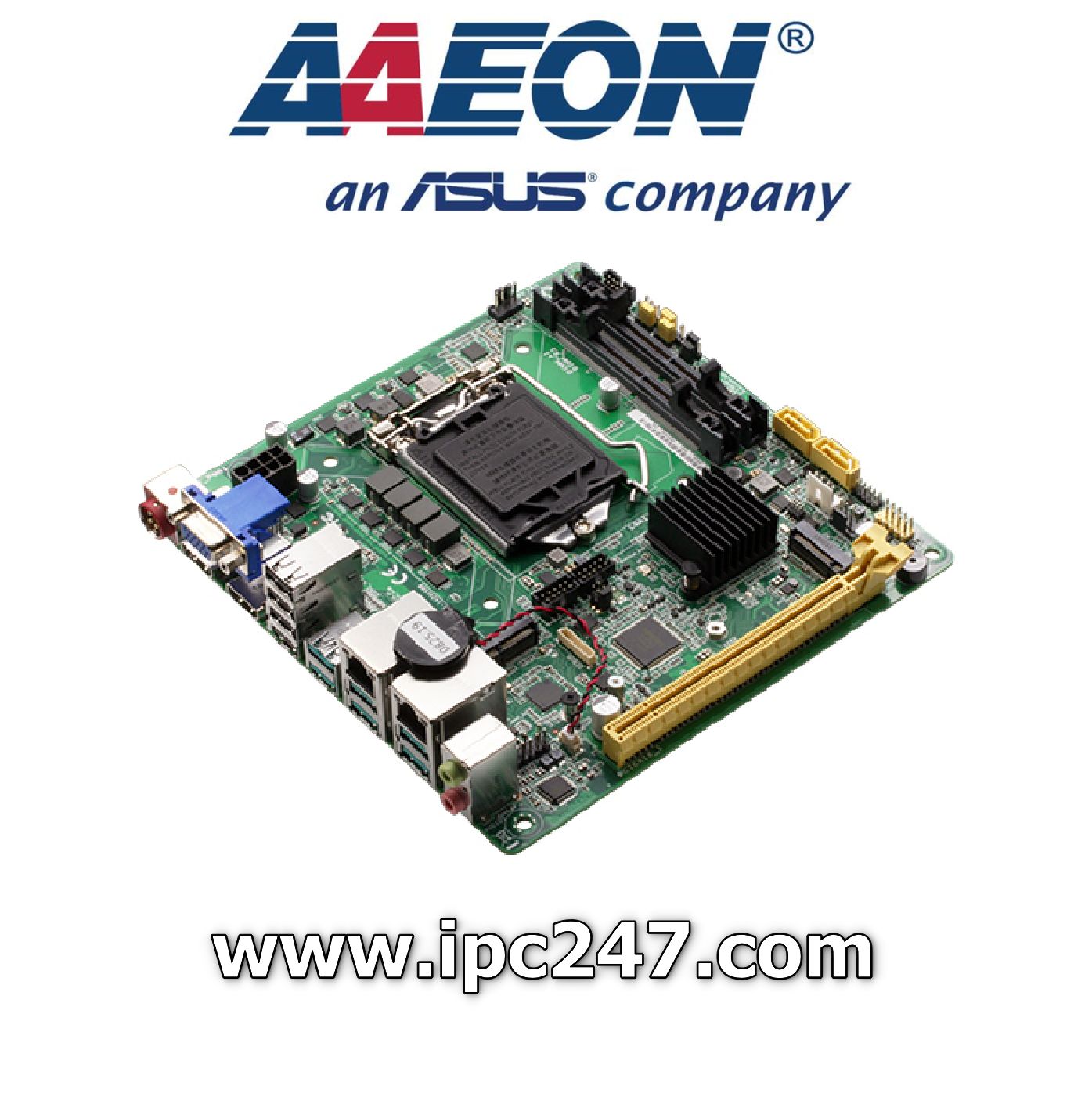

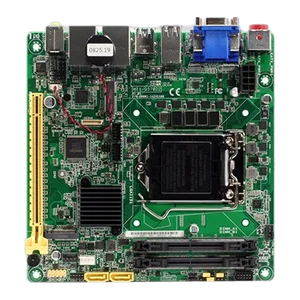

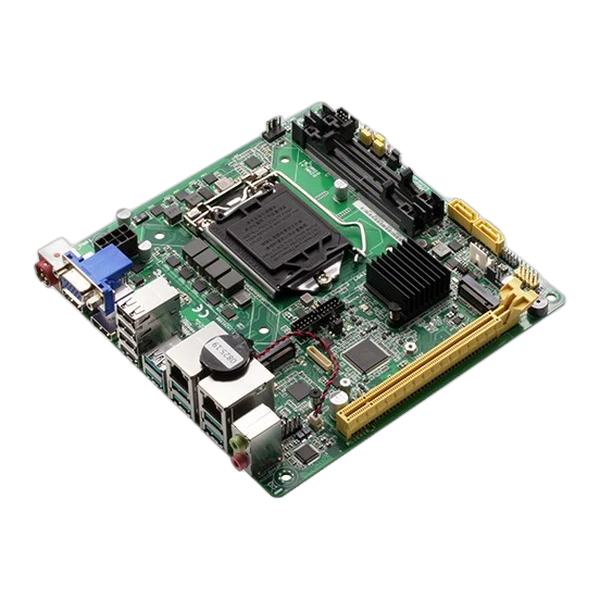

Bo mạch chủ Mini-ITX MIX-Q370D2
Mini-ITX with Intel® 8th / 9th Generation Core™ LGA1151 Socket Processor, Max. 65W TDPs, USB 3.2 Gen 2 Port x 6, USB 2.0 Port x 6, 12V DC input
Overview
The MIX-Q370D2 from AAEON combines the power of the 8th and 9th Generation Intel® Core™ processors (formerly Coffee Lake, Coffee Lake Refresh) with a full I/O suite on the flexible Mini-ITX form factor. The MIX-Q370D2 provides users with six USB 3.2 Gen 2 ports, six USB 2.0 ports, and display output from HDMI, VGA and eDP. It also offers M.2 with NVMe to support the fastest storage options available. The MIX-Q370D2 is designed with the features needed to power any industrial computing application.
8th/9th Generation Intel® Core™ MIX-Q370D2 supports the 8th/9th Gen Intel® Core™ i3/i5/i7 processors (formerly Coffee Lake, Coffee Lake Refresh), offering top end CPU performance for any task.
Faster Computing MIX-Q370D2 supports up to 64 GB of DDR4 SODIMM memory to help unlock your processor’s performance. Along with M.2 M-Key (2280/2242) slot with support for NVMe and SATA storage, the MIX-Q370D2 won’t slow down your vital applications.
Full Featured I/O MIX-Q370D2 provides a full suite of I/O ports including six USB 3.2 Gen 2 ports, four USB 2.0, and two Gigabit Ethernet LAN ports. Display support includes two HDMI, one VGA port and eDP.
PCI Express MIX-Q370D2 includes PCIe 3.0 [x16] expansion slot to support VGA graphics cards to power performance demanding AI and edge computing applications. The board also offers an M.2 E-Key (2230) slot for further expansion.
Industrial Applications The MIX-Q370D2 is already proving itself in the real world, powering industrial AI applications including visual inspection of battery production lines, helping to increase safety and accuracy of manufacturing facilities.
Features
- 8th/9th Gen. Intel® Core™ LGA1151 Processor
- DDR4 DRAM Support, 2666MHz, Max. 64GB
- M.2 Slot (M key; NVME/SATA) x 1, M.2 Slot (E key) x 1
- USB 3.2 Gen 2 Port x 6, USB 2.0 Port x 6
- Intel® Gigabit Ethernet x 2
- SATA 6.0 Gb/s x 2
- PCI-Express [x16] (Gen3) x 1
- 12VDC input
| SYSTEM | |
| PROCESSOR | Intel® Coffee Lake-S LGA 1151 socket Processor Max. 65W TDPs |
| CHIPSET | Intel® Q370 Express Chipset |
| MEMORY | DDR4 2666/2400/2133 MHz SODIMM x 2, Up to 64GB, Non-ECC, Un-buffered Memory, Dual channel memory architecture |
| I/O CHIPSET | NCT6793D |
| ETHERNET | Intel® GbE LAN i219V x 1, Intel® GbE LAN i211AT x 1 |
| AUDIO | Realtek® ALC887 |
| TPM | NPCT750AAAYX TPM2.0 |
| EXPANSION SLOT | PCIe3.0 [x16] x 1 M.2 E-key(22 x 30 mm) x1 for Wireless-wifi module ( PCIe+USB; CNVi) |
| BIOS | 256Mbit Flash ROM, AMI BIOS |
| H/W MONITOR | Temperature Monitor on CPU/Chassis, Voltage Monitor on Vcore/5V/12V, Fan Monitor on CPU/Chassis |
| WATCHDOG TIMER | 1~255 steps by software program |
| SMART FAN CONTROL | CPU Fan/Chassis Fan |
| WAKE ON LAN/ PXE | Yes (WOL/PXE) |
| POWER STATE | S3, S4, S5 |
| GRAPHICS | |
| GRAPHICS CHIPSET | Intel® HD Graphics |
| GRAPHICS MULTI DISPLAY | HDMI x 2 + VGA + eDP |
| VGA | Up to 1920 x 1200 @ 60 Hz |
| DVI | — |
| HDMI | Up to 3840 x 2160 @30 Hz(HDMI 1.4b) |
| DISPLAYPORT | — |
| LVDS | — |
| EDP | eDP UP to 4096 x 2304 @ 60Hz |
| BACKLIGHT CONTROL | Support eDP |
| ENVIRONMENTAL & POWER & ME | |
| BATTERY | Lithium battery |
| POWER REQUIREMENT | 12V DC |
| OPERATING TEMPERATURE | 32°F ~ 140°F (0°C ~ 60°C) |
| STORAGE TEMPERATURE | -40°F ~ 185°F (-40°C ~ 85°C) |
| OPERATING HUMIDITY | 0% ~ 90% R/H, non-condensing |
| CERTIFICATION | CE & FCC |
| FORM FACTOR | Mini-ITX: 6.7″ x 6.7″ (170 mm x 170 mm) |
| WEIGHT | 1.1 lb (0.5 Kg) |
| MTBF (HOURS) | — |
| REAR I/O PORTS | |
| USB | USB 3.2 Gen2 x 6, USB2.0 x 4 |
| DISPLAY I/O | VGA x 1, HDMI x 2 |
| AUDIO I/O | Mic-in x 1, Line-out x 1 |
| LAN I/O | LAN (RJ-45) port x 2 |
| SERIAL PORT | — |
| PS/2 PORT | — |
| OTHERS | 12V DC Jack (max:192W) |
| INTERNAL I/O CONNECTORS | |
| STORAGE | SATA3.0 (6.0Gb/s) x 2 M.2 M-key (22 x 42/80mm; NVME/SATA) x 1 |
| USB | USB 2.0 (2 x 5-pin, 2.00mm) x 1 port support additional 2 USB |
| DISPLAY I/O | eDP x 1 |
| AUDIO I/O | AAFP x 1 |
| SERIAL PORT | Boxer header for COM (RS-232) x 1; RS-232/422/485 x 1 |
| PS/2 PORT | — |
| PARALLEL PORT | — |
| DIO | Digital I/O box header x 1 |
| FAN | 4-pin CPU Fan connector x 1, 4-pin Chassis Fan connector x 1 |
| POWER | 12V ATX Power Connector x 1 |
| OTHERS | Front Panel connector x 1 Chassis Intrusion x 1 Buzzer onboard x 1 CMOS jumper x 1 SATA Power connector x 1 SPI ROM programming header x 1 ATX/AT mode jumper x 1 eDP backlight power jumper x 1 eDP T-con IC power jumper x 1 |
| OS | |
| OS SUPPORT | Windows® 10 64-bit, Linux Ubuntu 18.04.2 |
Ordering Information [MIX-Q370D2]
| PART NUMBER | MIX-Q370D2-A10 |
|---|---|
| CPU | Socket |
| RAM | SODIMM x 2 |
| FAN/FANLESS | Fan |
| DISPLAY | VGA, HDMI x 2, eDP |
| STORAGE | SATA3 x2 M.2(M-key) x 1 |
| LVDS | — |
| LAN | GbE x 2 |
| USB | USB2.0 x 6 USB3.2 Gen 2 x 6 |
| RS-232 | 1 |
| RS-232/422/485 | 1 |
| EXPANSION SLOT | PCIe3.0[x16] x 1 M.2(E-Key) x 1 |
| POWER | 12V DC |
| TPM | 2.0 |
| TEMP | 32°F ~140°F (0°C ~ 60°C) |
Downloads [MIX-Q370D2]
1. Datasheet:MIX-Q370D2,datasheet 1.0
2. Manual: MIX-Q370D2 Manual 1.0
Packing List
- SATA Cable
- SATA Power Cable
- I/O Shield
- Product DVD
- MIX-Q370D2
Optional Accessories
| 1759200172 | CPU Cooler (2-Ball, Screw with Retention Plate) |
| 175921156B | CPU Cooler (2-Ball, Push-pin Type) |
| COOLER-65W-01 | CPU Cooler, LGA 1156, 12V, 65W, 4P, Kingcooler, 0571-1463R |
| 1709100201 | USB 2.0 Cable (10P, 200MM, p=2.00mm, w/bracket) |
| 1701100206 | COM Cable (200MM, p=2.00mm) |
| 1700100491 | USB 2.0 Cable (10P, 490mm, p=2.00mm) |
| 1255X00011 | (TF)AC/DC Adapter.12V.192W.16A.FSP192-AHAN3.9NA1920100 |
