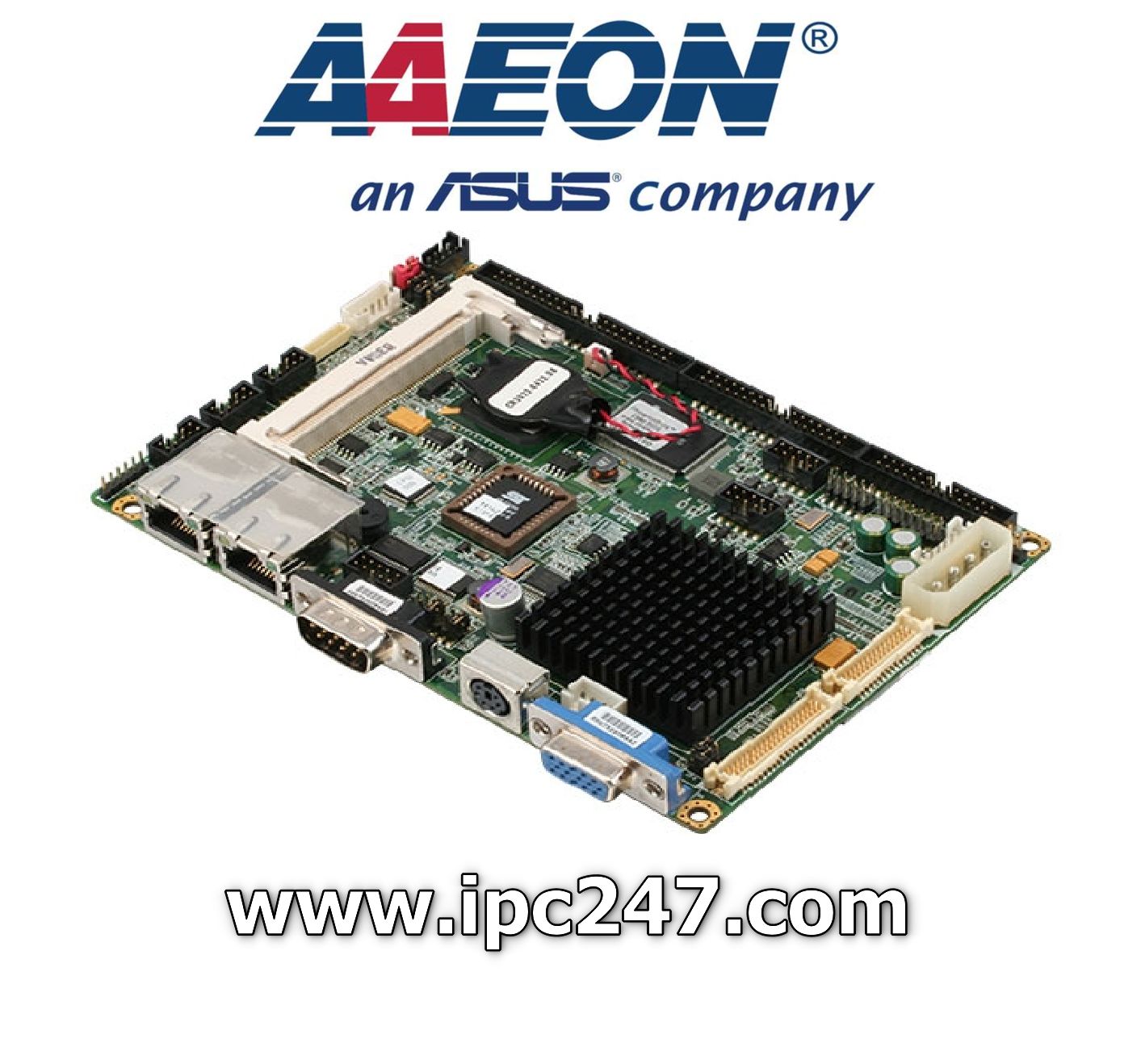

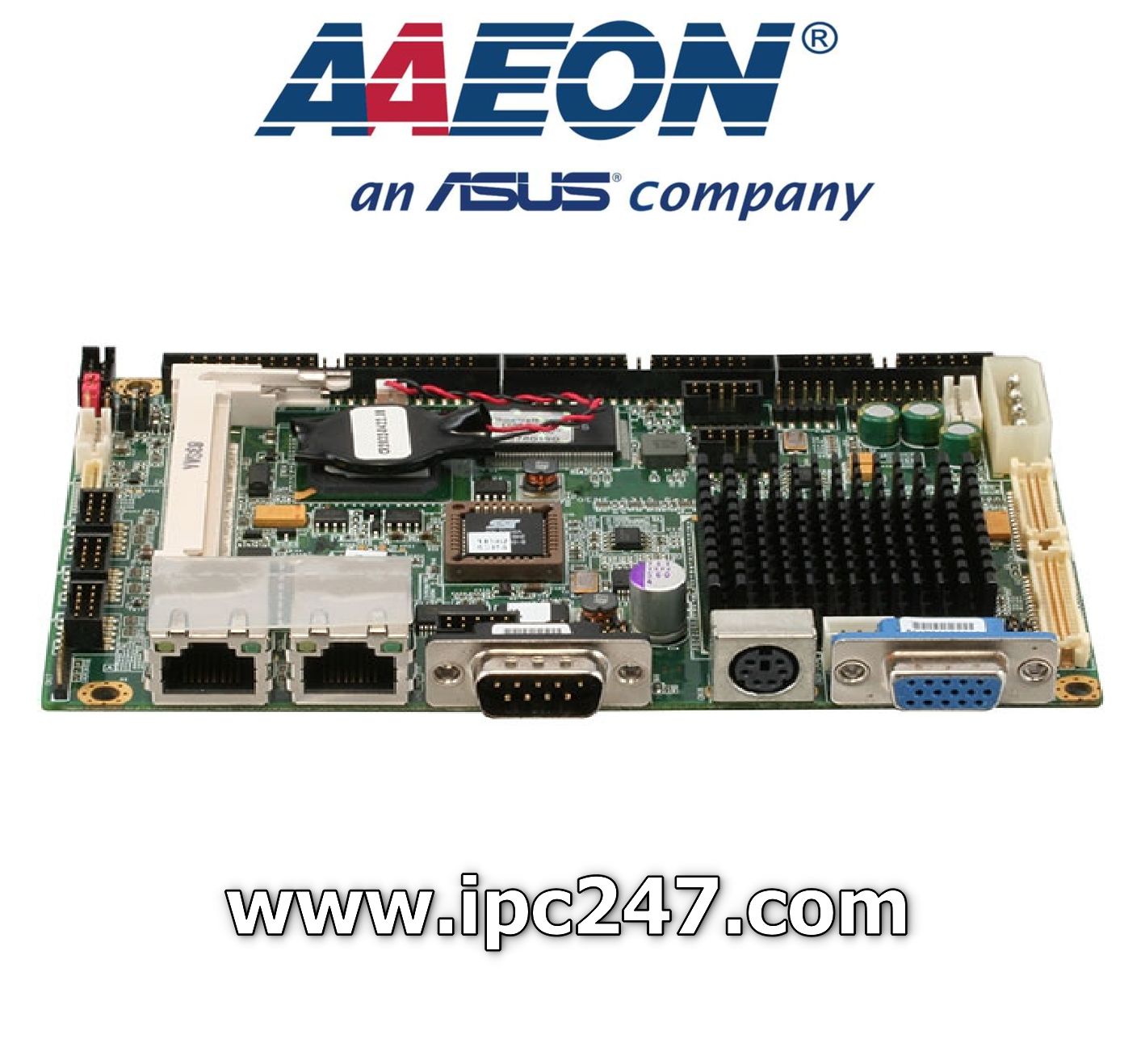

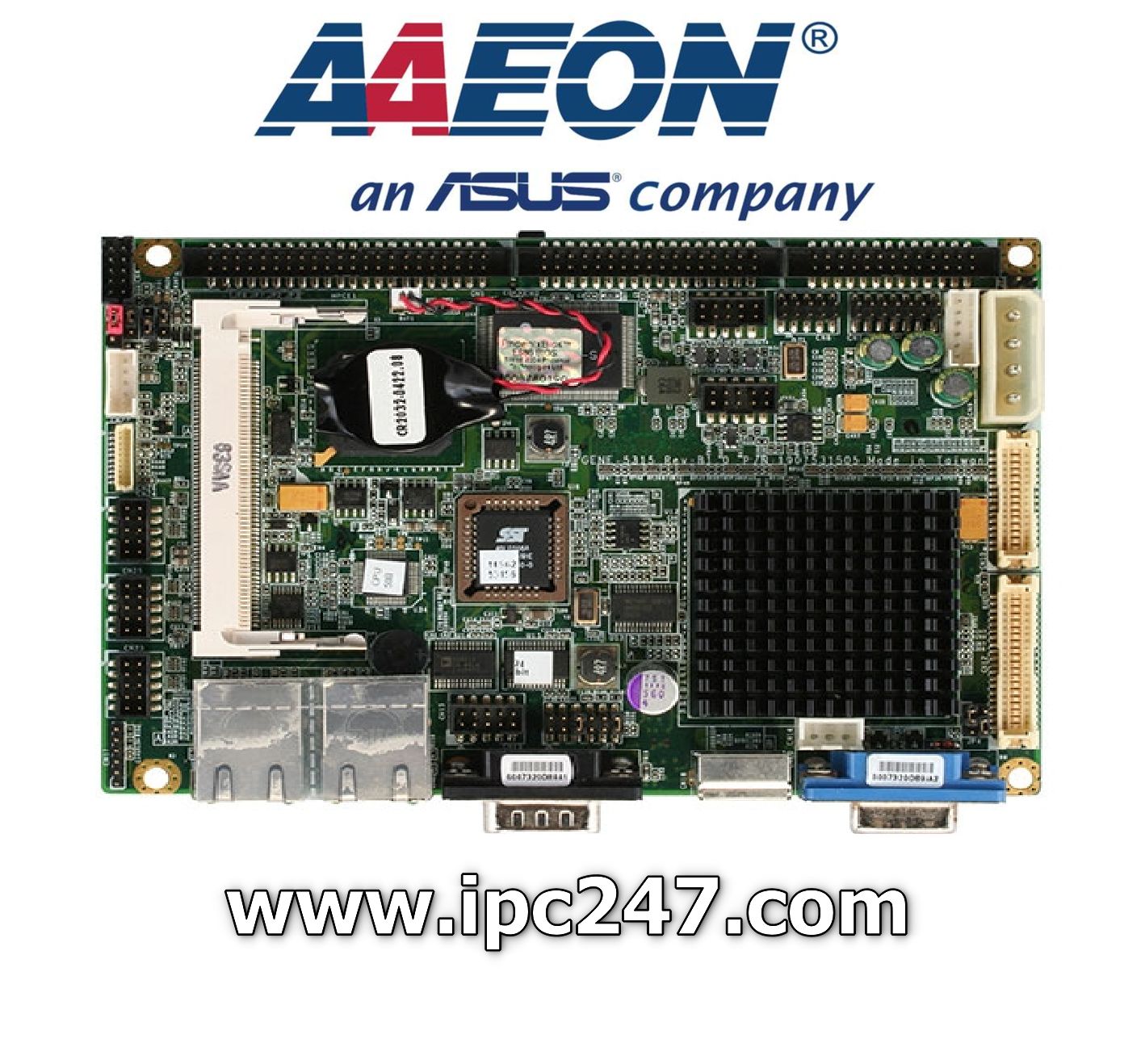

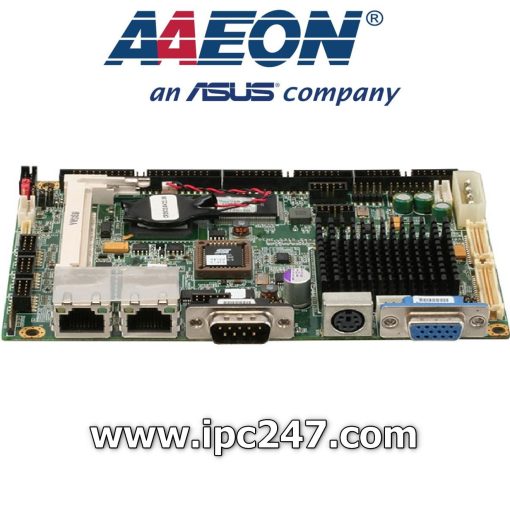

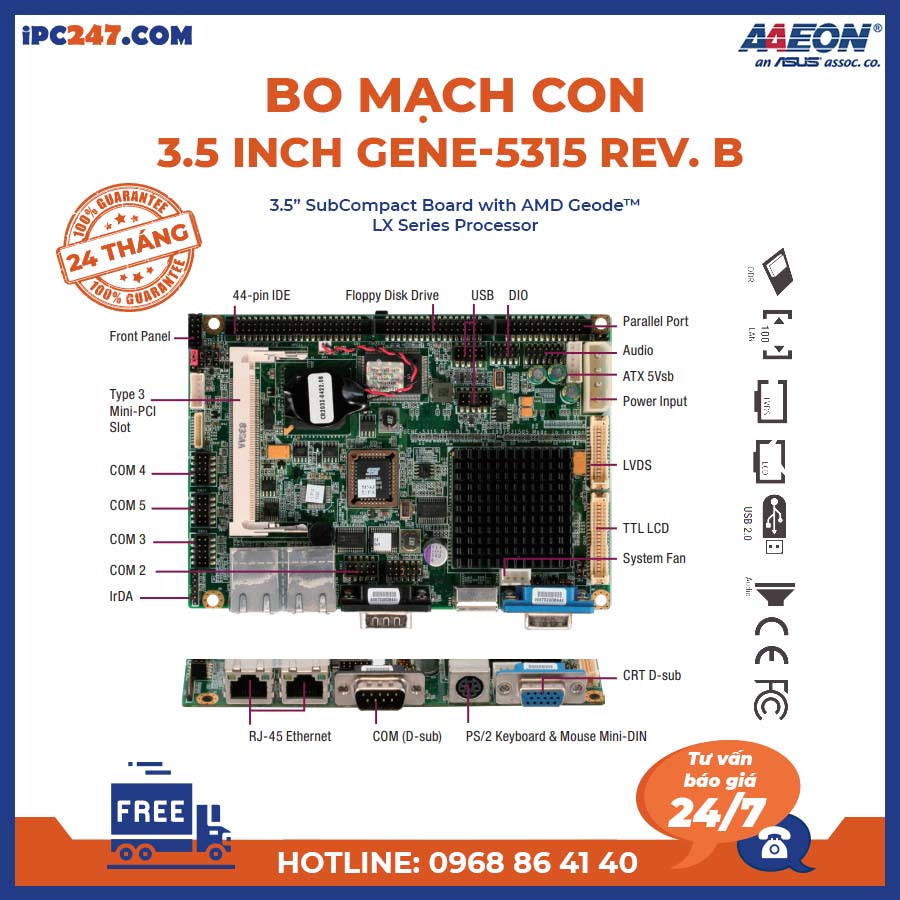

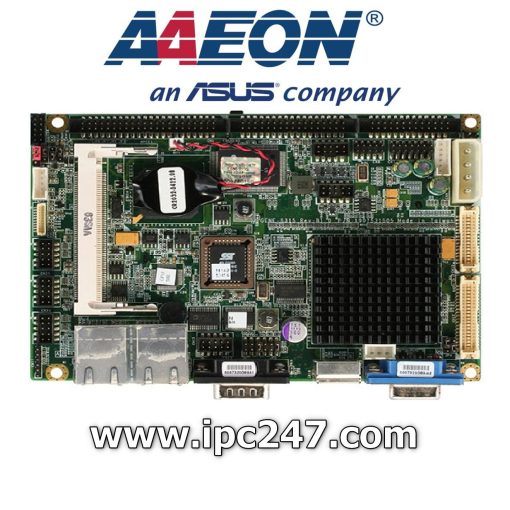

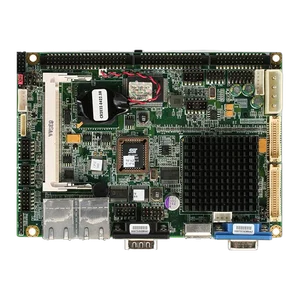

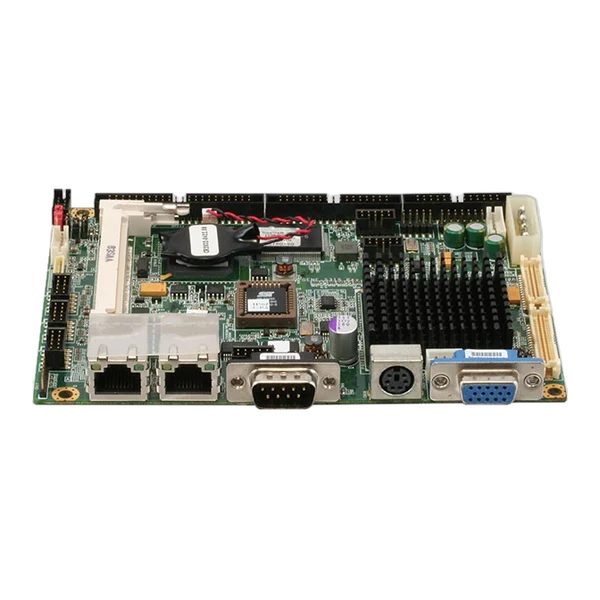

Bo mạch con 3.5 inch GENE-5315 Rev. B
3.5” SubCompact Board with AMD Geode™ LX Series Processor
Overview
The GENE-5315 Rev. B Subcompact board balance performance and cost in the embedded market. GENE-5315 Rev. B adopts optional onboard AMD Geode™ LX 800 and LX 700. The system memory is deployed with SODIMM DDR 333/400 up to 1GB. In addition, Realtek RTL8139DL supports two 10/100Base-TX allowing network connections. This model applies a Type III Mini PCI socket and PC/104 socket for expansion. Moreover, four USB 2.0, IDE, RS-232, RS-232/422/485 and parallel ports are configured on the GENE-5315 Rev. B. Full functions make GENE-5315 Rev. B user friendly. With the GENE-5315 Rev. A, there are no more worries about installing many necessary devices to complete the functions of your system.
Applications
- Portable POS
- Building/ Factory Automation
- Gaming Machine
- Transportation
- Compact Information System
- Panel PC
- Medical Machine & KIOSK
Features
- Onboard AMD Geode™ LX800 Processor
- AMD Geode™ LX + CS5536
- DDR 333 MHz SODIMM x 1, Up to 1 GB or DDR 400 MHz SODIMM x 1, Up to 512 MB
- 10/100Base-TX Ethernet x 2, RJ-45 x 2
- Up to 24-bit Single Channel LVDS/ TTL LCD & CRT
- AC97 Codec 2CH Audio
- EIDE x 1, Floppy Disk Drive x 1, CompactFlash™ x 1
- COM x 5, Parallel x 1, USB2.0 x 4, 8-bit Digital I/O
- Mini-PCI x 1
- +5V Only Operation
Specifications [GENE-5315 Rev. B]
| SYSTEM | |
| FORM FACTOR | 3.5″ SubCompact Board |
| CPU | Onboard AMD Geode™ LX 800 |
| CPU FREQUENCY | 500 MHz |
| CHIPSET | AMD Geode™ LX |
| MEMORY TYPE | DDR333 SODIMM x 1 (DDR400 optional) |
| MAX. MEMORY CAPACITY | 1 GB |
| BIOS | Award 1 MB |
| WAKE ON LAN | Yes |
| WATCHDOG TIMER | 255 Levels |
| POWER REQUIREMENT | +5V |
| POWER SUPPLY TYPE | AT/ ATX |
| POWER CONSUMPTION (TYPICAL) | LX 800 500 MHz, DDR400 1 GB, 1.17A@+5V |
| DIMENSION (L X W) | 5.75″ x 4″ (146mm x 101.6mm) |
| OPERATING TEMPERATURE | 32°F ~ 140°F (0°C ~ 60°C), -4°F ~ 158°F (-20°C ~ 70°C) for WiTAS 1 |
| STORAGE TEMPERATURE | -40°F ~ 176°F (-40°C ~ 80°C) |
| OPERATING HUMIDITY | 0% ~ 90% relative humidity, non-condensing |
| MTBF (HOURS) | 90,000 |
| CERTIFICATION | CE/FCC |
| DISPLAY | |
| VGA/LCD CONTROLLER | AMD Geode™ |
| VIDEO OUTPUT | CRT, TTL LCD, LVDS LCD |
| BACKLIGHT INVERTER SUPPLY | Up to 24-bit single channel TTL/LVDS |
| I/O | |
| ETHERNET | 10/100Base-TX x 2, Realtek RTL 8139DL |
| AUDIO | High Definition Audio Interface |
| USB PORT | USB2.0 x 4 |
| SERIAL PORT | RS-232 x 4 & TTL UART x 1, RS-232/422/485 x 1 |
| PARALLEL PORT | SPP/EPP/ECP x 1 |
| HDD INTERFACE | UDMA33 x 1 |
| FDD INTERFACE | FDD x 1 |
| SSD | CompactFlash™ |
| EXPANSION SLOT | Mini-PCI |
| DIO | 8-bit |
| SIM | — |
| TPM | — |
| TOUCH | — |
Ordering Information [GENE-5315 Rev. B]
| PART NUMBER | GENE-5315-B12 | GENE-5315-B12-01 | GENE-5315W1-B12 | GENE-5315W1-B12-01 |
|---|---|---|---|---|
| CPU | AMD Geode™ LX800 | AMD Geode™ LX800 | AMD Geode™ LX800 | AMD Geode™ LX800 |
| FAN/FANLESS | Fanless | Fanless | Fanless | Fanless |
| DISPLAY | CRT + LVDS CRT + TTL | CRT + LVDS CRT + TTL | CRT + LVDS CRT + TTL | CRT + LVDS CRT + TTL |
| LVDS | 24b,1CH | 18b, 1CH | 24b,1CH | 18b, 1CH |
| STORAGE | EIDE x 1 Floppy x 1 CompactFlash™ x 1 |
EIDE x 1 Floppy x 1 CompactFlash™ x 1 |
EIDE x 1 Floppy x 1 CompactFlash™ x 1 |
EIDE x 1 Floppy x 1 CompactFlash™ x 1 |
| LAN | FE x 2 | FE x 2 | FE x 2 | FE x 2 |
| USB | UBS2.0 x 4 | UBS2.0 x 4 | UBS2.0 x 4 | UBS2.0 x 4 |
| RS-232 | 4 | 4 | 4 | 4 |
| RS-232/422/485 | 1 | 1 | 1 | 1 |
| EXPANSION SLOT | Mini-PCI x 1 | Mini-PCI x 1 | Mini-PCI x 1 | Mini-PCI x 1 |
| POWER | +5V, AT/ATX | +5V, AT/ATX | +5V, AT/ATX | +5V, AT/ATX |
| POWER TEMP | 0°C ~ 60°C | 0°C ~ 60°C | WiTAS 1 (-20°C ~ 70°C) | WiTAS 1 (-20°C ~ 70°C) |
| OTHERS | DIO x 8 | DIO x 8 | DIO x 8 | DIO x 8 |
Downloads [GENE-5315 Rev. B]
1. Datasheet: GENE-5315 Rev. B, datasheet 2.0
2. BIOS
-GENE-5315 Rev.B | V1.0 1.0
-GENE-5315 Rev.B | V1.1 1.1
3. Driver
-AES: Windows XP
-Audio Driver: Windows XP
-Graphic Driver: Windows XP
-Lan Driver: Windows XP, Windows 2000, Linux, Widnows 98, Windows ME
-PCI to ISA: Windows XP
4. Manual: GENE-5315 Rev. B, manual 1.0
Packing List
- 9681531501: Cable Kit for GENE-5315
- 1700060192: Keyboard & Mouse Cable
- 1709100201: USB Cable
- 1701440500: IDE Cable
- 9657666600: Jumper Cap
- GENE-5315 Rev. B
Optional Accessories
| Part Number | Description | QTY |
| 1702200205 | Conversion Cable for ATX Power Supply, Length 20cm | 1 |
| 1709140181 | Audio Cable, Length 18cm | 1 |
| 1709100208 | USB Cable, Length 20cm | 1 |
| 1701100206 | COM Port Cable, 9P DB Male, Length 20cm | 1 |
| 1701260201 | Parallel Port Cable, Length 20 cm | 1 |
| 1701340600 | Floppy Cable, Length 60 cm | 1 |
