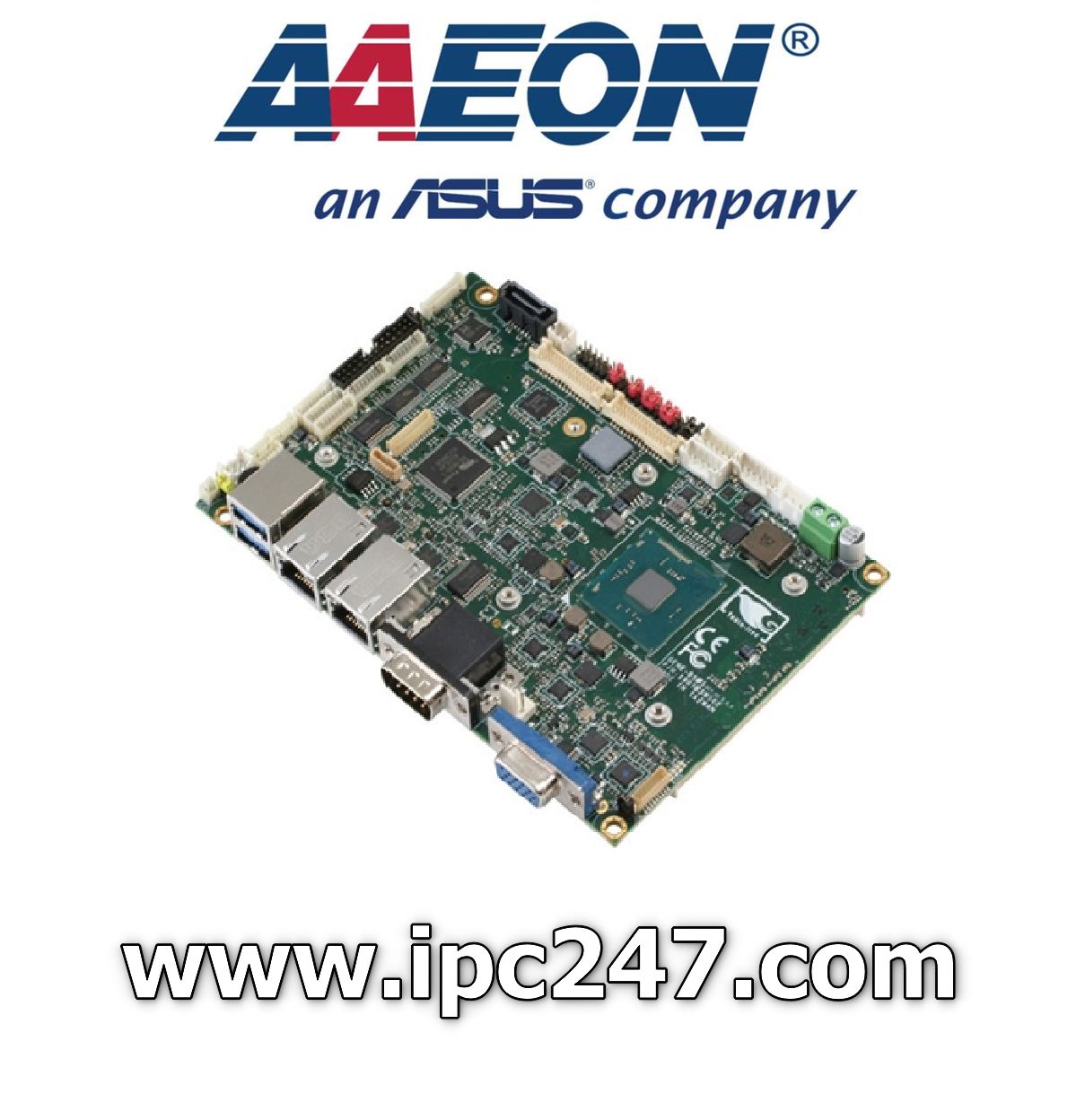

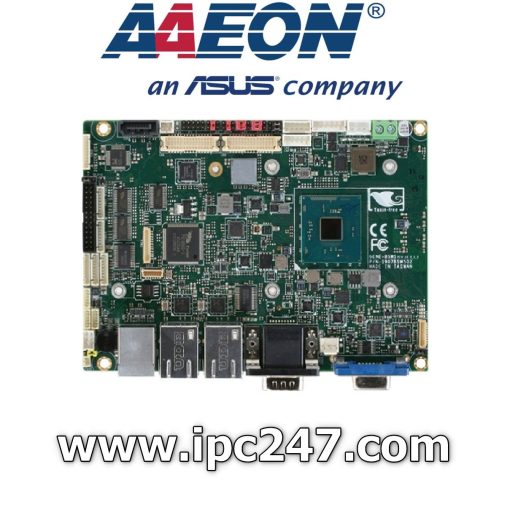

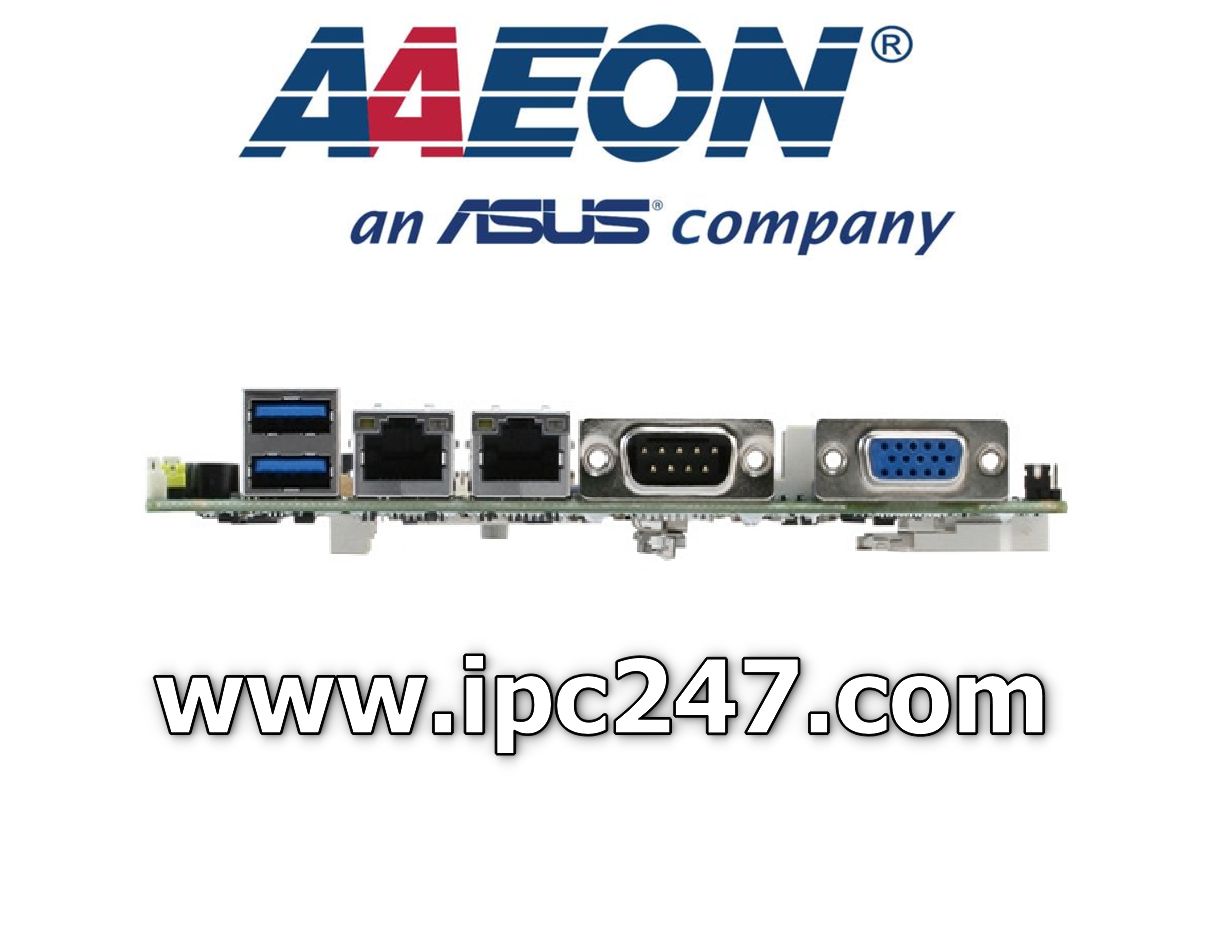

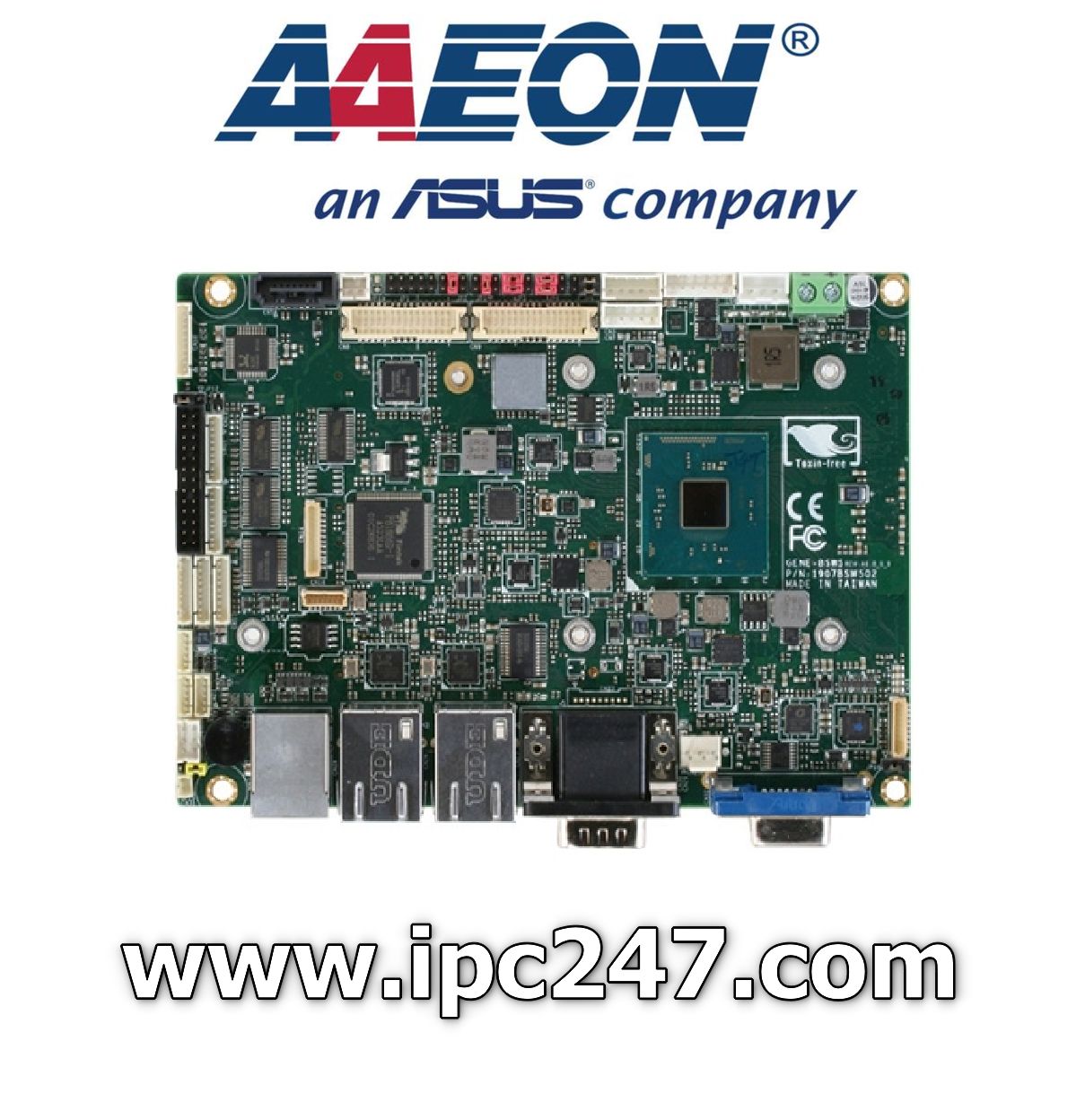

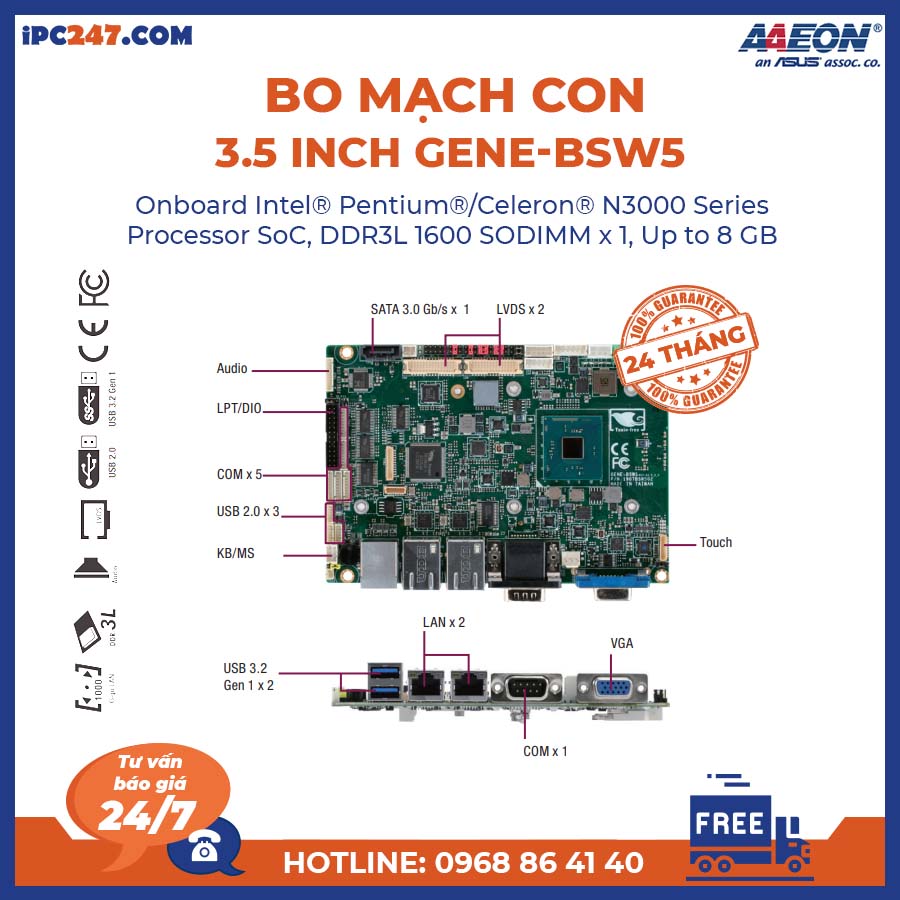

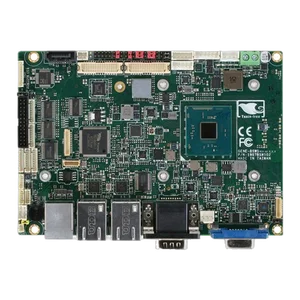

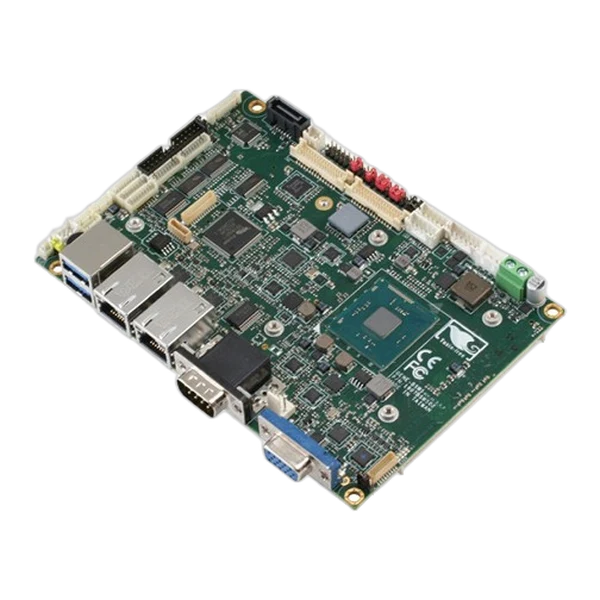

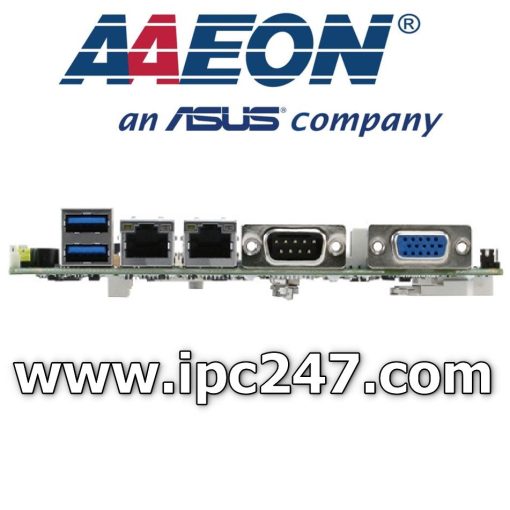

Bo mạch con 3.5 inch GENE-BSW5
3.5” SubCompact Board with Intel® Pentium & Celeron® N3000 Series Processor SoC
Overview
3.5” SubCompact Board with Intel® Pentium & Celeron® N3000 Series Processor SoC
Applications
- Building
- Factory Automation
- Panel PC
- KIOSK
- Medical Equipment
- Test & Measurement
Features
- Onboard Intel® Pentium®/Celeron® N3000 Series Processor SoC
- DDR3L 1600 SODIMM x 1, Up to 8 GB
- Gigabit Ethernet x 2
- VGA, LVDS1, LVDS2/HDMI (Co-design)
- 2CH HD Audio
- Mini-Card x 1 (Full-Size)
- mSATA x 1 (Shared with Mini-Card, Half-size)
- USB 3.2 Gen 1 x 2, USB2.0 x 3, COM x 6, Digital I/O 8-bit
- +12V DC, AT/ATX
Specifications [GENE-BSW5]
| SYSTEM | |
| FORM FACTOR | 3.5″ SubCompact Board |
| CPU | Intel® Pentium® & Celeron® M/D Processor SoC |
| CPU FREQUENCY | Up to 2.6 GHz |
| CHIPSET | Intel® Pentium® & Celeron® M/D Processor SoC |
| MEMORY TYPE | DDR3L 1600, SODIMM x 1 |
| MAX. MEMORY CAPACITY | Up to 8GB |
| BIOS | UEFI |
| WAKE ON LAN | Yes |
| WATCHDOG TIMER | 255 Levels |
| POWER REQUIREMENT | +12V |
| POWER SUPPLY TYPE | AT/ ATX |
| POWER CONSUMPTION (TYPICAL) | Intel® Celeron® N3160 (2M Cache,up to 2.24 GHz,DDR3L 1600MHz,8GB,0.65A@+12V) |
| DIMENSION (L X W) | 5.75″ x 4″ (146mm x 101.7mm) |
| OPERATING TEMPERATURE | 32°F ~ 140°F (0°C ~ 60°C) |
| STORAGE TEMPERATURE | -40°F ~ 176°F (-40°C ~ 81°C) |
| OPERATING HUMIDITY | 0% ~ 90% relative humidity, non-condensing |
| MTBF (HOURS) | 81,000 |
| CERTIFICATION | CE/FCC |
| DISPLAY | |
| VGA/LCD CONTROLLER | Intel® Pentium® & Celeron® M/D SoC |
| VIDEO OUTPUT | LVDS x 2 + VGA (HDMI is optional, shared with LVDS2) |
| BACKLIGHT INVERTER SUPPLY | Up to 24-bit dual-channel LVDS |
| I/O | |
| ETHERNET | Realtek RTL-8111E, 10/100/1000Base-TX, RJ-45 x2 |
| AUDIO | High Definition Audio Interface |
| USB PORT | USB 3.2 Gen 1 x 2 USB 2.0 x 3 |
| SERIAL PORT | RS-232/422/485 x 2, RS-232 x 4 |
| PARALLEL PORT | SPP/EPP/ECP x 1 (Option, Shared with DIO) |
| HDD INTERFACE | SATA 3.0 x 1 |
| FDD INTERFACE | — |
| SSD | mSATA x 1 (Half-size) |
| EXPANSION SLOT | Mini-Card x 1(Full-size) |
| DIO | 8-bit |
| SIM | x 1 |
| TPM | — |
| TOUCH | x 1 (USB interface) |
Ordering Information [GENE-BSW5]
| PART NUMBER | GENE-BSW5-A11-0001 | GENE-BSW5-A11-0002 |
|---|---|---|
| CPU | N3160 | N3160 |
| FAN/FANLESS | Fanless | Fanless |
| DISPLAY | VGA+LVDS | VGA+LVDS x 2 |
| LVDS | 24bit,2CH | 24bit,2CH |
| STORAGE | SATA x 1, mSATA x 1 (half size) |
SATA x 1 mSATA x 1 (half size) |
| LAN | GbE x 2 | GbE x 2 |
| USB | USB 3.2 Gen 1 x 2 USB2.0 x 3 |
USB 3.2 Gen 1 x 2 USB 2.0 x 3 |
| RS-232 | 2 | 4 |
| RS-232/422/485 | 2 | 2 |
| EXPANSION SLOT | miniCard x 1 (Full) | miniCard x 1 (Full) |
| POWER | 12V | 12V |
| POWER TEMP | 0°C ~ 60°C | 0°C ~ 60°C |
| OTHERS | DIO x 8 | Touch Controller, SIM, DIO x 8 |
Downloads [GENE-BSW5]
1. Datasheet: GENE-BSW5, datasheet 2.0
2. BIOS:
– GENE-BSW5 1.6:
– GENE-BSW5 2.1
3. Driver
– CHIPSET Driver: STEP1 – CHIPSET Driver, Windows 7 64, Windows 7 32, Windows 8 64, Windows 10 32, Windows 10 64
– VGA Driver: Windows 7 64, Windows 7 32, Windows 8 64, Windows 10 32, Windows 10 64
– AUDIO Driver: Windows 7 64, Windows 7 32, Windows 8 64, Windows 10 32, Windows 10 64
– Lan Driver: Linux, Windows 7 64, Windows 7 32, Windows 8 64, Windows 10 32, Windows 10 64
– Touchscreen Driver: Windows 7 64, Windows 7 32, Windows 8 64, Windows 10 32, Windows 10 64
– TXE Driver: Windows 7 64, Windows 7 32, Windows 8 64, Windows 10 32, Windows 10 64
– USB3.0: Windows 7 64, Windows 7 32, Windows 8 64, Windows 10 32, Windows 10 64
– Serial Port Driver: Windows 7 64, Windows 7 32, Windows 8 64, Windows 10 32, Windows 10 64
4. Manual: GENE-BSW5, manual 6.0
Packing List
- GENE-BSW5 with Passive Heatsink
Optional Accessorie
| Part Number | Description | QTY |
| 1702150155 | (TF)Power Cable.15P SATA(F).2P 2.0mm Housing(PH).15cm | 1 |
| 170220020B | (TF)Power Cable.20P ATX(M).4P 5.08mm Housing(F).+3P 2.5mm Housing (XH).20cm | 1 |
| 1709070500 | (TF)SATA CABLE.7P Pitch 1.27mm.50cm | 1 |
| 170204010R | (TF)Power Cable.Double 4P 5.08mm Housing(M).10cm | 1 |
| 1709100254 | (TF)PHONE JACK Cable.3P AUDIO JACK.1*10P 1.25mm HOUSING(F).25cm | 1 |
| 1701090150 | (TF)Flat Cable.D-Sub 9(M).9P Housing.9P 1.25mm pitch Housing.15cm | 5 |
| 1701260200 | (TF)Flat Cable.25P D-SUB FEMALE.26P 2.00mm Pitch Housing.20cm | 1 |
| 1703120130 | (TF)LPC cable.12P.to 12P 1.0mm Housing.13cm | 1 |
| 1700050207 | (TF)USB CABLE.1*5P Pitch=1.25mm Housinh.20cm.for PFM-945C | 3 |
| 1700060152 | (TF)Cable.6P 2.0mm Housing.W/O NOSE.6P MDM-6S KB&MS.15cm | 1 |
| 175011901M | (TF)BATTERY.3V.w/Wire 110mm.MITSUBISHI.Longtrump.CR2032-HAT00(MLF) | 1 |
OS Support
| Part Number | Description |
| OS-W10E-600-01809-MUI | Win10 IoT Ent LTSC 2019 MultiLang OEI Entry (ESD) , EPKEA,64bit |
| OS-W10E-300-01809-MUI | Win10 IoT Ent LTSC 2019 MultiLang OEI Entry (ESD) , EPKEA,32bit |
