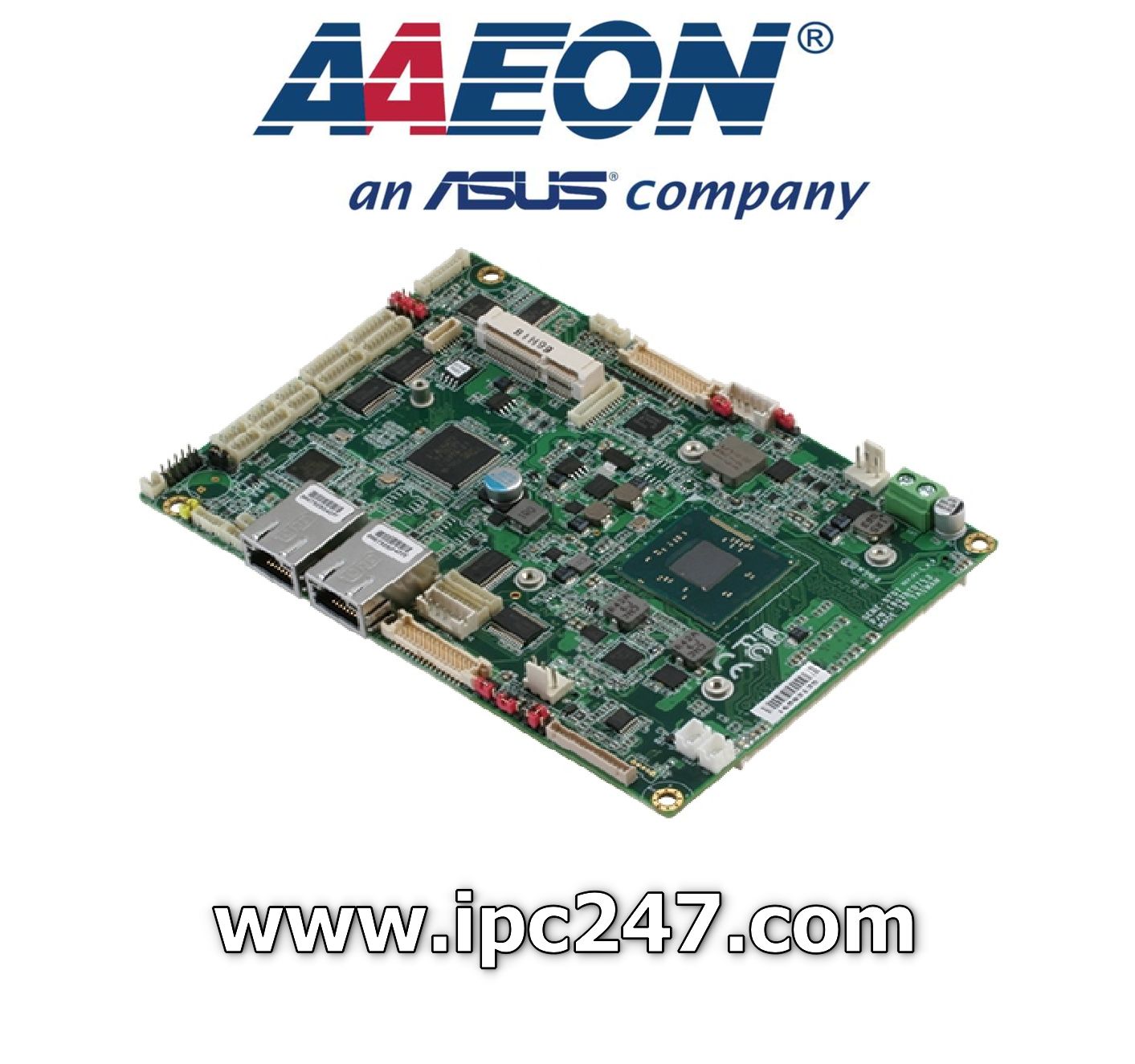

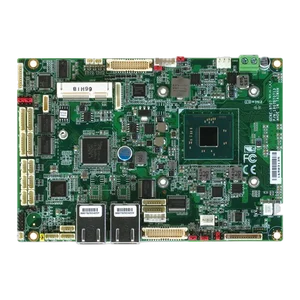

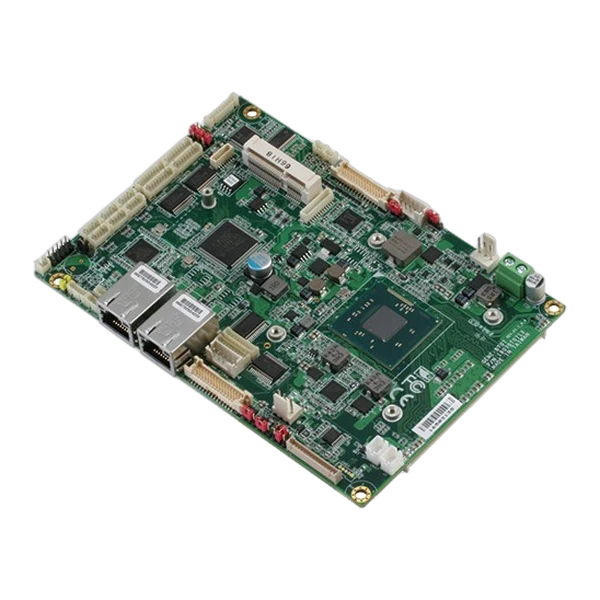

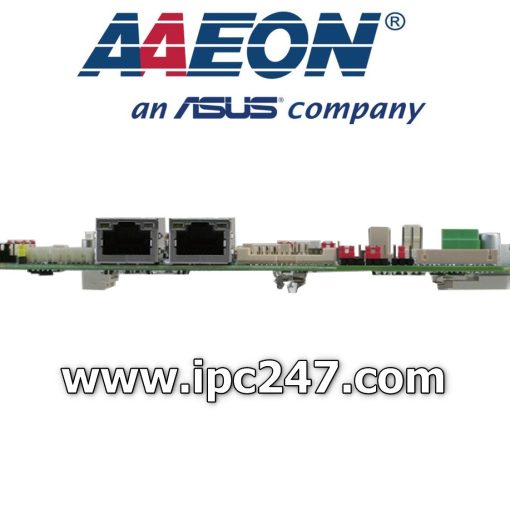

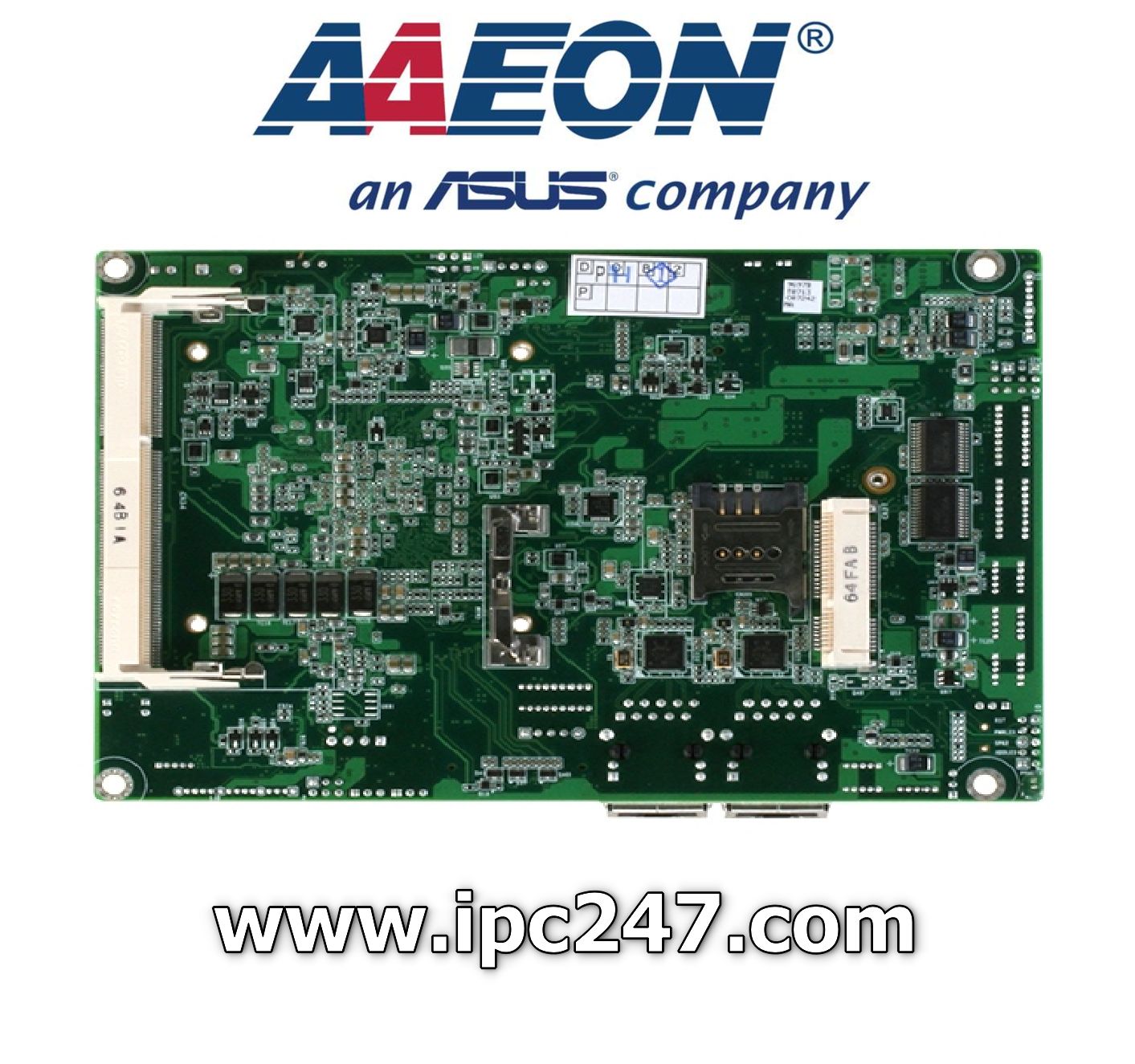

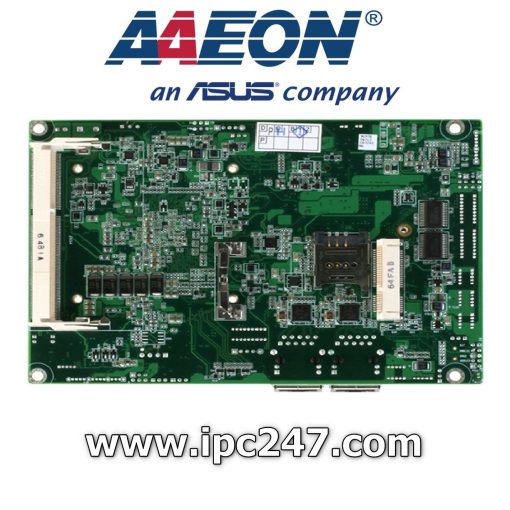

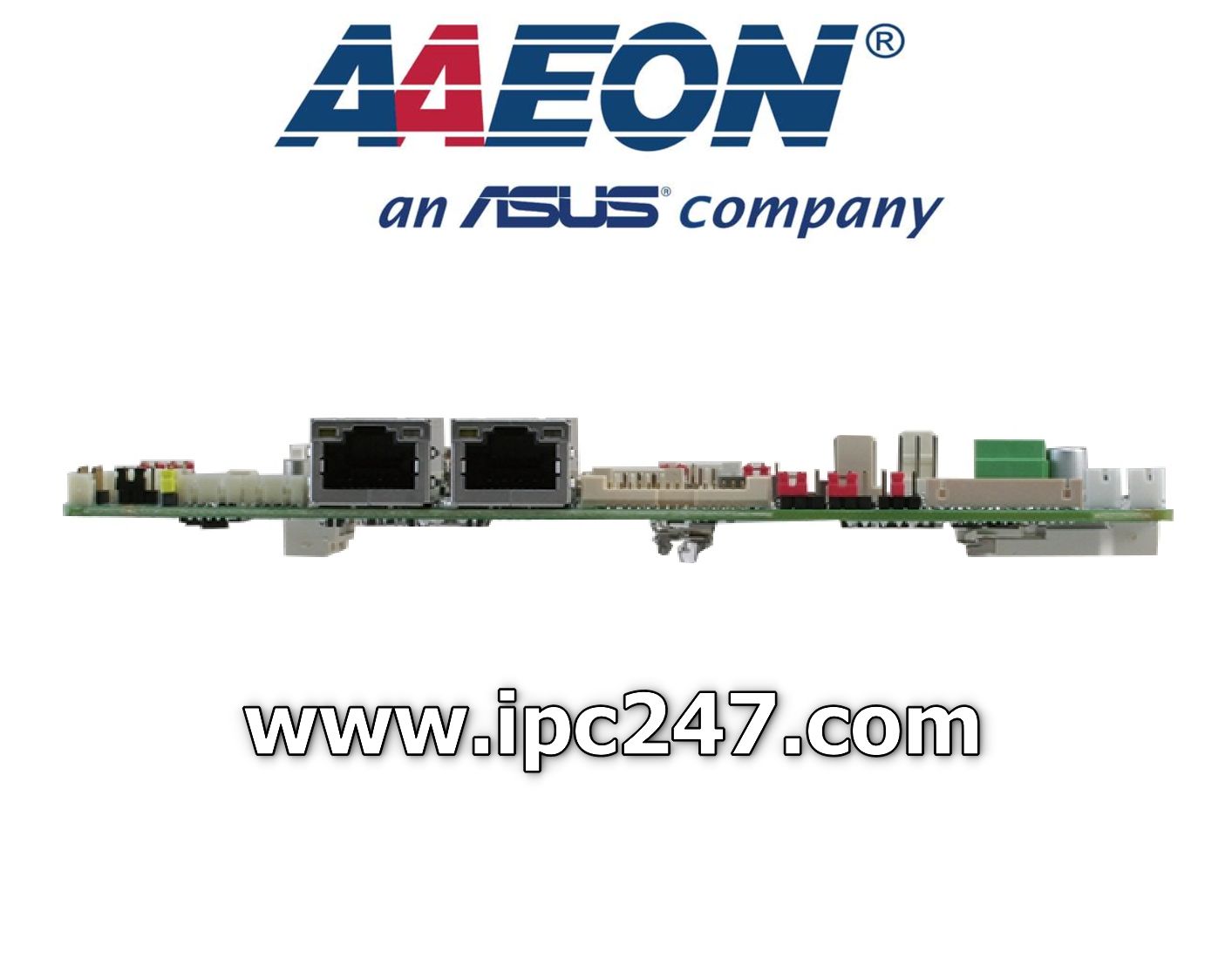

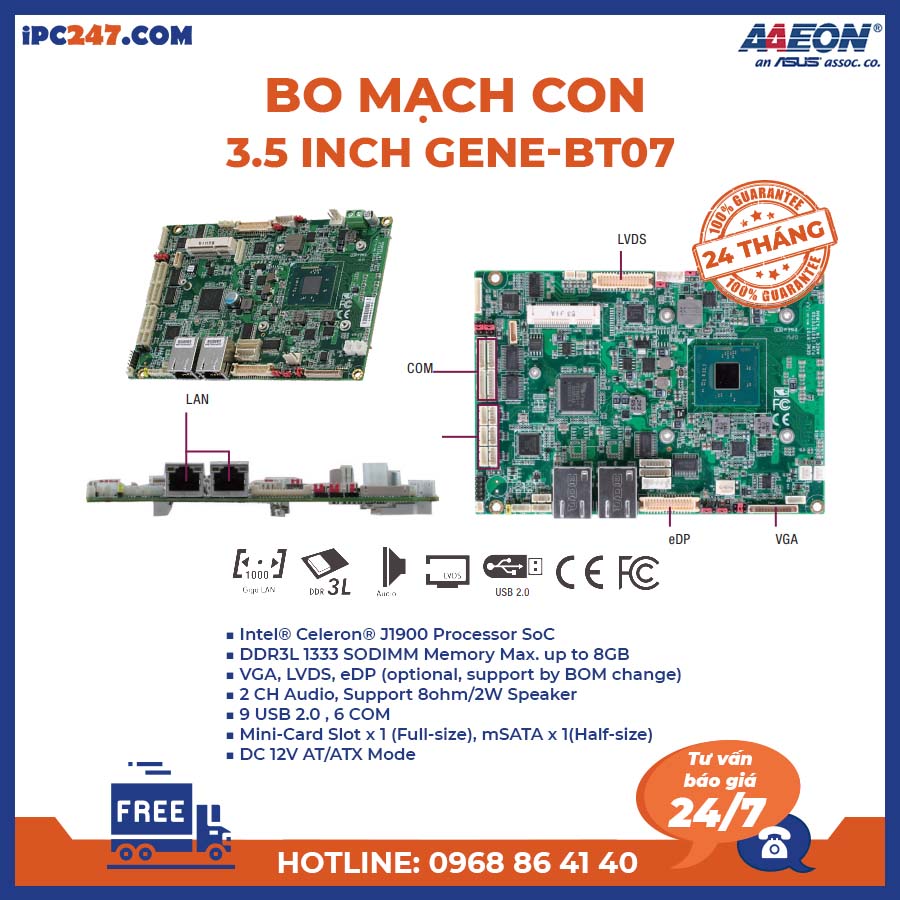

Bo mạch con 3.5 inch GENE-BT07
3.5” SubCompact Board with Intel® Celeron® J1900 Processor SoC
Overview
3.5” SubCompact Board with Intel® Celeron® J1900 Processor SoC
Features
- Intel® Celeron® J1900 Processor SoC
- DDR3L 1333 SODIMM Memory Max. up to 8GB
- VGA, LVDS, eDP (optional, support by BOM change)
- 2 CH Audio, Support 8ohm/2W Speaker
- 9 USB 2.0 , 6 COM
- Mini-Card Slot x 1 (Full-size), mSATA x 1(Half-size)
- DC 12V AT/ATX Mode
Specifications [GENE-BT07]
| SYSTEM | |
| FORM FACTOR | 3.5″ SubCompact Board |
| CPU | Intel® Celeron® J1900 Processor SoC |
| CPU FREQUENCY | Up to 2.0 GHz |
| CHIPSET | Intel® Celeron® J1900 Processor SoC |
| MEMORY TYPE | DDR3L 1333MHz SODIMM x 1 |
| MAX. MEMORY CAPACITY | Up to 8GB |
| BIOS | UEFI |
| WAKE ON LAN | Yes |
| WATCHDOG TIMER | 255 Levels |
| POWER REQUIREMENT | +12V |
| POWER SUPPLY TYPE | AT/ ATX Mode |
| POWER CONSUMPTION (TYPICAL) | Intel® Celeron® J1900, DDR3L 1600MHz 8G, 1.06A@+12V |
| DIMENSION (L X W) | 5.75″ x 4″ (146mm x 101.7mm) |
| OPERATING TEMPERATURE | 32°F ~ 140°F (0°C ~ 60°C) |
| STORAGE TEMPERATURE | 40°F ~ 176°F (-40°C ~ 81°C) |
| OPERATING HUMIDITY | 0% ~ 90% relative humidity, non-condensing |
| MTBF (HOURS) | 204,000 |
| CERTIFICATION | CE/FCC |
| DISPLAY | |
| VGA/LCD CONTROLLER | Intel® Celeron® J1900 Processor SoC |
| VIDEO OUTPUT | VGA, LVDS, eDP (optional, support by BOM change) |
| BACKLIGHT INVERTER SUPPLY | 18/24-bit dual channel LVDS LCDs |
| I/O | |
| ETHERNET | RTL8111E, RJ-45 x 2 |
| AUDIO | Realtek ALC892 CODEC, MIC-In AMP TI3113, Support 8ohm/4W speaker |
| USB PORT | USB2.0 x 9 |
| SERIAL PORT | RS-232 x 6 |
| PARALLEL PORT | — |
| HDD INTERFACE | — |
| FDD INTERFACE | — |
| SSD | mSATA x 1 (half size) |
| EXPANSION SLOT | Mini-Card x 1 (Full-size) |
| DIO | — |
| SIM | — |
| TPM | — |
| TOUCH | Reserve USB2.0 x 1 connector to expend |
Ordering Information [GENE-BT07]
| PART NUMBER | GENE-BT07-A11-0001 |
|---|---|
| CPU | Intel®Celeron® J1900 |
| FAN/FANLESS | Fanless |
| DISPLAY | CRT + LVDS |
| LVDS | 24bit,2CH |
| STORAGE | mSATA x 1(Half-size) |
| LAN | Gbe x 2 |
| USB | UBS2.0 x 9 |
| RS-232 | 6 |
| RS-232/422/485 | — |
| EXPANSION SLOT | Mini Card x 1 (Full-Size) |
| POWER | +12V, AT/ATX |
| POWER TEMP | 0°C ~ 60°C |
| OTHERS | SIM |
Downloads [GENE-BT07]
1. Datasheet: GENE-BT07, datasheet 1.0
2. BIOS:
– GENE-BT07 A11 1.1
– GENE-BT07 | V1.0 1.0
3. Driver
– Chip Driver: Windows 7 64, Windows 7 32, Windows 8 32, Windows 8 64, Windows 10 32, Windows 10 64
– Graphic Driver: Windows 7 64, Windows 7 32, Windows 8 64, Windows 10 32, Windows 10 64
– AUDIO Driver: Windows 7 64, Windows 7 32, Windows 8 32, Windows 8 64, Windows 10 32, Windows 10 64
– Lan Driver: Linux, Windows 7 64, Windows 7 32, Windows 8 32, Windows 8 64, Windows 10 32, Windows 10 64
-MBI Driver: Windows 7 64, Windows 8 64, Windows 10 32, Windows 10 64
-Serial Port Driver: Windows 7 64, Windows 7 32, Windows 8 32, Windows 8 64, Windows 10 32, Windows 10 64
4. Manual: GENE-BT07 manual 4.0
Packing List
- GENE-BT07
Optional Accessorie
| Part Number | Description | QTY |
| 1709100254 | (TF)PHONE JACK Cable. 3P AUDIO JACK. 1*10P 1. 25mm HOUSING(F). 25cm | 1 |
| 1700050207 | (TF)USB CABLE. 1*5P Pitch=1. 25mm Housinh. 20cm. for PFM-945C | 9 |
| 1701090150 | (TF)Flat Cable. D-Sub 9(M). 9P Housing. 9P 1. 25mm pitch Housing. 15cm | 6 |
| 1704150153 | (TF)CRT CABLE. 1*15P Pitch=1. 25mm. Housing. 15cm | 1 |
| GENE-BT07-HSK03 | Heat Sink.60*60*25mm.Silver.GENE-BT07 | 1 |
