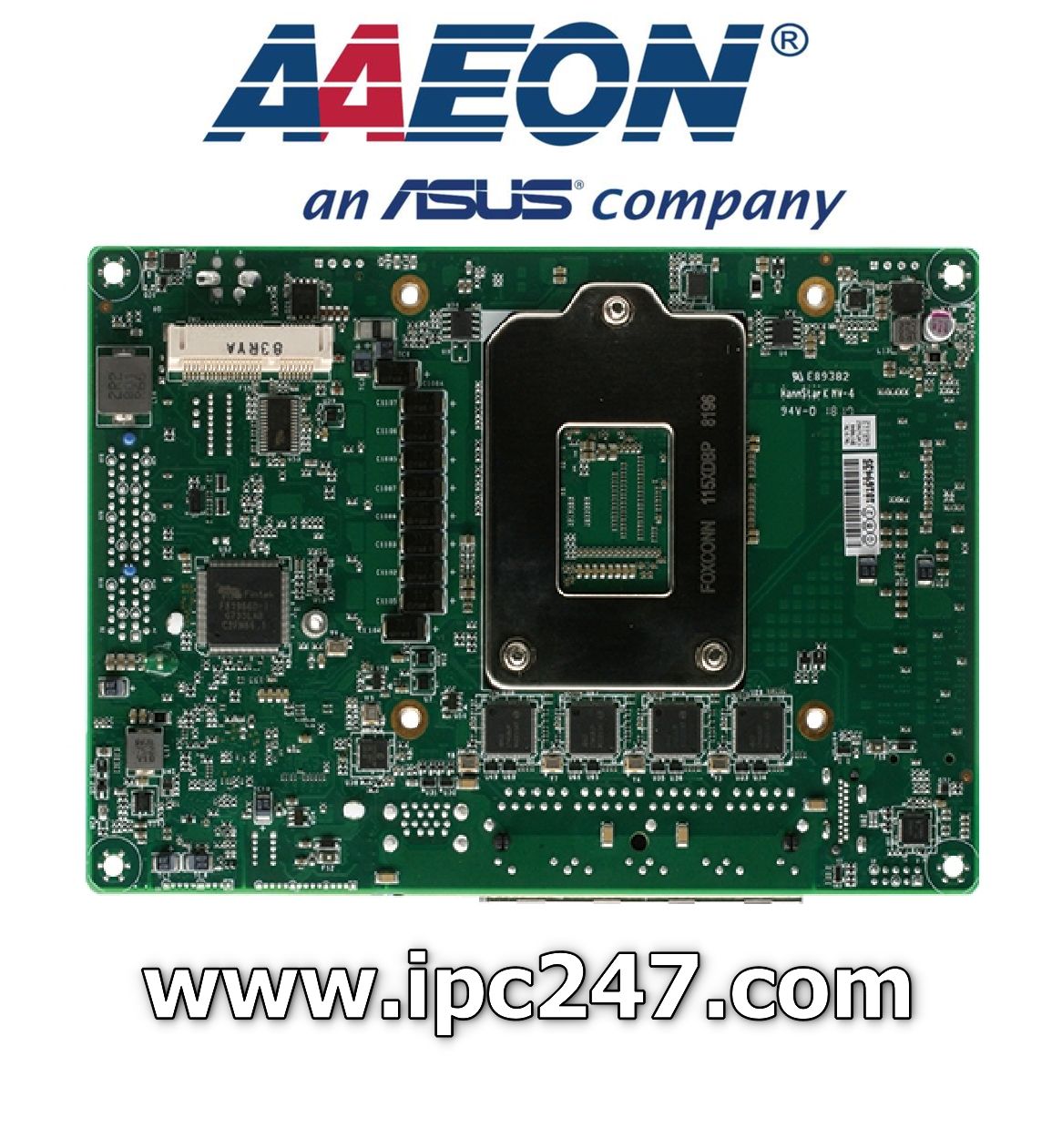

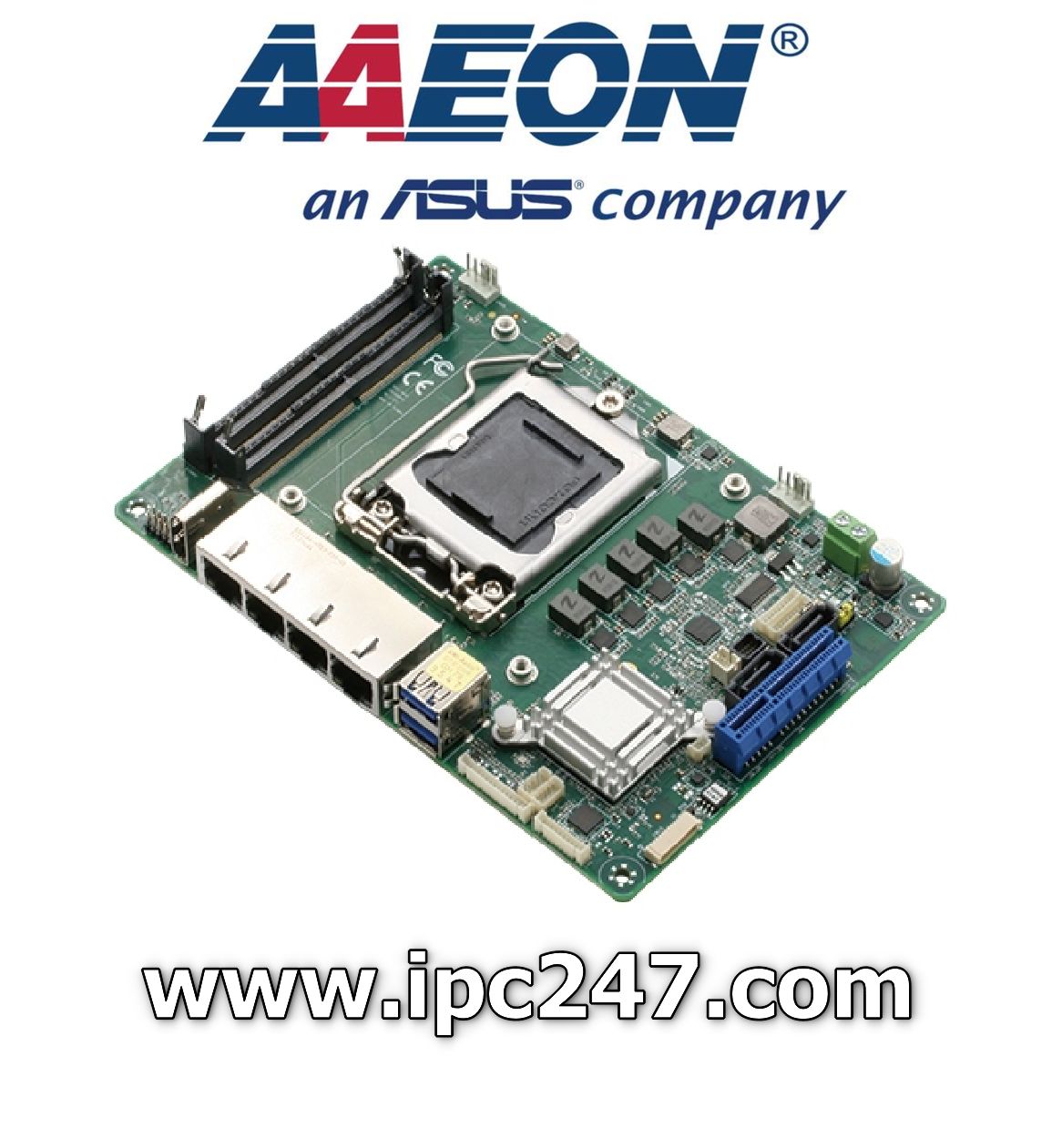

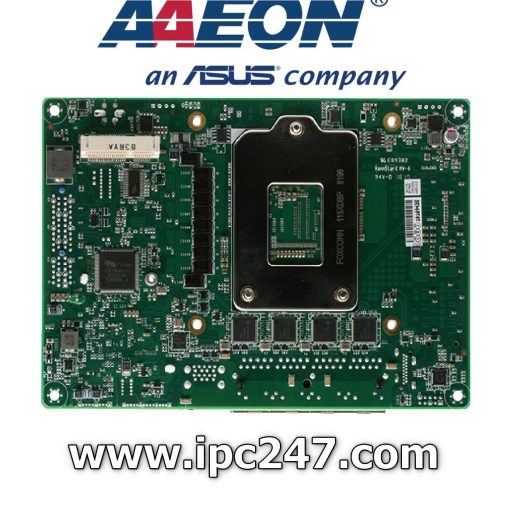

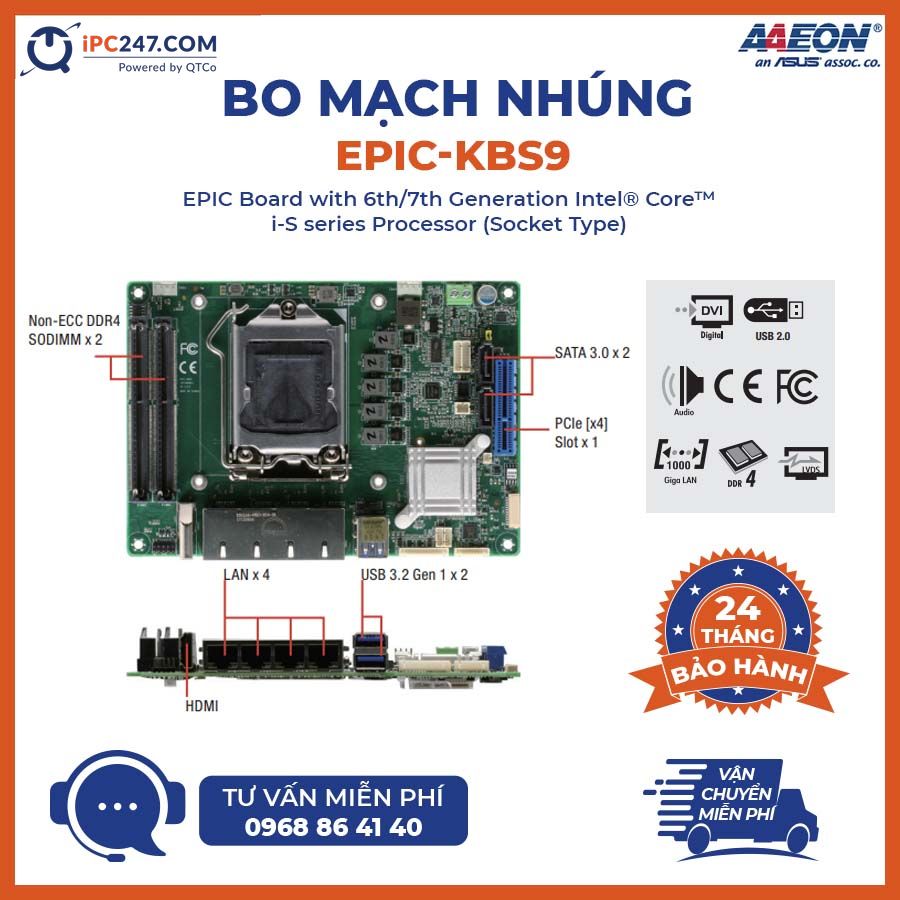

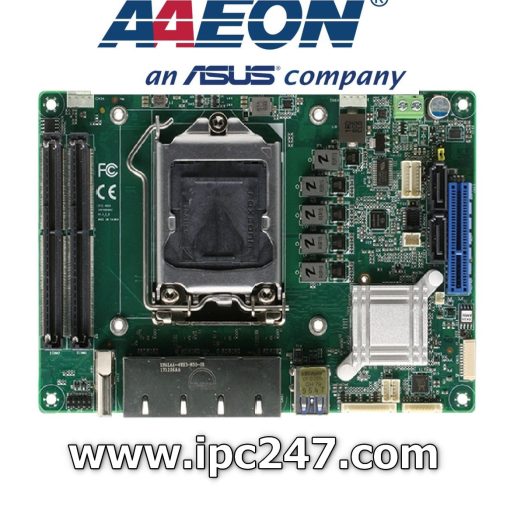

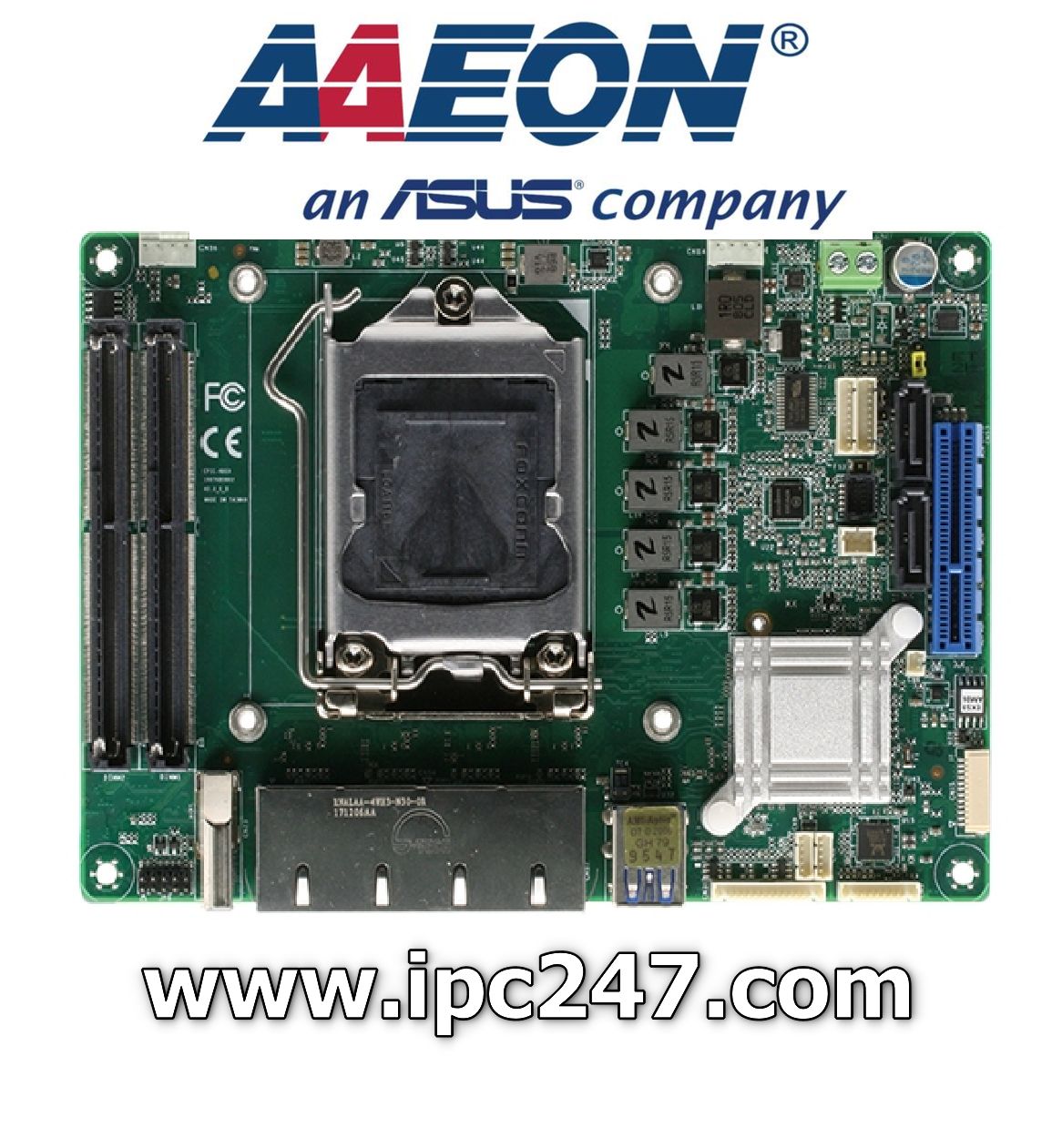

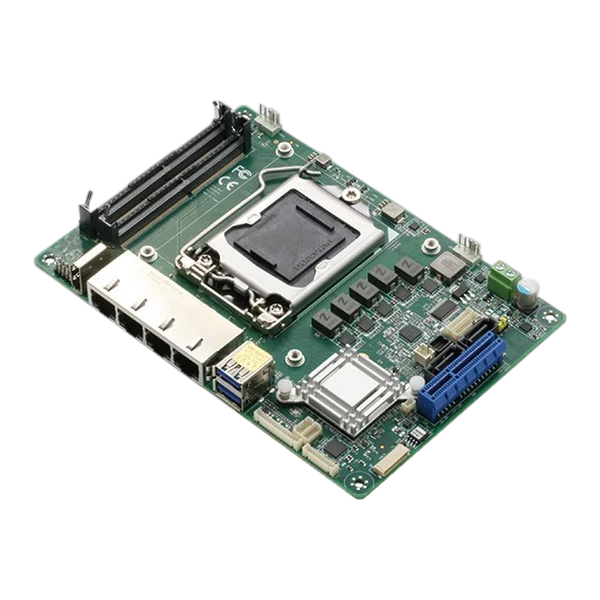

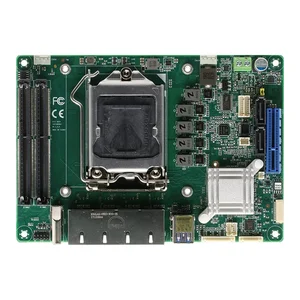

Bo mạch nhúng EPIC-KBS9
EPIC Board with 6th/7th Generation Intel® Core™ i-S series Processor (Socket Type)
Overview
EPIC-KBS9, the world’s only 4” SBC built to accommodate 65W Intel® Core™ i socket-type processors. Fitted with these incredibly powerful CPUs, the board is ideal for data encryption, video streaming, and advanced machine vision applications.
The EPIC-KBS9’s high-powered specifications don’t end with its CPU capabilities – everything on this board has been designed for accelerated computing. Two SODIMM sockets enable a 32G dual-channel memory platform, and thanks to its PCIex4 slot, the board also supports NVMe SSDs for significantly faster boot times and response rates.

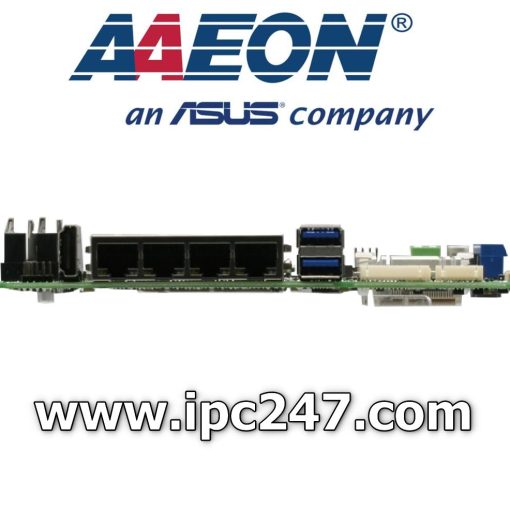

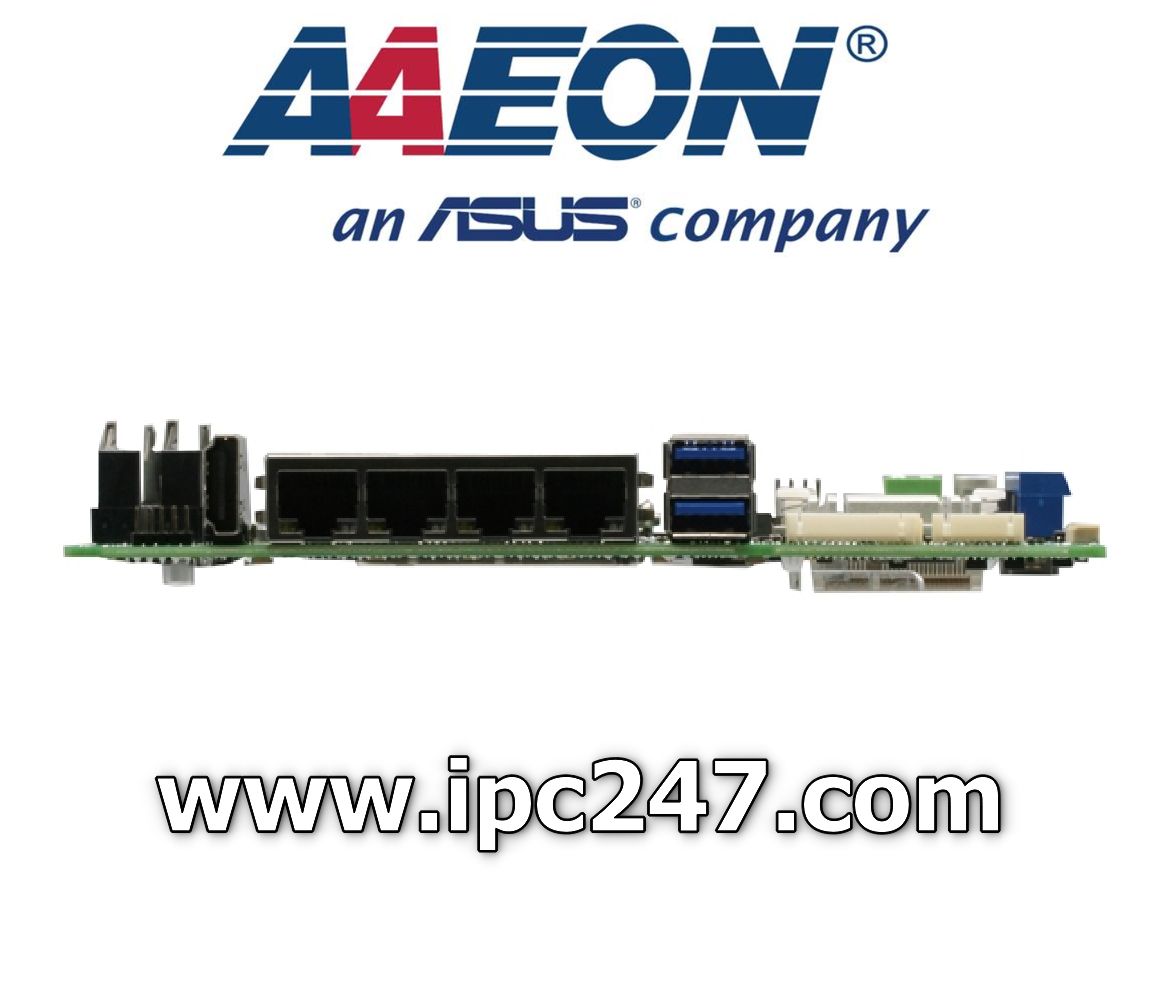

As a solution for LAN applications, the EPIC-KBS9 is fitted with four GbE LAN ports. It also features two USB3.0 ports, two USB2.0 internal connectors, an HDMI port, and two COM connectors, so it can easily handle multiple peripherals. The motherboard can be expanded through its PCIex4 slot and an additional full mSATA/Mini-PCIe slot.
The EPIC-KBS9 completes AAEON’s range of EPIC SBCs. Featuring Intel Core i socket-type processors, the series offers a level of computing performance usually only seen with Mini-ITX products. The EPIC-KBS9 produces computing speeds that simply can’t be matched by any other 4” SBC.
Features
- 6th/7th Generation Intel® Core™ i-S series Processor (Socket Type)
- DDR4 (Non-ECC) SODIMM x 2, 2133MHz, up to 32G
- VGA (Internal)/HDMI Display
- USB 3.2 Gen 1 x 2 (Rear IO), USB 2.0 x 2 (Internal)
- mSATA/Mini-PCIe Full Size x 1 (Default: mSATA, Optional for Mini- PCIe by BOM Change)
- Audio Codec with Amp, SATA 6.0 Gb/s x 2, GPIO x 8, RS-232/422/485 x 2 (Internal)
- 12V Only
Specifications [EPIC-KBS9]
| SYSTEM | |
| FORM FACTOR | 4″ EPIC Board |
| CPU | CPU Socket Type |
| CPU FREQUENCY | 6th/7th Generation Intel® Core™ i3/i5/i7/Celeron® (Support up to 65W SKU) |
| CHIPSET | H110/H170/Q170 (6W) |
| MEMORY TYPE | DDR4 (Non-ECC) SODIMM x 2, 2133MHz, up to 32GB |
| MAX. MEMORY CAPACITY | Up to 32GB |
| BIOS | AMI |
| WAKE ON LAN | Yes |
| WATCHDOG TIMER | 255 Levels |
| POWER REQUIREMENT | +12V, AT/ATX |
| POWER SUPPLY TYPE | AT/ ATX |
| POWER CONSUMPTION (TYPICAL) | — |
| DIMENSION (L X W) | 4.53″ x 6.50″ (115mm x 165mm) |
| OPERATING TEMPERATURE | 32°F ~ 140°F (0°C ~ 60°C) |
| STORAGE TEMPERATURE | -40°F ~ 176°F (-40°C ~ 80°C) |
| OPERATING HUMIDITY | 0% ~ 90% relative humidity, non-condensing |
| MTBF (HOURS) | — |
| CERTIFICATION | CE/FCC |
| DISPLAY | |
| VGA/LCD CONTROLLER | 6th/7th Generation Intel® Core™ i3/i5/i7/Celeron® |
| VIDEO OUTPUT | HDMI (Rear), VGA (Internal Only) |
| BACKLIGHT INVERTER SUPPLY | — |
| I/O | |
| ETHERNET | Intel® i211 Gigabit Ethernet x 4 |
| AUDIO | ALC269 (With Amp) |
| USB PORT | USB 3.2 Gen 1 x 2 (Real IO) USB 2.0 x 2 (Internal) |
| SERIAL PORT | COM x 2 (All Internal), RS-232/422/485 |
| PARALLEL PORT | — |
| HDD INTERFACE | SATA 3.0 x 2 |
| FDD INTERFACE | — |
| SSD | mSATA x 1 (Full size) |
| EXPANSION SLOT | Mini-card x 1 (Full Size) (No SIM) PCIe[x4] Slot x 1 |
| PWM LCD SUPPORT | — |
| DIO | 8-bit |
| TPM | — |
| TOUCH | — |
Ordering Information [EPIC-KBS9]
| PART NUMBER | EPIC-KBS9-A10-0001 (H110) | EPIC-KBS9-A10-0002 (H170) | EPIC-KBS9-A10-0003 (Q170) |
|---|---|---|---|
| CPU | LGA1151 (Socket Type) |
LGA1151 (Socket Type) |
LGA1151 (Socket Type) |
| MEMORY | DDR4 x2 (Max 32G) | DDR4 x2 (Max 32G) | DDR4 x2 (Max 32G) |
| THERMAL | FAN | FAN | FAN |
| DISPLAY | HDMI (Rear) x 1 VGA (Internal) x1 |
HDMI (Rear) x 1 VGA (Internal) x1 |
HDMI (Rear) x 1 VGA (Internal) x1 |
| STORAGE | SATAIII x 2 | SATAIII x 2 | SATAIII x 2 |
| LAN | GbE x 4 | GbE x 4 | GbE x 4 |
| USB | USB 3.2 Gen 1 x 2 (Rear) USB 2.0 x 2 (Internal) |
USB 3.2 Gen 1 x 2 (Rear) USB 2.0 x 2 (Internal) |
USB 3.2 Gen 1 x 2 (Rear) USB 2.0 x 2 (Internal) |
| RS-232 | — | — | — |
| RS-232/422/485 | 2 | 2 | 2 |
| EXPANSION SLOT | mSATA/MiniCard x 1 (Full) (by BOM change for mPCIe) |
PCIe[x4] x1 mSATA/MiniCard x 1 (Full) (by BIOS change for mPCIe) |
PCIe[x4] x1 mSATA/MiniCard x 1 (Full) (by BIOS change for mPCIe) |
| POWER | +12V | +12V | +12V |
| OPERATING TEMP | 0°C ~ 60°C | 0°C ~ 60°C | 0°C ~ 60°C |
| OTHERS | Audio, DIO x 8 | Audio, DIO x 8 | Audio, DIO x 8 |
Downloads [EPIC-KBS9]
1. Datasheet
2. BIOS:
-EPIC-KBS9 1.1
-EPIC-KBS9 1.1
3. Driver
-Chipset Driver: Windows 10 64
-Graphic Driver: Windows 10 64
-Lan Driver: Linux, Windows 10 64
-Audio Driver: Windows 10 64
-Serial Port Driver: Windows 10 64
4. Manual: EPIC-KBS9, manual 3.0
Packing List
- SATA Cable, Length 50cm (1709070500)
- SATA Power Cable, Length 15cm (1702150155)
- Jumper Cap (9657666600)
- Product DV
- EPIC-KBS9
Optional Accessories
| Part Number | Description | QTY |
| 1702002010 | Power Cable (2pin), Length 10cm | 1 |
| 1709100254 | Audio Cable (3pin), Length 25cm | 1 |
| 1700050207 | USB Cable (5pin), Length 20cm | 2 |
| 1701090150 | COM Cable (9pin), Length 15cm | 2 |
| 1704150153 | Internal VGA Cable | 1 |
| EPIC-KBS9-FAN01 | CPU Cooler, for LGA115X, 12V/4P PWM, AL, for EPIC-KBS9 | 1 |
