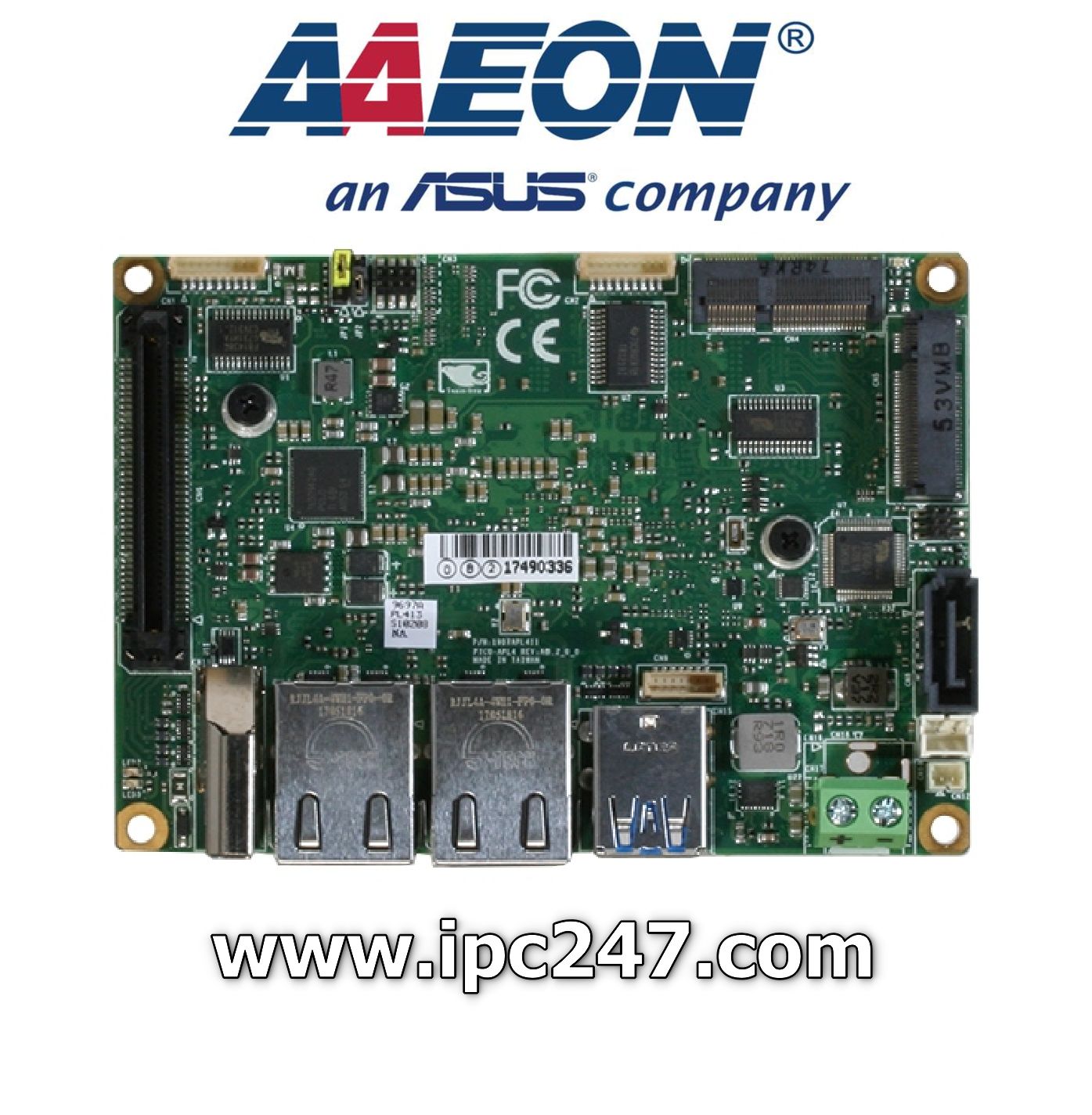

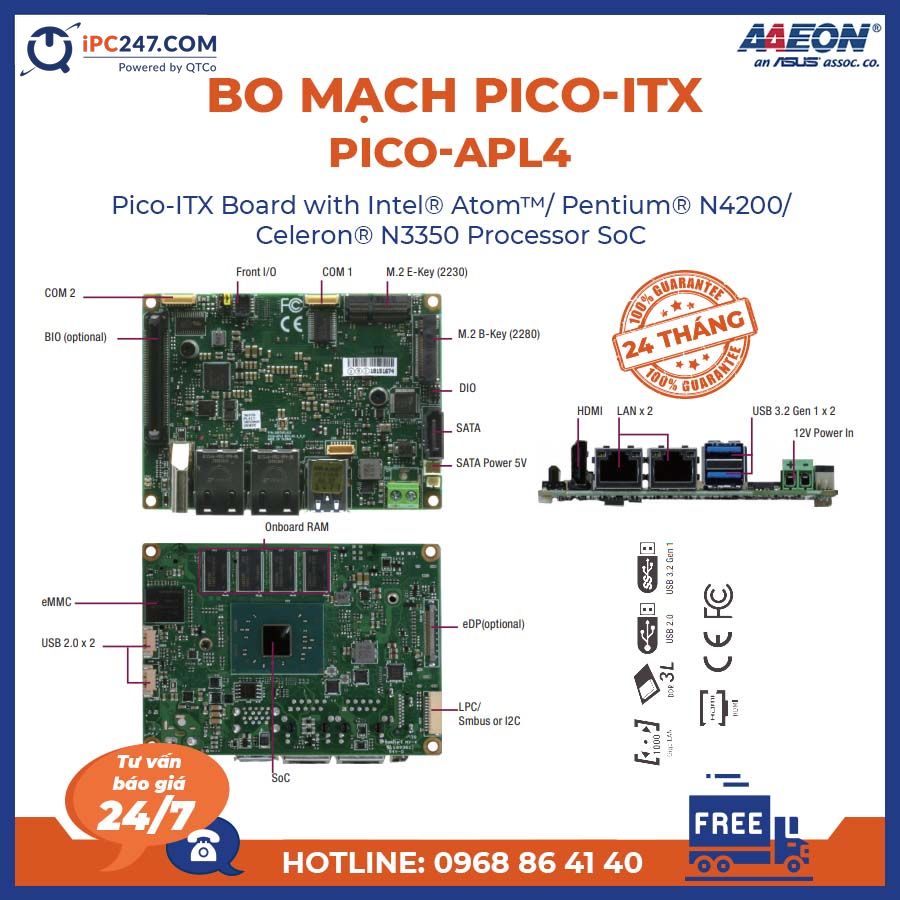

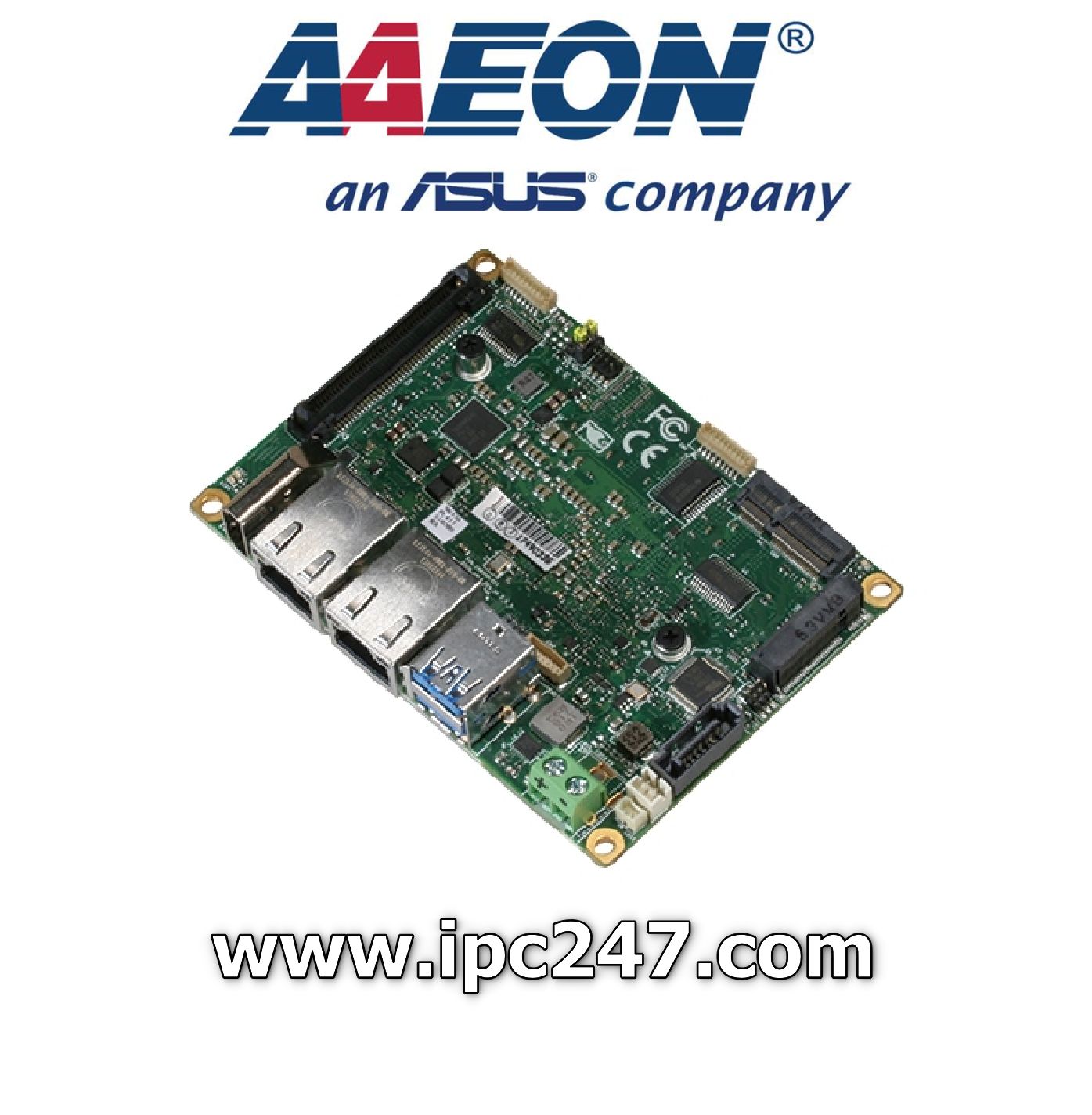

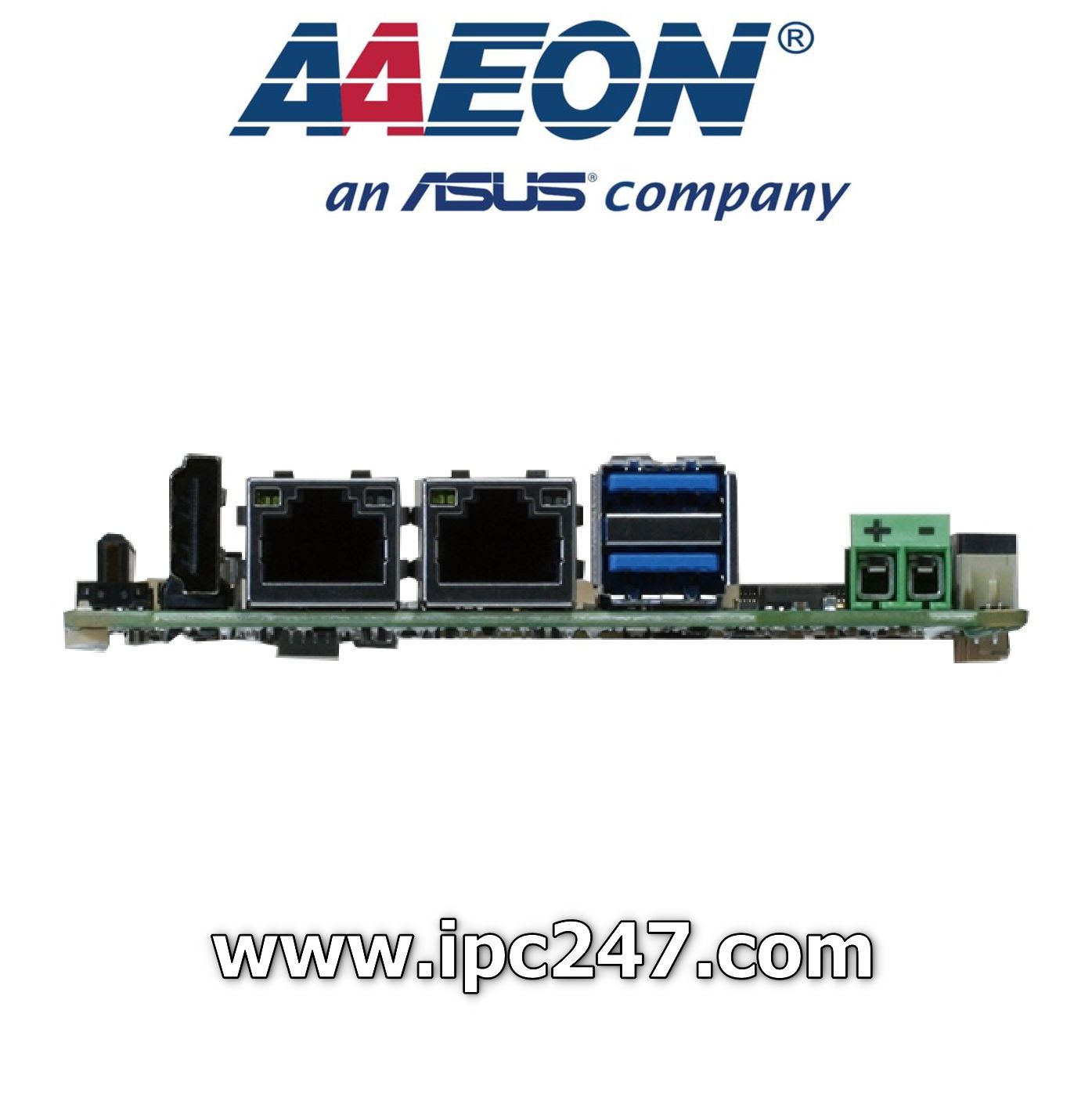

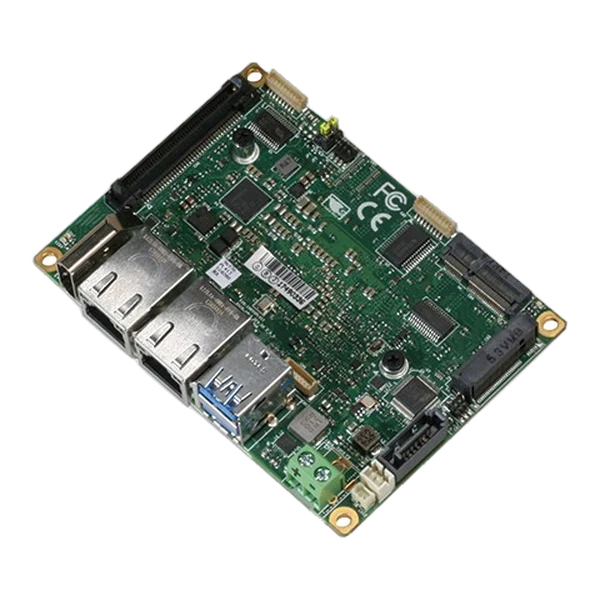

Bo mạch PICO-APL4 (PICO-ITX)
Pico-ITX Board with Intel® Atom™/ Pentium® N4200/ Celeron® N3350 Processor SoC
Overview
The PICO-APL4, a compact and cost-effective SBC. The PICO-APL4 features onboard memory and storage along with dual Gigabit Ethernet support, and it’s ideally suited for factory automation and IoT gateway systems.
AAEON’s latest PICO form factor board is powered by an Intel® Atom™, Pentium® N4200, or Celeron® N3350 processor. By fitting the controller with up to 4GB of onboard DDR3L memory and up to 64GB of onboard eMMC storage, AAEON has not only made the board more resistant to the shocks and vibrations regularly experienced in industrial settings, but it’s also cut application development times as customers don’t need to test the compatibility of external memory and storage.
The flexible PICO-APL4 houses USB ports and connectors, COM ports, a HDMI port and optional eDP. There’s also a 4-bit DIO to manage peripherals and an optional four-lane MIPI-CSI. Expansion is easily achieved with M.2 B and E keys enabling the connection of additional storage and WiFi/Bluetooth modules. Through an optional board-to-board interface, customers can also extend the IO interface and add a larger DIO.
The PICO-APL4 is designed to give users everything they need for effective factory automation and IoT Gateway applications. Its combination of dual Gigabit Ethernet support with onboard memory and storage put it ahead of almost every competing board, and its flexibility and expansion options ensure that the PICO-APL4 can’t be matched.
Features
- Intel® Atom™/ Pentium® N4200/ Celeron® N3350 Processor SoC
- Onboard DDR3L 2GB (Optional to 4GB)
- Onboard Storage eMMC 32GB(Optional to 16GB/64GB/128GB)
- Dual Gigabit Ethernet Support
- HDMI 1.4b, eDP (Optional) for Display
- BIO Reserved (Optional)
- USB 3.2 Gen 1 x 2, USB 2.0 x 2, SATA 6.0Gb/s x 1
- M.2 B Key (2280) x 1, M.2 E Key (2230) x 1
Specifications [PICO-APL4]
| SYSTEM | |
| FORM FACTOR | Pico-ITX |
| CPU | Intel® Pentium® N4200 (4C. 1.1 GHz, up to 2.5 GHz, TDP 6W) Intel® Celeron® N3350 (2C. 1.1 GHz, up to 2.4 GHz, TDP 6W) Intel® Atom® x7-Series (4C. 1.6GHz, up to 2.00 GHz, TDP 12W) |
| CPU FREQUENCY | Up to 2.4GHz |
| CHIPSET | Intel® SoC |
| MEMORY TYPE | Onboard DDR3L 2GB (Optional to 4GB) |
| MAX. MEMORY CAPACITY | Up to 4GB |
| BIOS | AMI/SPI |
| WAKE ON LAN | Yes |
| WATCHDOG TIMER | 255 Levels |
| POWER REQUIREMENT | +12V, AT/ATX |
| POWER SUPPLY TYPE | Lockable & Phoenix Terminal co-lay |
| POWER CONSUMPTION (TYPICAL) | Intel®Pentium®N4200@ 1.1GHz,DDR3L 4GB 1.43A@+12V |
| SYSTEM COOLING | Heat-spreader, heatsink & cooler (Optional) |
| DIMENSION | 3.94″ x 2.84″ (100mm x 72mm) |
| GROSS WEIGHT | 0.55lb(0.25kg) |
| OPERATING TEMPERATURE | 32˚F ~ 140˚F (0˚C ~ 60˚C) |
| STORAGE TEMPERATURE | -40˚F ~ 176˚F (-40˚C ~ 80˚C) |
| OPERATING HUMIDITY | 0% ~ 90% relative humidity, non-condensing |
| MTBF (HOURS) | 191,895 |
| CERTIFICATION | CE,FCC |
| DISPLAY | |
| CHIPSET | Intel® SoC |
| RESOLUTION | HDMI 1.4b: 3840 x [email protected]) Internal eDP: 3840×[email protected] (Optional) DDI (Optional from BIO) |
| LCD INTERFACE | eDP |
| I/O | |
| STORAGE/SSD | SATA 6.0Gb/s x 1, 5V Power reserved M.2 2280 (B Key) x 1 eMMC 32GB (optional to 16GB/64GB) |
| ETHERNET | Realtek 8111G x 2 |
| USB PORT | USB 3.2 Gen 1 x 2 Rear IO USB 2.0 x 2 (Internal, co-use with FAN connector) |
| SERIAL PORT | COM1: RS-232 x 1 COM2: RS-232/422/485 x 1 |
| AUDIO | — |
| DIO | 4-bit |
| EXPANSION SLOT | M.2 2230 x 1 (E-Key) BIO x 1 (optional) I2C, Smbus |
| SIM | — |
Ordering Information [PICO-APL4]
| PART NUMBER | PICO-APL4-A10-0001 | PICO-APL4-A10-0002 | PICO-APL4-A10-0003 | PICO-APL4-A10-DC04 |
|---|---|---|---|---|
| CPU | Celeron® N3350 (Dual Core) | Celeron® N3350 (Dual Core) | Pentium® N4200 (Quad Core) | Celeron® N3350 (Dual Core) |
| MEMORY | Onboard DDR3L 2GB | Onboard DDR3L 4GB | Onboard DDR3L 4GB | Onboard DDR3L 2GB |
| THERMAL | W/o Heatspreader | W/o Heatspreader | W/o Heatspreader | W/o Heatspreader |
| DISPLAY | HDMI x 1 | HDMI x 1 eDP x 1 |
HDMI x 1 | HDMI x 1 |
| STORAGE | SATA 6.0Gb/s x 1 M.2 2280 (B Key) x 1 eMMC 32GB |
SATA 6.0Gb/s x 1 M.2 2280 (B Key) x 1 eMMC 32GB |
SATA 6.0Gb/s x 1 M.2 2280 (B Key) x 1 eMMC 32GB |
SATAIII x 1 M.2 2280 (B Key) x 1 eMMC 32GB |
| LAN | GbE x 2 | GbE x 2 | GbE x 2 | GbE x 2 |
| USB | USB 3.2 Gen 1 x 2 (Rear) USB 2.0 x 2 (Internal) |
USB 3.2 Gen 1 x 2 (Rear) USB 2.0 x 2 (Internal) |
USB 3.2 Gen 1 x 2 (Rear) USB 2.0 x 2 (Internal) |
USB 3.2 Gen 1 x 2 (Rear) USB 2.0 x 2 (Internal) |
| RS-232 | 1 | 1 | 1 | 1 |
| RS-232/422/485 | 1 | 1 | 1 | 1 |
| EXPANSION SLOT | M.2 2230 (E Key) x 1 | M.2 2230 (E Key) x 1 | M.2 2230 (E Key) x 1 | M.2 2230 (E Key) x 1 |
| POWER | +12V (Phoenix Terminal) |
+12V (Phoenix Terminal) |
+12V (Phoenix Terminal) |
+12V (DC Jack) |
| TEMP | 0°C ~ 60°C | 0°C ~ 60°C | 0°C ~ 60°C | 0°C ~ 60°C |
| OTHERS | DIO 4 bit | DIO 4 bit | DIO 4 bit | DIO 4 bit |
Downloads [PICO-APL4]
1. Datasheet
Packing List
- PICO-APL4
Optional Accessories
| Part Number | Description | Qty |
| 1709070500 | (TF) SATA Cable, 50cm | 1 |
| 1702150155 | (TF) SATA Power Cable, 12cm | 1 |
| PICO-APL4-HSK01 | Heat Sink.100*72*15.5mm.Silver.used with HSP | 1 |
| PICO-APL4-HSP01 | Heat Spreader, 100 x 72 x 8.5 mm, Silver | 1 |
| 1700040151 | (TF) USB Cable, 15cm | 2 |
| 1701090122 | (TF)Flat Cable, D-Sub 9P(M), 9P 1.0mm Housing, 12cm | 2 |
| PICO-APL4-FAN01 | CPU Cooler, 100*72*15.5mm, Silver, use w/HSP | 1 |
