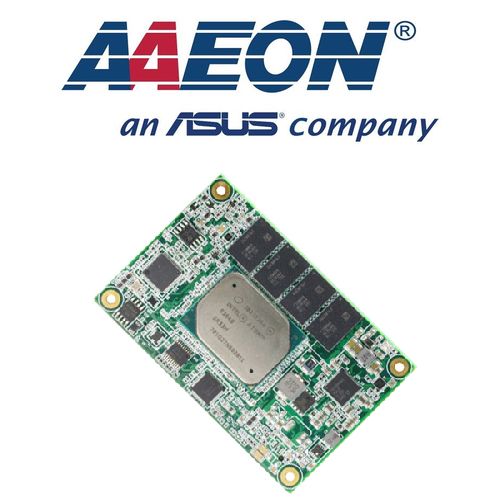

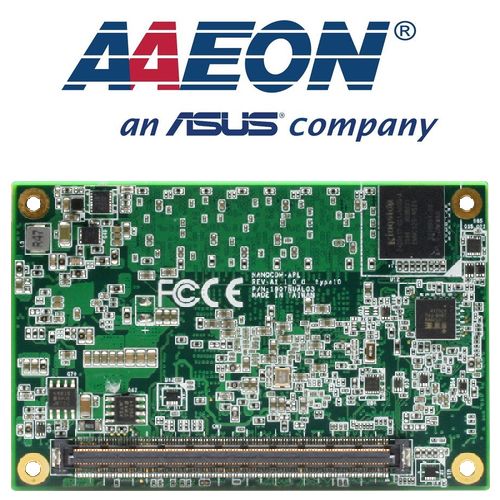

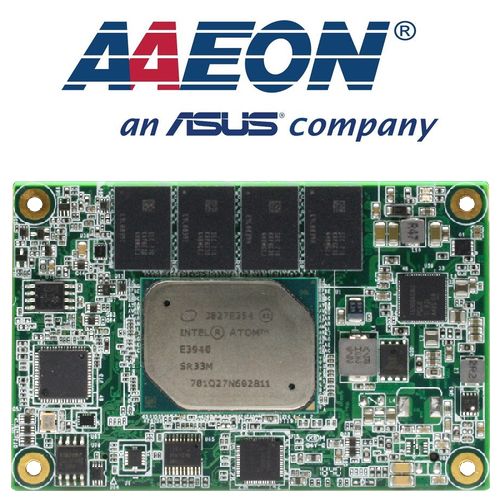

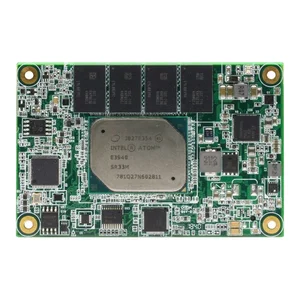

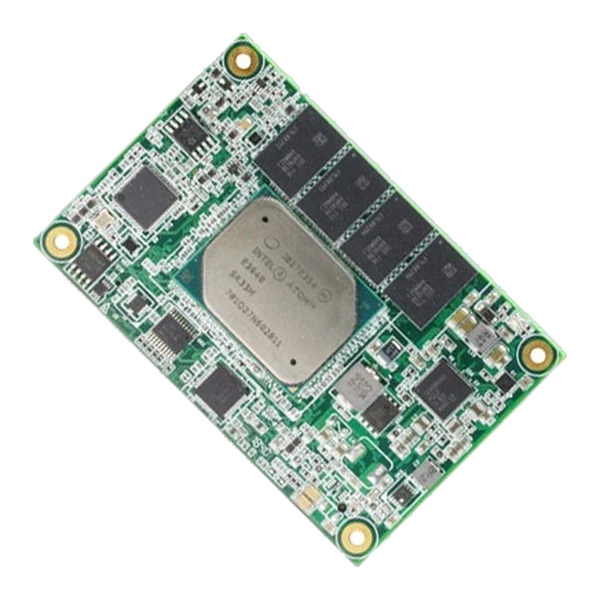

Bo mạch nhúng NANOCOM-APL
Overview
- COM Express Type 10 Module with Intel® Atom™ SoC
- The NanoCOM-APL is built around a 6th Generation Intel® Atom™, Celeron®, or Pentium® processor and features onboard LPDDR4 memory with a capacity of up to 8GB. The 7W module’s low power-consumption architecture means it can be used at the heart of hand-held, battery-powered devices and fully enclosed IP67 applications.
- Combined with an FPGA controller and an AI chip, the NanoCOM-APL is being used as the centerpiece of advanced machine vision systems that scan products to create 3D images that can be checked for faults. Because of its size and industrial operating temperature range, these systems can be used on a production line or even on a robotic arm.
- The module also features 1GbE LAN connections, optional onboard eMMC storage of up to 64Gb, a PCIe x4 expansion slot, an LVDS, DDI, or eDP connections, and support for up to eight USB3.0 and two USB2.0 ports.
Features
- Intel® Atom™/Celeron®/Pentium® SoC
- Onboard Memory LPDDR4 4GB/8GB
- Intel I210/I211
- Support eDP/LVDS, DDI D
- SATA x2, eMMC 5.x (optional, up to 64GB)
- USB 2.0 x 8 + USB 3.2 Gen 1 x 2
- 2-wire UART, Tx/Rx x2
- PCI-Express [x1] x4, 3 device available at any time.
- DC Input Range, 12V
- COM Express Mini Size, Pin-Out Type 10
Specifications [NANOCOM-APL]
| SYSTEM | |
| FORM FACTOR | COM Express, Mini size, Pin-out Type 10 |
| CPU | Onboard 6th Generation Intel® Atom™/Celeron®/Pentium® SoC |
| CPU FREQUENCY | E39xx series, N4xxx series |
| CHIPSET | Intel® Atom™/Celeron® Processor SoC |
| MEMORY TYPE | Onboard LPDDR4 |
| MAX. MEMORY CAPACITY | 8GB LPDDR4 Onboard |
| BIOS | SPI type |
| WAKE ON LAN | Yes |
| WATCHDOG TIMER | 255 Levels |
| POWER REQUIREMENT | Standard : +12V, AT/ATX (Optional: +5V, AT/ATX) |
| POWER SUPPLY TYPE | AT/ATX |
| POWER CONSUMPTION (TYPICAL) | Up to E3950 TDP 12W CPU |
| DIMENSION (L X W) | 3.31″ x 2.17″ (84mm x 55mm) |
| OPERATING TEMPERATURE | 32 °F ~ 140 °F (0 °C ~ 60 °C) -40 °F ~ 185 °F (-40 °C ~ 80 °C) |
| STORAGE TEMPERATURE | -40°F ~ 176°F (-40°C ~ 80°C) |
| OPERATING HUMIDITY | 0% ~ 90% relative humidity, non-condensing |
| MTBF (HOURS) | 80,000 |
| CERTIFICATION | CE/FCC |
| DISPLAY | |
| DISPLAY CONTROLLER | Intel® HD Graphic |
| VIDEO OUTPUT | LVDS LCD/eDP, DDI x 1 |
| LVDS INTERFACE | Supports 18-bit and 24-bit Single channel |
| I/O | |
| ETHERNET | Intel® I210IT |
| AUDIO | High Definition Audio Interface |
| USB SUPPORT | USB 2.0 x 8, USB 3.2 Gen 1 x 2 |
| SERIAL PORT | TX/RX x 2 |
| HDD INTERFACE | SATA 3 x 2 |
| ONBOARD STORAGE | Optional onboard eMMC |
| EXPANSION SLOT | PCIe [x1] x 4 (up to 3 devices) LPC SMBus I2C |
| GPIO | GPIO 8-bit |
| TPM | — |
Ordering Information [NANOCOM-APL]
| PART NUMBER | NANOCOM-APL-A11-0001 | NANOCOM-APL-A11-0002 | NANOCOM-APL-A11-0003 |
|---|---|---|---|
| COM EXPRESS TYPE | Type 10 (COM.0 Rev3.0) | Type 10 (COM.0 Rev3.0) | Type 10 (COM.0 Rev3.0) |
| CPU | N4200 | N3350 | E3950 |
| MEMORY | 4GB DDR4 | 4GB DDR4 | 8GB DDR4 |
| DISPLAY | LVDS, DDIx1 | LVDS, DDIx1 | LVDS, DDIx1 |
| LVDS | 18/24 bit 1-channel (Optional : eDP) | 18/24 bit 1-channel (Optional : eDP) | 18/24 bit 1-channel (Optional : eDP) |
| STORAGE | SATA x2 32GB eMMC |
SATA x2 32GB eMMC |
SATA x2 64GB eMMC |
| LAN | GbE x 1 | GbE x 1 | GbE x 1 |
| USB | USB 3.2 Gen 1 x 2 USB 2.0 x 8 |
USB 3.2 Gen 1 x 2 USB 2.0 x 8 |
USB 3.2 Gen 1 x 2 USB 2.0 x 8 |
| UART | 2 (TX/RX) | 2 (TX/RX) | 2 (TX/RX) |
| EXPANSION SLOT | PCI-E[x1] x4 | PCI-E[x1] x4 | PCI-E[x1] x4 |
| POWER | 12V | 12V | 12V |
| TEMP | 0°C~60°C | 0°C~60°C | 0°C~60°C |
| OTHERS | I2C, SMBus,8b-GPIO/(SDIO) | I2C, SMBus,8b-GPIO/(SDIO) | I2C, SMBus,8b-GPIO/(SDIO) |
Packing List
- NanoCOM-APL
Optional Accessories
| NanoCOM-APL-E-HSP01 | Heat Spreader 84 x 55 x 11 mm, Black, NanoCOM-APL For E39xx CPU only |
| NanoCOM-APL-N-HSP01 | Heat Spreader 84 x 55 x 11 mm, Black, NanoCOM-APL For Nxxx CPU only |
| NanoCOM-FAN01 | CPU Cooler, for NanoCOM, to be used with Heat Spreader |
| ECB-920A-A10-0001 | COM Type 1/6/10, Carrier Board, ATX, GbE, 8USB, 2COM, 4SATA, PCIe, AT/ATX, Legacy Free, Rev. A1.0 |
