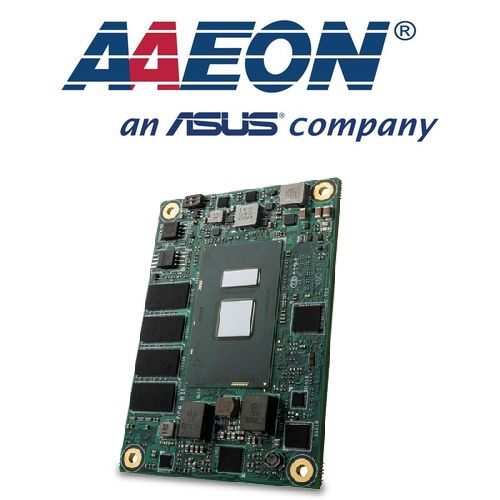

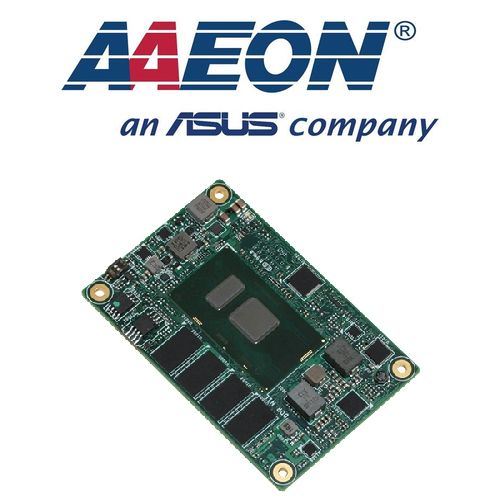

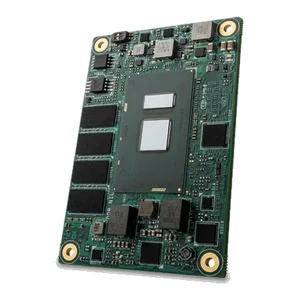

Bo mạch nhúng NANOCOM-KBU
Overview
- COM Express Type 10 with 7th Generation Intel® Core™ ULT Series Processor

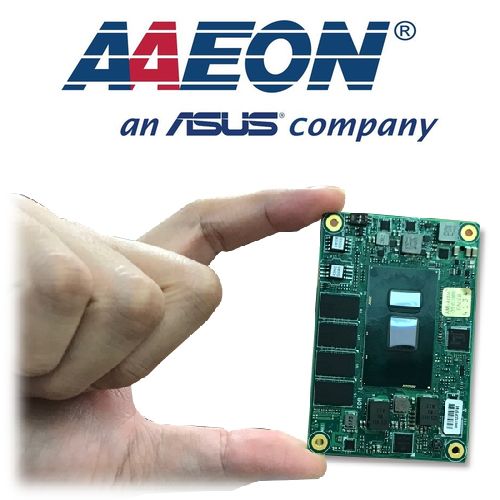

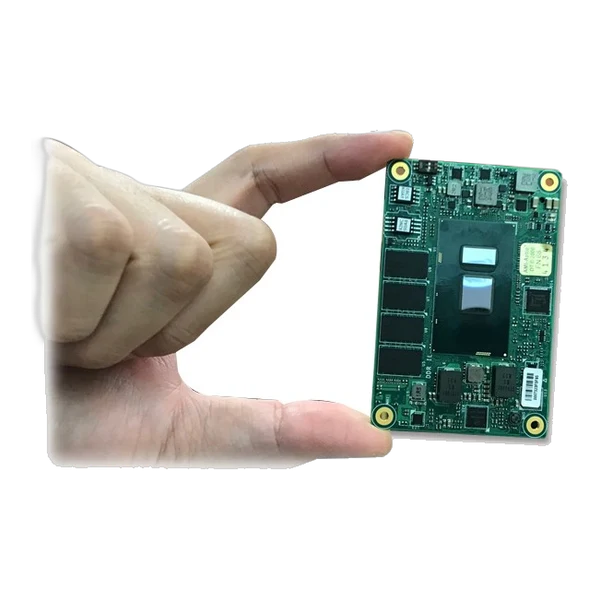

- AAEON’s NanoCOM-KBU is the only COM Express Type 10 module on the market to be powered by a 7th Gen Intel® Core™ i7 Processor. The business card-size board is highly extendable as it supports a 1GbE LAN port, eight USB2.0 and two USB3.0 ports, two SATA 2 interfaces, and four PCI-E expansion slots. As it can also be used in -40°C to 85°C temperatures, this module is as versatile as it is powerful.
- By fitting the NanoCOM-KBU with an Intel Core processor, AAEON has not only demonstrated its unmatched technical expertise; it’s also made it possible to have onboard 4GB DDR4 memory and the advanced Intel® HD Graphics 620 engine on a COM Express Type 10 board. As a result, customers will be able to enjoy accelerated processing speeds and 4K resolution.
- The NanoCOM-KBU’s embedded controller structure features a real-time interrupt and also power and battery management systems. Additionally, because the board’s I2C bus is compatible with a range of IC formats, integrating it with your own custom-made carrier board is a straightforward operation.
- To simplify the implementation process, AAEON provides customers with dedicated development engineers. To make sure everything continues to work properly, there are also local engineers for debugging issues and the AAEON Hi-Safe program for up-to-the-minute system information.
Features
- 7th Generation Intel® Core™ ULT Series Processor
- Onboard 4GB DDR4 2133 Memory
- Gigabit Ethernet x 1
- 18/24-bit Single-Channel LVDS LCDs/eDP, DDI x 1
- High Definition Audio Interface
- SATA x 2
- USB 3.0 x 2, USB 2.0 x 8
- PCI-Express〔x1〕x 4
- GPIO x 8, SMbus, I2C, LPC
- COM Express Type 10
- Mini Size, 84mm x 55mm
- Supports Industrial Grade Temperature
Specifications [NANOCOM-KBU]
| SYSTEM | |
| FORM FACTOR | COM Express Mini size, Type 10 |
| CPU | 7th generation Intel® Core™ ULT Series Processor |
| CPU FREQUENCY | up to i7-7600U 2c/4t, 2.8GHz |
| CHIPSET | Intel® Core™/Celeron® Processor SoC |
| MEMORY TYPE | Non-EEC DDR4-2133 |
| MAX. MEMORY CAPACITY | 4GB DDR4 Onboard |
| BIOS | AMI BIOS, Legacy free |
| WAKE ON LAN | Yes |
| WATCHDOG TIMER | 255 Levels |
| POWER REQUIREMENT | Normal: +12V |
| POWER SUPPLY TYPE | AT/ATX |
| POWER CONSUMPTION (TYPICAL) | i7-7600U [email protected]. Under 100% loading |
| DIMENSION (L X W) | 3.31” x 2.17” (84mm x 55mm) |
| OPERATING TEMPERATURE | 32 °F ~ 140 °F (0 °C ~ 60 °C) -40 °F ~ 185 °F (-40 °C ~ 85 °C) Option for NANOCOM-SKU series |
| STORAGE TEMPERATURE | -40°F ~ 176°F (-40°C ~ 80°C) |
| OPERATING HUMIDITY | 0% ~ 90% relative humidity, non-condensing |
| MTBF (HOURS) | 80000 |
| CERTIFICATION | CE/FCC Class A |
| DISPLAY | |
| VGA/LCD CONTROLLER | Onboard 7th Gen. intel® Core™ U-Series Processor, HD610/620 |
| VIDEO OUTPUT | LVDS LCD/eDP, DDI x 1 |
| I/O | |
| ETHERNET | Intel® I219 GbE |
| AUDIO | High Definition Audio Interface |
| USB PORT | USB 2.0 x 8, USB 3.0 x 2 |
| SERIAL PORT | TX/RX x 2 |
| HDD INTERFACE | SATAIII x 2 |
| EXPANSION SLOT | PCIe x1 supports 4 devices LPC Bus Smbus I2C |
| GPIO | 8-bit |
| ONBOARD STORAGE | — |
| TPM | fTPM Supported |
Ordering Information [NANOCOM-KBU]
| PART NUMBER | NANOCOM-KBU-A10-0001 |
|---|---|
| COM EXPRESS TYPE | 10 (COM.0 Rev 3.0) |
| CPU | 7th Gen. Intel® Core™ i7-7600U 2c/2.8GHz |
| MEMORY | 4GB DDR4 |
| DISPLAY | LVDS/(eDP), DDI x1 |
| LVDS | 18/24b 1CH (LVDS share with eDP) |
| STORAGE | SATAIII x 2 |
| LAN | GbE x1 |
| USB | USB 3.0 x2 USB 2.0 x8 |
| UART | 2 (Tx/Rx) |
| EXPANSION SLOT | PCI-E[x1] x4 |
| POWER | 12V |
| TEMP | 0°C~60°C |
| OTHERS | I2C, GPIO, SMBus |
Packing List
- Screws
- NanoCOM-KBU
Optional Accessories
| ECB-920A-A10-0001 | COM Type 1/6/10 Carrier Board, ATX, GbE, 8 USB, 2 COM, 4 SATA, PCIe, AT/ATX, Legacy Free, Rev. A1.0 |
| NanoCOM-SKU-HSP01 | Heat Spreader, 84 x 55 x 11 mm, Black, NanoCOM-SKU |
| NanoCOM-FAN01 | CPU Cooler, 84 x 55 x 22.2 mm, Silver use w/ HSP |
CPU Support Chart
| CPU Kabylake | Base Frequency/Turbo Boost GHz | Core/Thread | Graphic |
| i7-7600U | 2.8/3.9 | 2/4 | i7-7600U / HD620 |
| i5-7300U | 2.6/3.5 | 2/4 | i5-7300U / HD620 |
| i3-7100U | 2.4 | 2/4 | i3-7100U / HD620 |
| C-3965U | 2.2 | 2/4 | C3965U / HD610 |
