Cổng nối AAEON AIOT-IGWS01
Overview
- Industrial Automation IoT Gateway
- Immensely sophisticated and compact, AAEON AIOT gateway systems are edge devices which deliver faster and more flexible communication
to various industrial IoT application by offering multiple connectivity protocols like BT, WiFi and 3G. - They are ideal for data collection, aggregation and transmission, and can be used in energy metering, smart city deployment, and transportation with their robust design. Harnessing the power of the IoT in lightweight, palm-sized boxes, AAEON AIOT gateway system is poised to offer maximum value and communication to cloud-based networks in a smart industrial context.
Features
- Intel® Atom™ x5-Z8350 SoC
- Onboard 2GB DDR3L Memory, 32GB eMMC Storage
- Gigabit LAN x 1, HDMI x 1
- USB 2.0 x 4, USB 3.0 OTG x 1, COM x 2 (RS-232/422/485 x 2)
- Optional Wi-Fi, Bluetooth, and 3G or 4G LTE for Connectivity
Specifications [AIOT-IGWS01]
|
|||
| CPU | Intel® Atom™ x5-z8350 SoC | ||
| Chipset | Intel® System on Chip | ||
| Memory | Onboard 2GB DDR3L-1600 memory | ||
| Storage | 32GB eMMC on board | ||
| Display | HDMI | ||
| Ethernet | 8111G x 1 | ||
| USB | USB 2.0 x 4 USB 3.0 OTG x 1 |
||
| COM | RS-232/422/485 x 2 | ||
| Digital I/O | 6-pin block connector x 1 (8-bit ADC x 1, GPIO x 3, GND x 2) | ||
| Expansion Slot | USB interface for WiFi Module x 1 (IEEE 802.11a/b/g/n/ac) USB interface for Bluetooth module x 1 (Bluetooth 4.0) Mini PCIe slot for 3G or 4G LTE module x 1 (USB interface) Micro SIM Socket x 1 |
||
| Indicator | — | ||
| Wi-Fi | IEEE 802.11 a/b/g/n/ac (Optional) | ||
| Bluetooth | BT4.0 (Optional) | ||
| LoRa | — | ||
| POE | — | ||
| OS support | Microsoft Windows 10 IOT, Ubuntu 16.04, Android 6.0 | ||
| I/O PLACEMENTS | |||

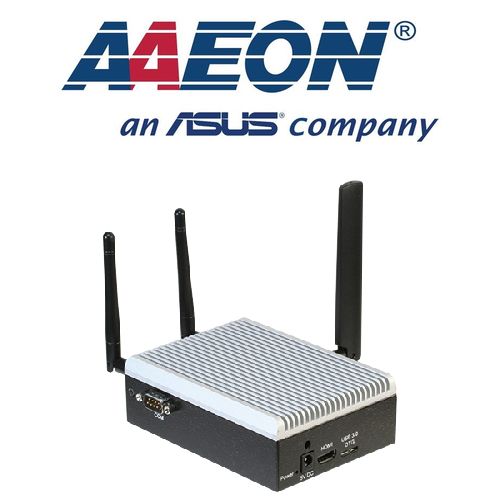

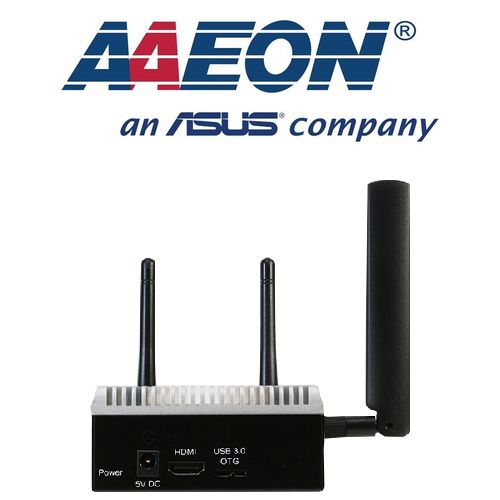

| Front I/O | DC connector x 1 Antenna hole x 1 HDMI Connector x 1 USB 3.0 OTG x 1 Power button x 1 |
||

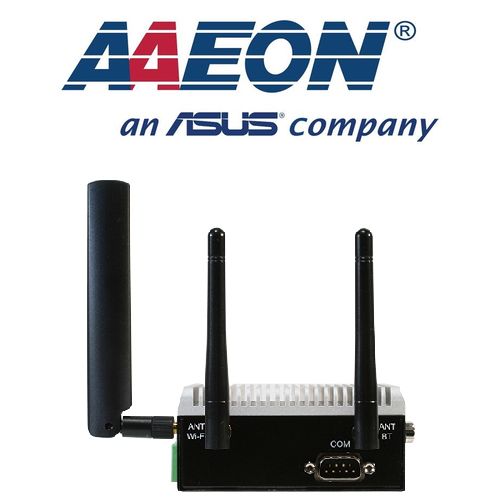

| Rear I/O | COM x 1 (RS-232/422/485 x 1) Antenna hole x 2 |
||

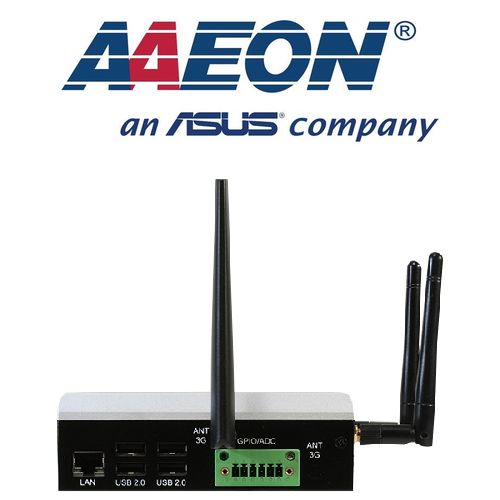

| Right Side I/O | RJ45 Connector x 1 USB 2.0 Stack Connector x 2 Antenna hole x 2 6 pin block connector x 1 (8-bit ADC x 1, GPIO x 3, GND x 2) |
||
| Left Side I/O | COM x 1 (RS-232/422/485 x 1) | ||
| POWER | |||
| Power Requirement | 5V DC in | ||
| MECHANICAL | |||
| IP | — | ||
| Dimension | 5.12” x 3.74” x 1.74” (130mm x 95mm x 44.2mm) | ||
| Mounting | VESA mount, DinRail (Optional) | ||
| Gross Weight | 7.8lb (3.5kg) | ||
| Net Weight | 5.6lb (2.5kg) | ||
|
|||
| Operating Temperature | 32°F ~ 122°F (0°C ~ 50°C) | ||
| Storage Temperature | -4°F ~ 158°F (-20°C ~ 70°C) | ||
| Storage Humidity | 0% ~ 90% relative humidity, non-condensing | ||
| Anti-Vibration | 3 Grms /5 ~500Hz/Operation | ||
| Certification | CE, FCC Class A | ||
Ordering Information [AIOT-IGWS01]
| Part Number | AIOT-IGWS01-A11- CA40232-A11 | AIOT-IGWS01-A11- CA41232-A11 | AIOT-IGWS01-A12- CA40232-A11 | AIOT-IGWS01-A12- CA41232-A11 | AIOT-IGWS01-A13- CA40232-A11 | AIOT-IGWS01-A13- CA41232-A11 |
|---|---|---|---|---|---|---|
| CPU | Intel® Atom™ x5- z8350 SoC | Intel® Atom™ x5- z8350 SoC | Intel® Atom™ x5- z8350 SoC | Intel® Atom™ x5- z8350 SoC | Intel® Atom™ x5- z8350 SoC | Intel® Atom™ x5- z8350 SoC |
| RAM | 2GB | 2GB | 2GB | 2GB | 2GB | 2GB |
| STORAGE | 32GB | 32GB | 32GB | 32GB | 32GB | 32GB |
| LAN | 1 | 1 | 1 | 1 | 1 | 1 |
| USB | USB2.0 x 4 USB 3.0 OTG x 1 |
USB2.0 x 4 USB 3.0 OTG x 1 |
USB2.0 x 4 USB 3.0 OTG x 1 |
USB2.0 x 4 USB 3.0 OTG x 1 |
USB2.0 x 4 USB 3.0 OTG x 1 |
USB2.0 x 4 USB 3.0 OTG x 1 |
| COM | RS-232 x 2 | RS-232 x 2 | RS-422 x 2 | RS-422 x 2 | RS-485 x 2 | RS-485 x 2 |
| DIGITAL I/O | 6 pin block connector x 1 (8-bit ADC x 1, GPIO x 3, GND x 2) | 6 pin block connector x 1 (8-bit ADC x 1, GPIO x 3, GND x 2) | 6 pin block connector x 1 (8-bit ADC x 1, GPIO x 3, GND x 2) | 6 pin block connector x 1 (8-bit ADC x 1, GPIO x 3, GND x 2) | 6 pin block connector x 1 (8-bit ADC x 1, GPIO x 3, GND x 2) | 6 pin block connector x 1 (8-bit ADC x 1, GPIO x 3, GND x 2) |
| DISPLAY | HDMI x 1 | HDMI x 1 | HDMI x 1 | HDMI x 1 | HDMI x 1 | HDMI x 1 |
| WIFI/BT | — | — | — | — | — | — |
| LORA | — | — | — | — | — | — |
| MOUNTING | — | VESA Mount | — | VESA Mount | — | VESA Mount |
| POE | — | — | — | — | — | — |
| POWER | 5V DC In | 5V DC In | 5V DC In | 5V DC In | 5V DC In | 5V DC In |
| OPERATION TEMP | 32°F ~ 122°F 0°C ~ 50°C |
32°F ~ 122°F 0°C ~ 50°C |
32°F ~ 122°F 0°C ~ 50°C |
32°F ~ 122°F 0°C ~ 50°C |
32°F ~ 122°F 0°C ~ 50°C |
32°F ~ 122°F 0°C ~ 50°C |
Packing List
- AIOT-IGWS01
Optional Accessories
| 1255300203 | Power Adapter, AC/DC, 100-240VAC, 20W, 5V DC/4A |
| UP-BTKIT-A20-0001 | BT Kit with Bluetooth Module, A01 |
| UP-WIFIMD-A20-5001 | WIFI Kit with 5M02 Module. A01 |
| 9741UC20G0 | 3G Module Kit with UC20-G |
| 9741EC25A0 | 4G LTE Module kit with EC25-A for AT&T |
| 9741EC25V0 | 4G LTE Module Kit with EC25-V for Verizon |
| 9741EC25E0 | 4G LTE Module Kit with EC25-E for Europe & Asia |
