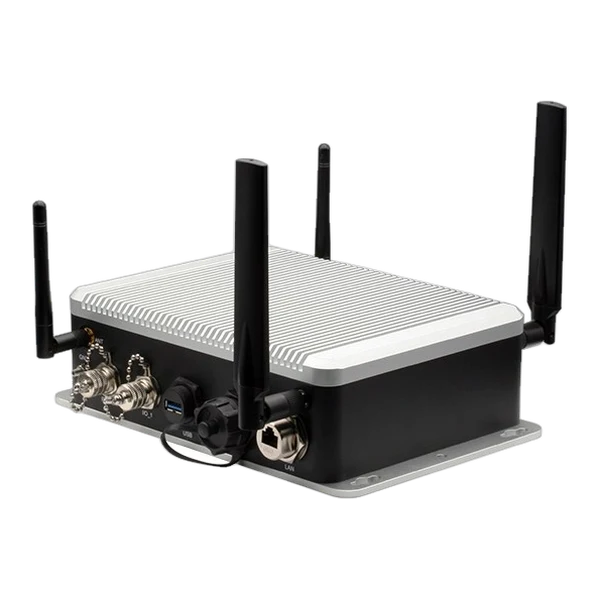

Cổng nối AAEON AIOT-IP6801
Overview
- Outdoor IoT Gateway Device with IP68 Rating and Waterproof connectors
- A new generation of tough IoT gateways is allowing applications to move into the field and stay connected – no matter what the conditions. AAEON’s AIOT-IP6801 provides complete protection against dust and water, it can be safely plunged into outdoor environment, and it has an operating temperature range of up to -20°C~70°C. This compact system also features an Intel® Atom™ E3940 CPU or Celeron™ N3350 , up to 4GB LPDDR4 memory/32GB eMMC storage, rich I/O interfaces(Ethernet, COM port, USB3.0, HDMI), Wi-Fi & Bluetooth, and optional PoE function & LoRa Technology .
- Connectivity
The AIOT-IP6801 comes with WiFi 802.11ac and Bluetooth 4.0 with dedicated antennas. Optional LoRa, 3G/4G LTE, and IQRF kits are available, and the system can also maintain communication links in high-temperature environments. - Convenience
The AIOT-IP6801 is significantly smaller than competing systems, and AAEON has also helped users by substituting M12 connectors with waterproof attachments for many of its I/O ports. As a result, users won’t have the trouble of needing to get M12 cables custom made for their applications.
Applications
- Outdoor Applications
- Energy Metering
- Air Monitoring
- Transportation
Features
- IP68 Compliance Gateway System
- Intel® Atom™ E3940 Processor/Celeron® N3350 Processor
- Onboard 4GB LPDDR4 Memory
- Onboard 32 GB eMMC
- Gigabit LAN x 1, HDMI x 1
- USB3.0 x 1, RS-232 x 2
- Wi-Fi/Bluetooth Function
- Optional LORA Function, 3G, 4G LTE
Specifications [AIOT-IP6801]
|
|||
| CPU | Intel® Atom™ E3940 Processor Intel® Celeron® N3350 Processor |
||
| Chipset | Intel® System on Chip | ||
| Memory | Onboard 4GB/ 2GB LPDDR4 memory | ||
| Storage | 32GB eMMC onboard | ||
| Display | HDMI | ||
| Ethernet | Standard: Realtek® 8111G x 1 Wide temperature: Intel® i211 x 1 |
||
| USB | USB 3.0 x 1 | ||
| COM | RS-232/422/485 x 2 | ||
| Digital I/O | — | ||
| Expansion Slot | Mini PCIe card x 1 SIM card x 1 |
||
| Indicator | — | ||
| Wi-Fi | 801.11ac | ||
| Bluetooth | BT4.0 | ||
| LoRa | 868/915 MHz (Optional) | ||
| POE | IEEE802.3 AT Standard, Max 25W Power Supply | ||
| OS support | Windows® 10 (full), Windows® IOT Core, Linux ubilinux, Ubuntu, Yocto | ||
| I/O PLACEMENTS | |||

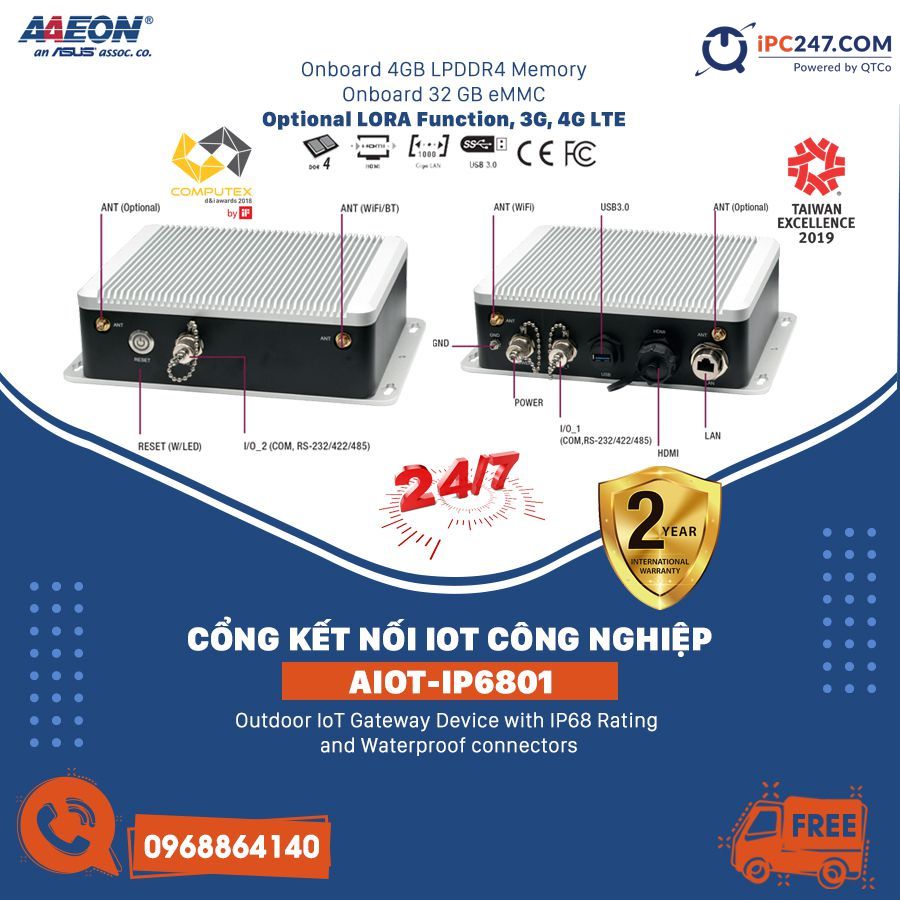

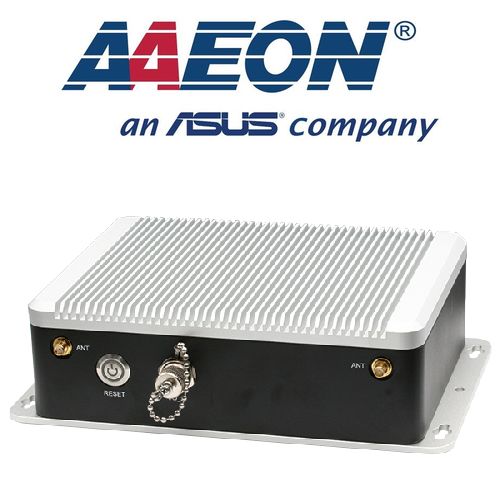

| Front I/O | M12 Connector x 1 (RS-232) Reset button x 1 GND Screw x 1 Antenna connector x 1 Antenna x 1 |
||

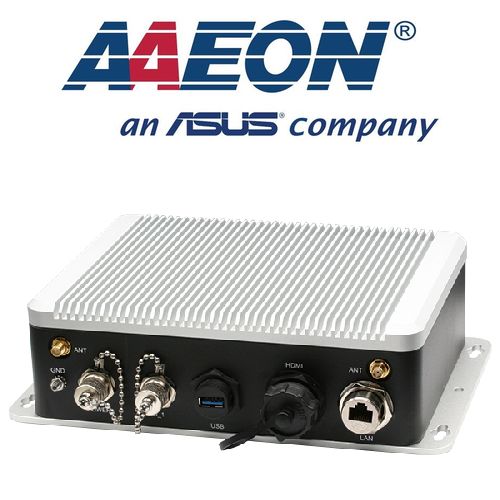

| Rear I/O | RJ45 Connector x 1 HDMI Connector x 1 USB 3.0 Connector x 1 M12 Connector x 1 (RS-232) Antenna connector x 1 Antenna x 1 |
||
| Right Side I/O | — | ||
| Left Side I/O | — | ||
| POWER | |||
| Power Requirement | 5V DC in | ||
| MECHANICAL | |||
| IP | IP68 | ||
| Dimension | 9.43″ x 6.28″ x 2.73″ (239.4 mm x 159.4 mm x 69.4 mm) | ||
| Mounting | Wallmount | ||
| Gross Weight | 7.8lb (3.5kg) | ||
| Net Weight | 5.6lb (2.5kg) | ||
| ENVIRONMENT | |||
| Operating Temperature | -4°F ~ 158°F (-20°C ~ 70°C) (E3940) -32°F ~ 122°F (0°C ~ 50°C) (N3350) |
||
| Storage Temperature | -4°F ~ 158°F (-20°C ~ 70°C) | ||
| Storage Humidity | 5~95% @ 40°C, non-condensing | ||
| Anti-Vibration | 3 Grms /5 ~500Hz/Operation | ||
| Certification | CE, FCC Class A | ||
Ordering Information [AIOT-IP6801]
| Part Number | AIOT-IP6801-A11-AP40432W | AIOT-IP6801-A12-AP40432W | AIOT-IP6801-A13-AP40432W |
|---|---|---|---|
| CPU | Intel® Atom™ E3940 Processor | Intel® Atom™ E3940 Processor | Intel® Atom™ E3940 Processor |
| RAM | 4GB | 4GB | |
| STORAGE | 32GB | 32GB | 32GB |
| LAN | 1 | 1 | 1 |
| USB | 3.0 x 1 | 3.0 x 1 | 3.0 x 1 |
| COM | RS-232 x 2 | RS-422 x 2 | RS-485 x 2 |
| DIGITAL I/O | — | — | — |
| DISPLAY | HDMI x 1 | HDMI x 1 | HDMI x 1 |
| WIFI/BT | Wi-Fi 801.11ac+BT4.0 | Wi-Fi 801.11ac+BT4.0 | Wi-Fi 801.11ac+BT4.0 |
| LORA | — | — | — |
| MOUNTING | Wallmount | Wallmount | Wallmount |
| POE | — | — | — |
| POWER | 5V DC In | 5V DC In | 5V DC In |
| OPERATION TEMP | -4°F ~ 158°F(-20°C ~ 70°C) | -4°F ~ 158°F(-20°C ~ 70°C) | -4°F ~ 158°F(-20°C ~ 70°C) |
Packing List
- AIOT-IP6801
- Antenna x 2
Optional Accessories
| 1255300362 | 5V/6A Power Adapter |
| 1702020910 | Power cord for EU |
| 1702020911 | Power cord for US |
| 1702020912 | Power cord for Japan |
| 1702020913 | Power cord for China |
| 170204100E | Waterproof Power Cable, M12 to DC PLUG, 100cm |
| 1700091002 | Waterproof COM Cable, D-SUB to M12, 100cm. |
| 1709081000 | Waterproof RJ45 Cable, 100cm |
| 1709191000 | Waterproof HDMI Cable, Male to Male, 100cm |
