Cổng nối AAEON AIOT-AIVD
Overview
- AI IoT Video Analysis Gateway
- The compact AIOT-AIVD from AAEON is our latest Edge Computing system, built for embedded AI applications. Built around our UP Squared board, it features the Intel® Pentium™ N4200 processor paired with 8GB RAM and 64GB eMMC, perfect for edge computing. The AIOT-AIVD powers AI with our innovative AI Core X with Intel® Movidius™ Myriad™ X VPU, with processing speeds of up to 105 fps (80 typical) or 1 TOPS as a dedicated neural network.
- The AIOT-AIVD is design to take Edge Computing where your project needs it. The AIOT-AIVD is designed with an improved active thermal solution, capable of operating in temperatures up to 60°C. Compatible with Intel® Distribution of OpenVINO toolkit, the compact and versatile AIOT-AIVD can power AI applications from Unmanned Stores to Smart Home Safety and Security.

Features
- Intel® Apollo Lake Pentium® N4200 Processor
- Onboard 8G memory, 64G eMMC storage
- Intel® Myriad™ X module
- LAN/USB/HDMI/DP
- Support 2nd storage HDD up to 1TB
- Optional Wi-Fi / Bluetooth
Specifications [AIOT-AIVD]
|
|||
CPU | Intel® Pentium® N4200 Processor | ||
Chipset | Intel® System on Chip | ||
Memory | Onboard 8GB LPDDR4 memory | ||
Storage | 64GB eMMC on board 500GB HDD x 1 (Optional) |
||
Display | HDMI x 1 DP x 1 |
||
Ethernet | Realtek® 8111G x 2 | ||
USB | USB 3.0 x 3 | ||
COM | — | ||
Digital I/O | — | ||
Expansion Slot | AI core X mini card module x 1 M.2 2230 E-Key x 1 |
||
Indicator | — | ||
Wi-Fi | 801.11ac (Optional) | ||
Bluetooth | BT4.0 (Optional) | ||
LoRa | — | ||
POE | — | ||
OS support | Windows® 10, Linux Ubuntu, OpenVino | ||
I/O PLACEMENTS | |||

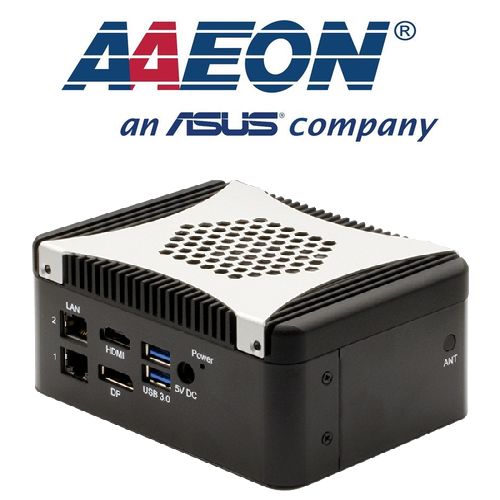

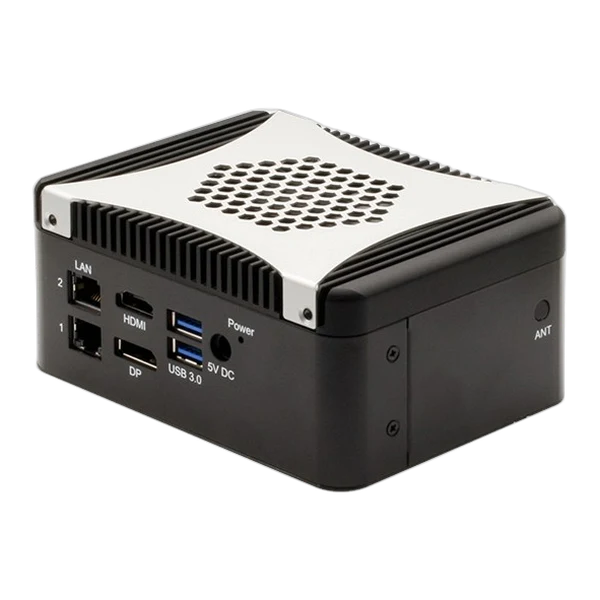

Front I/O | RJ45 Connector x 2 Power button x 1 HDMI x 1 DP x 1 USB3.0 x 2 Power input x 1 Power button x 1 |
||

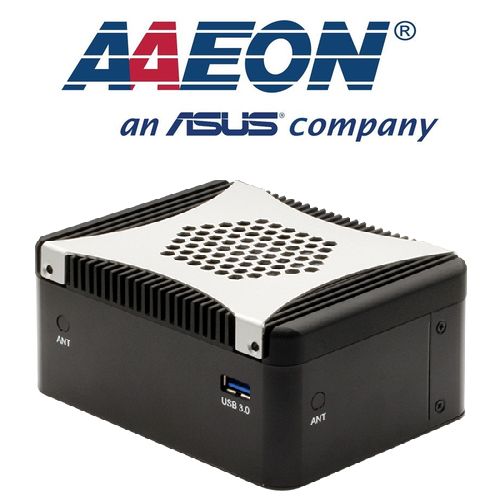

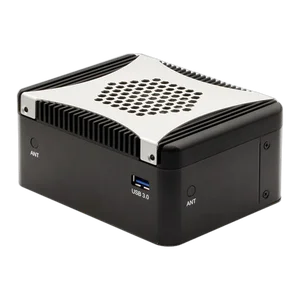

Rear I/O | USB 3.0 x 1 Antenna connector x 1 (Optional) |
||
Right Side I/O | Antenna connector x 1 (Optional) | ||
Left Side I/O | Antenna connector x 1 (Optional) | ||
POWER | |||
Power Requirement | 5V DC in | ||
MECHANICAL | |||
IP | — | ||
Dimension | 4.96” x 3.74” x 2.28” (126 mm x 95 mm x 58 mm) | ||
Mounting | VESA Mount | ||
Gross Weight | 2.4lb (1.1 kg) | ||
Net Weight | 1.5lb (0.7 kg) | ||
ENVIRONMENT | |||
Operating Temperature | 32°F ~ 140°F (0°C ~ 60°C) | ||
Storage Temperature | -4°F ~ 158°F (-20°C ~ 70°C) | ||
Storage Humidity | 5~95% @ 40°C, non-condensing | ||
Anti-Vibration | 3 Grms/ 5 ~ 500Hz/ operation – eMMC 1 Grms/ 5~ 500Hz/ operation – HDD |
||
Certification | CE, FCC Class A |
Ordering Information [AIOT-AIVD]
Part Number | AIOT-AIVD01-A10-AP40864 |
---|---|
cpu | Intel® Pentium® N4200 Processor |
ram | 8GB |
storage | 64GB |
lan | — |
usb | USB3.0 x 3 |
display | HDMI x 1 DP x 1 |
wifi/bt | — |
lora | — |
mounting | — |
poe | — |
power | 5V DC In |
operation temp | 32°F ~ 140°F (0°C ~ 60°C) |
Packing List
- AIOT-AIVD Gateway
Optional Accessories
1255300362 | 5V/6A Power Adapter |
1702020910 | Power cord for EU |
1702020911 | Power cord for US |
1702020912 | Power cord for Japan |
1702020913 | Power cord for China |
