Cổng nối AAEON AIOT-ILRA01
Overview
- LoRa® Certified Intel® Based Gateway and Network Server
- Immensely sophisticated and compact, AAEON AIOT gateway systems are edge devices which deliver faster and more flexible communication
to various industrial IoT application by offering multiple connectivity protocols like LoRa®, BT, WiFi and 3G. - They are ideal for data collection, aggregation and transmission, and can be used in energy metering, smart city deployment, and transportation with their robust design. Harnessing the power of the IoT in lightweight, palm-sized boxes, AAEON AIOT gateway system is poised to offer maximum value and communication to cloud-based networks in a smart industrial context.
Features
- Intel® Atom™ x5-Z8350 SoC
- Onboard 2GB/4GB DDR3L Memory, 32GB/64GB eMMC Storage
- Gigabit LAN x 1, HDMI x 1
- USB 2.0 x 4, USB 3.0 OTG x 1
- LoRa® Function Supported
- Supports Frequency Band 868 MHz
Specifications [AIOT-ILRA01]
| SYSTEM | |
| CPU | Intel® Atom™ x5-z8350 SoC |
| Chipset | Intel® System on Chip |
| Memory | Onboard 2GB/4GB DDR3L – 1600 memory |
| Storage | 32GB/64GB eMMC on board |
| Display | HDMI |
| Ethernet | 8111G x 1 |
| USB | USB2.0 x 4, USB 3.0 OTG x 1 |
| COM | — |
| Digital I/O | — |
| Expansion Slot | — |
| Indicator | — |
| Wi-Fi | — |
| Bluetooth | — |
| LoRa | Frequency band 868MHz Sensitivity down to -138 dBm Tx/Rx front-ends x 2 RF interface optimized to 50Ω Output power level up to 20 dBm Range up to 15 km (Line of Sight) |
| POE | – |
| OS support | Ubilinux |
| I/O PLACEMENTS | |

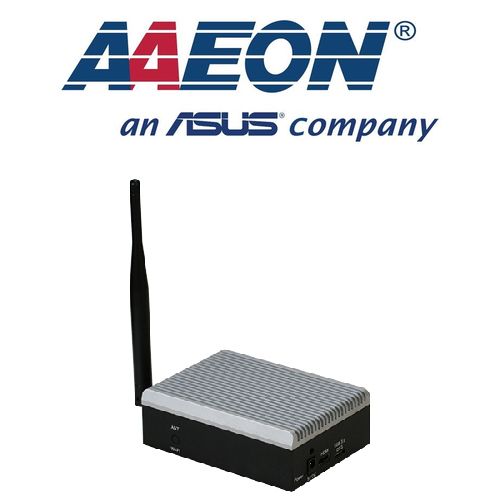

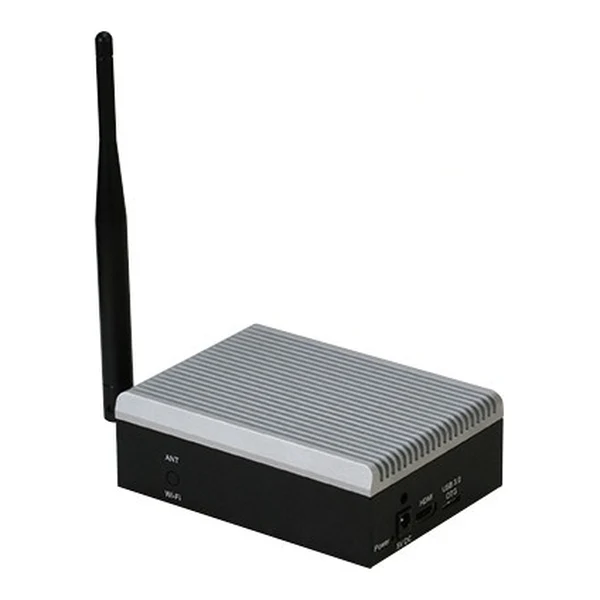

| Front I/O | DC connector x 1 Antenna hole x 1 HDMI Connector x 1 USB 3.0 OTG x 1 Power button x 1 |
| Rear I/O | Antenna hole x 1 |

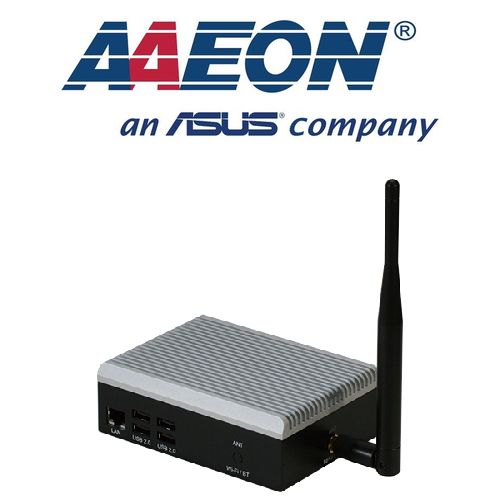

| Right Side I/O | RJ45 Connector x 1 USB 2.0 Stack Connector x 2 Antenna hole x 1 |
| Left Side I/O | Antenna hole x 1 |
| POWER | |
| Power Requirement | 5V DC in |
| MECHANICAL | |
| IP | — |
| Dimension | 5.12” x 3.74” x 1.74” (130mm x 95mm x 44.2mm) |
| Mounting | VESA mount (Optional) |
| Gross Weight | 7.8lb (3.5kg) |
| Net Weight | 5.6lb (2.5kg) |
| ENVIRONMENT | |
| Operating Temperature | 32°F ~ 122°F (0°C ~ 50°C) |
| Storage Temperature | -4°F ~ 158°F (-20°C ~ 70°C) |
| Storage Humidity | 0% ~ 90% relative humidity, non-condensing |
| Anti-Vibration | 3 Grms /5 ~500Hz/Operation |
| Certification | CE |
Ordering Information [AIOT-ILRA01]
| Part Number | AIOT-ILRA01-A10-CA40232EU-A11 | AIOT-ILRA01-A10-CA40464EU-A11 | AIOT-ILRA01-A10-CA41232EU-A11 | AIOT-ILRA01-A10-CA41464EU-A11 |
|---|---|---|---|---|
| CPU | Intel® Atom™ x5-z8350 SoC | Intel® Atom™ x5-z8350 SoC | Intel® Atom™ x5-z8350 SoC | Intel® Atom™ x5-z8350 SoC |
| RAM | 2GB | 4GB | 2GB | 4GB |
| STORAGE | 32GB | 64GB | 32GB | 64GB |
| LAN | 1 | 1 | 1 | 1 |
| USB | USB2.0 x 4 USB 3.0 OTG x 1 |
USB2.0 x 4 USB 3.0 OTG x 1 |
USB2.0 x 4 USB 3.0 OTG x 1 |
USB2.0 x 4 USB 3.0 OTG x 1 |
| DISPLAY | HDMI x 1 | HDMI x 1 | HDMI x 1 | HDMI x 1 |
| WIFI/BT | — | — | — | — |
| LORA | Frequency band 868MHz | Frequency band 868MHz | Frequency band 868MHz | Frequency band 868MHz |
| MOUNTING | — | — | VESA Mount | VESA Mount |
| POE | — | — | — | — |
| POWER | 5V DC In | 5V DC In | 5V DC In | 5V DC In |
| OPERATION TEMP | 32°F ~ 122°F (0°C ~ 50°C) |
32°F ~ 122°F (0°C ~ 50°C) |
32°F ~ 122°F (0°C ~ 50°C) |
32°F ~ 122°F (0°C ~ 50°C) |
Packing List
- LoRa® Antenna
- AIOT-ILRA01
Optional Accessories
| 1255300203 | Power Adapter, AC/DC, 100-240VAC, 20W, 5V DC/4A |
