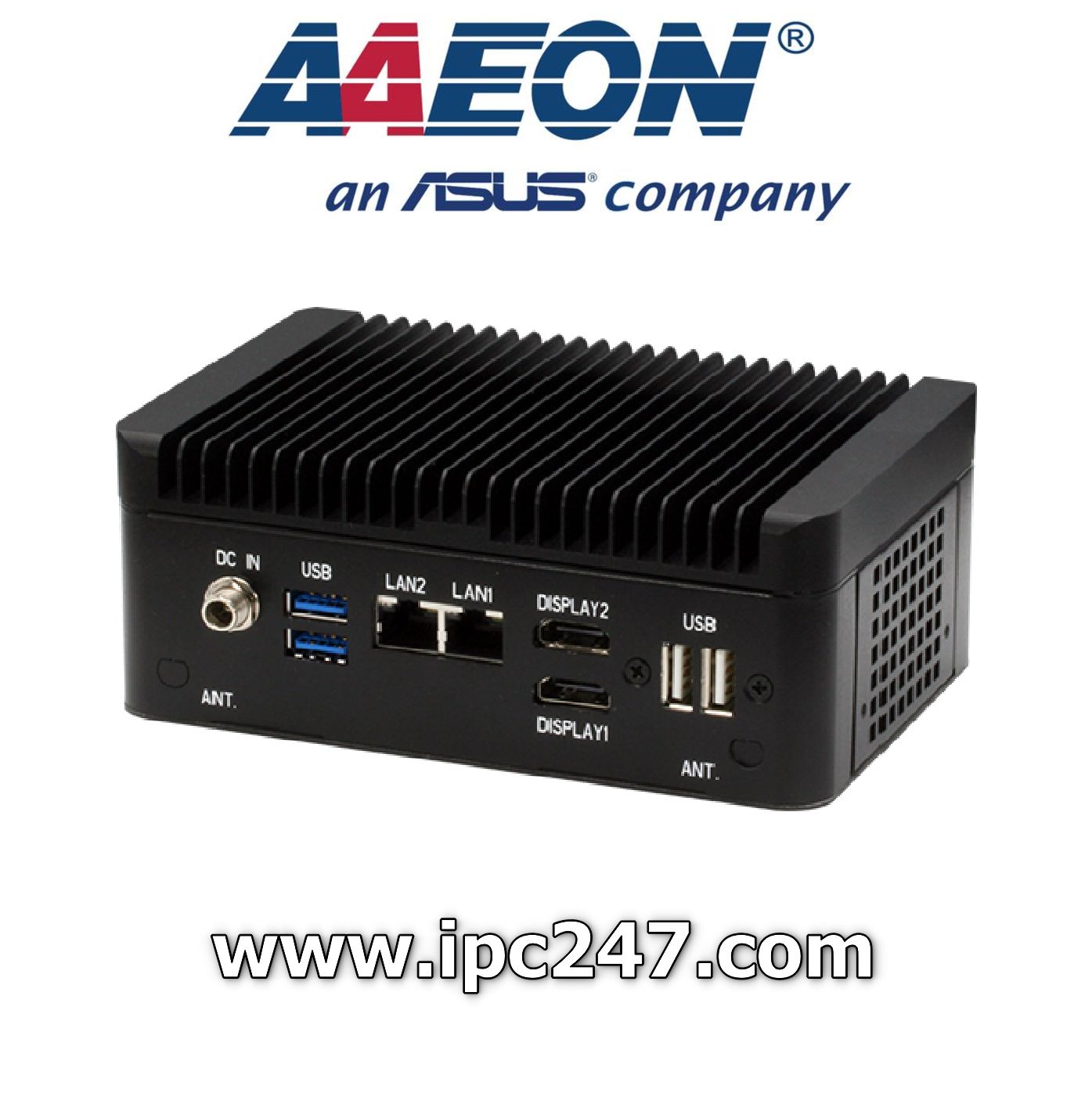

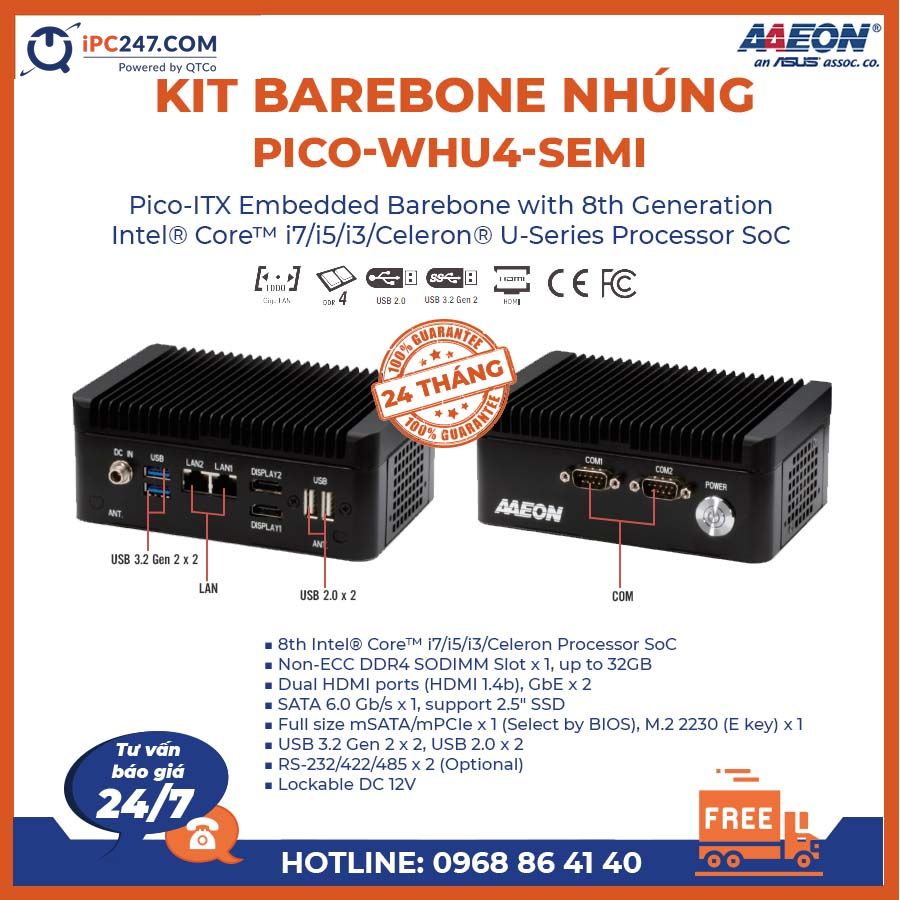

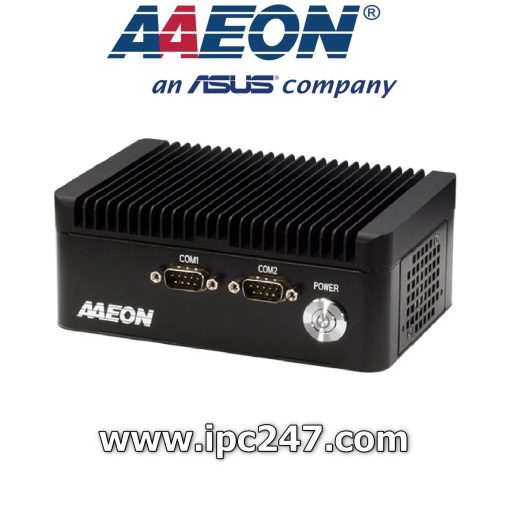

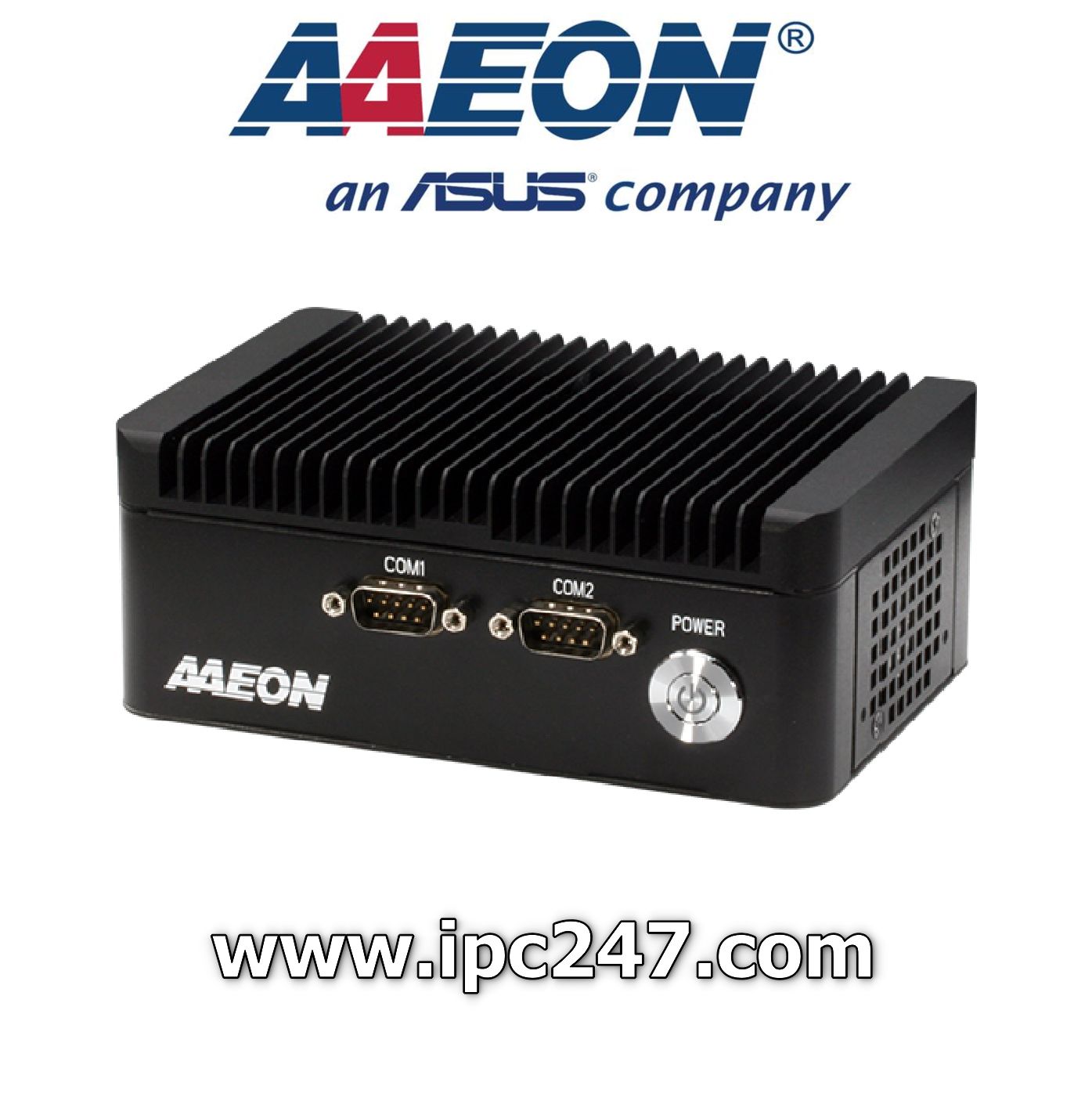

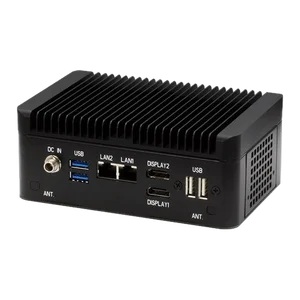

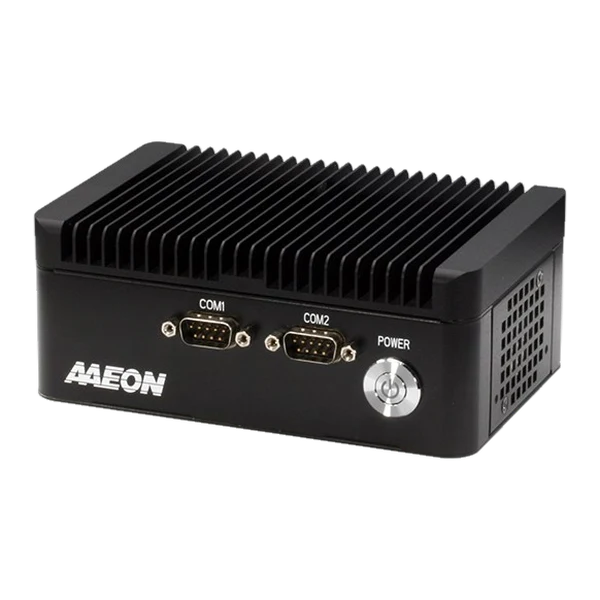

Kit Barebone nhúng PICO-WHU4-SEMI (Pico-ITX)
Pico-ITX Embedded Barebone with 8th Generation Intel® Core™ i7/i5/i3/Celeron® U-Series Processor SoC
Overview
Pico-ITX Embedded Barebone with 8th Generation Intel® Core™ i7/i5/i3/Celeron® U-Series Processor SoC
Features
- 8th Intel® Core™ i7/i5/i3/Celeron Processor SoC
- Non-ECC DDR4 SODIMM Slot x 1, up to 32GB
- Dual HDMI ports (HDMI 1.4b), GbE x 2
- SATA 6.0 Gb/s x 1
- Full size mSATA/mPCIe x 1 (Select by BIOS), M.2 2230 (E key) x 1
- USB 3.2 Gen 2 x 2, USB 2.0 x 2
- RS-232/422/485 x 2 (Optional)
- Lockable DC 12V
Specifications [PICO-WHU4-SEMI]
| SYSTEM | |
| FORM FACTOR | PICO-ITX |
| PROCESSOR | Intel® 8th Generation Core™ i7/i5/i3/Celeron SoC i7-8665UE (4C, 1.7GHz, up to 4.4GHz) i5-8365UE (4C, 1.6GHz, up to 4.1GHz) i3-8145UE (2C, 2.2GHz, up to 3.9GHz) Celeron® 4305UE (2C, 2GHz) |
| SYSTEM MEMORY | DDR4 2400MHz SODIMM x 1, Max. 32 GB |
| CHIPSET | Intel® SoC |
| ETHERNET | Realtek 8111G Gigabit Ethernet 10/100/1000Mbps, RJ-45 x2 |
| BIOS | AMI BIOS |
| WAKE ON LAN | Yes |
| WATCHDOG TIMER | 255 Level |
| EXPANSION INTERFACE | 2230 M.2 E-Key x 1 (for WIFI/BT, PCIe/USB signal only) SMBUS/I2C/LPC/eSPI x 1 |
| POWER REQUIREMENT | Normal: +12V |
| POWER SUPPLY TYPE | Lockable |
| POWER CONSUMPTION | i7-8665UE @ DDR4 16GB, [email protected] |
| SYSTEM SIZE | 5.9″ x 3.94″ x 2.36″ (150mm x 100mm x 60mm) |
| GROSS WEIGHT | 982g (including packing) 635g (excluding packing) |
| OPERATING TEMPERATURE | 32°F ~ 122°F (0°C ~ 50°C) without airflow 0.5m/s for SSD SKU |
| STORAGE TEMPERATURE | -40°F ~ 176°F (-40°C ~ 80°C) |
| HUMIDITY | 0% ~ 90% relative humidity, non-condensing |
| MTBF | 298762 |
| DISPLAY | |
| CHIPSET | Intel® SoC |
| VIDEO OUTPUT | HDMI 1.4 |
| TOUCH | — |
| I/O | |
| STORAGE/SSD | SATA 6.0Gb/s x 1, (5V Power) mini-PCIe(Full) x 1 (PCIe[x1]x1, USB3.2/2.0, SATA) |
| USB PORT | USB 3.2 Gen 2 x 2 (Rear IO) USB 2.0 x 2 ( Via cable to Rear IO) |
| SERIAL PORT | RS-232/422/485 x 2 (Optional) |
| AUDIO | — |
| EXPANSION SLOT | — |
| CERTIFICATION | |
| CERTIFICATION | CE, FCC |
Ordering Information [PICO-WHU4-SEMI]
| PART NUMBER | PICO-WHU4-SEMI-A11-S001 | PICO-WHU4-SEMI-A11-S002 | PICO-WHU4-SEMI-A11-S003 | PICO-WHU4-SEMI-A11-S004 | PICO-WHU4-SEMI-A11-S005 |
|---|---|---|---|---|---|
| CPU | Celeron 4305UE | i3-8145UE | i5-8365UE | i7-8665UE | i7-8665UE |
| MEMORY | DDR4 Socket | DDR4 Socket | DDR4 Socket | DDR4 Socket | 8GB DDR4 2400Mhz SODIMM |
| THERMAL | w/Cooler | w/Cooler | w/Cooler | w/Cooler | w/Cooler |
| DISPLAY | HDMI x 2 | HDMI x 2 | HDMI x 2 | HDMI x 2 | HDMI x 2 |
| STORAGE | SATAIII x 1 mSATA (Full size) x 1 |
SATAIII x 1 mSATA (Full size) x 1 |
SATAIII x 1 mSATA (Full size) x 1 |
SATAIII x 1 mSATA (Full size) x 1 |
SATAIII x 1 mSATA (Full size) x 1 |
| LAN | GbE x 2 | GbE x 2 | GbE x 2 | GbE x 2 | GbE x 2 |
| USB | USB 3.2 Gen 2 x 2 (Rear) USB 2.0 x 2 ( Via cable to Rear IO) |
USB 3.2 Gen 2 x 2 (Rear) USB 2.0 x 2 ( Via cable to Rear IO) |
USB 3.2 Gen 2 x 2 (Rear) USB 2.0 x 2 ( Via cable to Rear IO) |
USB 3.2 Gen 2 x 2 (Rear) USB 2.0 x 2 ( Via cable to Rear IO) |
USB 3.2 Gen 2 x 2 (Rear) USB 2.0 x 2 ( Via cable to Rear IO) |
| RS-232/422/485 | Optional | Optional | Optional | Optional | 2 |
| EXPANSION SLOT | M.2 2230 (E Key) x 1 | M.2 2230 (E Key) x 1 | M.2 2230 (E Key) x 1 | M.2 2230 (E Key) x 1 | M.2 2230 (E Key) x 1 |
| POWER | +12V (ATX) | +12V (ATX) | +12V (ATX) | +12V (ATX) | +12V (ATX) |
| POWER TEMP | 0°C ~ 60°C | 0°C ~ 60°C | 0°C ~ 60°C | 0°C ~ 60°C | 0°C ~ 60°C |
Downloads [PICO-WHU4-SEMI]
1. Datasheet: PICO-WHU4-SEMI,datasheet 1.0
2. Manual: PICO-WHU4-SEMI Manual 1.0
Packing List
- PICO-WHU4-SEMI
Optional Accessories
| Part Number | Description | Qty. |
| 1701200102 | (TF)SERIAL Cable.WL1010H-2*10P 1.0mm Housing.Dual DB9(M).10cm | 1 |
| 125530060Z | Power Adapter 12V/5A 60W FSP060-DHAN3 | 1 |
| 1255300960 | Power Adapter 12V/8A 96W FSP096-AHAN3 | 1 |
| 1702031802 | Power Cord (US Type) | 1 |
| 1702031803 | Power Cord (Europe Type) | 1 |
| 170203180E | Power Cord (Japan) | 1 |
| PICO-WHU4-SEMI-VESA1 | PICO-WHU4-SEMI VESA bracket kit | 1 |
| PICO-WHU4-SEMI-WMT1 | PICO-WHU4-SEMI Wallmount bracket kit | 1 |
