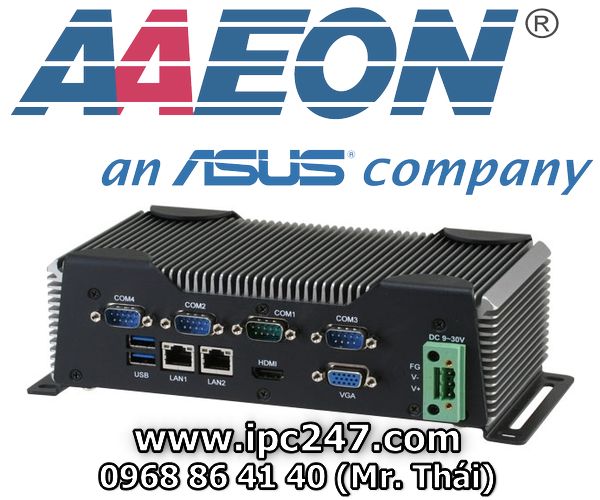

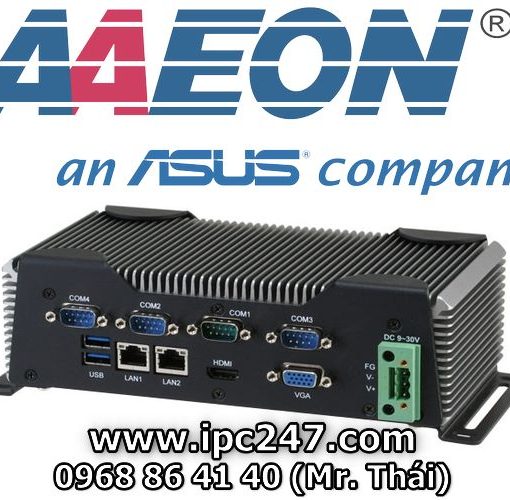

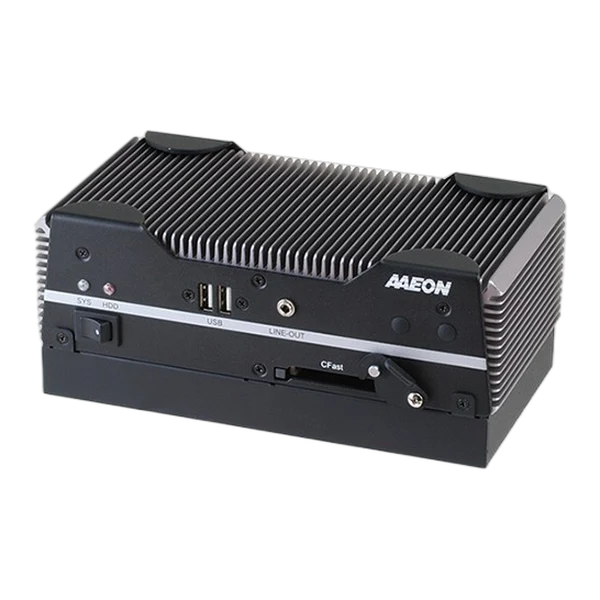

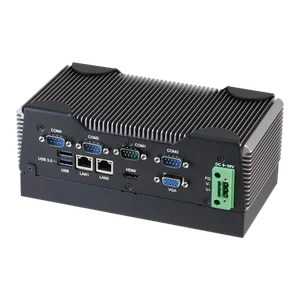

Máy tính công nghiệp không quạt AAEON BOXER-6614
Overview
- AAEON introduces the newest product in the Boxer series, BOXER-6614, which utilizes the Intel® Celeron® N2930 Quad Core 1.83 GHz SoC N2930/ Celeron® N2807 Dual Core 1.58 GHz (Optional): this embedded controller expands its graphics performance greatly with the newest generation of Celeron® processors.
- In this era of information explosion, the advertising of consumer products will not be confined to the family television, but will also spread to high-traffic public areas, like department stores, the bus, transportation station, the supermarket etc. The advertising marketing industry will resort to every conceivable mean to transmit product information to consumers. System integrators will need a multifunction device to satisfy commercial needs for such public advertising.
- The BOXER-6614 is a standalone high performance controller designed for long-life operation and with high reliability. It can replace traditional methods and become the mainstream controller for the multimedia entertainment market.
Features
- Intel® Celeron® J1900 2.0 GHz/ N2930 Quad Core 1.83 GHz/ Celeron® N2807 Dual Core 1.58 GHz
- Intel® HD Graphics Engine
- DDR3L 1333 MHz SODIMM x 1, Memory Max. up to 8 GB
- Intel® Gigabit Ethernet x 2
- VGA + HDMI Output, Support Dual View/Simultaneous Display
- RS-232/422/485 x 2, RS-232 x 2
- USB3.0 x 1, USB2.0 x 3
- Full Size Mini-Card with SIM Slot x 1
- Half Size Mini-Card x 1 for Factory-Install
- Compact Size & Low Power
- Cost-Effective Design
- Fanless System Design
- AAEON’s Hi-Safe Support
Specifications [BOXER-6614]
| SYSTEM | |
| CPU | Intel® Celeron™ J1900, 2.0 GHz |
| Intel® Celeron™ N2930, 1.83 GHz | |
| Intel® Celeron™ N2807, 1.58GHz | |
| CHIPSET | Intel® System on Chip |
| SYSTEM MEMORY | DDR3L 1333 SODIMM slot x 1, up to 8 GB (J1900/N2930/E3845) or 4 GB (N2807) |
| DISPLAY INTERFACE | VGA, HDMI |
| STORAGE DEVICE | CFast™, HDD/SSD |
| ETHERNET | Intel® I210/I211, 10/100/1000Base-TX x 2 |
| I/O | RS-232/422/485 x 2 |
| RS-232 x 2 | |
| USB 2.0 x 3 | |
| USB 3.0 x 1 | |
| VGA x 1 | |
| HDMI x 1 | |
| Line-out x 1 | |
| LAN x 2 | |
| CFast slot x 2 | |
| Antenna holes x 2 | |
| Power switch | |
| Power input | |
| EXPANSION | Full-size Mini-Card x 1 |
| Half-size Mini-Card x 1 | |
| INDICATOR | Power LED |
| HDD active LED | |
| OS SUPPORT | Windows® 10, Windows® 8.1 (32/64-bit), Windows® 7(32/64-bit), WES7/WES8, Linux Ubuntu 14.04/ Kernel 3.13.0 |
| POWER SUPPLY | |
| POWER REQUIREMENT | 9 – 30V with 3-pin terminal block |
| 12V with lockable DC jack | |
| MECHANICAL | |
| MOUNTING | Wallmount |
| DIN Rail (Mounting kit is optional) | |
| DIMENSIONS (W X H X D) | 8.35″ x 4.21″ x 2.53″ (212.15mm x 107mm x 64.2mm ) |
| GROSS WEIGHT | 6.6 lb (2.8 kg) |
| NET WEIGHT | 4.4 lb (2 kg) |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | -20°C ~ 55°C with wide temperature CFast™ card |
| -20°C ~ 60°C with wide temperature HDD | |
| (according to IEC68-2-14 with 0.5 m/s AirFlow ; with industrial devices) | |
| STORAGE TEMPERATURE | -20°C ~ 70°C |
| STORAGE HUMIDITY | 95% @ 40°C, non-condensing |
| ANTI-VIBRATION | 5 Grms/ 5 ~ 500Hz/ operation –CFast™ card |
| 1 Grms/ 5~ 500Hz/ operation – HDD | |
| CERTIFICATION | CE/FCC class A |
Ordering Information [BOXER-6614]
| PART NUMBER | BOXER-6614-A1-1010 | BOXER-6614-A11M-1010 | BOXER-6614-A12-1010 | BOXER-6614-A12M-1010 | BOXER-6614-A1M-1010 | BOXER-6614-A2-1010 | BOXER-6614-A2M-1010 | BOXER-6614-A31-1010 | BOXER-6614-A31M-1010 | BOXER-6614-A32-1010 | BOXER-6614-A32M-1010 |
| CPU | Intel® Celeron® SoC N2930 | Intel® Celeron® SoC N2807 | Intel® Celeron® SoC N2807 | Intel® Celeron® SoC N2807 | Intel® Celeron® SoC N2930 | Intel® Celeron® SoC N2930 | Intel® Celeron® SoC N2930 | Intel® Celeron® SoC J1900 | Intel® Celeron® SoC J1900 | Intel® Celeron® SoC J1900 | Intel® Celeron® SoC J1900 |
| RAM | — | — | — | — | — | — | — | — | — | — | — |
| LAN | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| USB | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| RS-232 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| RS-232/422/485 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| STOGARE | CFast Socket x 1 (Easy-to-swap) | CFast Socket x 1 (Easy-to-swap) | CFast Socket x 1 (Easy-to-swap) SATA 2.5” HDD bay x 1 | CFast Socket x 1 (Easy-to-swap) SATA 2.5” HDD bay x 1 | CFast Socket x 1 (Easy-to-swap) | CFast Socket x 1 (Easy-to-swap) SATA 2.5” HDD bay x 1 | CFast Socket x 1 (Easy-to-swap) SATA 2.5” HDD bay x 1 | CFast Socket x 1 (Easy-to-swap) | CFast Socket x 1 (Easy-to-swap) | CFast Socket x 1 (Easy-to-swap) SATA 2.5” HDD bay x 1 | CFast Socket x 1 (Easy-to-swap) SATA 2.5” HDD bay x 1 |
| DISPLAY | VGA x 1 | VGA x 1 | VGA x 1 | VGA x 1 | VGA x 1 | VGA x 1 | VGA x 1 | VGA x 1 | VGA x 1 | VGA x 1 | VGA x 1 |
| HDMI x 1 | HDMI x 1 | HDMI x 1 | HDMI x 1 | HDMI x 1 | HDMI x 1 | HDMI x 1 | HDMI x 1 | HDMI x 1 | HDMI x 1 | HDMI x 1 | |
| EXPANSION | Full Size Mini-Card x 1 Half Size Mini-Card x 1 | Full Size Mini-Card x 1 Half Size Mini-Card x 1 | Full Size Mini-Card x 1 Half Size Mini-Card x 1 | Full Size Mini-Card x 1 Half Size Mini-Card x 1 | Full Size Mini-Card x 1 Half Size Mini-Card x 1 | Full Size Mini-Card x 1 Half Size Mini-Card x 1 | Full Size Mini-Card x 1 Half Size Mini-Card x 1 | Full Size Mini-Card x 1 Half Size Mini-Card x 1 | Full Size Mini-Card x 1 Half Size Mini-Card x 1 | Full Size Mini-Card x 1 Half Size Mini-Card x 1 | Full Size Mini-Card x 1 Half Size Mini-Card x 1 |
| MOUNTING | Wallmount/ Din Rail Mounting Kit (Optional) | Wallmount/ Din Rail Mounting Kit (Optional) | Wallmount/ Din Rail Mounting Kit (Optional) | Wallmount/ Din Rail Mounting Kit (Optional) | Wallmount/ Din Rail Mounting Kit (Optional) | Wallmount/ Din Rail Mounting Kit (Optional) | Wallmount/ Din Rail Mounting Kit (Optional) | Wallmount/ Din Rail Mounting Kit (Optional) | Wallmount/ Din Rail Mounting Kit (Optional) | Wallmount/ Din Rail Mounting Kit (Optional) | Wallmount/ Din Rail Mounting Kit (Optional) |
| POWER | DC 12V | DC 9-30V | DC 12V | DC 9-30V | DC 9-30V | DC 12V | DC 9-30V | DC 12V | DC 9-30V | DC 12V | DC 9-30V |
| TEMP. | -20°C~55°C with Wide Temp. CFast(with 0.5 m/ s air flow, according to IEC68-2-14) | -20°C~55°C with Wide Temp. CFast(with 0.5 m/ s air flow, according to IEC68-2-14) | -20°C~55°C with Wide Temp. CFast(with 0.5 m/ s air flow, according to IEC68-2-14) | -20°C~55°C with Wide Temp. CFast(with 0.5 m/ s air flow, according to IEC68-2-14) | -20°C~55°C with Wide Temp. CFast(with 0.5 m/ s air flow, according to IEC68-2-14) | -20°C~55°C with Wide Temp. CFast(with 0.5 m/ s air flow, according to IEC68-2-14) | -20°C~55°C with Wide Temp. CFast(with 0.5 m/ s air flow, according to IEC68-2-14) | -20°C~55°C with Wide Temp. CFast(with 0.5 m/ s air flow, according to IEC68-2-14) | -20°C~55°C with Wide Temp. CFast(with 0.5 m/ s air flow, according to IEC68-2-14) | -20°C~55°C with Wide Temp. CFast(with 0.5 m/ s air flow, according to IEC68-2-14) | -20°C~55°C with Wide Temp. CFast(with 0.5 m/ s air flow, according to IEC68-2-14) |
| -20°C~60°C with Wide Temp. HDD(with 0.5 m/s air flow, according to IEC68-2-14) | -20°C~60°C with Wide Temp. HDD(with 0.5 m/s air flow, according to IEC68-2-14) | -20°C~60°C with Wide Temp. HDD(with 0.5 m/s air flow, according to IEC68-2-14) | -20°C~60°C with Wide Temp. HDD(with 0.5 m/s air flow, according to IEC68-2-14) | -20°C~60°C with Wide Temp. HDD(with 0.5 m/s air flow, according to IEC68-2-14) | -20°C~60°C with Wide Temp. HDD(with 0.5 m/s air flow, according to IEC68-2-14) | -20°C~60°C with Wide Temp. HDD(with 0.5 m/s air flow, according to IEC68-2-14) | -20°C~60°C with Wide Temp. HDD(with 0.5 m/s air flow, according to IEC68-2-14) |
Packing List
- Wallmount Bracket x 2
- Screw Package x 1
- RAM Thermal Pad x 1 (60mm x 25mm x 3mm) (For A1/A1M the SKU without
- HDD kit only)
- Phoenix Power Connector x 1 (For A1M/A2M, for DC 9 ~30 V only)
- Product DVD
- BOXER-6614
Optional Accessories
| 125530060A – DC Jack for 6614-A1/A2 | Power Adapter, AC, 100/240V, 12V/5A, 60W, W/ Lock, FSP, FSP060-DBAE1 |
| 1255900841 – 3 pin for 6614-A1M/A2M | Power Adapter, AC, 100/240V, 12V/7A, 84W, FSP, FSP084-DMAA1 |
| 1702031802 | Power Cord (US Type) |
| 1702031803 | Power Cord (European Type) |
| 170203180E | Power Cord (Japanese Type) |
| 9741681003 | Din Rail Mount Kit |
Chính sách bán hàng
- Bảo hành 24 tháng
- Miễn phí dịch vụ lắp đặt, tư vấn sử dụng tại Tp. Hồ Chí Minh
- Miễn phí dịch vụ bảo trì on-site trong vòng 1 năm tại Tp. Hồ Chí Minh (không bao gồm các huyện ngoại thành). Phản hồi trong vòng 24 tiếng kể từ khi nhận được thông báo.
- Dịch vụ lắp đặt, bảo trì on-site tại các tỉnh thành khác vui lòng liên hệ để được báo giá.
