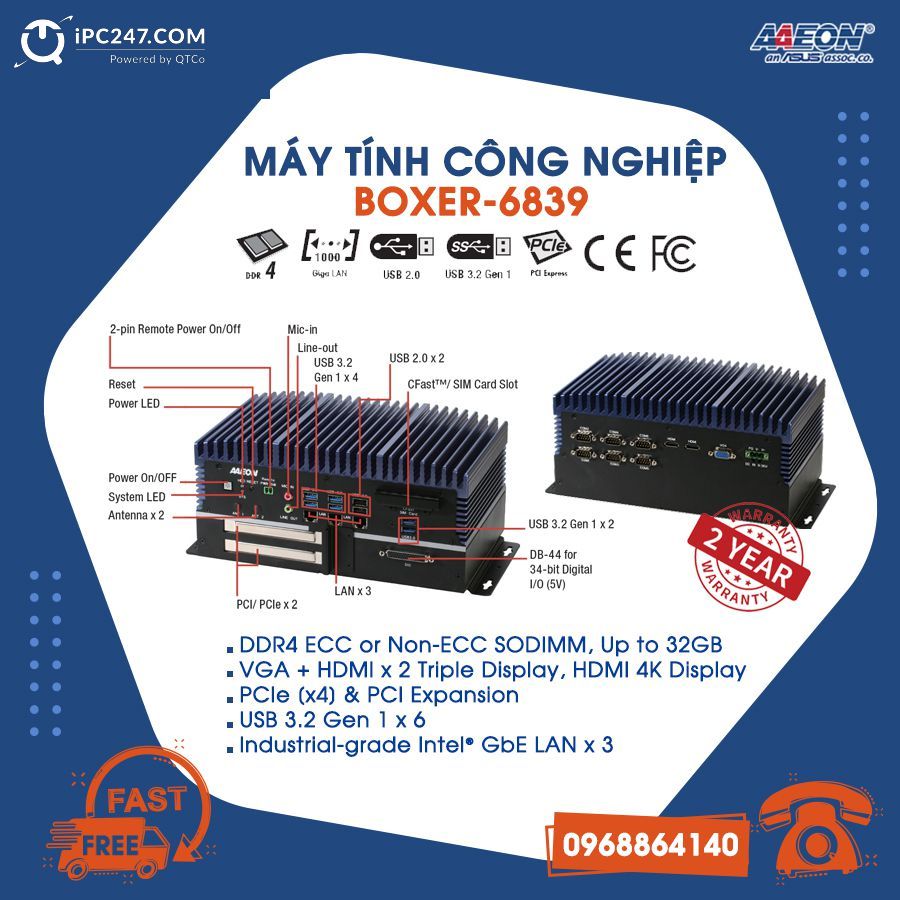

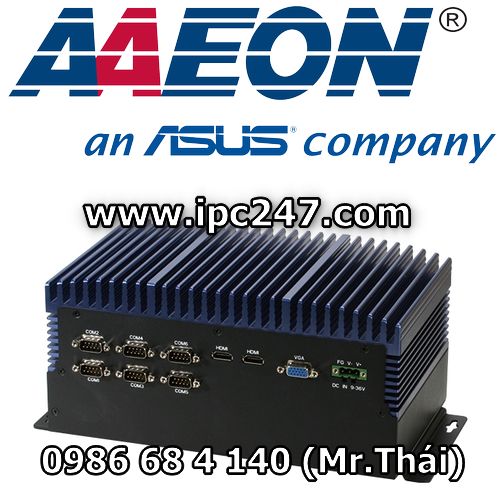

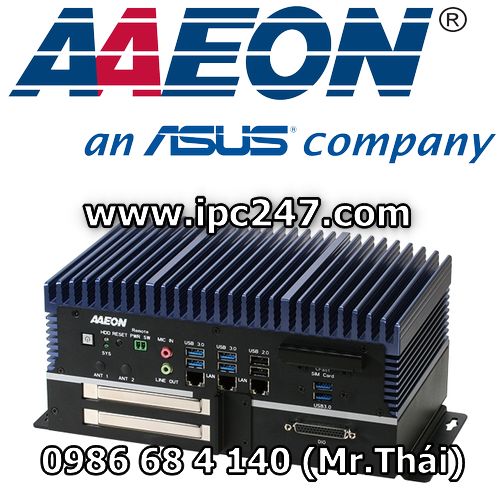

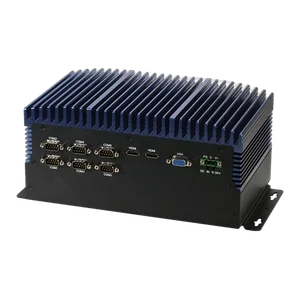

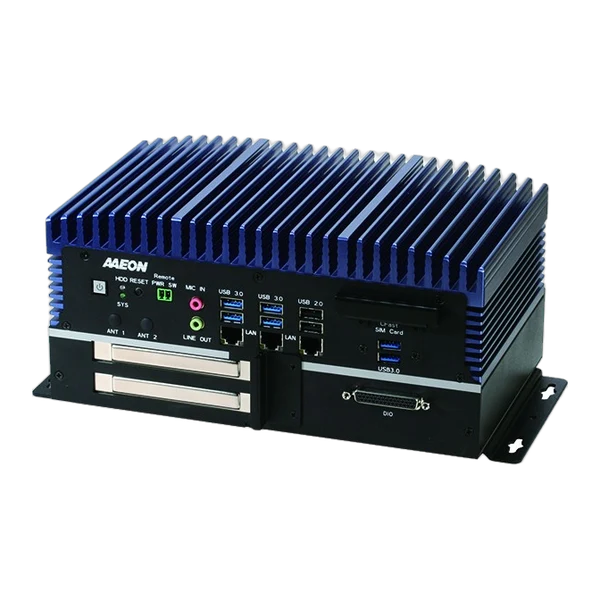

Máy tính công nghiệp không quạt AAEON BOXER-6839
Overview
- Fanless Embedded Box PC with 6th/ 7th Generation Intel® Core™ Desktop Processor and PCIe[x4] & PCI Expansion
Features
- Extreme Computing Power & Graphic Display Capability
- Desktop Grade Socket Type Processor with Longevity Support
- DDR4 ECC or Non-ECC SODIMM, Up to 32GB
- VGA + HDMI x 2 Triple Display, HDMI 4K Display
- PCIe [x4] & PCI Expansion
- USB 3.0 x 6
- Intel® Industrial-grade GbE LAN x 3
- Support BIOS Selectable RS-232/422/485 x 6
- Easy Access Design
- Wide Range DC 9~36V Input
- 34-bit Digital Input and Output
Specifications [BOXER-6839]
| SYSTEM | |
| CPU | 7th Generation Intel® Core™ Processor family: |
| Intel® Core™ i7-7700T, 2.9 GHz | |
| Intel® Core™ i5-7500T, 2.8 GHz | |
| Intel® Core™ i3-7101TE, 3.4 GHz | |
| Intel® Pentium® G4600T, 3.0 GHz | |
| Intel® Pentium® G4560T, 2.9 GHz | |
| Intel® Celeron® G3930T, 2.7 GHz | |
| 6th Generation Intel® Core™ Processor family: | |
| Intel® Core™ i7-6700TE, 2.4 GHz | |
| Intel® Core™ i5-6500TE, 2.3 GHz | |
| Intel® Core™ i3-6100TE, 2.7 GHz | |
| Intel® Pentium® G4500T, 3.0 GHz | |
| Intel® Pentium® G4400T, 2.9 GHz | |
| Intel® Celeron® G3900T, 2.6 Ghz | |
| CHIPSET | Intel® Q170 |
| SYSTEM MEMORY | DDR4 1866/2133 SODIMM slot x 2, up to 32GB |
| DISPLAY INTERFACE | HDMI, VGA |
| STORAGE DEVICE | CFast™, HDD/SSD |
| ETHERNET | Intel® I210, 10/100/1000Base-TX x 3 |
| I/O | RS-232/422/485 x 6 |
| USB Type A x 6 for USB 3.0 | |
| USB Type A x 2 for USB 2.0 | |
| RJ-45 x 3 for GbE LAN | |
| DB-44 for 34-bit Digital I/O (5V) | |
| CFast™ slot x 1 | |
| SIM card slot x 1 | |
| Power On/Off Button x 1 | |
| 2 pin Remote power on/off | |
| Reset switch | |
| Mic-in x 1 | |
| Line-out x 1 | |
| Antenna opening x 2 | |
| SYS LED indicator x 1 | |
| HDD LED indicator x 1 | |
| DB-15 x 1 for VGA | |
| HDMI v1.3 x 2 | |
| DC-in 3-pin terminal block (9~36V) | |
| EXPANSION | Full-size Mini-Card x 2 |
| PCIe [x4] x 1 & PCIe [x1] x 1 (for A1) | |
| PCIe [x4] x 1 & PCI x 1 (for A2) | |
| PCI x 2 (for A3) | |
| INDICATOR | Power LED |
| HDD active LED | |
| OS SUPPORT | 7th Generation Intel® Core™ Processor family: |
| Windows® 10 IOT (64bit) | |
| Ubantu 16.04 above | |
| Fedora 25 above | |
| CentOS 7.3 above | |
| 6th Generation Intel® Core™ Processor family: | |
| Windows® 10 IOT (64bit) | |
| Windows® 8.1 (64bit) | |
| Windows® embedded 8 standard (64bit) | |
| Windows® 7 (64bit/32bit) | |
| Windows® embedded standard 7 (32/64bit) | |
| Ubantu 16.04 above | |
| Fedora 25 above | |
| CentOS 7.3 above | |
| POWER SUPPLY | |
| POWER REQUIREMENT | 9 – 36V with 3-pin terminal block |
| MECHANICAL | |
| MOUNTING | Wallmount |
| DIMENSIONS (W X H X D) | 10.40” x 4.90” x 6.15” (264.2mm x 124.5mm x 156.2mm) |
| GROSS WEIGHT | 13.2 lb (6.0 kg) |
| NET WEIGHT | 9.9 lb (4.5kg) |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | -20°C ~ 55°C (according to IEC68-2-14 with 0.5 m/s AirFlow ; with industrial |
| Devices) | |
| STORAGE TEMPERATURE | -45°C ~ 80°C |
| STORAGE HUMIDITY | 5~95% @ 40°C, non-condensing |
| ANTI-VIBRATION | 5 Grms/ 5 ~ 500Hz/ operation – SSD/CFast™ card |
| 1 Grms/ 5~ 500Hz/ operation – HDD | |
| CERTIFICATION | CE/FCC class A |
Ordering Information [BOXER-6839]
| PART NUMBER | BOXER-6839-A1-1010 | BOXER-6839-A2-1010 | BOXER-6839-A3-1010 |
| CPU | — | — | — |
| RAM | — | — | — |
| LAN | 3 | 3 | 3 |
| USB 3.0 | 6 | 6 | 6 |
| USB 2.0 | 2 | 2 | 2 |
| RS-232/422/485 | 6 | 6 | 6 |
| DIGITAL I/O | 34 bit | 34 bit | 34 bit |
| AUDIO | MIC-in x 1 | MIC-in x 1 | MIC-in x 1 |
| Line-Out x 1 | Line-Out x 1 | Line-Out x 1 | |
| STORAGE | 2.5″ Drive Bay x 2 | 2.5” Drive Bay x 2 | 2.5” Drive Bay x 2 |
| CFast™ x 1 | CFast™ x 1 | CFast™ x 1 | |
| DISPLAY | VGA x 1 | VGA x 1 | VGA x 1 |
| HDMI x 2 | HDMI x 2 | HDMI x 2 | |
| EXPANSION | PCIE[x4] + PCIE[x1] Full-size Minicard x 2 | PCIE[x4] + PCI | PCI x 2 |
| Full-size Minicard x 2 | Full-size Minicard x 2 | ||
| MOUNTING | Wallmount | Wallmount | Wallmount |
| POWER | 9~36V DC In | 9~36V DC In | 9~36V DC In |
| OPERATING TEMP. | -20°C ~ 55°C | -20°C ~ 55°C | -20°C ~ 55°C |
Packing List
- Wallmount Bracket x 2
- Screw Package x 1
- Thermal Pad x 3
- Product DVD x 1
- Phoenix Power Connector x 1
- BOXER-6839
Optional Accessories
|
1255901202
|
Power Adapter |
| 1702031802 | Power Cord (US Type) |
| 1702031803 | Power Cord (Europe) |
| 170203180E | Power Cord (Japan) |
| 9741159H00 | WiFi/Bluetooth Module & Antenna |
| 9741EC25E0 | 4G Module & Antenna (For Europe) |
| 9741EC25A0 | 4G Module & Antenna (For USA-AT&T) |
| 9741EC25V0 | 4G Module & Antenna (For USA-Verizon |
