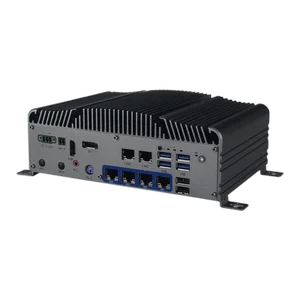

Máy tính công nghiệp không quạt KMDA-3202/T001~4
Feature:
- Aluminum chassis, fanless design
- Intel® Skylake-U Celeron and Core I3/I5/I7 CPU
- 1*SODIMM DDR4 2133 Mhz memory, Up to 16GB
- 1*HDMI and 1*VGA dual display, HDMI 4K ultra HD
- 2*Gig LAN 4*USB3.0, 3*USB2.0(one inside)
- 6*COM, COM6 opt. 8bit DIO, Audio out and Mic
- 1*Mini PCIe(PCIe+USB), full size support 4G LTE/Wifi/BT 1*2.5″ SATA Bay, 1*full size mSATA
- DC 9~24V Wide Power Input
Specifications:
| System | |
| CPU | Gen.6th Intel Skylake-U ULT TDP 15W: Celeron 3855U 1.6GHz, 2cores2thds; Core-U: I3-6100U 2.3GHz, 2cores4thds; I5-6200U 2.3-2.8GHz, 2cores4thds; I7-6500U 2.5-3.1GHz, 2cores4thds |
| RAM | 2*260-Pin SODIMM, dual channel DDR4 2133Mhz, up to 32GB |
| Expansion | 1*Full size Mini PCIe with USB+SATA3 signal use to be mSATA1*Full size Mini PCIe(PCIeX1+USB)with SIM slot,1*M.2 2242 B-key(PCIeX1+USB)with SIM slot,support 2*4G LTE and Wifi/BT |
| Graphics | Gen. 9th Intel HD Graphics, HEVC/H265 HW HD en/decoder, DP max. res. 4096*2304@60Hz, HDMI max. res. 3840*2160@30Hz, Dual independed display |
| Audio | Realtek ALC662 HD Audio , 5.1 sound channel |
| LAN | 2*Intel I211AT(opt. I210AT) PCIe Gig. Ethernet; 1*Intel I219LM PCIe Gig. Ethernet support iVpro, 4*Intel I211AT(opt. I210AT) Ethernet with POE function, TDP 15.4W/port |
| KB & MS | USB keyboard and mouse |
| Storage | 1*2.5″ SATA HDD/SSD bay, cooling by aluminum chassis, SATA3 6.0Gbps; 1*mSATA, support AHCI |
| DIO | 8-bit TTL singal, programmable input and output; 8-bit Iso. DI(High:5-24V,Low:0-1.5V) and 8-bit Iso. DO(100mA) |
| I-port | Optional 1*LVDS, 2*USB2.0 or Mini PCIe ports(such as serial ports and parallel ports) |

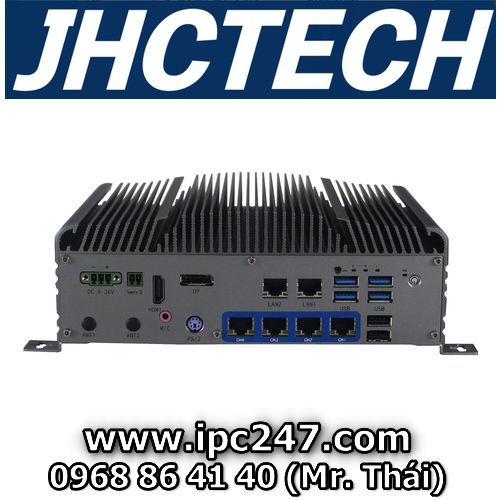

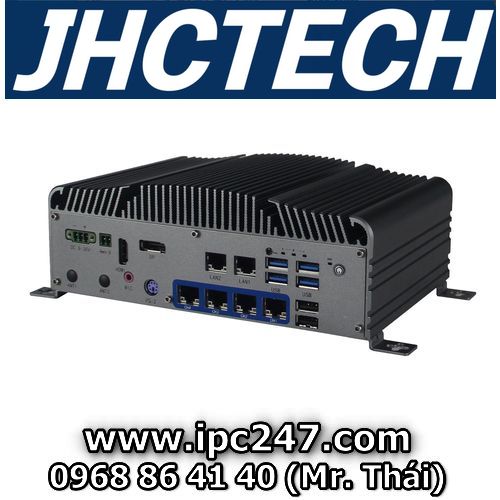

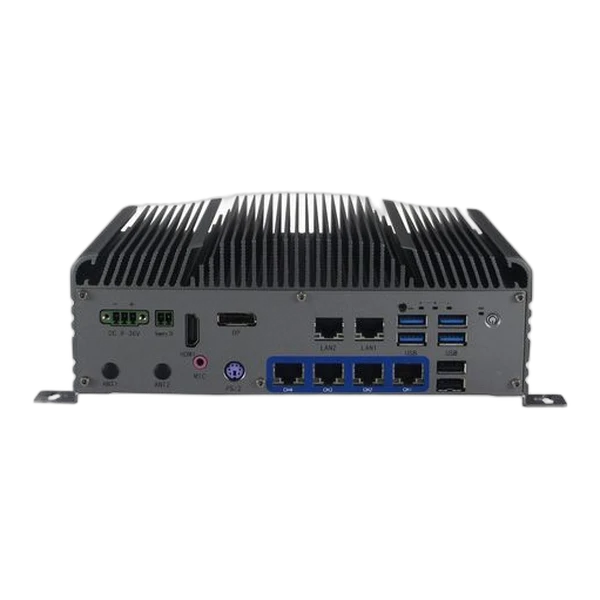

| I/O Ports | 3*RJ45 w/LED Gig-LAN (Front), 4*RJ45 w/LED POE Gig-LAN (Front) |
| 4*USB3.0 Type A (Front), 2*USB2.0 Type A(Rear), 2*USB2.0 Type A(Front), 1*USB2.0 Type A(Inside) 8bit DIO:2*5-pin ter.(Rear), 8bit DI: 1*10-pin ter. (Rear), 8bit DO: 1*10 pin ter.(Rear) | |

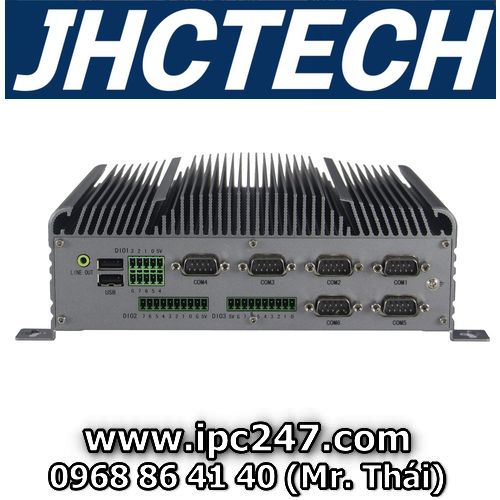

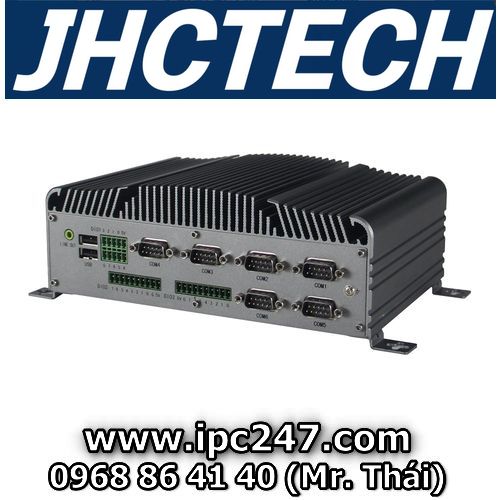

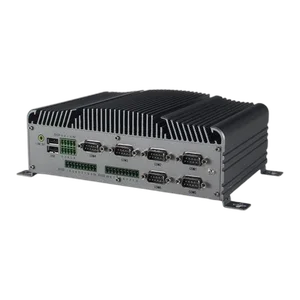

| 4*RS232/422/485 DB9 male (Rear), 2*RS232 DB9 male (Rear), 1*6pin PS/2(Front) | |
| 1*Audio-out 3.5mm phone jack(Rear), 1*Mic 3.5mm phone jack(Front) | |
| 1*HDMI(Front) +1*DP (Front) | |
| LED | 1*Power on LED, 1*HDD Run LED, 3*CPU temp. LED (Red: High, Yellow: Typical, Green: Low) |
| Control SW | 1*Power sw(Front rear), 1*2pin term. power sw (Back rear), 1*AT/ATX select dip (Front rear) |
| Power Supply | DC 9~36V Input, 3-pin ter. (Front), short circuit, overvoltage and overcurren, TDP: TBD |
| Watchdog Timer | Watchdog timeout programmable via software 1 to 255 second |
| OS Support | Windows 7, Windows 8.1, Windows 10, Linux Fedora Ubuntu |
| Mechanical | |
| Structure | aluminum chassis, SGCC frame |
| Color | Silver |
| Mounting | Desktop Mounting, 4*rotatable stands left-right side or front-rear side |
| Dimension | (W*H*D)：210*144.3*74 mm |
| Weight | 2.2KG |
| Environmental | |
| Operation temperature | -20°C～70°C – Fanless with wide operating temp. SSD, AirfloW |
| -10°C～50°C – Fanless with HDD, Airflow | |
| Storage temperature | – 4 0 ° C ~ 85°C |
| Storage humidity | 10~90%@40°C, non-condensing |
| Vibration | 5 grms/5~500Hz/Random/in working status(SSD); 1 grms/5~500Hz/Random/in working status(SSD) |
| Shock | 50g peak acceleration(11ms duration)(SSD); 20g peak acceleration(11ms duration)(HDD） |
| EMC | CE /FCC Class A |
| Ordering info | |
| KMDA-3202/S004 | Fanless Box Computer, Intel Skylake-U 3855U CPU, 3*LAN, 4*POE, 4*USB3.0, 5*USB2.0, 6*COM, 16bit Iso.DIO, 8bit DIO |
| 1 *Mini PCIe, 1*M.2, 1*HDMI, 1*DP , Audio out and Mic, 1*I-port, 1*2.5″ driver bay, 1*mSATA, DC 9~36V | |
| PA-60DC12 | AC/DC power adapter, DC12V/5A 60W |
