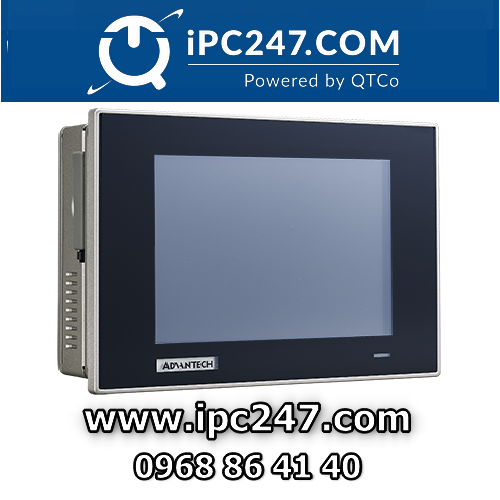

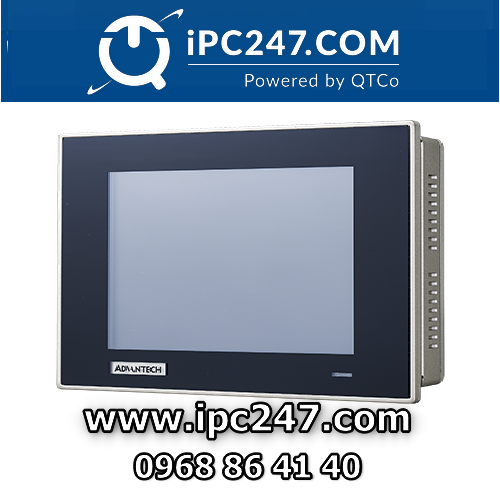

Máy tính công nghiệp màn hình cảm ứng TPC-651T
Overview

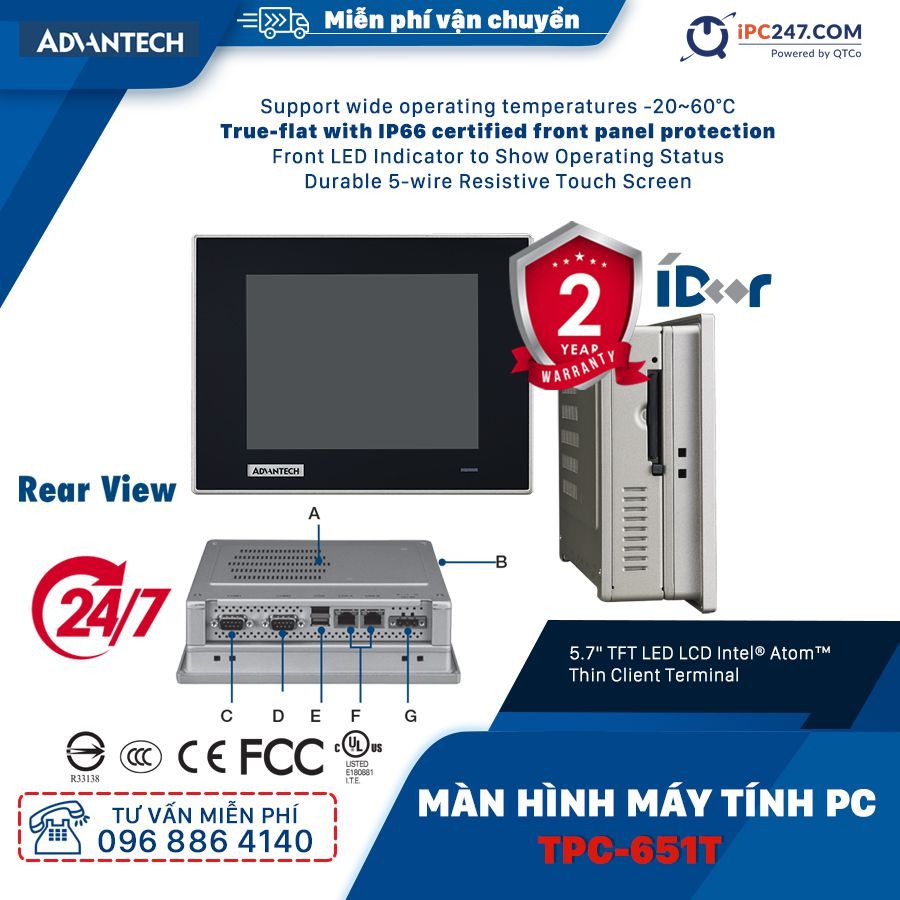

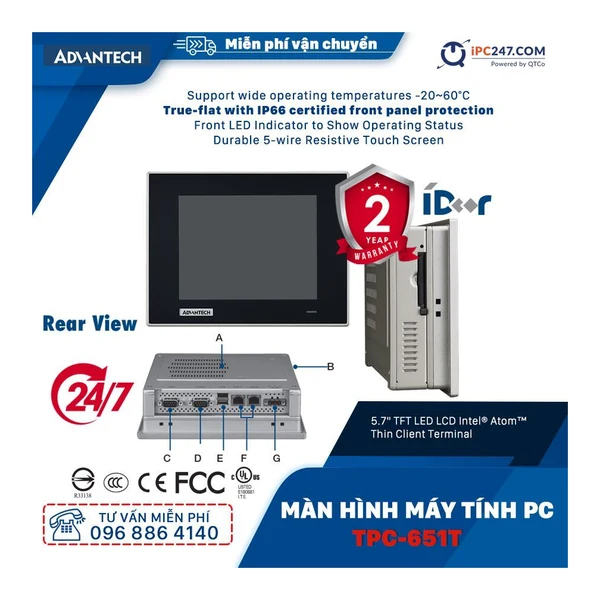

5.7″ TFT LED LCD Intel® Atom™ Thin Client Terminal
Features
- Industrial 5.7″ VGA TFT LCD with 50K Lifetime LED Backlight
- Intel® Atom™ E3827 1.75 GHz Dual-core Processor with 4GB DDR3L SDRAM
- Support wide operating temperatures -20~60°C
- True-flat with IP66 certified front panel protection
- Front LED Indicator to Show Operating Status
- Durable 5-wire Resistive Touch Screen
- Full-size Mini PCIe Expansion Support
- Supports iDoor technology for diverse applications (optional accessory required)
- Compact Fanless Embedded System with Al Alloy Front Bezel, Chassis Grounding Protection
- AC/DC support (option by Power adapter)
- Supports Advantech SNMP Subagent
- Supports Advantech SusiAccess Remote Device Management Software
Specifications [TPC-651T]
| Part Number |
TPC-651H-E3AE
|
TPC-651T-6E3AE
|
TPC-651T-E3AE
|
|
Display
|
|||
|
Type
|
VGA TFT LED LCD
|
VGA TFT LED LCD
|
VGA TFT LED LCD
|
| Viewing Angle (H/V°) |
160/140
|
160/140
|
160/140 |
| Backlight Life (hrs) |
50,000 hrs
|
50,000 hrs
|
50,000 hrs
|
| Luminance (cd/m2) |
550
|
800 |
550
|
| Size |
5.7″
|
6.5″ |
5.7″
|
| Max. Resolution |
640 x 480
|
640 x 480
|
640 x 480
|
| Max. Colors |
262 K
|
262 K
|
262 K
|
| Contrast Ratio |
800:01:00
|
800:01:00
|
800:01:00
|
|
General
|
|||
|
Power Consumption
|
19.2 W (typical)
|
19.2 W (typical)
|
19.2 W (typical)
|
| Power Input |
24VDC +/- 20%
|
24VDC +/- 20%
|
24VDC +/- 20%
|
| Watchdog Timer |
1 ~ 255 sec (system)
|
1 ~ 255 sec (system)
|
1 ~ 255 sec (system)
|
| Mounting |
Desktop, Wall, Panel Mount, and VESA or stand mount (with optional kit)
|
Desktop, Wall, Panel Mount, and VESA or stand mount (with optional kit) | Desktop, Wall, Panel Mount, and VESA or stand mount (with optional kit) |
| Certifications |
BSMI, CCC, CE, FCC Class A, UL, EAC
|
BSMI, CCC, CE, FCC Class A, UL, EAC | BSMI, CCC, CE, FCC Class A, UL, EAC |
| BIOS |
AMI UEFI
|
AMI UEFI | AMI UEFI |
| Cooling System |
Fanless design
|
Fanless design | Fanless design |
| Enclosure |
Front bezel: Die-cast Aluminum alloy, Back housing: SECC
|
Front bezel: Die-cast Aluminum alloy, Back housing: SECC | Front bezel: Die-cast Aluminum alloy, Back housing: SECC |
| OS Support |
Microsoft® WES7 32bit/64bit / WE8S 64bit / Windows 7/ 8.1 32bit/64bit / Windows 10 Enterprise LTSB
|
Microsoft® WES7 32bit/64bit / WE8S 64bit / Windows 7/ 8.1 32bit/64bit / Windows 10 Enterprise LTSB | Microsoft® WES7 32bit/64bit / WE8S 64bit / Windows 7/ 8.1 32bit/64bit / Windows 10 Enterprise LTSB |
| Weight (Net) |
1.5 kg
|
1.5 kg
|
1.5 kg
|
| Dimensions |
199 x 152 x 58.9 mm (7.83” x 5.98” x 2.32”)
|
199 x 152 x 58.9 mm (7.83” x 5.98” x 2.32”) | 199 x 152 x 58.9 mm (7.83” x 5.98” x 2.32”) |
|
System Hardware
|
|||
|
CPU
|
Intel® Atom™ E3827 1.75 GHz Processor
|
Intel® Atom™ E3827 1.75 GHz Processor
|
Intel® Atom™ E3827 1.75 GHz Processor
|
| Memory |
1 x SO-DIMM with 4GB DDR3L SDRAM (supports up to 8G)
|
1 x SO-DIMM with 4GB DDR3L SDRAM (supports up to 8G) | 1 x SO-DIMM with 4GB DDR3L SDRAM (supports up to 8G) |
| Storage |
CFast slot x 1, 2.5″ SATA SSD slot x 1 (optional)
|
CFast slot x 1, 2.5″ SATA SSD slot x 1 (optional) | CFast slot x 1, 2.5″ SATA SSD slot x 1 (optional) |
| LAN |
10/100/1000Base-T x 2
|
10/100/1000Base-T x 2
|
10/100/1000Base-T x 2
|
| Expansion Slots |
Full-size Mini PCI-E
|
Full-size Mini PCI-E
|
Full-size Mini PCI-E
|
| I/O |
RS-232 x 1, RS-232/422/485 x 1, USB3.0 x 1, USB2.0 x 1
|
RS-232 x 1, RS-232/422/485 x 1, USB3.0 x 1, USB2.0 x 1
|
RS-232 x 1, RS-232/422/485 x 1, USB3.0 x 1, USB2.0 x 1
|
|
Environment
|
|||
|
Ingress Protection
|
Front panel: IP65
|
Front panel: IP66 | Front panel: IP66 |
| Vibration Protection |
With CFast: 2 Grms (5~500 Hz), With HDD: 1 Grms (5 ~ 500 Hz) (Operating, random vibration)
|
With CFast: 2 Grms (5~500 Hz), With HDD: 1 Grms (5 ~ 500 Hz) (Operating, random vibration) | With CFast: 2 Grms (5~500 Hz), With HDD: 1 Grms (5 ~ 500 Hz) (Operating, random vibration) |
| Operating Temperature |
-20 ~ 60°C (-4 ~ 140°F)
|
-20 ~ 60°C (-4 ~ 140°F) | -20 ~ 60°C (-4 ~ 140°F) |
| Storage Temperature |
-30 ~ 70°C (-22 ~ 158°F)
|
-30 ~ 70°C (-22 ~ 158°F) | -30 ~ 70°C (-22 ~ 158°F) |
| Humidity |
10 ~ 95% RH @ 40°C, non-condensing
|
10 ~ 90% RH @ 40°C, non-condensing | 10 ~ 95% RH @ 40°C, non-condensing |
|
Touchscreen
|
|||
|
Lifespan
|
36 million touches at single point
|
36 million touches at single point
|
36 million touches at single point
|
| Light Transmission |
Above 75%
|
Above 75%
|
Above 75%
|
| Resolution |
Linearity
|
Linearity
|
Linearity
|
| Type |
5-wire, analog resistive
|
5-wire, analog resistive
|
5-wire, analog resistive
|
