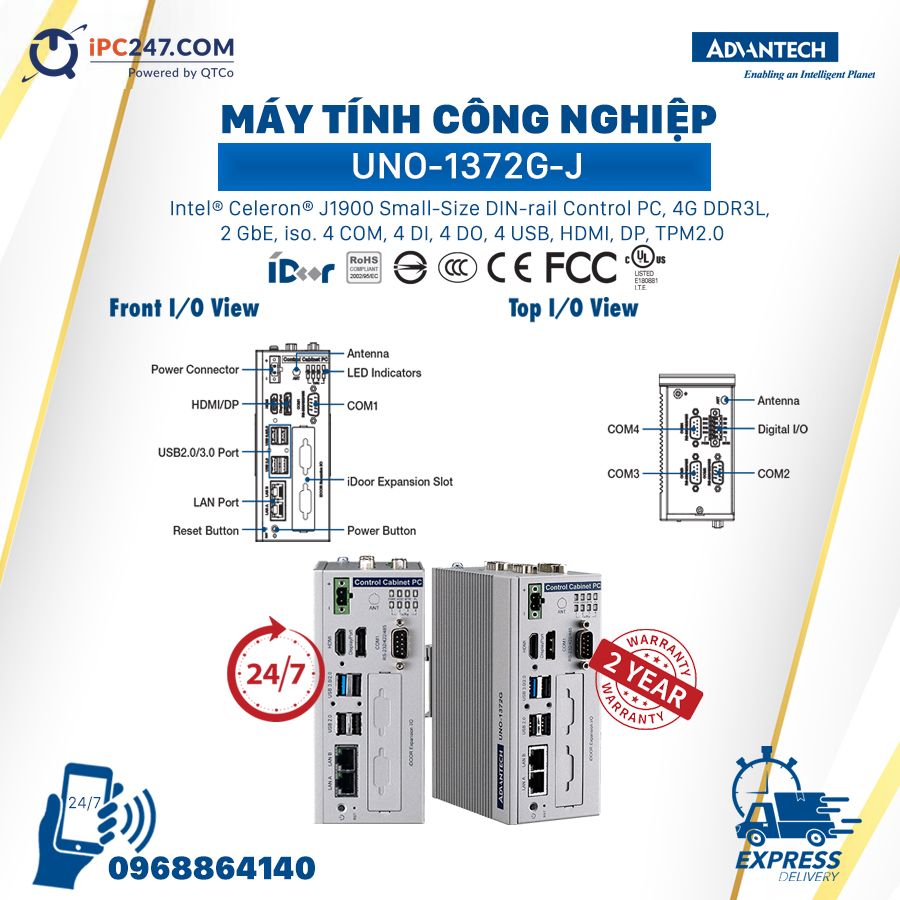

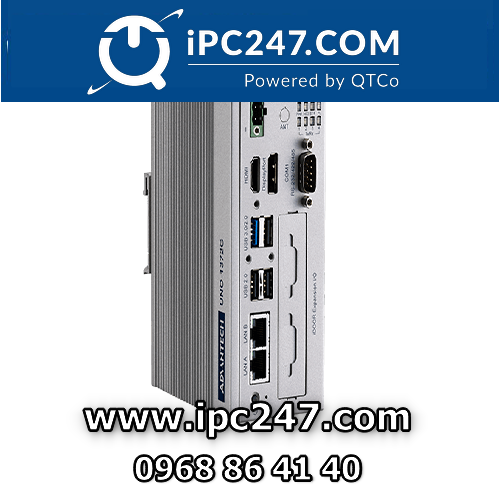

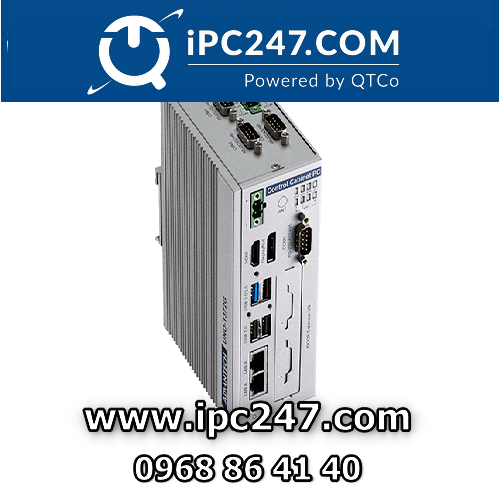

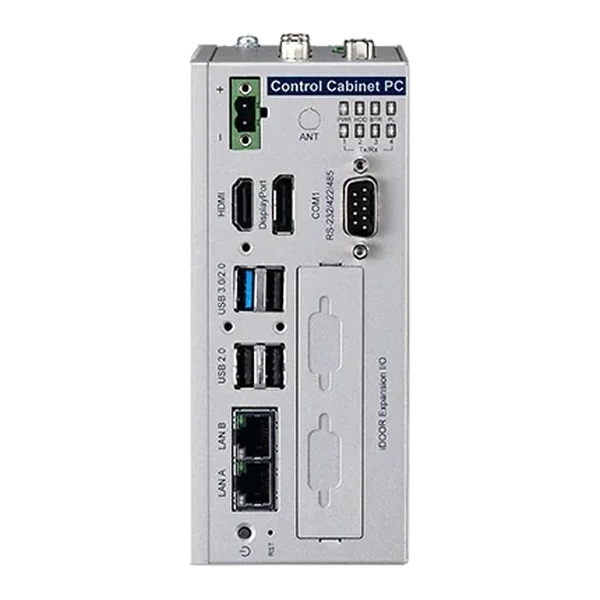

Máy tính công nghiệp không quạt UNO-1372G-J
Overview
Intel® Celeron® J1900 Small-Size DIN-rail Control PC, 4G DDR3L, 2 GbE, iso. 4 COM, 4 DI, 4 DO, 4 USB, HDMI, DP, TPM2.0
Features
- Intel® Celeron® J1900 2.0GHz processor with 4GB DDR3L Memory
- Robust design for industrial control and harsh environment
- Isolated protection of COM and digital Input/output
- Compact fanless design
- Wide power input range and operating temperature
- Chassis grounding protection
- Flexibility of expanding functionality for various application
- Support diverse industrial fieldbus, IO & peripheral and wireless communication iDoor modules
- Dedicated TPM2.0 microcontroller designed for hardware security

Specifications [UNO-1372G-J]
Part Number |
UNO-1372G-J021AE
|
General
|
|
Certifications
|
CCC, CE, FCC, UL, BSMI
|
Power Consumption |
19W(Typical) 35W(Max)
|
Mounting |
DIN-rail
|
OS Support |
Microsoft® Windows 7/8/10, WES7, AdvLinux
|
Enclosure |
Aluminum Housing
|
Power Requirement |
10~36 VDC
|
Weight (Net) |
1.0kg (2.2lbs)
|
Dimensions |
65 x 105 x 150mm (2.6″ x 4.1″ x 5.9″)
|
Form factor |
Small Size
|
System Hardware
|
|
Memory
|
Built-in 4GB DDR3L 1333 MHz (Up to 8GB)
|
Storage |
1 x mSATA shared with mPCIe slot, 1 x drive bay for SATA 2.5″ HDD (Compatible with 9.5mm height HDD)
|
BIOS |
AMI UEFI 64Mbit Flash BIOS
|
LED Indicators |
LEDs for Power, RTC battery, LAN (Active, Status), COM (Tx/Rx), HDD, Programmable LED
|
Watchdog Timer |
Programmable 6 levels timer interval, from 15 to 255 sec
|
Expansion |
2 Full-size mPCIe
|
Processor |
Intel Celeron Quad Core J1900 2.0 GHz
|
System Chip |
Integrated Intel SoC Chipset
|
Ethernet |
Intel® i210-IT GbE, 802.1Qav, 802.1AS, 802.3az
|
Graphics Engine |
Intel® HD Graphics
|
Trusted Platform Module |
TPM2.0
|
I/O Interface
|
|
Isolated Serial Ports
|
4 x RS232/422/485, DB9, 50 ~ 115.2kbps (Isolation Protection 1500VDC)
|
USB Port |
4 x USB Ports (3 x USB 2.0, 1 x USB 3.0 compliant)
|
LAN Ports |
2 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000Base-T Fast Ethernet
|
Grounding Protection |
Chassis Grounding
|
Isolated DI/O |
4-ch digital input (Default contact) 4-ch digital output (2500 VDC)
|
Displays |
1 x DP, supports 2560 x 1440 @ 60Hz;1 x HDMI, supports 1920 x 1080 @ 60Hz
|
Power Connector |
1x 2 Pins, Terminal Block
|
Environment
|
|
Ingress Protection
|
IP40
|
Relative Humidity |
95% RH @ 40°C, non-condensing
|
Shock Protection |
Operating, IEC 60068-2-27, 50G, half sine, 11ms
|
Vibration Protection |
Operating, IEC 60068-2-64, 1Grms, random, 5 ~ 500Hz, 1 hr/axis
|
Operating Temperature |
– 20 ~ 60°C (-4 ~ 140°F) @ 5 ~ 85% RH with 0.7m/s airflow (Industry SSD)
|
Storage Temperature |
-40 ~ 85°C ( -40 ~ 185°F)
|
Chính sách bán hàng
- Bảo hành 24 tháng
- Miễn phí vận chuyển toàn quốc
- Miễn phí dịch vụ lắp đặt, tư vấn sử dụng tại Tp. Hồ Chí Minh
- Miễn phí dịch vụ bảo trì on-site trong vòng 1 năm tại Tp. Hồ Chí Minh (không bao gồm các huyện ngoại thành). Phản hồi trong vòng 24 tiếng kể từ khi nhận được thông báo.
- Dịch vụ lắp đặt, bảo trì on-site tại các tỉnh thành khác vui lòng liên hệ để được báo giá.
