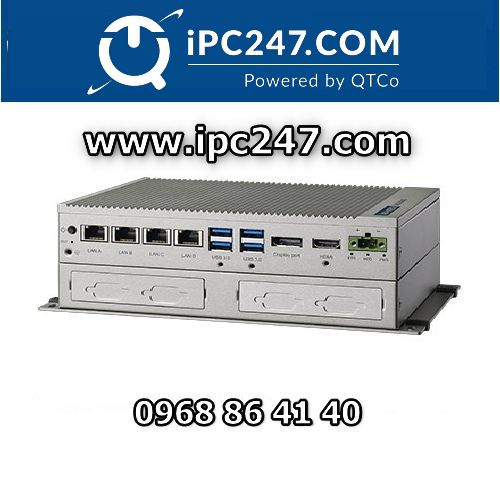

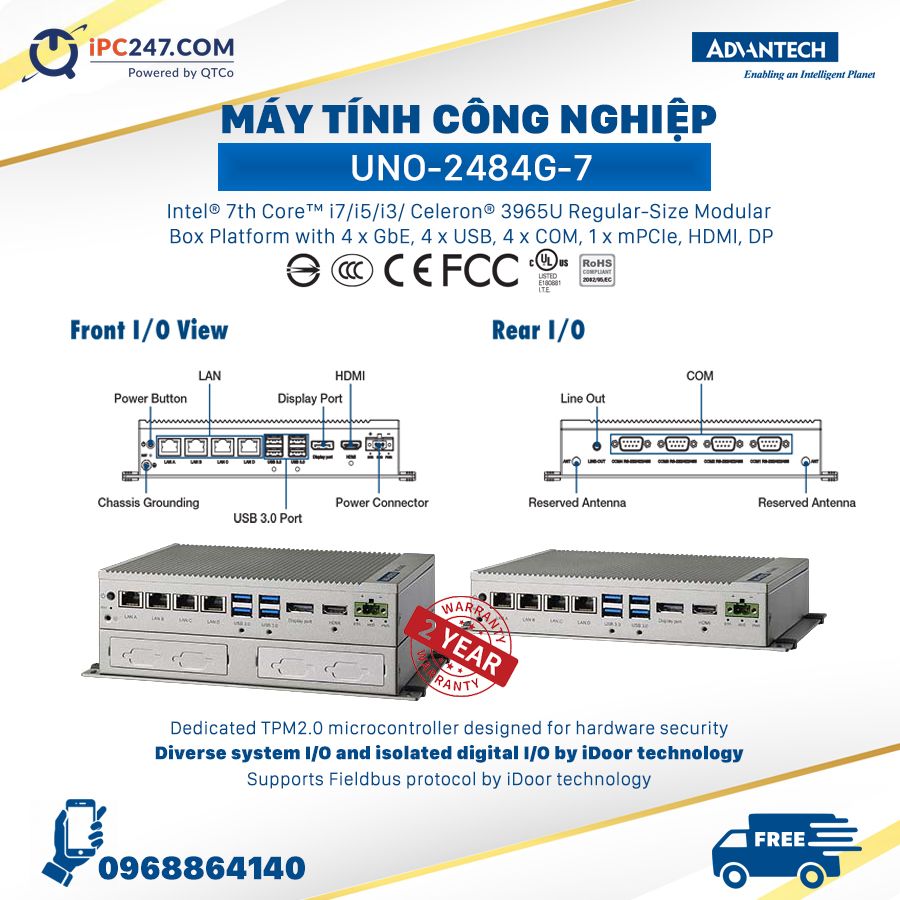

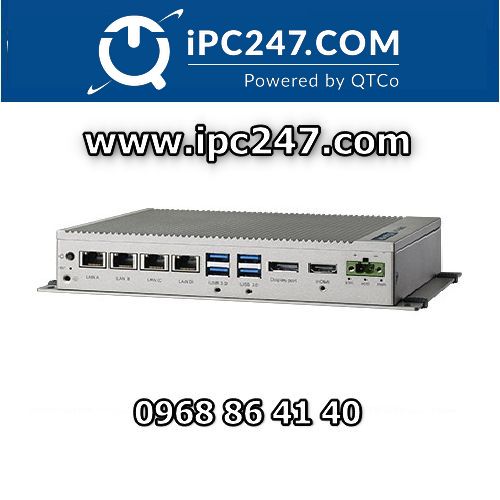

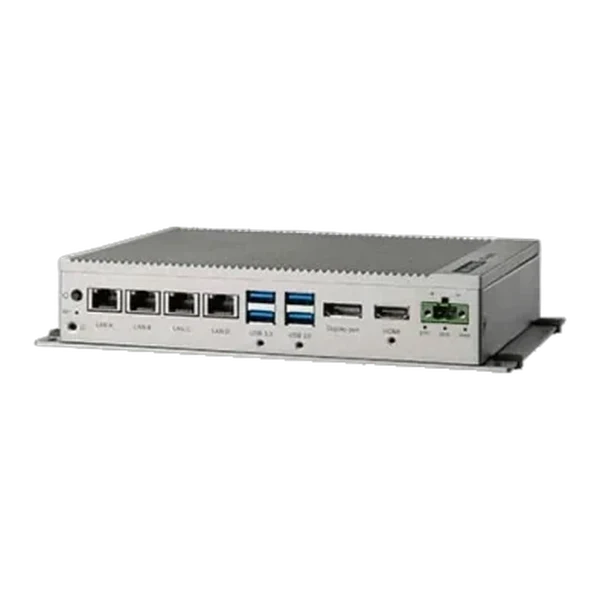

Máy tính công nghiệp không quạt UNO-2484G
Overview
- Intel® Core™ i7/i5/i3 Regular-Size Modular Box Platform (MBP) with 4 x GbE, 1 x mPCIe, HDMI, DP
Features
- Intel® Core™ i7/i5/i3 Processor with 8GB DDR4 built-in Memory
- 4 x GbE, 4 x USB 3.0, 1 x HDMI, 1 x DP (4K), 4 x RS232/422/485
- Stackable 2nd layer for up to 4 iDoor extension or customize for domain applications
- Compact Fanless Design
- Ruggedized by zero cable and lockable I/O design
- Dedicated TPM2.0 microcontroller designed for hardware security
- Diverse system I/O and Isolated Digital I/O by iDoor Technology
- Supports Fieldbus Protocol by iDoor Technology
- 3G/GPS/GPRS/Wi-Fi Communication by iDoor Technology
- Supports 30+ iDOOR combination with four main categories
Specifications [UNO-2484G]
| Part Number | UNO-2484G-6331AE | UNO-2484G-6332AE | UNO-2484G-6531AE |
| Environment | |||
| Ingress Protection | IP40 | IP40 | IP40 |
| Operating Temperature | – 20 ~ 60°C (-4 ~ 140°F) @ 5 ~ 85% RH with 0.7m/s airflow | – 20 ~ 60°C (-4 ~ 140°F) @ 5 ~ 85% RH with 0.7m/s airflow | – 20 ~ 60°C (-4 ~ 140°F) @ 5 ~ 85% RH with 0.7m/s airflow |
| Vibration Protection | Operating, IEC 60068-2-64, 2 Grms, random, 5 ~ 500 Hz, 1hr/axis (mSATA) | Operating, IEC 60068-2-64, 2 Grms, random, 5 ~ 500 Hz, 1hr/axis (mSATA) | Operating, IEC 60068-2-64, 2 Grms, random, 5 ~ 500 Hz, 1hr/axis (mSATA) |
| Relative Humidity | 10 ~ 95% RH @ 40°C, non-condensing | 10 ~ 95% RH @ 40°C, non-condensing | 10 ~ 95% RH @ 40°C, non-condensing |
| Shock Protection | Operating, IEC 60068-2-27, 50G, half sine, 11ms | Operating, IEC 60068-2-27, 50G, half sine, 11ms | Operating, IEC 60068-2-27, 50G, half sine, 11ms |
| Storage Temperature | -40 ~ 85°C ( -40 ~ 185°F) | -40 ~ 85°C ( -40 ~ 185°F) | -40 ~ 85°C ( -40 ~ 185°F) |
| I/O Interface | |||
| Audio | Line-out | Line-out | Line-out |
| Power Connector | 1x 2 Pins, Terminal Block | 1x 2 Pins, Terminal Block | 1x 2 Pins, Terminal Block |
| USB Port | 4 x USB3.0 | 4 x USB3.0 | 4 x USB3.0 |
| LAN Ports | 4 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000Base-T Fast Ethernet | 4 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000Base-T Fast Ethernet | 4 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000Base-T Fast Ethernet |
| Displays | 1 x HDMI supports 1920×1080 @60Hz, 1 X DP supports 3840 x 2160 @30Hz | 1 x HDMI supports 1920×1080 @60Hz, 1 X DP supports 3840 x 2160 @30Hz | 1 x HDMI supports 1920×1080 @60Hz, 1 X DP supports 3840 x 2160 @30Hz |
| Serial Ports | 4 x RS 232/422/485 | 4 x RS 232/422/485 | 4 x RS 232/422/485 |
| System Hardware | |||
| LED Indicators | LEDs for Power, HDD, LAN (Active, Status), RTC Battery low | LEDs for Power, HDD, LAN (Active, Status), RTC Battery low | LEDs for Power, HDD, LAN (Active, Status), RTC Battery low |
| Expansion | 1 x full-size mPCIe slot for single stack version, 4 x full-size mPCIe slots for dual stack version | 1 x full-size mPCIe slot for single stack version, 4 x full-size mPCIe slots for dual stack version | 1 x full-size mPCIe slot for single stack version, 4 x full-size mPCIe slots for dual stack version |
| Processor | 6th Gen Intel Core i3-6100U, 2.3GHz 3M Smartcache | 6th Gen Intel Core i3-6100U, 2.3GHz 3M Smartcache | 6th Gen Intel Core i3-6100U, 2.3GHz 3M Smartcache |
| Graphics Engine | Intel® HD Graphics 520 | Intel® HD Graphics 520 | Intel® HD Graphics 520 |
| Ethernet | LAN A: Intel i219-IT GbE, 802.1Qav, IEEE1588/802.1AS, 802 ; LAN B-D: Intel i210-IT GbE, 802.1Qav, IEEE1588/802.1AS, 802 | LAN A: Intel i219-IT GbE, 802.1Qav, IEEE1588/802.1AS, 802 ; LAN B-D: Intel i210-IT GbE, 802.1Qav, IEEE1588/802.1AS, 802 | LAN A: Intel i219-IT GbE, 802.1Qav, IEEE1588/802.1AS, 802 ; LAN B-D: Intel i210-IT GbE, 802.1Qav, IEEE1588/802.1AS, 802 |
| Storage | One mSATA (slot shared with mPCIe slot); Two drive bay for SATA 2.5″ SSD/HDD | One mSATA (slot shared with mPCIe slot); Two drive bay for SATA 2.5″ SSD/HDD | One mSATA (slot shared with mPCIe slot); Two drive bay for SATA 2.5″ SSD/HDD |
| Watchdog Timer | Programmable 255 levels timer interval, from 1 to 255 sec | Programmable 255 levels timer interval, from 1 to 255 sec | Programmable 255 levels timer interval, from 1 to 255 sec |
| General | |||
| OS Support | Microsoft® Windows 10, Advantech Win7 64bits,Advantech Linux | Microsoft® Windows 10, Advantech Win7 64bits,Advantech Linux | Microsoft® Windows 10, Advantech Win7 64bits,Advantech Linux |
| Power Consumption | 55W (Typical), 95.2W (Max) | 55W (Typical), 95.2W (Max) | 55W (Typical), 95.2W (Max) |
| Enclosure | Aluminum | Aluminum | Aluminum |
| Mounting | Stand, Wall, VESA (Optional), Din-rail (Optional) | Stand, Wall, VESA (Optional), Din-rail (Optional) | Stand, Wall, VESA (Optional), Din-rail (Optional) |
| Power Requirement | 10~36 VDC | 10~36 VDC | 10~36 VDC |
| Weight (Net) | 1.2 kg (2.65 lbs) | 1.2 kg (2.65 lbs) | 1.2 kg (2.65 lbs) |
| Form factor | Regular Size with stackable design | Regular Size with stackable design | Regular Size with stackable design |
| Certifications | CE, FCC, CCC, BSMI, UL | CE, FCC, CCC, BSMI, UL | CE, FCC, CCC, BSMI, UL |
| Dimension(W x D x H) | 200 x 140 x 40 (7.8″ x 5.6″ x 1.6″ ) for single stack UNO-2484G version 200 x 140 x 70 (7.8″ x 5.6″ x 2.8″) for dual stack UNO-2484G version | 200 x 140 x 40 (7.8″ x 5.6″ x 1.6″ ) for single stack UNO-2484G version 200 x 140 x 70 (7.8″ x 5.6″ x 2.8″) for dual stack UNO-2484G version | 250 x 160 x 85 mm |
