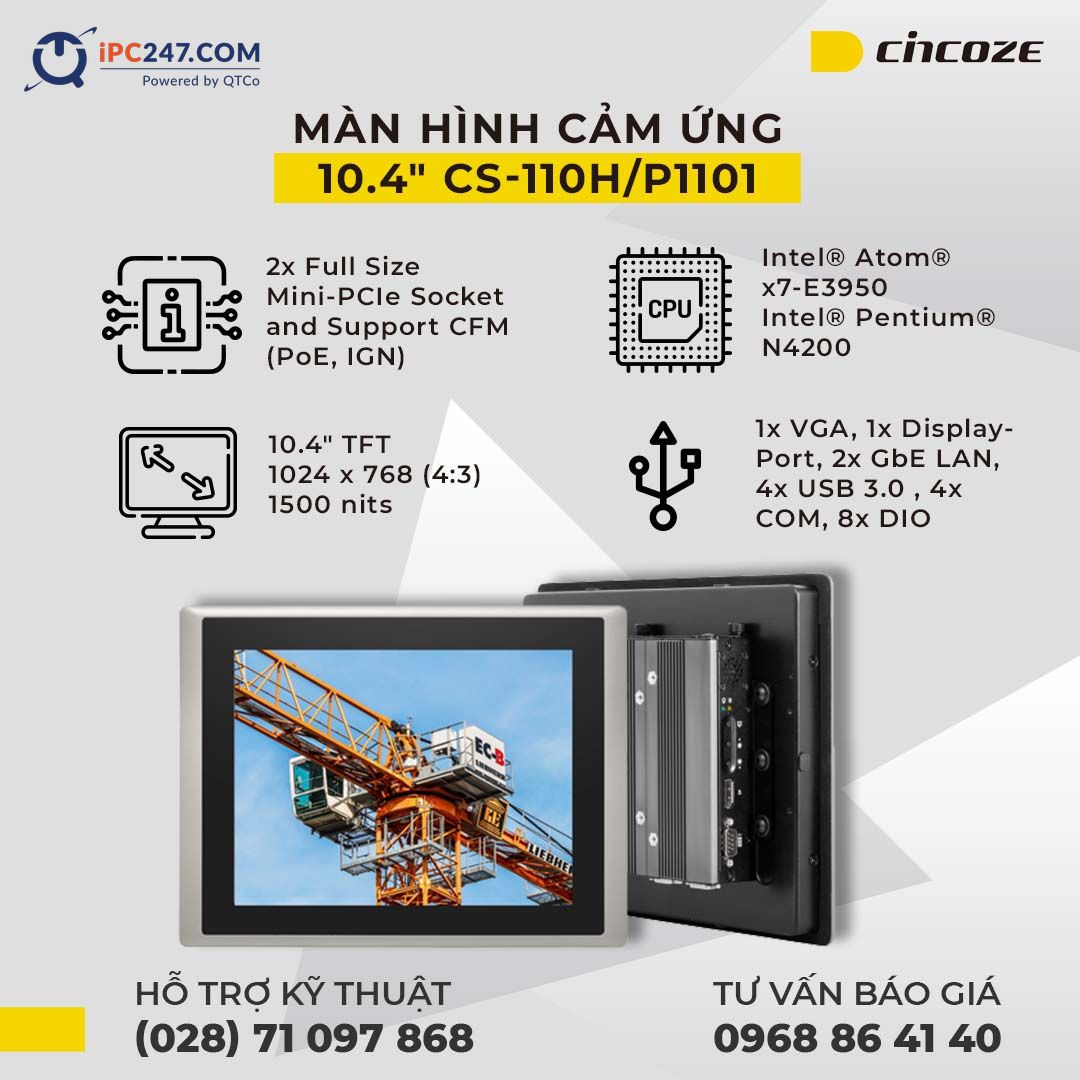

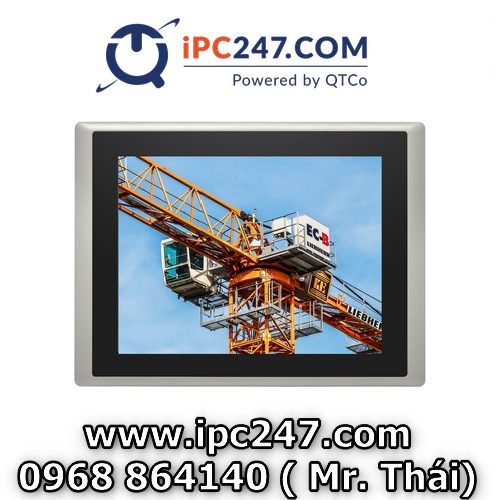

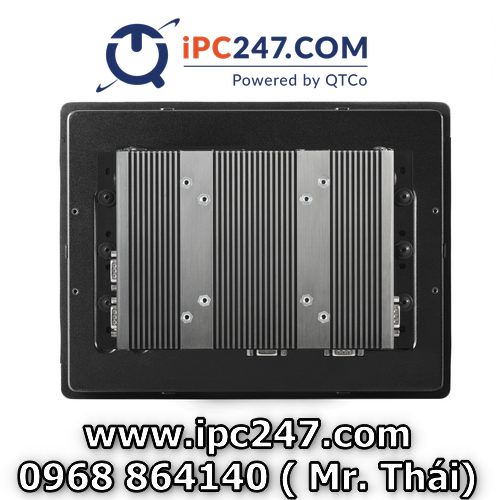

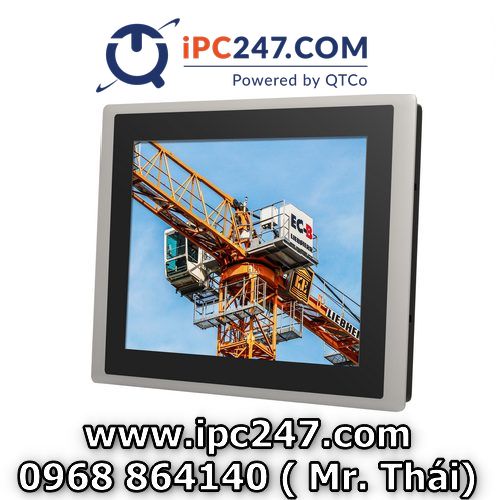

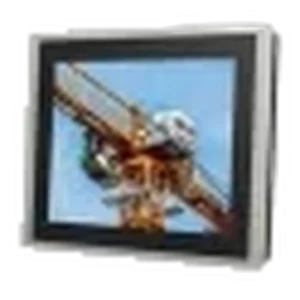

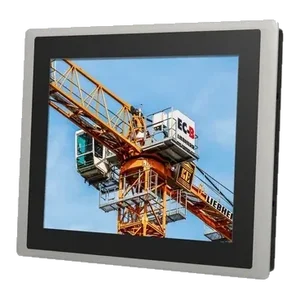

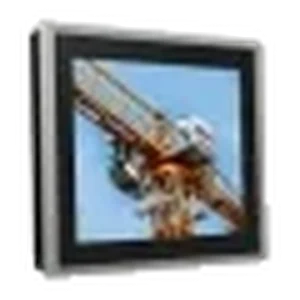

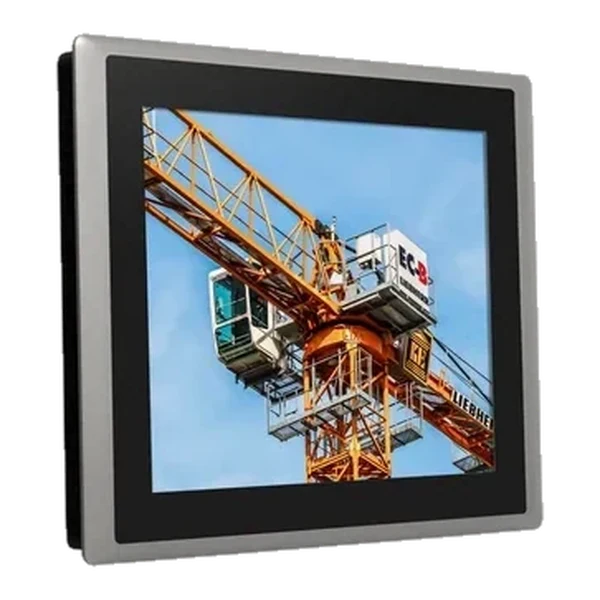

CS-110H/P1101 – Máy tính công nghiệp màn hình cảm ứng
Overview
10.4″ TFT-LCD Sunlight Readable Touch Panel PC with Intel® Atom® / Pentium® Processor
Features
- 10.4” TFT-LCD XGA with Ultra High Brightness up to 1,500 nits
- Onboard Intel® Atom® / Pentium® Processor
- Triple Independent Displays (via VGA and DisplayPort outputs)
- Rich I/O (2x GbE LAN, 4x USB 3.0, 4x COM, 8x Isolated DIO)
- 2x Full Size Mini-PCIe, 1x 2.5” SATA Drive Bay, 1x mSATA Socket
- Wide Range Operating Temperature -20°C to 70°C
- Designed with Aluminum Die-casting Front Frame
- True Flat IP65 Front Panel Protection
- Supports CDS Technology, Ignition Sensing and Power over Ethernet
- Supports Panel / VESA / Rack Mounting
- Supports Optical Bonding
Specifications
| Model Series | CS-110H/P1101 | |
| Model Name | CS-110C/P1101 | |
| Display | LCD Size | 10.4″ (4:3) |
| Max. Resolution | 1024 x 768 | |
| Brightness (cd/m2) | 1500 | |
| Contrast Ratio | 1400 : 1 | |
| LCD Color | 16..2M | |
| Pixel Pitch (mm) | 0.206 (H) x 0.206 (V) | |
| Viewing Angle (H-V) | 178 / 178 | |
| Backlight MTBF | 50000 hrs (LED Backlignt) | |
| Touch | Resistive 5-wire | – |
| Projected Capacitive | V | |
| System | Processor | • Onboard Intel® Atom® x7-E3950 Quad Core Processor, up to 2.00 GHz • Onboard Intel® Pentium® N4200 Quad Core Processor, up to 2.50 GHz |
| Memory | • 1x DDR3L 1333/1600/1866 MHz 204-Pin SO-DIMM Socket • Supports up to 8GB (un-buffered and non-ECC) |
|
| Graphics | • Integrated Intel® HD Graphics 505 • Supports Triple Independent Display (1x CDS, 1x VGA, 1x DisplayPort) |
|
| Audio | Realtek ALC888-GR | |
| I/O Interface | VGA | 1x VGA (1920 x 1200 @60Hz) |
| DP | 1x DisplayPort (4K x 2K @60Hz) | |
| LAN | 2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45 – GbE1: Intel® I210AT – GbE2: Intel® I210AT |
|
| Serial Port | 4x RS-232/422/485, DB9 with Auto Flow Control (Supports 5V/12V), DB9 | |
| USB | 4x USB 3.0 (Type-A) | |
| Isolated DIO | 8x Isolated DIO (4x DI/4x DO), 10-Pin Terminal Block | |
| Line-Out | 1x Phone Jack 3.5mm | |
| Mic-In | 1x Phone Jack 3.5mm | |
| Power Button | 1x ATX Power On/Off Button | |
| Reset Button | 1x Rest Button | |
| AT/ATX Switch | 1x AT/ATX Mode Switch | |
| Clear CMOS Switch | 1x Clear CMOS Switch | |
| Remote Power On/Off Connector | 1x Remote Power On/Off Connector, 2-pin Terminal Block | |
| Storage | SSD/HDD | 1x 2.5” HDD/SSD Drive Bay (SATA 3.0) |
| mSATA | 1x mSATA Socket (SATA 3.0, Shared by Mini-PCIe Socket) | |
| Expansion | PCI / PCIe | – |
| CFM (Control Function Module) Interface | – Optional CFM IGN Module for Power Ignition Function – Optional CFM PoE Module for Power over Ethernet Function |
|
| CDS (Convertible Display System) Technology | 1x CDS Interface for Convertible Display Module | |
| Mini PCI Express | 2x Full-size Mini-PCIe Sockets | |
| SIM Socket | 1x SIM Socket | |
| Antenna Holes | 4x Antenna Holes | |
| Other Function | Instant Reboot | Support 0.2sec |
| Super Cap | SuperCap Integrated for CMOS Battery-free Operation | |
| OSD Function | LCD On/Off, Brightness Up, Brightness Down | |
| Internal Speaker | AMP 2W + 2W | |
| Watchdog Timer | Software Programmable Supports 1~255 sec. System Reset | |
| Power Requirement | Power Type | AT/ATX |
| Power Input Voltage | 9~48VDC | |
| Connector | 3-pin Terminal Block | |
| Power Adaptor | Optional AC/DC Adapter ．AC/DC 12V/5A, 60W ．AC/DC 24V/5A, 120W (Optional) |
|
| Physical | Dimension (WxHxD) | 295 x 227.3 x 69.35 mm |
| Weight Information | 3.73 kg | |
| Front Panel Construction | Flat Rugged Aluminum Die-casting Bezel | |
| Mounting | Panel / VESA / *Rack Mounting (*with optional mounting kit) | |
| Fanless Design | Yes | |
| Protection | Reverse Power Input Protection | V |
| Over Voltage Protection | 58V | |
| Over Current Protection | 15A | |
| ESD Protection | +/-15kV(Air), +/-8kV(Contact) | |
| Surge Protection | 3.84 kV (impedance 12 ohm 1.2/50us waveform) | |
| Operating System | Windows | Windows® 10 |
| Linux | Support by project | |
| Environment | Operating Temperature | Operating Temperature: -20°C to 70°C (with extended temperature peripherals; Ambient with air flow) |
| Storage Temperature | -20°C to 70°C | |
| Relative Humidity | 90% RH @ 40°C (Non-Condensing) | |
| Shock | Operating, 15 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27) |
|
| Vibration | Operating, 1.5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) |
|
| IP Level | IP 65 Compliant Front Panel | |
| EMC | CE/ FCC Class A | |
