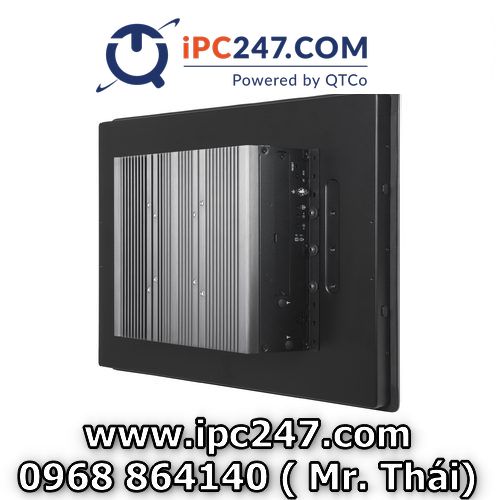

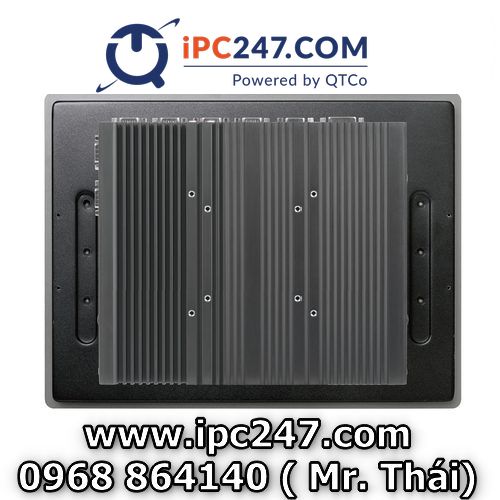

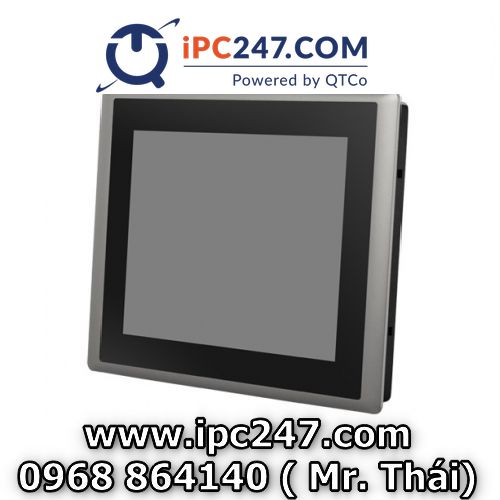

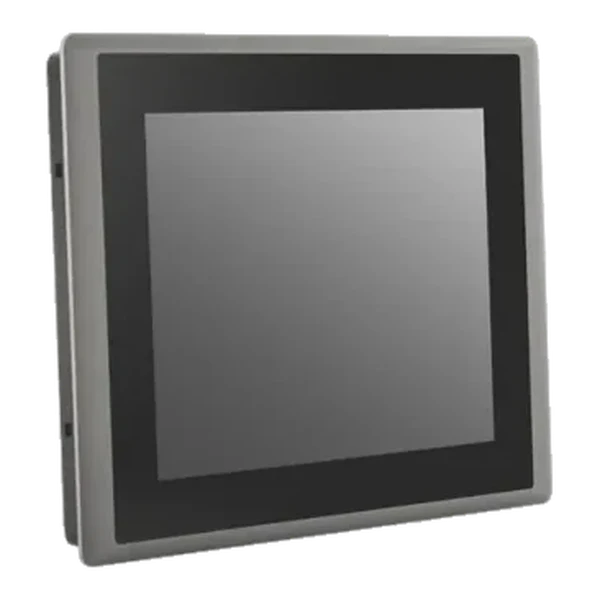

Máy tính công nghiệp màn hình cảm ứng CV-112/P2002E
Overview
12.1″ 6th Gen. Intel® Core™ Processor U Series Fanless Touch Panel PC with CFM & CDS Technology
Features
- 12.1″ SVGA TFT-LCD with Resistive 5-wire / Projected CapacitiveTouch
- Onboard Intel® 6th Generation Core™ Processor U Series (15W)
- 2x DDR4 SO-DIMM Socket, Support Up to 32 GB
- Integrated Intel® HD Graphics 520 Support Triple Display
- 2x 2.5” SATA HDD Bay, 1x mSATA and 1x CFast Socket
- IP65 Compliant Aluminum Die-Cast Front Frame
- 2x Full-size Mini-PCIe Socket for Wireless and I/O Expansion
- Support CFM Technology for PoE and Ignition Sensing Functions
- Rich I/O (2x GbE LAN, 6x COM, 5x USB, 16x Isolated DIO)
- Support Instant Reboot Technology
- Wide Operating Temperature (-20°C to 70°C)
- SuperCap integrated for CMOS Battery Maintenance-Free
- PCI/PCIe Expandable Version Available
Specifications
| Model Name | CV-112/P2002E | ||
| Model No. | CV-112R/P2002E | CV-112C/P2002E | |
| Display | LCD Size | 12.1″ (4:3) | |
| Max. Resolution | 800 x 600 | ||
| Brightness (cd/m2) | 450 | ||
| Contrast Ratio | 800 : 1 | ||
| LCD Color | 262K | ||
| Pixel Pitch (mm) | 0.3075 (H) x 0.3075 (V) | ||
| Viewing Angle (H-V) | 160 / 140 | ||
| Backlight MTBF | 50,000 hrs (LED Backlight) | ||
| Touch | Resistive 5-wire | V | – |
| Projected Capacitive | – | V | |
| Processor System | Onboard 6th Intel® Core™ U processors (Skylake) – Intel® Core™ i5-6300U processor (3M Cache, up to 3.00 GHz) – Intel® Core™ i3-6100U processor (3M Cache, 2.30 GHz) – TDP: 15 W – BIOS: AMI 64Mbit SPI BIOS |
||
| Memory | 2x DDR4 260-pin SO-DIMM socket, support up to 32 GB (2133MHz, un-buffered and non-ECC type) |
||
| Graphics | Intel® HD Graphics 520 | ||
| Triple display with 1x VGA, 1x DVI-D and 1x CDS interface | |||
| Audio | Realtek® ALC888-GR | ||
| High Definition Audio | |||
| I/O Interface | 1x VGA (Up to 1920 x 1080 @ 60Hz), DB-15 | ||
| 1x DVI-D (Up to 1920 x 1080 @ 60Hz) | |||
| 1x CDS Interface, Compact PCI Connector | |||
| 2x GbE LAN (Support WoL, Teaming, Jumbo Frame and PXE), RJ45 – GbE1: Intel I219LM – GbE2: Intel I210AT |
|||
| 2x PoE+ (with Optional CFM PoE Module) – Comply with IEEE 802.3at, Offers Up to 25.5W Per Port |
|||
| 6x RS-232/422/485 with Auto Flow Control (Support 5V/12V), DB9 | |||
| 4x USB 3.0, Type-A | |||
| 1x USB 2.0, Type-A | |||
| 16x Isolated DIO (8x DI/8x DO), 20-Pin Terminal Block | |||
| 1x Line-out & 1x Mic-in, Phone Jack 3.5mm | |||
| 1x Power On/Off Switch | |||
| 1x Reset Button | |||
| 1x AT/ATX Switch | |||
| 1x Remote Power On/Off Connector, 2-Pin Terminal Block | |||
| 1x External FAN Connector, 4-Pin Terminal Block | |||
| Storage | 2x 2.5” SATA HDD/SSD Bay, Support RAID 0/1 (Gen3) | ||
| 2x mSATA (One Shared by Mini-PCIe Socket) (Gen2) | |||
| 1x CFast Socket (Gen3) | |||
| Expansion | 1x CFM PoE interface | ||
| 1x CFM IGN interface | |||
| 2x Full-size Mini-PCIe Socket | |||
| 1x PCI or 1x PCIex4 Expansion slot Optional Riser Card: 1x PCI, 1x PCIex4 Support maximum dimension of add-on card (H x L): 100mm x 200mm |
|||
| 1x Universal I/O Bracket | |||
| 1x SIM Socket | |||
| 4x Antenna Hole | |||
| Other Function | Support CDS Technology | ||
| Support CFM Technology | |||
| Support Instant Reboot Technology (0.2 sec) | |||
| Support Power Ignition Sensing (IGN) | |||
| Support OSD Function (LCD On/Off, Brightness Up, Brightness Down for CDS Display Module) |
|||
| Internal Speaker AMP 2W + 2W | |||
| SuperCap Integrated | |||
| Watchdog Timer: Software Programmable Supports 1~255 sec. System Reset |
|||
| Power Requirement | Support AT/ATX Power Mode | ||
| Power Input Voltage 9~48VDC | |||
| One 3-pin Terminal Block Connector | |||
| Optional Power Adapter AC/DC 12V/5A 60W or 24V/5A 120W | |||
| Physical | Dimension (WxHxD): 345 x 265.3 x 100 mm | ||
| Weight: 6.34 kg | |||
| Die-cast Flat Surface | |||
| Support Panel/Wall /Arm/ VESA / Mounting | |||
| Fanless Design | |||
| Jumper-less Design | |||
| Protection | Reverse Power Input Protection | ||
| Over Voltage Protection: 58V | |||
| Over Current Protection: 15A | |||
| ESD Protection: +/-15kV (air), +/-8kV (contact) | |||
| Surge Protection: 3kW | |||
| Operating Stystem | Windows® 10 Windows® 8.1 Windows® 7 |
||
| Linux® Kernel 4.4 | |||
| Environment | Operating Temperature: -20°C to 70°C (With extended temperature peripherals; Ambient with air flow According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14) |
||
| Storage Temperature: -30°C to 80°C | |||
| Relative Humidity: 90% RH @ 40°C (Non-condensing) | |||
| IP Level: IP65 Compliant Front Panel | |||
| EMC: CE, FCC Class A | |||
