Máy tính công nghiệp màn hình cảm ứng OMNI-3195-BT ( 19 inch)
Overview
19” Modular HMI Panel PC with Intel® Celeron® J1900/ N2807 Processor
Features
-
- 19” WXGA (1280 x 1024) TFT LCD Display
- Intel® N2807/J1900 Processor
- P-CAP or Resistive Touch Support
- Aluminum Design
- IP65 Compliant Front Bezel
- Fanless Operation
- Easily Expandable I/O by AAEON OMNI I/O Module
Note:*RAM not included *Panel Mount Kit (Optional)
Specifications [OMNI-3195-BT]
| SYSTEM | |
| PROCESSOR | Intel® N2807 processor, 1.58 GHz Intel® J1900 processor, 2 GHz |
| SYSTEM MEMORY | 204-pin DDR3L 1333MHz SODIMM x 1, up to 8 GB, (J1900) 204-pin DDR3L 1333MHz SODIMM x 1, up to 4 GB, (N2807) |
| LCD/CRT CONTROLLER | Integrated in processor |
| ETHERNET | Intel® I211, 10/100/1000Base-TX x 2 |

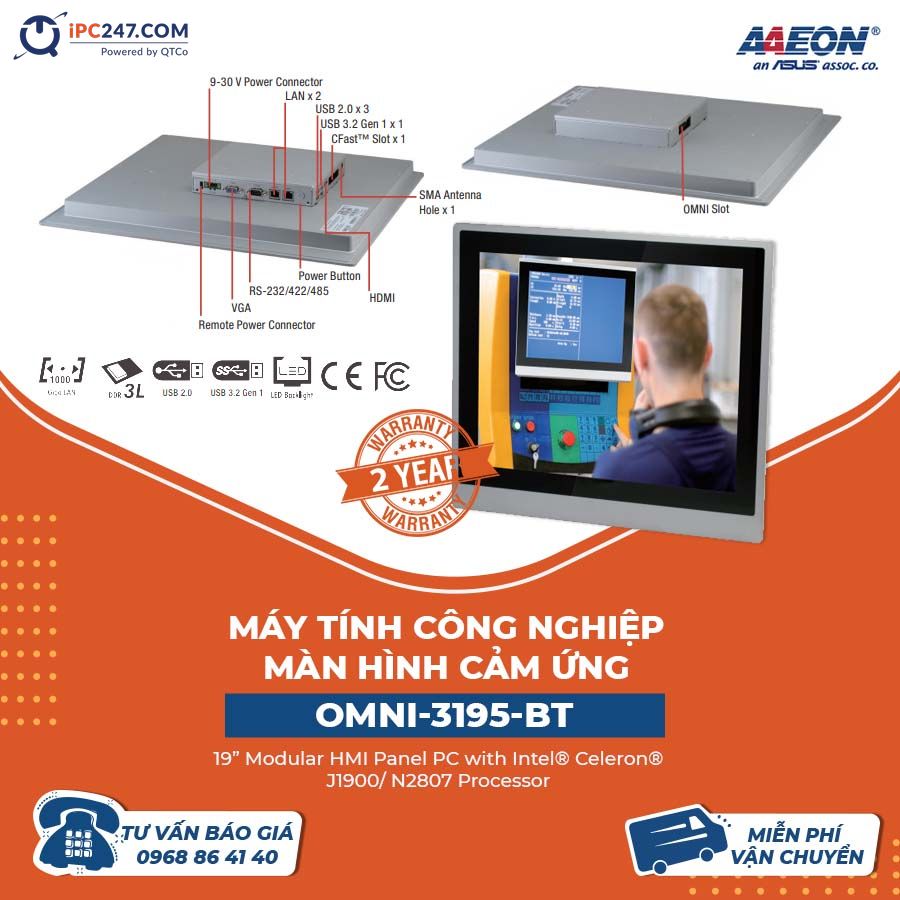

| I/O PORT | USB 2.0 type A x 3 USB 3.0 type A x 1 SMA Antenna hole x 1 HDMI x 1 CFast x 1 DB-9 Type RS-232/422/485 x 1 RJ-45 x 2 for 10/100/1000 base-T DB-15 x 1 for VGA 3-pin terminal block x1 for 9~30 Vdc power input LED Power on/off switch x1 (Power on = Orange, P |
| STORAGE DISK DRIVE | CFast™ x 1, 2.5″ SATA HDD bay x 1 |
| EXPANSION SLOT | Mini card x 2 (Testing Compalibility Only) SIM card x 2 PCIE x 1 connector (AAEON PIN Define) |
| OS SUPPORT | Windows® 7, Windows® 8, Windows® 10, Linux kernel 2.6.x or above |
| MECHANICAL | |
| CONSTRUCTION | Aluminum design (IP65 Front Frame) |
| MOUNTING | Wall /VESA Mount/Desktop (Optional panel mount kits) |
| DIMENSION | 460.8 x 410 x 59.1 mm |
| GROSS WEIGHT | 8.8 kg |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | -10°C ~ 55°C (J1900), -10°C ~ 60°C (N2807) with 0.5 m/s airflow ( CF & HDD ) |
| STORAGE TEMPERATURE | -4°F ~ 158°F (-20°C ~ 70°C) |
| STORAGE HUMIDITY | 90% @40°C; non-condensing |
| ANTI-VIBRATION | 1 Grms / 5~ 500Hz / operation – with HDD |
| ANTI-SHOCK | – |
| CERTIFICATION | CE/FCC class A |
| POWER SUPPLY | |
| DC INPUT | DC 9(min) ~ 30 (max) V w/3-pin terminal block, ATX Power function |
| LCD | |
| DISPLAY TYPE | 19″ TFT-LCD, LED |
| MAX. RESOLUTION | 1280(H) x 1024(V) |
| MAX. COLORS | 16.7M colors |
| LUMINANCE | 350 cd/m² |
| VIEWING ANGLE | 170°(H), 160°(V) |
| BACK LIGHT | LED |
| BACK LIGHT MTBF (HOURS) | — |
| TOUCHSCREEN | |
| TYPE | P-CAP/ 5-wire resistive |
| LIGHT TRANSMISSION | P-CAP (≥85%), 5-wire Resistive (80% ± 5%) |
Ordering Information [OMNI-3195-BT]
| PART NUMBER | OMNI-3195HTT- BT-A1-1010 | OMNI-3195HTT- BT-A2-1010 | OMNI-3195HTT- BT-A3-1010 | OMNI-3195HTT- BT-A4-1010 | OMNI-319DHTT- KIT-A1-1010 | OMNI-319DHTT- KIT-A2-1010 | OMNI-BT- KIT-A1-1010 | OMNI-BT- KIT-A2-1010 |
|---|---|---|---|---|---|---|---|---|
| ITEM | Panel PC | Panel PC | Panel PC | Panel PC | Panel Kit | Panel Kit | CPU Box Kit | CPU Box Kit |
| DISPLAY TYPE | 19” TFT LCD |
19” TFT LCD |
19” TFT LCD |
19” TFT LCD |
19” TFT LCD |
19” TFT LCD |
— | — |
| MAX RESOLUTION | 1280 x 1024 | 1280 x 1024 | 1280 x 1024 | 1280 x 1024 | 1280 x 1024 | 1280 x 1024 | — | — |
| LUMINANCE | 350 cd/m² | 350 cd/m² | 350 cd/m² | 350 cd/m² | 350 cd/m² | 350 cd/m² | — | — |
| VIEW ANGLE | 170°(H) 160°(V) |
170°(H) 160°(V) |
170°(H) 160°(V) |
170°(H) 160°(V) |
170°(H) 160°(V) |
170°(H) 160°(V) |
— | — |
| CPU | Intel® J1900, 2GHz | Intel® N2807, 1.58 GHz |
Intel® J1900, 2GHz | Intel® N2807, 1.58 GHz |
— | — | Intel® J1900, 2GHz | Intel® N2807, 1.58 GHz |
| LAN | 2 | 2 | 2 | 2 | — | — | 2 | 2 |
| USB 3.0 | 1 | 1 | 1 | 1 | — | — | 1 | 1 |
| USB 2.0 | 3 | 3 | 3 | 3 | — | — | 3 | 3 |
| RS- 232/422/485 | 1 | 1 | 1 | 1 | — | — | 1 | 1 |
| STORAGE | CFast™ x 1, 2.5” SATA HDD x 1 | CFast™ x 1, 2.5” SATA HDD x 1 | CFast™ x 1, 2.5” SATA HDD x 1 | CFast™ x 1, 2.5” SATA HDD x 1 | — | — | CFast™ x 1, 2.5” SATA HDD x 1 | CFast™ x 1, 2.5” SATA HDD x 1 |
| RAM | DDR3L, up to 8 GB |
DDR3L, up to 8 GB |
DDR3L, up to 8 GB |
DDR3L, up to 8 GB |
— | — | DDR3L, up to 8 GB |
DDR3L, up to 8 GB |
| DISPLAY | VGA x 1 | VGA x 1 | VGA x 1 | VGA x 1 | — | — | VGA x 1 | VGA x 1 |
| EXPANSION | Mini-Card x 2 (Full Size) OMNI Module | Mini-Card x 2 (Full Size) OMNI Module | Mini-Card x 2 (Full Size) OMNI Module | Mini-Card x 2 (Full Size) OMNI Module | — | — | Mini-Card x 2 (Full Size) OMNI Module | Mini-Card x 2 (Full Size) OMNI Module |
| MOUNTING | VESA 100/ Panel mount |
VESA 100/ Panel mount |
VESA 100/ Panel mount |
VESA 100/ Panel mount |
— | — | VESA 100/ Panel mount |
VESA 100/ Panel mount |
| POWER | DC 9~30V | DC 9~30V | DC 9~30V | DC 9~30V | — | — | DC 9~30V | DC 9~30V |
| OPERATING TEMP. | -10°C~55°C with airflow |
-10°C~60°C with airflow |
-10°C~55°C with airflow |
-10°C~60°C with airflow |
-10°C~60°C with airflow |
-10°C~60°C with airflow |
-10°C~55°C with airflow |
-10°C~60°C with airflow |
| TOUCH | 5-wire Resistive | 5-wire Resistive | Projected capacitive | Projected capacitive | 5-wire Resistive | Projected capacitive | — | — |
Packing List
- Phoenix Power Connector
- Product DVD
- OMNI-3195-BT
Optional Accessories
| Part Number | Description |
| AP-OT9789LA1000 | LCD monitor Stand 230mm, LA-100 |
| 1702031802 | Power Cord (US Type) |
| 1702031803 | Power Cord (European Type) |
| 170203180E | Power Cord (Japanese Type) |
| 1255901202 | 19V 120W Power Adapter w/ 3p phoenix block |
| 1700021500 | Remote Switch Cable, 150 cm |
| OMNI Module (With AAEON Interface) | Description |
| 9741215501 | WiFi & SIM Card Module (Mini-Card WiFi Module is not Included) |
| 9741215502 | Dual LAN Module |
| 9741215503 | USB / COM / LAN Module |
| 9741215504 | COM Port Module |
| 9741215505 | Isolated COM Port module |
| 9741215506 | DIO Module |
| 9741215507 | CAN Bus Module |
| 9741215508 | Audio Module |
| 9741215510 | HMS Kit |
| 9741215511 | COM x 4, DIO x 16 Module |
| Wide Temperature DRAM | Description |
| 9761215500 | 2GB Wide Temperature DRAM (-40°C ~ 95°C) |
| 9761215501 | 4GB Wide Temperature DRAM (-40°C ~ 95°C) |
| 9761215502 | 8GB Wide Temperature DRAM (-40°C ~ 95°C) |
-
- *Users should select the wide temperature DRAM above and use wide temperature storage devices if the OMNI panel pc is to be operated at over 40°C.
Chính sách bán hàng
- Bảo hành 24 tháng
- Miễn phí dịch vụ lắp đặt, tư vấn sử dụng tại Tp. Hồ Chí Minh
- Miễn phí dịch vụ bảo trì on-site trong vòng 1 năm tại Tp. Hồ Chí Minh (không bao gồm các huyện ngoại thành). Phản hồi trong vòng 24 tiếng kể từ khi nhận được thông báo.
- Dịch vụ lắp đặt, bảo trì on-site tại các tỉnh thành khác vui lòng liên hệ để được báo giá.
