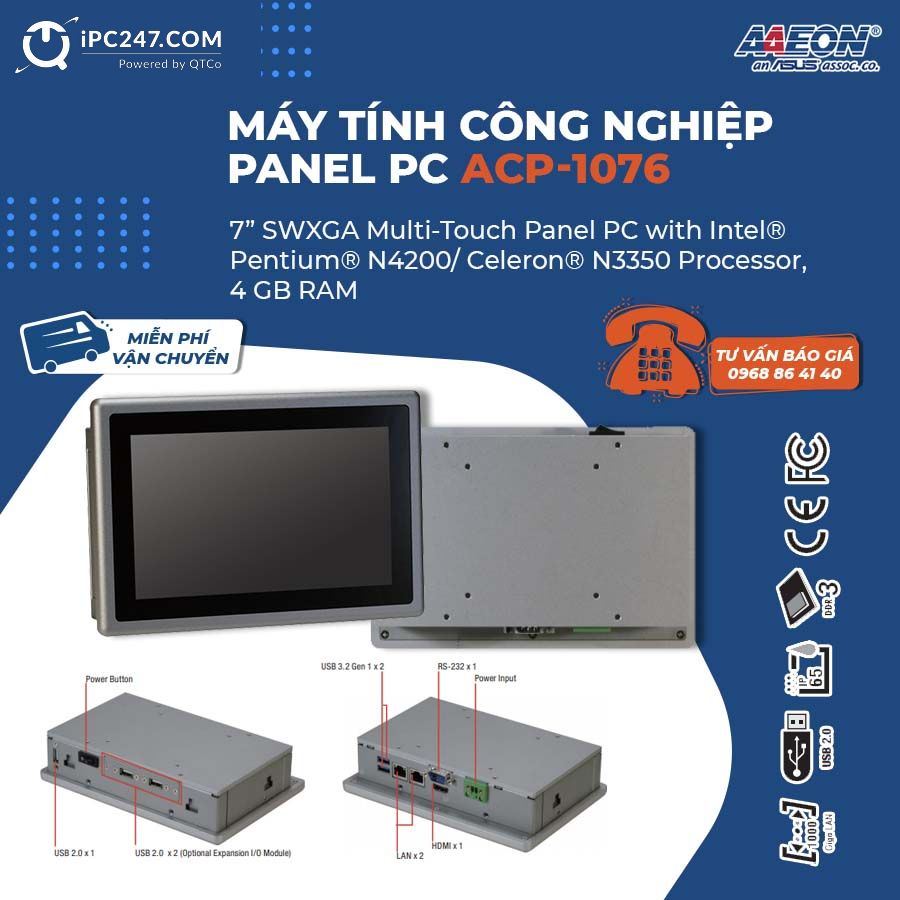

Máy tính công nghiệp Panel PC ACP-1076
Overview
AAEON introduces the ACP-1000 product family, a series of elegantly designed, highly customizable touch panel PCs that will facilitate system integration, IoT and smart home applications, and provide a highly dynamic option for product line management, smart city applications, and other forms of data-driven service management. The durable ACPs offer a thermal management system that boosts airflow and cool air circulation, and are ensconced within an IP 65 Front Bezel Design, which provide a steely layer of protection against environmental nuisances such as dust mites and water. Reasonably priced, moderately sized and easy to customize, the ACP-1000 greatly eliminates product turnaround times as well as manufacturing costs, minimizing space requirements and maximizing available space usage.
Features
- 7” WXGA (1024 x 600) Color TFT LCD Display
- IntelR PentiumR N4200/ CeleronR N3350 Processor
- Projected Capacitive Multi Touch (2 Fingers)
- IP 65 Compliant Aluminum Front Bezel
- Fanless System
- VESA 75/Panel Mount Support
- DC 9~30V
Specifications [ACP-1076]
| SYSTEM | |
| PROCESSOR | Intel® Pentium®N4200 processor, 1.1 GHz (Quad-Core), Burst frequency 2.5GHz Intel® Celeron® N3350 processor, 1.1 GHz (Dual-Core), Burst frequency 2.4GHz |
| SYSTEM MEMORY | 204 Pin DDR3L SODIMM x 1, Build-in 4GB, Max. 8GB |
| LCD/CRT CONTROLLER | Intel® Pentium® N4200/ Celeron® N3350 Processor |
| ETHERNET | 10/100/1000Base-TX, RJ-45 x 2 |

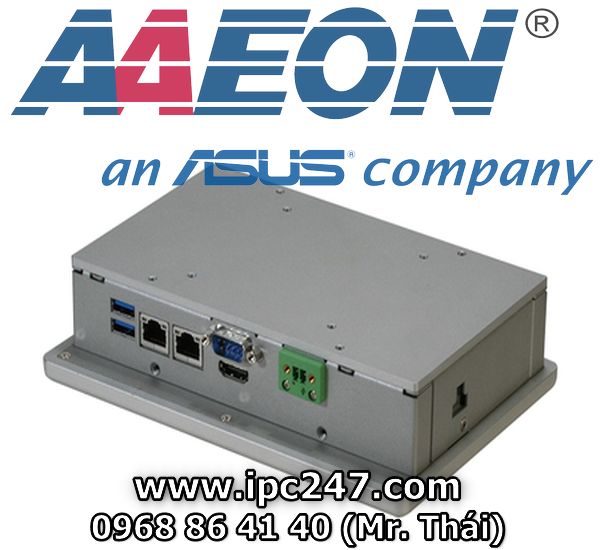

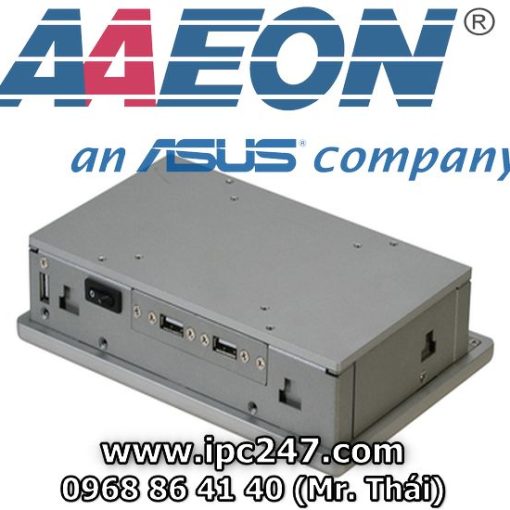

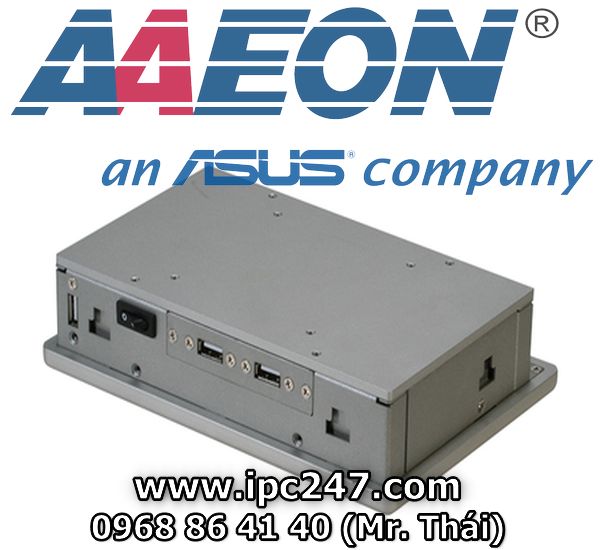

| I/O PORT | Top I/O Port: Power Button x 1 Type A USB 2.0 x 1 Expansion I/O SlotBottom I/O Port: DB9 Type RS-232 x 1 USB 3.0 x 2 HDMI x 1 RJ-45 10/100/1000 LAN x 2 2 Pin terminal block for power input |
| STORAGE DISK DRIVE | Full Size mSATA x 1 |
| EXPANSION SLOT | Half size mini card x 1(Internal) |
| OS SUPPORT | Window® 10, Linux Kernal 4.4.0 or above |
| MECHANICAL | |
| CONSTRUCTION | Aluminum Front Bezel + Aluminum Chassis |
| MOUNTING | VESA 75, Panel Mount |
| DIMENSION | 7.72″ x 5.28″ x 1.89″ (196 x 134 x 48 mm) |
| CARTON DIMENSION | 10.87″ x 9.41″ x 6.69″ (276 x 239 x 170 mm) |
| GROSS WEIGHT | 4.62 lb (2.1 Kg) |
| NET WEIGHT | — |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | -5°C ~ 50°C with 0.5 m/s airflow |
| STORAGE TEMPERATURE | -4°F ~ 158°F (-20°C ~ 70°C) |
| STORAGE HUMIDITY | 90% @40°C; non-condensing |
| VIBRATION | 1 Grms/ 5~ 500Hz/ operation – With HDD |
| SHOCK | 15 G peak acceleration (11 msec. duration) – With HDD |
| EMC | CE/FCC Class A |
| POWER SUPPLY | |
| DC INPUT | DC 9~30V |
| LCD | |
| DISPLAY TYPE | 7″ TFT-LCD, LED |
| MAX. RESOLUTION | 1024 x 600 |
| MAX. COLORS | 262K colors (6 bit for R, G, B) |
| LUMINANCE | 300 cd/m² |
| VIEWING ANGLE | 150°(H), 145°(V ) |
| BACK LIGHT | LED |
| BACK LIGHT MTBF (HOURS) | 15,000 |
| TOUCHSCREEN | |
| TYPE | Projective Capacitive Touch |
| LIGHT TRANSMISSION | 90% |
Ordering Information [ACP-1076]
| PART NUMBER | ACP-1076HTT-A1-1010 | ACP-1076HTT-A3-1010 | ACP-1076HTT-B1-1010 | ACP-1076HTT-B3-1010 |
|---|---|---|---|---|
| DISPLAY TYPE | 7″ TFT- LCD | 7″ TFT- LCD | 7″ TFT- LCD | 7″ TFT- LCD |
| MAX RESOLUTION | 1024 x 600 | 1024 x 600 | 1024 x 600 | 1024 x 600 |
| LUMI- NANCE | 250 cd/m² | 250 cd/m² | 250 cd/m² | 250 cd/m² |
| VIEW ANGLE | 150(H) / 145(V) |
150(H) / 145(V) |
150(H) / 145(V) |
150(H) / 145(V) |
| BACKLIGHT MTBF | 25,000 | 25,000 | 25,000 | 25,000 |
| CPU | Intel® Pentium N4200 | Intel® Celeron N3350 | Intel® Pentium N4200 | Intel® Celeron N3350 |
| LAN | 2 | 2 | 2 | 2 |
| USB 3.0 | 2 | 2 | 2 | 2 |
| USB 2.0 | 1 | 1 | 1 | 1 |
| RS- 232 | 1 | 1 | 1 | 1 |
| RS- 232/422/485 | – | – | – | – |
| STORAGE | Full Size mSATA x 1 | Full Size mSATA x 1 | Full Size mSATA x 1 | Full Size mSATA x 1 |
| RAM | 4GB DDR3L RAM Included | 4GB DDR3L RAM Included | 4GB DDR3L RAM Included | 4GB DDR3L RAM Included |
| DISPLAY | HDMI x 1 | HDMI x 1 | HDMI x 1 | HDMI x 1 |
| EXPANSION | Half size mini card x 1 Expansion I/O module x 1 | Half size mini card x 1 Expansion I/O module x 1 | WiFi Expansion I/O module x 1 | WiFi Expansion I/O module x 1 |
| MOUNTING | Stand, Panel, VESA 75 | Stand, Panel, VESA 75 | Stand, Panel, VESA 75 | Stand, Panel, VESA 75 |
| POWER | DC 9~30V | DC 9~30V | DC 9~30V | DC 9~30V |
| TEMP. | -5°C ~ 50°C (w/ airflow) | -5°C ~ 50°C (w/ airflow) | -5°C ~ 50°C (w/ airflow) | -5°C ~ 50°C (w/ airflow) |
| TOUCH | PCAP T/S | PCAP T/S | PCAP T/S | PCAP T/S |
Packing List
- Panel Mount Kit
- VESA Screws
- Product CD
- ACP-1076
Optional Accessories
| Part Number | Description |
| 1702031802 | Power Cord (US Type) |
| 1702031803 | Power Cord (European Type) |
| 170203180E | Power Cord (Japanese Type) |
| M041073020 | Stand Kit |
| 1255300609 | 2 Pin 60W power adapter |
Full Size mSATA Storage Device:
| AP-SS968C016G3D | Full-sized, 16GB mSATA, MLC, -40°C ~ 85°C |
| AP-SS968C008G1N | Full-sized, 8GB mSATA, MLC, -40°C ~ 85°C |
| 968C032G35 | Full-sized, 32GB mSATA, MLC, -40°C ~ 85°C |
| 968C064G2R | Full-sized, 64GB mSATA, MLC, -40°C ~ 85°C |
| 968C128G16 | Full-sized, 128GB mSATA, MLC, -40°C ~ 85°C |
Note : AAEON factory-installed mSATA HDD is strongly recommended.
Chính sách bán hàng
- Bảo hành 24 tháng
- Miễn phí dịch vụ lắp đặt, tư vấn sử dụng tại Tp. Hồ Chí Minh
- Miễn phí dịch vụ bảo trì on-site trong vòng 1 năm tại Tp. Hồ Chí Minh (không bao gồm các huyện ngoại thành). Phản hồi trong vòng 24 tiếng kể từ khi nhận được thông báo.
- Dịch vụ lắp đặt, bảo trì on-site tại các tỉnh thành khác vui lòng liên hệ để được báo giá.
