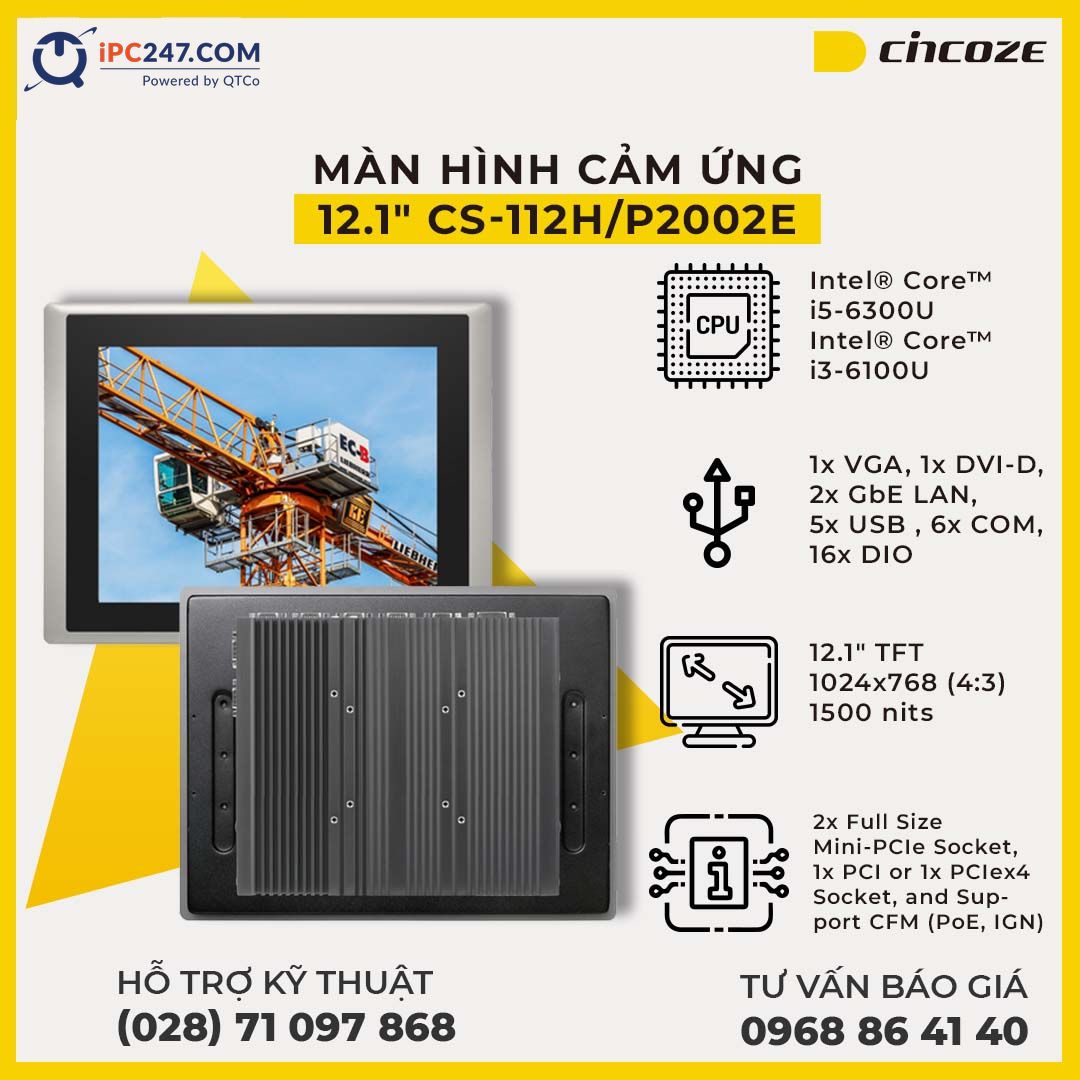

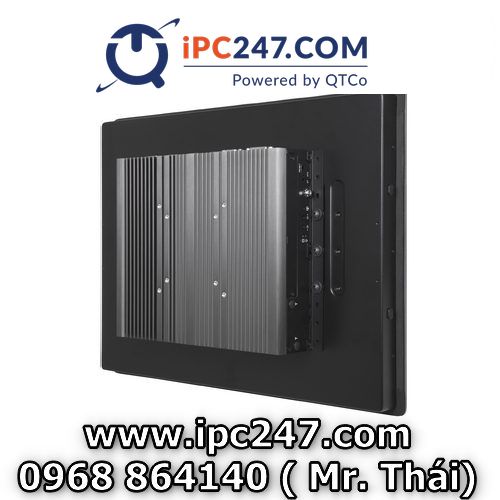

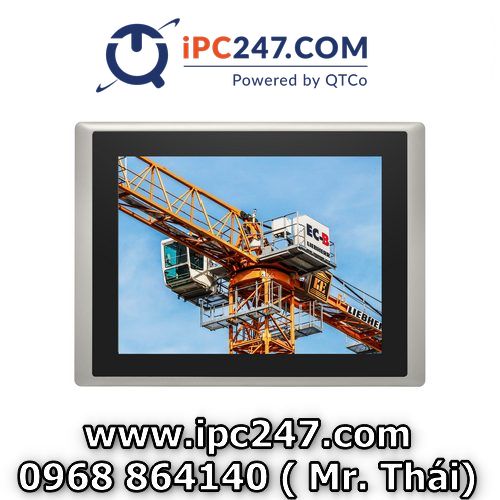

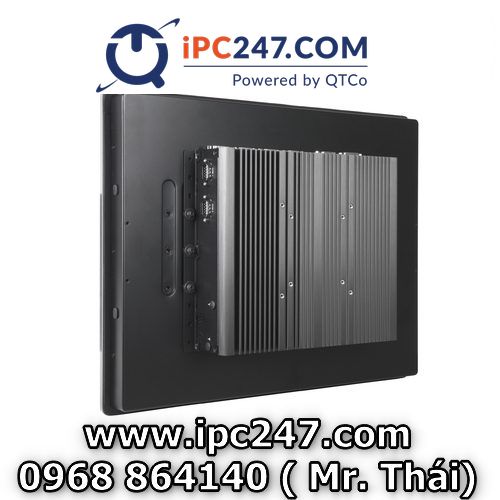

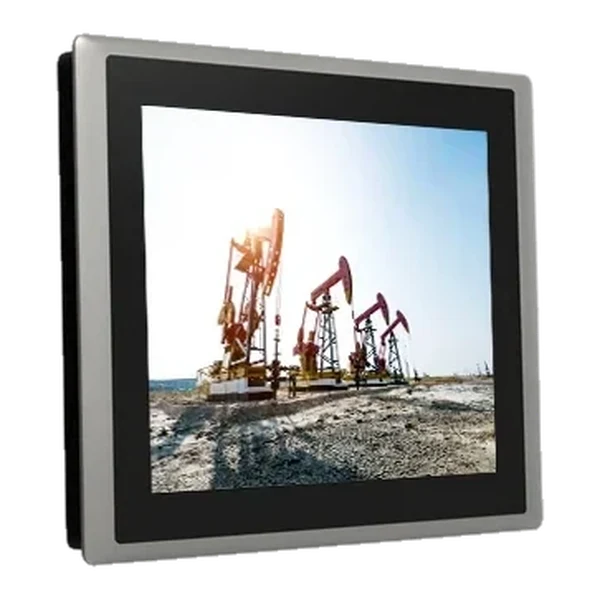

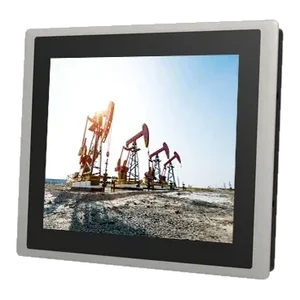

CS-112H/P2002E - Máy tính công nghiệp màn hình cảm ứng hãng Cincoze

CS-112H/P2002E - Máy tính màn hình cảm ứng hãng Cincoze

Overview

12.1" TFT-LCD Sunlight Readable Touch Panel PC with 6th Gen. Intel® Core™ Processor

Features

• 12.1” TFT-LCD with Ultra High Brightness up to 1,500 nits and 1024 x 768 (XGA) Resolution
• Onboard Intel® 6th Generation Core™ Processor U Series (15W)
• Supports 2x DDR4 SO-DIMM Socket, up to 32 GB
• Integrated Intel® HD Graphics 520, Triple Display Support
• 2x 2.5” SATA Drive Bay, 1x mSATA, and 1x CFast Socket
• Rich I/O (2x GbE LAN, 6x COM, 5x USB, 16x Isolated DIO)
• 2x Full-size Mini-PCIe Socket for Wireless and I/O Expansion
• Wide Range Operating Temperature -20°C to 70°C
• Designed with Aluminum Die-casting Front Frame
• True Flat IP65 Front Panel Protection
• Supports Panel / Wall / VESA Mounting
• Convertible Display System (CDS) Technology Supported
• Supports Optical Bonding

Specifications

Model Name		CS-112/P2002E
Model No.		CS-112HC/P2002E
Display	LCD Size	12.1" (4:3)
	Max. Resolution	1024 x 768
	Brightness (cd/m2)	1500
	Contrast Ratio	700 : 1
	LCD Color	16.2M
	Pixel Pitch (mm)	0.24 (H) x 0.24 (V)
	Viewing Angle (H-V)	160 / 160
	Backlight MTBF	30,000 hrs (LED Backlight)
Touch	Resistive 5-wire	-
	Projected Capacitive	V
Processor System		Onboard 6th Intel® Core™ U processors (Skylake) - Intel® Core™ i5-6300U processor (3M Cache, up to 3.00 GHz) - Intel® Core™ i3-6100U processor (3M Cache, 2.30 GHz) - TDP: 15 W - BIOS: AMI 64Mbit SPI BIOS
Memory		2x DDR4 260-pin SO-DIMM socket, support up to 32 GB (2133MHz, un-buffered and non-ECC type)
Graphics		Intel® HD Graphics 520
		Triple display with 1x VGA, 1x DVI-D and 1x CDS interface
Audio		Realtek® ALC888-GR
		High Definition Audio
I/O Interface		1x VGA (Up to 1920 x 1080 @ 60Hz), DB-15
		1x DVI-D (Up to 1920 x 1080 @ 60Hz)
		1x CDS Interface, Compact PCI Connector
		2x GbE LAN (Support WoL, Teaming, Jumbo Frame and PXE), RJ45 - GbE1: Intel I219LM - GbE2: Intel I210AT
		2x PoE+ (with Optional CFM PoE Module) - Comply with IEEE 802.3at, Offers Up to 25.5W Per Port
		6x RS-232/422/485 with Auto Flow Control (Support 5V/12V), DB9
		4x USB 3.0, Type-A
		1x USB 2.0, Type-A
		16x Isolated DIO (8x DI/8x DO), 20-Pin Terminal Block
		1x Line-out & 1x Mic-in, Phone Jack 3.5mm
		1x Power On/Off Switch
		1x Reset Button
		1x AT/ATX Switch
		1x Remote Power On/Off Connector, 2-Pin Terminal Block
		1x External FAN Connector, 4-Pin Terminal Block
Storage		2x 2.5” SATA HDD/SSD Bay, Support RAID 0/1 (Gen3)
		2x mSATA (One Shared by Mini-PCIe Socket) (Gen2)
		1x CFast Socket (Gen3)
Expansion		1x CFM PoE interface
		1x CFM IGN interface
		1x PCI or 1x PCIex4 Expansion slot Optional Riser Card: 1x PCI, 1x PCIx4 Support Maximum dimension of add-on card (H x L): 100mm x 200mm
		2x Full-size Mini-PCIe Socket
		1x Universal I/O Bracket
		1x SIM Socket
		4x Antenna Hole
Other Function		Support CDS Technology
		Support CFM Technology
		Support Instant Reboot Technology (0.2 sec)
		Support Power Ignition Sensing (IGN)
		Support OSD Function (LCD On/Off, Brightness Up, Brightness Down for CDS Display Module)
		Internal Speaker AMP 2W + 2W
		SuperCap Integrated
		Watchdog Timer: Software Programmable Supports 1~255 sec. System Reset
Power Requirement		Support AT/ATX Power Mode
		Power Input Voltage 9~48VDC
		One 3-pin Terminal Block Connector
		Optional Power Adapter 24V/5A 120W
Physical		Dimension (WxHxD): 345 x 265.3 x 100 mm
		Weight: 6.34 kg
		Front Panel Construction: Flat Rugged Aluminum Die-Casting Bezel
		Support Panel/Wall /Arm/ VESA / Mounting
		Fanless Design
		Jumper-less Design
Protection		Reverse Power Input Protection
		Over Voltage Protection: 58V
		Over Current Protection: 15A
		ESD Protection: +/-15kV (air), +/-8kV (contact)
		Surge Protection: 3kW
Operating Stystem		Windows® 10 Windows® 8.1 Windows® 7
Environment		Operating Temperature: -20°C to 70°C (With extended temperature peripherals; Ambient with air flow According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)
		Storage Temperature: -20°C to 70°C
		Relative Humidity: 90% RH @ 40°C (Non-condensing)
		Shock: Operating, 15 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-64)
		Vibration: Operating, 1.5 Grms, 5-500 Hz, 3 Axes
		IP Level: IP65 Compliant Front Panel
		EMC: CE, FCC Class A



Chính sách bán hàng

• Bảo hành 24 tháng
• Miễn phí vận chuyển toàn quốc
• Miễn phí dịch vụ lắp đặt, tư vấn sử dụng tại Tp. Hồ Chí Minh
• Miễn phí dịch vụ bảo trì on-site trong vòng 1 năm tại Tp. Hồ Chí Minh (không bao gồm các huyện ngoại thành). Phản hồi trong vòng 24 tiếng kể từ khi nhận được thông báo.
• Dịch vụ lắp đặt, bảo trì on-site tại các tỉnh thành khác vui lòng liên hệ để được báo giá.
