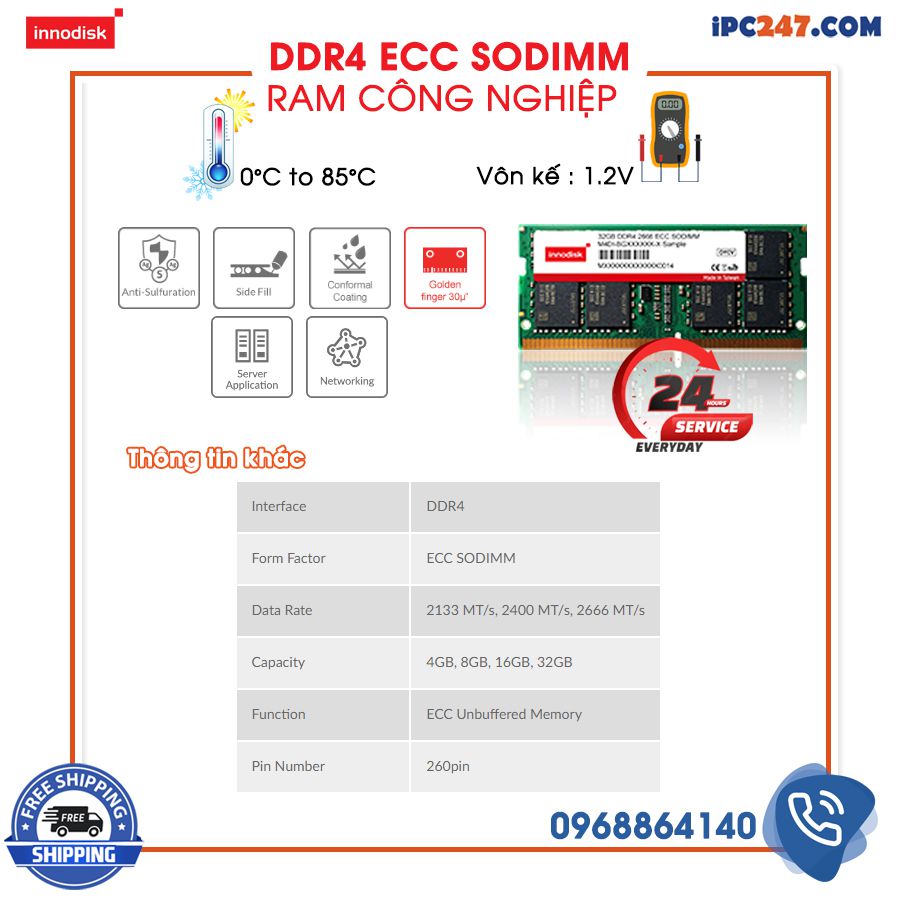

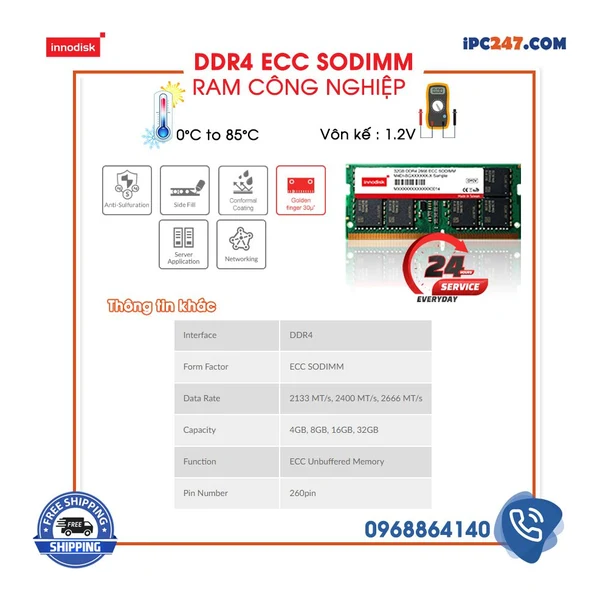

Ram công nghiệp Innodisk – DDR4 ECC SODIMM
Overview
DDR4 ECC SODIMM offers the industry’s fastest memory speed with 2666MT/s, and it is fully compatible with the Intel® Purely platform. The modules come equipped with 30μ” Gold Fingers, include single bit error correction and is designed for networking and server use. All are available in 4GB, 8GB, 16GB, and 32GB capacities. 2133MT/s and 2400MT/s modules are also available.
ECC modules are designed to detect and correct single-bit errors that occur during data storage and transmission. ECC modules use Hamming Code or Triple Modular Redundancy for error detection and correction, and manage error corrections on their own, without requesting that the data source resend original data.
Features
- Small Outline Dual In-line Memory Module
- Single Error Correction and Detection Available
- Fully Tested and Optimized for Stability and Performance
- Uses Original IC to Meet Strict Industrial Standards
- Anti-Sulfuration Protection Against Harsh Environments
- JEDEC Standard 1.2V (1.26V~1.14V)
- Operating Environment : 0°C ~ 85°C
- 30μ” Gold Finger
- RoHS Compliance
- CE/FCC Certification
Specifications
Interface | DDR4 |
Form Factor | ECC SODIMM |
Data Rate | 2133 MT/s, 2400 MT/s, 2666 MT/s |
Capacity | 4GB, 8GB, 16GB, 32GB |
Function | ECC Unbuffered Memory |
Pin Number | 260pin |
Width | 72Bits |
Voltage | 1.2V |
PCB Height | 1.18 Inches |
Operating Temperature | 0°C to 85°C |
30μ” Gold Finger | Y |
Anti-Sulfuration | Y |
Order Information
Density | Component-Composition | Part Number | Rank | Voltage | Description |
4GB | 512Mx8 | M4D0-4GSSPCSJ | 1Rx8 | 1.2V | DDR4 2400 ECC SODIMM |
4GB | 512Mx8 | M4D0-4GSSPCIK | 1Rx8 | 1.2V | DDR4 2666 ECC SODIMM |
8GB | 512Mx8 | M4D0-8GSSQCSJ | 2Rx8 | 1.2V | DDR4 2400 ECC SODIMM |
8GB | 1Gx8 | M4D0-8GS1PCSJ | 1Rx8 | 1.2V | DDR4 2400 ECC SODIMM |
8GB | 512Mx8 | M4D0-8GSSQCIK | 2Rx8 | 1.2V | DDR4 2666 ECC SODIMM |
8GB | 1Gx8 | M4D0-8GS1PCIK | 1Rx8 | 1.2V | DDR4 2666 ECC SODIMM |
16GB | 1Gx8 | M4D0-AGS1QCSJ | 2Rx8 | 1.2V | DDR4 2400 ECC SODIMM |
16GB | 1Gx8 | M4D0-AGS1QCIK | 2Rx8 | 1.2V | DDR4 2666 ECC SODIMM |
32GB | 2Gx8 | M4D0-BGS2QCIK | 2Rx8 | 1.2V | DDR4 2666 ECC SODIMM |
Chính sách bán hàng
- Bảo hành 24 tháng
- Miễn phí vận chuyển toàn quốc
- Miễn phí dịch vụ lắp đặt, tư vấn sử dụng tại Tp. Hồ Chí Minh
- Miễn phí dịch vụ bảo trì on-site trong vòng 1 năm tại Tp. Hồ Chí Minh (không bao gồm các huyện ngoại thành). Phản hồi trong vòng 24 tiếng kể từ khi nhận được thông báo.
- Dịch vụ lắp đặt, bảo trì on-site tại các tỉnh thành khác vui lòng liên hệ để được báo giá.
