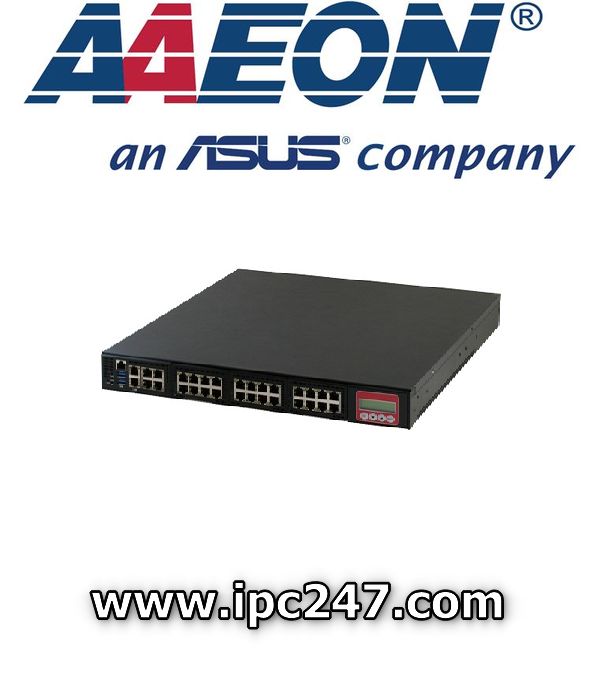

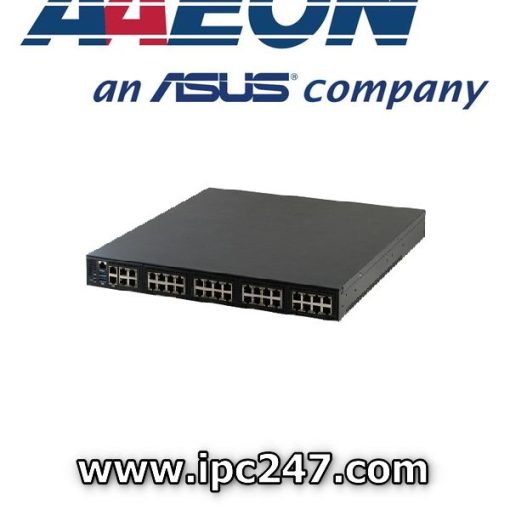

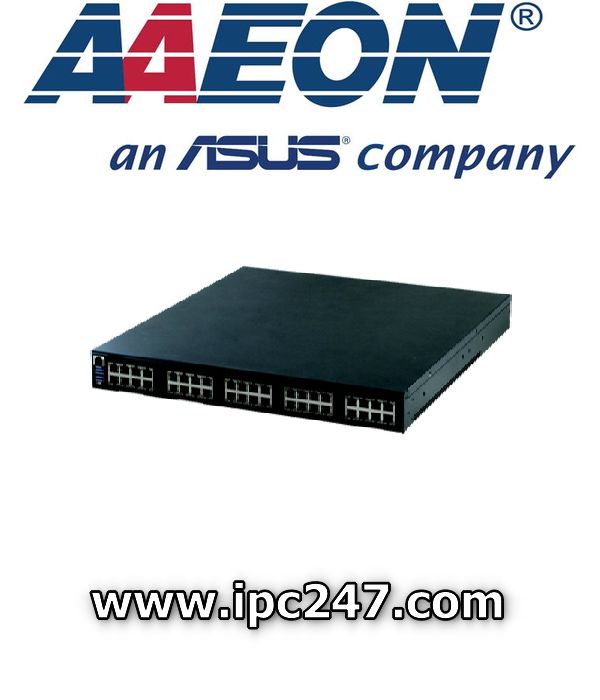

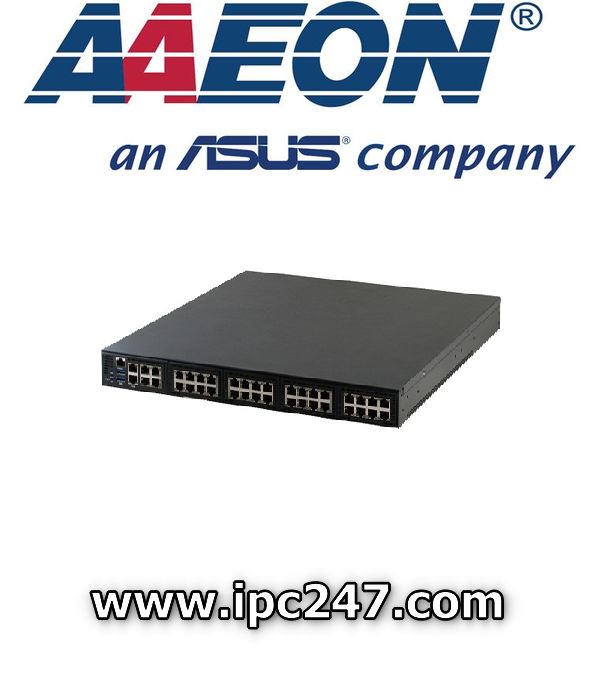

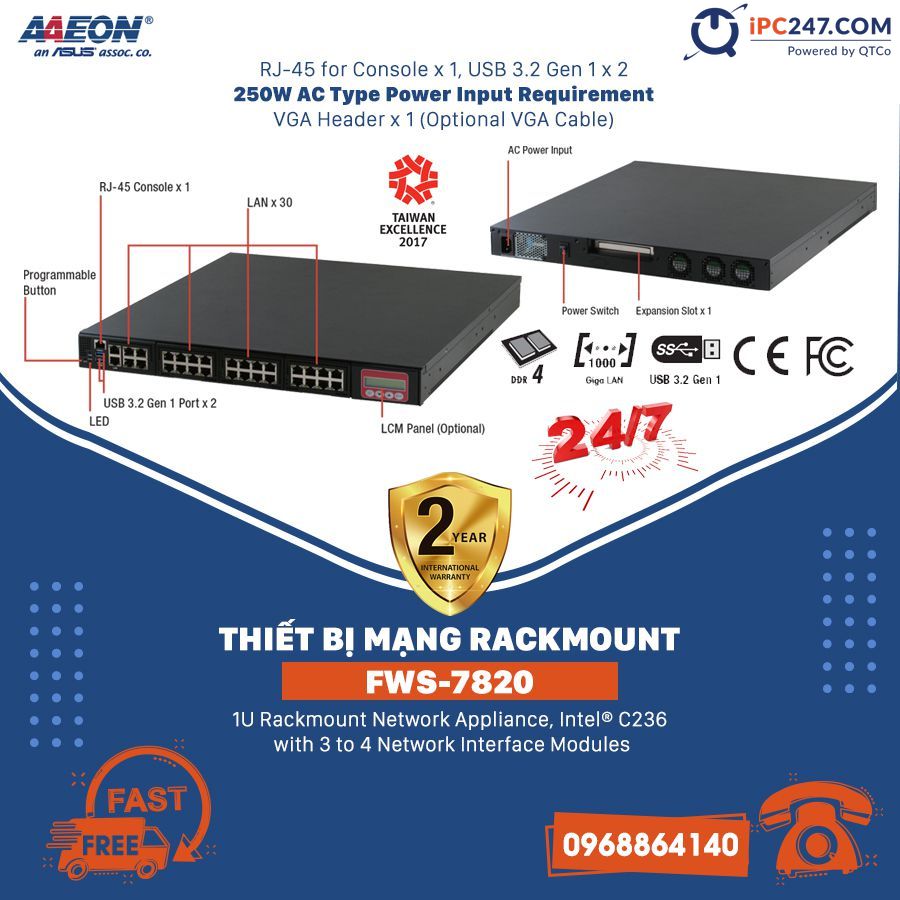

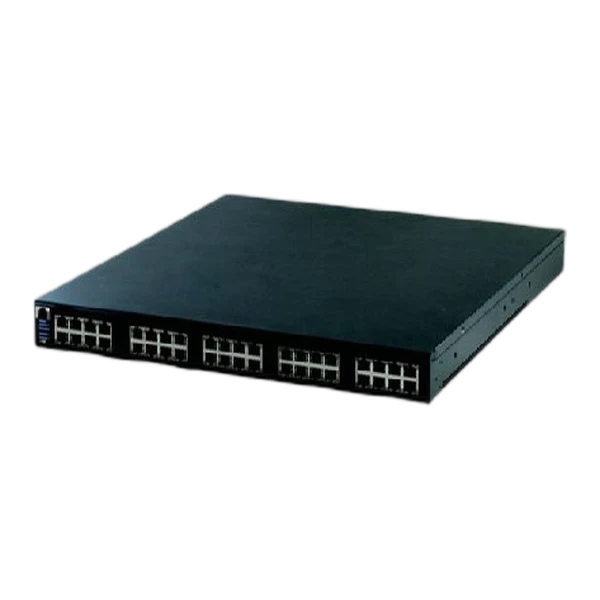

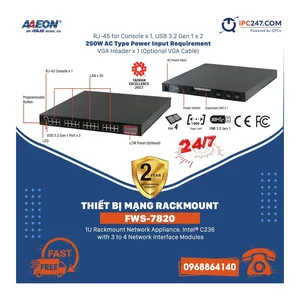

Thiết bị mạng Rackmount (FWS-7820)
- 1U Rackmount Network Appliance, Intel® C236 with 3 to 4 Network Interface Modules
Overview
Along with an enhanced hardware platform, the FWS-7820 is widely deployed to defend cyber threats, such as Unified Threat Management (UTM), Virtual Private Network (VPN), Intrusion Detection System (IDS), Intrusion prevention systems (IPS), Firewall, Load Balancing, Web Content Filtering, to name a few. Hence, this device is well suited for network security, cloud computing and data centers.
The FWS-7820, a state-of-the-art 1U rackmount appliance, is powered by 6th Gen Intel® Core™ processors, featuring Intel® C236 chipset, DDR4 memory support up to 64GB, a wide variety of I/O peripherals and a maximum of 5 NIM module slots.

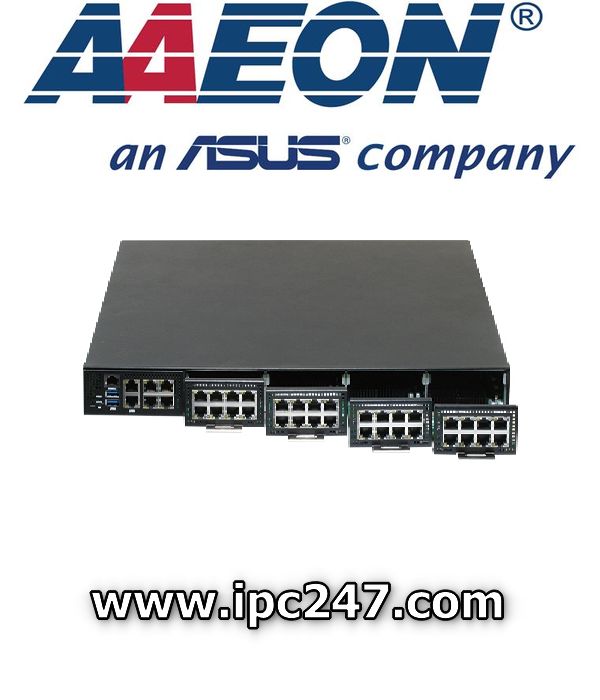

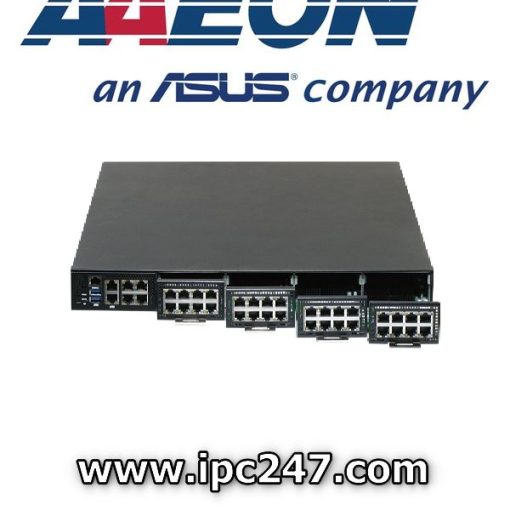

Flexible 5 NIM module expansion and high-port density are two outstanding features for AAEON’s FWS-7820. There is a variety of optional connectivity for up to 40 LAN ports, fiber or copper connections, supporting 1GbE, 10GbE and 40GbE, when compatible modules are installed.
Features
- 1U Rackmount Network Appliance
- 6th Gen. Intel® LGA1151 Core™/ Xeon Processor
- 288-pin DDR4 1600/1866/2133 MHz ECC/U-DIMM x 4 Up to 64 GB
- Up to 10/100/1000Base-TX Ethernet Port x 38 (Depends on NIM)
- Up to 2 SATA 6 GB Ports (Internal 3.5” SATA HDD x 1 or 2.5” SATA HDD x 2) *mSATA/ CF/ CFast will be Disabled if 2nd SATA HDD is Used
- CF Socket x 1 (Can be Replcaed by CFast™ Socket or mSATA Slot)
- LCM with Keypad x 1 (3 NIM Slots SKU)
- RJ-45 for Console x 1, USB 3.2 Gen 1 x 2
- 250W AC Type Power Input Requirement
- VGA Header x 1 (Optional VGA Cable)
Specifications [FWS-7820]
PLATFORM |
|
| FORM FACTOR | 1U Rackmount Network Platform |
| PROCESSOR | 6th Generation Intel® Core™/ Xeon® processors |
| CHIPSET | Intel® C236 |
| SYSTEM MEMORY | DDR4 1600/1866/2133 UDIMM/ECC Up to 64GB 288-pin DIMM x 4 |
NETWORK |
|
| ETHERNET | Intel® i210 GbE x 2, Intel® 82580 x4 |
| BYPASS | Onboard 2 pairs bypass, others depend on NIM module |
| NIM SLOT | 4 (Max. 5 slots by project base) |
| DISPLAY | |
| GRAPHICS CONTROLLER | Intel® HD graphics integrated |
| CONNECTOR | VGA cable (Optional) |
STORAGE |
|
| HDD | Internal 3.5” SATA HDD x 1 or 2.5” SATA HDD x 2 (Optional)* *(mSATA/ CF/ CFast will be disabled if 2nd SATA HDD is used) |
| CF/CFAST/MSATA | CF socket x 1 (Optional BOM CFast™ socket or mSATA slot) |
| EXPANSION/INTERNAL INTERFACE | |
| PCIE SLOT | PCIe [x4] signal use [x8] slot (3rd NIM slot will be disabled if PCIe Riser supported) |
| MINI-CARD | — |
| IPMI | — |
| KB MOUSE | Pin-header |
| USB | USB 3.2 Gen 1 x 2, Box Header (2.0mm) |
MISCELLANEOUS |
|
| RTC | Internal RTC |
| WATCHDOG TIMER | 1~255 steps by software programmable, 1 sec per step |
| SOFTWARE BUTTON | GPIO Programmable push button x 1 |
| TPM | TPM2.0 9665 (TPM v1.2 9660 optional) |
| GPIO | 8 bits, BIOS default 4 bits input, 4 bits output. |
| FAN | 2 |
| MTBF (HOURS) | 71852 |
| COLOR | Black |
| PHYSICAL & ENVIRONMENTAL SPEC | |
| POWER REQUIREMENT | 250W ATX PSU |
| OPERATING TEMPERATURE | 32°F ~ 104°F (0°C ~ 40°C) |
| STORAGE TEMPERATURE | -4°F ~ 140°F (-20°C ~ 60°C) |
| OPERATING HUMIDITY | 10 ~ 80% relative humidity, non-condensing |
| STORAGE HUMIDITY | 10 ~ 80% @ 40°C, non-condensing |
| VIBRATION | 0.5 Grms/ 5 ~ 500Hz/ operation (3.5” H.D.D) 1.5 Grms/ 5 ~ 500Hz/ no operation |
| SHOCK | 10G peak acceleration (11 m sec. duration), operation 20G peak acceleration (11 m sec. duration), non-operation |
| DIMENSION (W X D X H) | 16.93” x 18.7” x 1.73” (430mm x 475mm x 44mm) |
I/O INTERFACE |
|
| FRONT PANEL | Power LED x 1 Status LED x 1 HDD Active LED x 1 USB 3.2 Gen 1 Ports x 2 RJ-45 Console x 1 Parallel LCM display and 4 keypad x 1 (Optional w/ NIM slot) Software Programmable Switch x 1 Bypass LED x 2 |

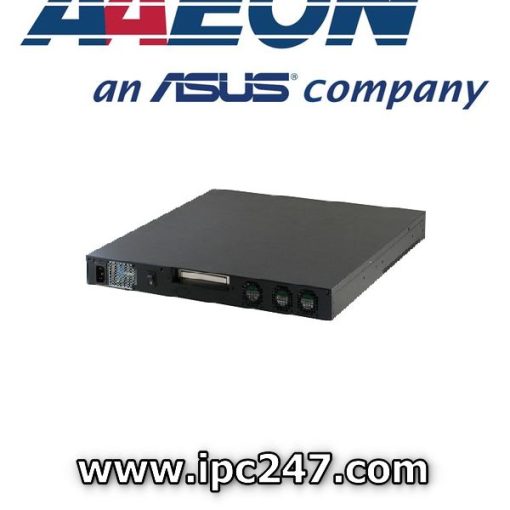

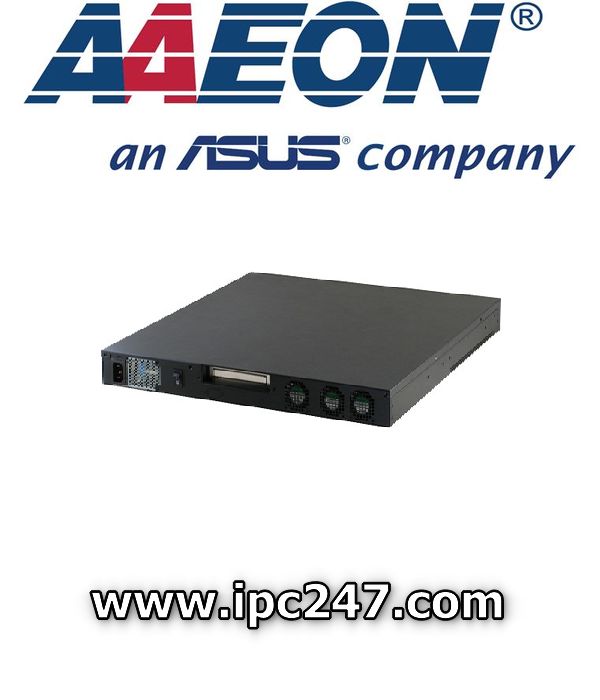

| REAR PANEL | AC Power Input x 1 Power Switch x 1 VGA port (Optional) Rear Expansion Slot x 1 (Optional PCIe [x4] signal use [x8] slot, 3rd NIM slot will be disabled if PCIe Riser supported) |
Ordering Information [FWS-7820]
| PART NUMBER | FWS-7820W6-H25-A10-000 |
|---|---|
| CPU | 6th Generation Intel® Core/Xeon Processors |
| MEMORY | DDR4 ECC/UDIMM (Up to 64 GB) |
| STORAGE | 3.5” HDD Bay x 1 + CF Card Slot |
| DISPLAY | — |
| LAN | 1 GbE x 6 |
| USB | USB 3.2 Gen 1 x 2 |
| CONSOLE | RJ-45 x 1 |
| BYPASS | 2 |
| NIM SLOT | 3 |
Downloads [FWS-7820]
Packing List
- Console Cable
- Ear Brackets
- FWS-7820
Optional Accessories
| M02666600 | Slide x 2, for Rackmount Usage |
| 1702031803 | Power Cord, 3P-250V/10A, 180D, 1.8M, VDE, YP22/ YP12 |
| 1702031802 | Power Cord, 3P-250V/10A, 180D, 1.8M, USA, YP22/ YP12 |
| 170203180E | Power Cord, 3P-25V/7A, 180D, 1.8M, PSE, YP12/YP12 |
| 9761781027 | VGA Cable |
| 9761782008 | (TF)2.5” x 2 HDD Moudle, FWS-7820 |
| 9761782000 | (TF)3.5” x 1 HDD Moudle, FWS-7820 |
| NIM-S26C-A10-T40-0002 | Intel® Fortville XL710 PCI-Express 10G SFP+ 4 Ports Module for FWS-7820 |
| NIM-S26B-A10-F20-0002 | Intel® Fortville XL710 PCI-Express 40G QSFP 2 Ports Module for FWS-7820 |
| NIM-S13B-A10-G80-0002 | Intel® 82580EB PCI-Express 1G SFP 8 Ports Module for FWS-7820 |
| NIM-S13D-A10-G40-0002 | Intel® 82580EB PCI-Express 1G SFP 4 Ports Module for FWS-7820/7821 |
| NIM-C13B-A10-G82-0001 | Intel® 82580EB PCI-Express 1G Copper Ethernet 8 Ports Module for FWS-7820 w/ 2Pair bypass |
| NIM-C13D-A10-G42-0002 | Intel® 82580EB PCI-Express 1G Copper Ethernet 4 Ports Module for FWS-7820 w/ 2Pair bypass |
