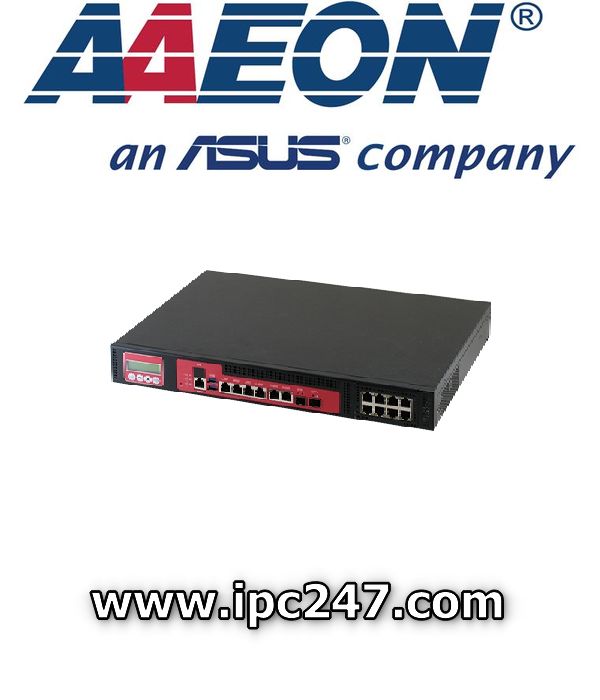

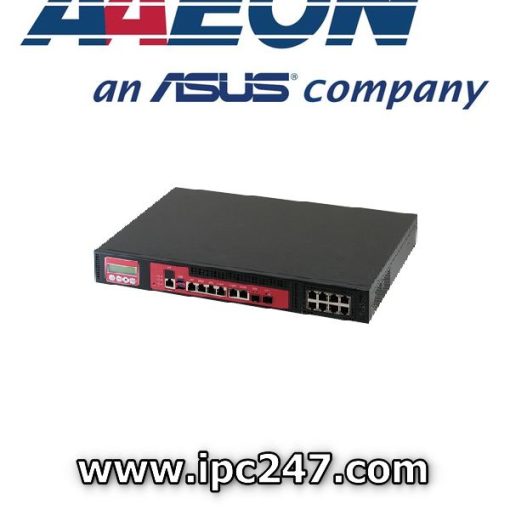

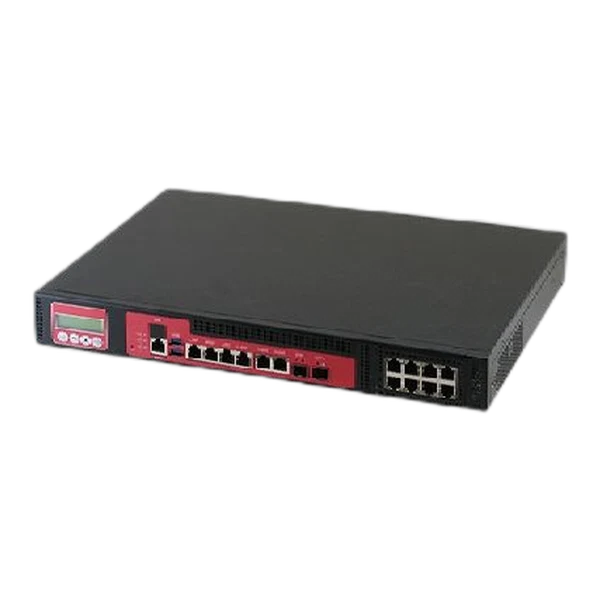

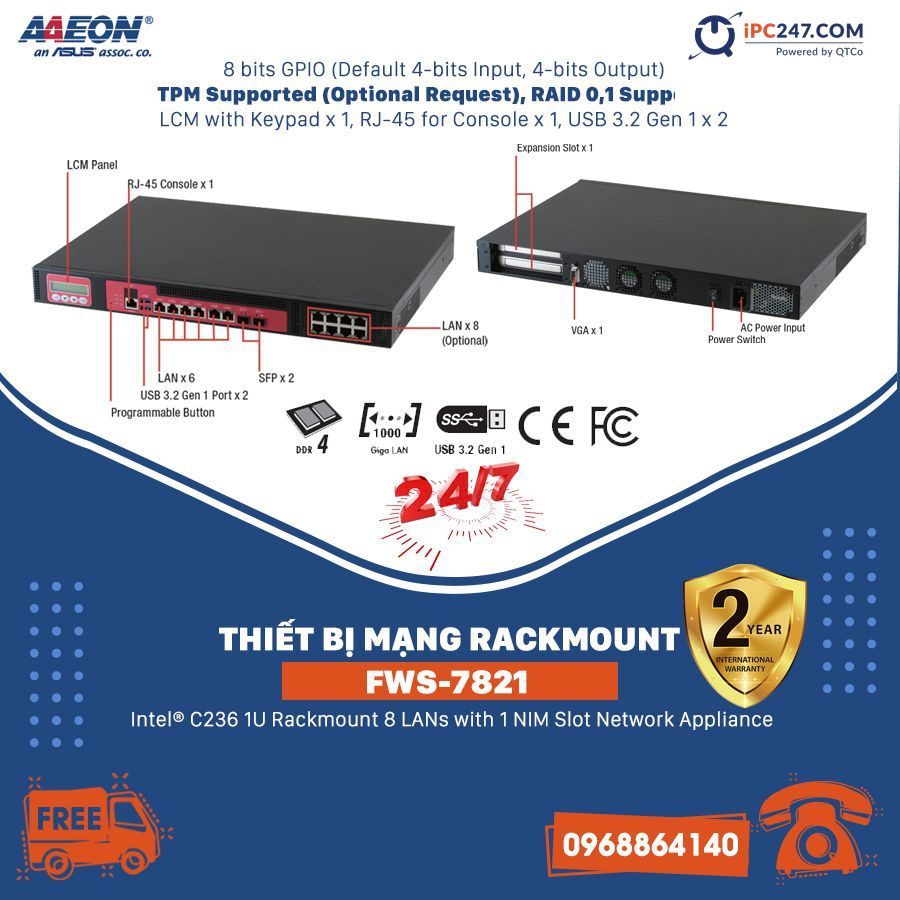

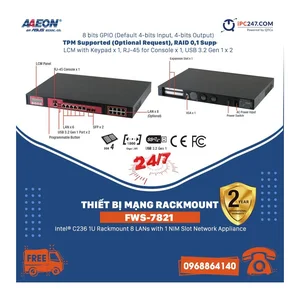

Thiết bị mạng Rackmount (FWS-7821)
- Intel® C236 1U Rackmount 8 LANs with 1 NIM Slot Network Appliance
Overview
Designed around a 7th Generation (Kaby Lake) Intel® Xeon® processor, the FWS-7821 supports up to 64GB DDR4, 5 x 2.5” SSD, or 2 x 40GbE QSFP to deliver unrivalled processing, massive throughput, and ultra-low latency.
The dense, feature-rich 1U design includes impressive I/O including, 8 x GbE, 2 x SFP, 2 x PCIe cards (x8), 2 x USB 3, and CFast enabling the FWS-7821 to adopt an exceptional array of easily composable configurations and customizations for seamless integration into new and existing infrastructure deployments.
The FWS-7821 is capable of supporting a broad range of configurations to ensure rapid, customized deployment in your network environment. The powerful SDK further enables high degrees of customization in addition to real-time telemetry, analytics, and easy management.
Powerful
Designed around a 7th Generation (Kaby Lake) Intel® Xeon® processor, the FWS-7821 supports up to 64GB DDR4, 2.5″ SSD x 5, or 40GbE QSFP x 2 to deliver unrivalled processing, massive throughput, and ultra-low latency.
Flexible
The dense, feature-rich 1U design includes impressive I/O including, GbE x 6, SFP x 2, PCIe [x8] slot x 2, USB 3.2 Gen 1 x 2, and CFast, enabling the FWS-7821
to adopt an exceptional array of configurations for seamless integration into new and existing infrastructure deployments.
Composable
The FWS-7821 ensures rapid and composable deployment in your network environment. The powerful SDK further enables high degrees of customization in addition to real-time telemetry, analytics, and ease of management.
Features
- 1U Rackmount Network Appliance
- Intel® LGA1151 6th/7th Generation Core™/Xeon Processors
- 288-pin ECC Dual Channel DDR4 2133 UDIMM x 4 Up to 64GB
- 10/100/1000Base-TX Ethernet Ports x 8 (Onboard RJ-45 x 6 & SFP x 2) with Max. 3 Pairs of LAN Bypass Function
- Internal 3.5” SATA HDD x 1 or 2.5” SATA HDD x 2 (Optional Extra 4 Pcs x 2.5” HDD without NIM and Expansion Lot Presented)
- CFast x 1 (Optional CF Socket or mSATA Slot)
- 8 bits GPIO (Default 4-bits Input, 4-bits Output)
- TPM Supported (Optional Request), RAID 0,1 Supported
- LCM with Keypad x 1, RJ-45 for Console x 1, USB 3.2 Gen 1 x 2
- 250W AC Type Power Input
- VGA Header x 1 (Optional VGA Cable)
Specifications [FWS-7821]
| PLATFORM | |
| FORM FACTOR | 1U Rackmount Network Platform |
| PROCESSOR | 6th/7th Generation Intel® Core™/ Xeon® processors |
| CHIPSET | Intel® C236 |
| SYSTEM MEMORY | DDR4 1600/1866/2133/2400 UDIMM/ECC Up to 64GB 288-pin DIMM x 4 |
| NETWORK | |
| ETHERNET | Intel® i211 GbE x 6 + Intel® i210 GbE x 2 (SFP) + NIM x 1(Or i211 GbE x8 +NIMx1)UDIMM/ECC |
| BYPASS | Onboard 2 pairs bypass, others depend on NIM module |
| NIM SLOT | 1 |
| DISPLAY | |
| GRAPHICS CONTROLLER | Intel® HD graphics integrated |
| CONNECTOR | VGA cable (Optional) |
| STORAGE | |
| HDD | Internal 2.5” SATA HDD x 2 or 3.5” SATA HDD x 1 (Optional) |
| CF/CFAST/MSATA | Optional BOM CFast™ socket or mSATA slot or CFast™ socket |
| EXPANSION/INTERNAL INTERFACE | |
| PCIE SLOT | Up to PCIe[x8] slot x 2 |
| MINI-CARD | Mini Card x 1 |
| IPMI | — |
| KB MOUSE | Pin-header |
| USB | USB 3.2 Gen 1 x 2, Box Header (2.0mm) |
| MISCELLANEOUS | |
| RTC | Internal RTC |
| WATCHDOG TIMER | 1~255 steps by software programmable, 1 sec per step |
| SOFTWARE BUTTON | GPIO Programmable push button x 1 |
| TPM | TPM v1.2 9660 (TPM2.0 9665 optional) |
| GPIO | 4 bits input, 4 bits output |
| FAN | 2 |
| MTBF (HOURS) | 94241 |
| COLOR | Black |
| PHYSICAL & ENVIRONMENTAL SPEC | |
| POWER REQUIREMENT | 250W ATX PSU |
| OPERATING TEMPERATURE | 32°F ~ 104°F (0°C ~ 40°C) |
| STORAGE TEMPERATURE | -4°F ~ 140°F (-20°C ~ 60°C) |
| OPERATING HUMIDITY | 10% ~ 80% relative humidity, non-condensing |
| STORAGE HUMIDITY | 10% ~ 80% @ 40°C, non-condensing |
| VIBRATION | 0.5 Grms/ 5 ~ 500Hz/ operation (3.5” H.D.D) 1.5 Grms/ 5 ~ 500Hz/ no operation |
| SHOCK | 10G peak acceleration (11 m sec. duration), operation 20G peak acceleration (11 m sec. duration), non-operation |
| DIMENSION (W X D X H) | 16.93” x 12.01” x 1.73” (430mm x 305mm x 44mm) |
| I/O INTERFACE | |
| FRONT PANEL | Power LED x 1 Status LED x 1 HDD Active LED x 1 USB 3.2 Gen 1 Ports x 2 RJ-45 Console x 1 Parallel LCM display and 4 keypad x 1 (Optional w/ NIM slot) Software Programmable Switch x 1 Bypass LED x 2 RJ45 X8 or RJ45 X6+SFP x 2 |
| REAR PANEL | AC Power Input x 1 Power Switch x 1 VGA port (Optional) Rear Expansion Slot x 2 (2 x PCIe [x8] slots, NIM slot will be disabled if PCIe Riser supported) |
Ordering Information [FWS-7821]
| PART NUMBER | FWS-7821W8-H25-A10-000 |
|---|---|
| CPU | 6th/7th Gen. Intel® Core™/Xeon |
| MEMORY | DDR4 ECC/UDIMM (Up to 64 GB) |
| STORAGE | 2.5” HDD Bay x 2 + CFast™ Slot x 1 |
| DISPLAY | — |
| LAN | 1 GbE x 6, 2 x 1G SFP |
| USB | USB 3.2 Gen 1 x 2 |
| CONSOLE | RJ-45 x 1 |
| BYPASS | 2 |
| NIM SLOT | 1 (Note 1) |
| EXPANSION SLOT | 2 (Note 2) |
Downloads [FWS-7821]
Packing List
- Console Cable
- Ear Brackets
- FWS-7820
Optional Accessories
| M02666600 | Slide x 2, for Rackmount Usage |
| 1702031803 | Power Cord, 3P-250V/10A, 180D, 1.8M, VDE, YP22/ YP12 |
| 1702031802 | Power Cord, 3P-250V/10A, 180D, 1.8M, USA, YP22/ YP12 |
| 170203180E | Power Cord, 3P-25V/7A, 180D, 1.8M, PSE, YP12/YP12 |
| 9761781027 | VGA Cable |
| 9761782100 | (TF)2.5” x 2 HDD-LEFT Module, FWS-7821 |
| PER-R40X | NIM LAN Module Riser Card |
| PER-R44X | 2 Slot Rear PCIE Riser Card |
| PER-T354 | 1 Slot Rear PCIE Riser Card |
| NIM-S26C-A10-T40-0002 | Intel® Fortville XL710 PCI-Express 10G SFP+ 4 Ports Module for FWS-7821 |
| NIM-S26B-A10-F20-0002 | Intel® Fortville XL710 PCI-Express 40G QSFP 2 Ports Module for FWS-7821 |
| NIM-S13B-A10-G80-0002 | Intel® 82580EB PCI-Express 1G SFP 8 Ports Module for FWS-7820 |
| NIM-S13D-A10-G40-0002 | Intel® 82580EB PCI-Express 1G SFP 4 Ports Module for FWS-7820/7821 |
| NIM-C13B-A10-G82-0001 | Intel® 82580EB PCI-Express 1G Copper Ethernet 8 Ports Module for FWS-7821 w/ 2Pair bypass |
| NIM-C13D-A10-G42-0002 | Intel® 82580EB PCI-Express 1G Copper Ethernet 4 Ports Module for FWS-7821 w/ 2Pair bypass |
| NIM-S13E-A10-G82-0002 | 580EB, 8 x 1GbE SFP, 2 Bypass, FWS-7820/7821, Rev. A.1.0 |
