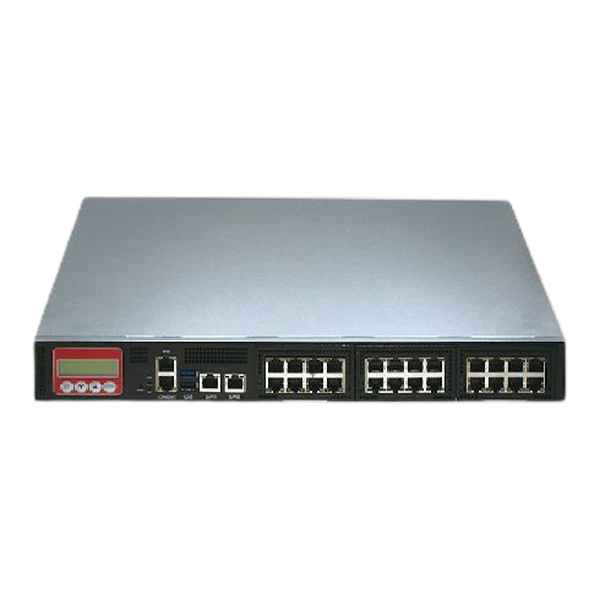

Thiết bị mạng Rackmount (FWS-7830)
- 1U Rackmount Intel® 8th Generation Platform Network Appliance
Overview
In addition to handling traditional network platform functions such as firewall protection, unified threat management (UTM), and intrusion detection and prevention systems (IDS, IPS), the FWS-7830 is also perfectly equipped to manage network function virtualization.
AAEON’s latest 1U rackmount network appliance is fitted with an Intel® 8th generation CPU and features four DDR4 UDIMM modules for up to 64GB of memory. Three NIM slots give users flexibility and the possibility of multiple bypass channels. Breaking from the conventional design specifications of competing systems, the FWS-7830’s default SFP LAN ports use Intel i350-AM2 controllers to enable NFV infrastructure, which improves the efficiency of load balancing while still reducing the reliance on physical equipment.
Three SATA connectors are available for additional storage, a Mini-Card socket means WiFi/3G/4G expansion is possible, and up to two PCIe slots enable further expansion possibilities. The appliance’s comprehensive I/O interface includes two USB 3.2 Gen 1 ports, a console port, an LCM port, and VGA and HDMI ports.
Features
- 1U Rackmount Network Appliance
- Single Intel® 8th Generation Core™/Xeon™ processor
- Intel® Communications Chipset C246
- DDR4 2133/2400/2666 MHz UDIMM x 4, Up to 64 GB
- IPMI Support by Aaeon Module
- Onboard 2 LAN (I350 AM2)

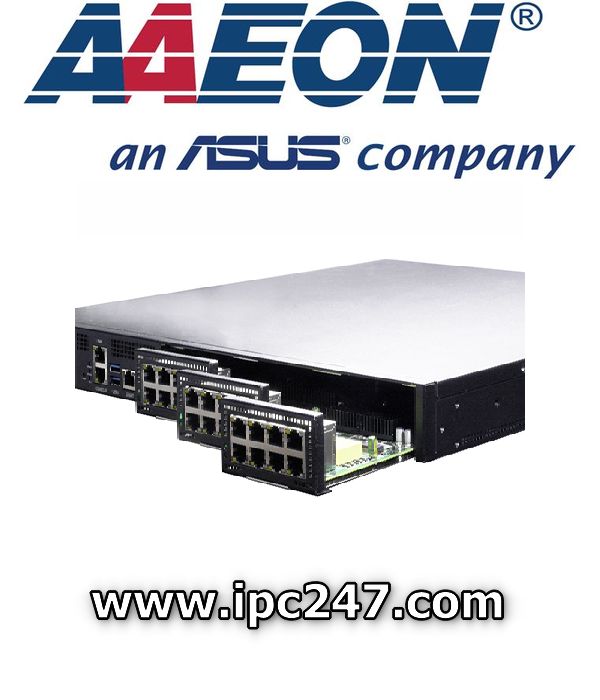

- Up to 24 Gigabit Ethernet Ports Via NIM
- 1 x 3.5” SATA HDD or 2.5” SATA HDD x 2, mSATA Socket x 1
- LCM with Keypad x 1
- RJ-45 Console x 1, USB 3.2 Gen 1 x 2, 1 GbE LAN x 2
- 220W Single Power
Specifications [FWS-7830]
| PLATFORM | |
| FORM FACTOR | 1U Rackmount Network Platform |
| PROCESSOR | 8th Generation Intel® Core™/ Xeon® processor |
| CHIPSET | Intel® C246 |
| SYSTEM MEMORY | DDR4 2133/2400/2666 UDIMM Up to 64GB 288-pin DIMM x 4 |
| NETWORK | |
| ETHERNET | Intel® I350 AM2 Gigabit Ethernet x 2 |
| BYPASS | Depend on NIM module |
| NIM SLOT | NIM Slot x3 |
| DISPLAY | |
| GRAPHICS CONTROLLER | Intel® HD graphics integrated |
| CONNECTOR | VGA cable (Optional) |
| STORAGE | |
| HDD | Internal 2.5” SATA HDD x 2 or 3.5” SATA HDD x 1 (Optional) |
| CF/CFAST/MSATA | Default mSATA Slot (Optional CFast Socket) |
| EXPANSION/INTERNAL INTERFACE | |
| PCIE SLOT | NIM x 3 Mini PCIe Slot x 1 or mSATA x 1 |
| MINI-CARD | Mini Card x 1 |
| IPMI | IPMI Support by AAEON module |
| KB MOUSE | Pin-header |
| USB | USB 3.2 Gen 1 x 2, Box Header (2.0mm) |
| MISCELLANEOUS | |
| RTC | Internal RTC |
| WATCHDOG TIMER | 1~255 steps by software programmable, 1 sec per step |
| SOFTWARE BUTTON | GPIO Programmable push button x 1 |
| TPM | Optional TPM v2.0 |
| GPIO | 8bits, BIOS default 4 bits input, 4bits output. |
| FAN | 2 |
| MTBF (HOURS) | TBD |
| COLOR | Black |
| PHYSICAL & ENVIRONMENTAL SPEC | |
| POWER REQUIREMENT | 220W ATX PSU |
| OPERATING TEMPERATURE | 32°F ~ 104°F (0°C ~ 40°C) |
| STORAGE TEMPERATURE | -4°F ~ 140°F (-20°C ~ 60°C) |
| OPERATING HUMIDITY | 10% ~ 80% |
| STORAGE HUMIDITY | 10% ~ 80% @ 40°C, non-condensing |
| VIBRATION | 0.5 Grms/ 5 ~ 500Hz/ operation (3.5” H.D.D) 1.5 Grms/ 5 ~ 500Hz/ no operation |
| SHOCK | 10G peak acceleration (11 m sec. duration), operation 20G peak acceleration (11 m sec. duration), non-operation |
| DIMENSION (W X D X H) | 16.93” x 18.7” x1.73”(430mm x 475mm x 44mm) |
| I/O INTERFACE | |
| FRONT PANEL | Power LED x 1 Status LED x 1 HDD Active LED x 1 USB 3.2 Gen 1 Ports x 2 RJ-45 Console x 1 Parallel LCM display and 4 keypad x 1 Software Programmable Switch x 1 |

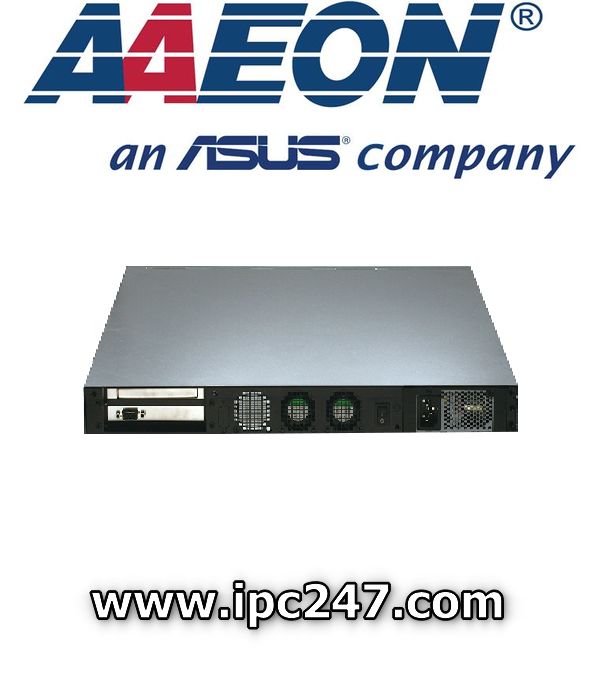

| REAR PANEL | AC Power Input x 1 Power Switch x 1 VGA port (Optional) |
Ordering Information [FWS-7830]
| PART NUMBER | FWS-7830W2-H22-A10-000 |
|---|---|
| CPU | Intel® 8th Generation Core™/ Xeon® Processors |
| MEMORY | DDR4 UDIMM x 4 , Up to 64GB |
| MINI-CARD SLOT | — |
| STORAGE | 2.5” HDD Bay x 2 + mSATA slot x1 |
| LAN | Intel® I350 AM2 Gigabit Ethernet x 2 |
| USB | USB 3.2 Gen 1 x 2 |
| CONSOLE | RJ-45 console x 1 |
| BYPASS | — |
| NIM SLOT | 3 (Note 1) |
| EXPANSION SLOT | 1 (Note 2) |
| TPM | — |
| DISPLAY | — |
| FAN | 2 |
| MOUNTING | 1U Rackmount |
| POWER | ATX |
Downloads [FWS-7830]
Packing List
- Console Cable
- Ear Brackets
- FWS-7830
Optional Accessories
| M02666600 | Slide x 2, for Rackmount Usage |
| 1702031803 | Power Cord, 3P-250V/10A, 180D, 1.8M, VDE, YP22/YP12 |
| 1702031802 | Power Cord, 3P-250V/10A, 180D, 1.8M, USA, YP22/YP12 |
| 170203180E | Power Cord, 3P-25V/7A, 180D, 1.8M, PSE, YP12/YP12 |
| 9761781027 | VGA Cable |
| 9761783000 | (TF)3.5×1 HDD Module, FWS-7830 |
| 9761783001 | (TF)2.5x2_HDD-LEFT Module, FWS-7830 |
| NIM-S26C-A10-T40-0002 | Intel® Fortville XL710 PCI-Express 10G SFP+ 4 Ports Module for FWS-7820/7830 |
| NIM-S26B-A10-F20-0002 | Intel® Fortville XL710 PCI-Express 40G QSFP 2 Ports Module for FWS-7820/7830 |
| NIM-S13B-A10-G80-0002 | Intel® 82580EB PCI-Express 1G SFP 8 Ports Module for FWS-7820/7830 |
| NIM-S13D-A10-G40-0002 | Intel® 82580EB PCI-Express 1G SFP 4 Ports |
| NIM-C13B-A10-G82-0001 | Intel® 82580EB PCI-Express 1G Copper Ethernet 8 Ports Module for FWS-7820 w/ 2Pair bypass/7830 |
| NIM-C13D-A10-G42-0002 | Intel® 82580EB PCI-Express 1G Copper Ethernet 4 Ports Module for FWS-7820 w/ 2Pair bypass/7830 |
