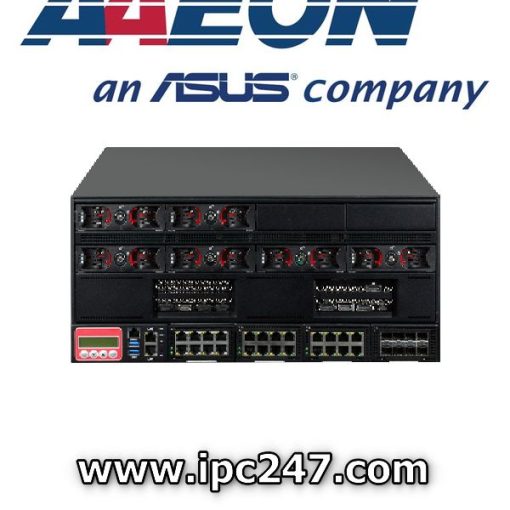

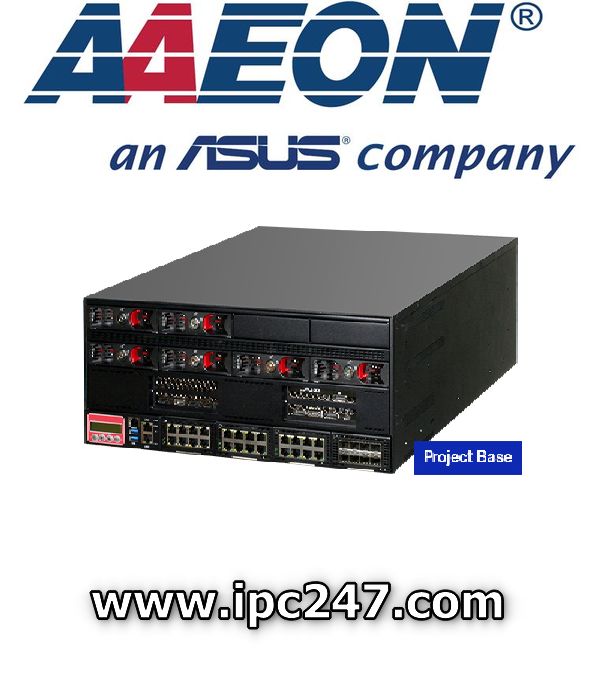

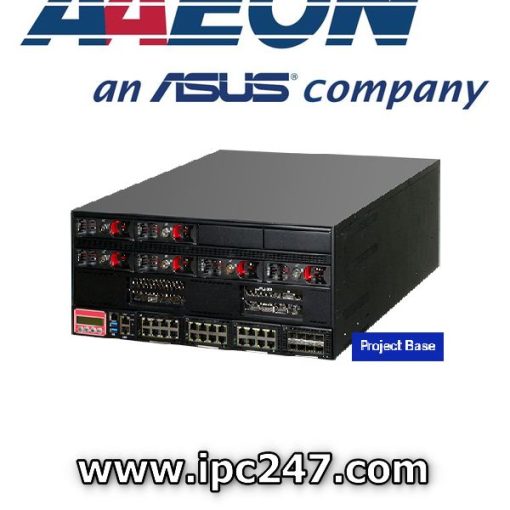

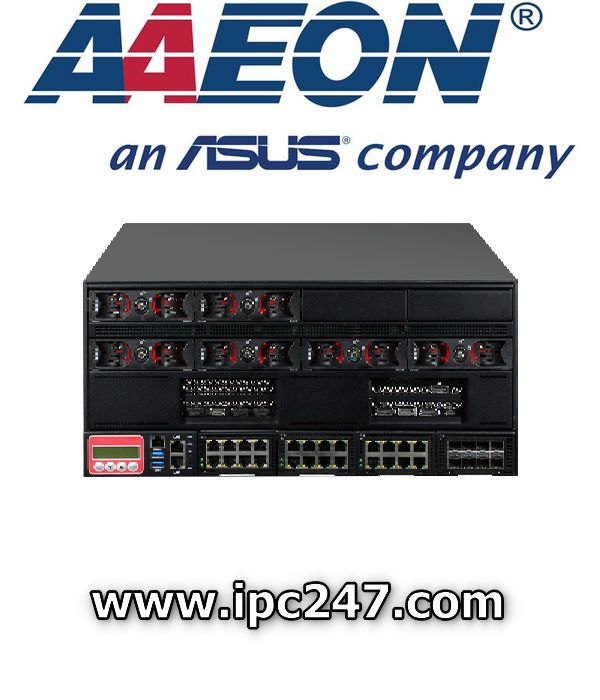

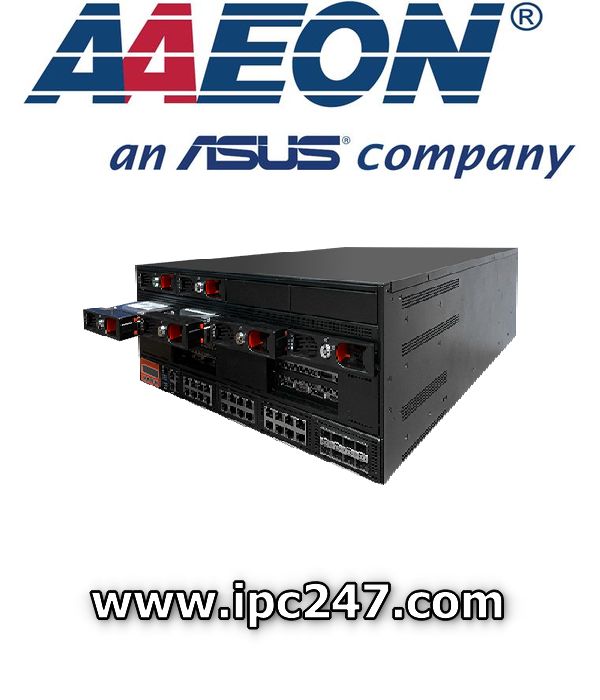

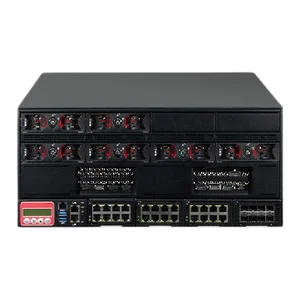

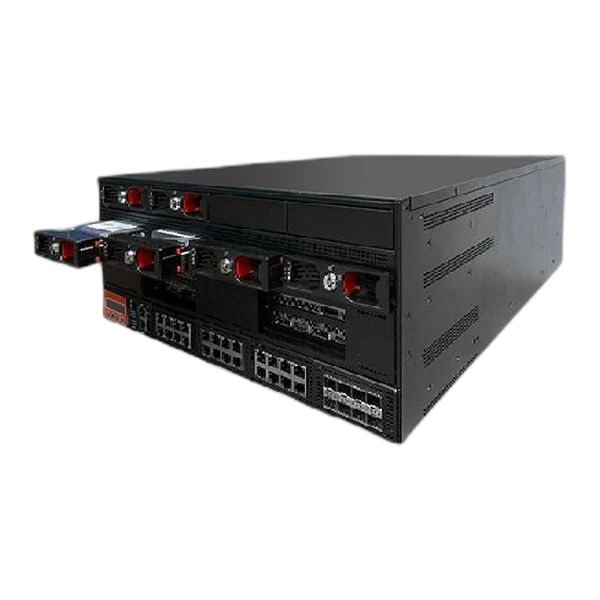

Thiết bị mạng Rackmount (ZEUS-PUR0)
- 4U Rackmount Purley Platform Server System, Support Xeon® FPGA CPU
Overview
ZEUS-PUR0 AI Edge Server offers high-performance AI computing to power a range of demanding AI applications, from Multi-access Edge Computing (MEC) to Smart Cities, or providing smart surveillance for an entire facility in a single platform.
The ZEUS-PUR0 is powered by two 2nd Generation Intel® Xeon® Scalable Processors (formerly Cascade Lake) built onto a 4U chassis designed to give maximum expandability and flexibility to integrate with your project. The ample space and innovative thermal design allow deployment with up to four PCIe [x16] devices such as the NVIDIA RTX 2080 Ti, supplying in total over 56 TFLOPS of processing power. Alternatively, ZEUS-PUR0 can support up to six of AAEON’s AI Core XP8 PCIe [x4] cards, each with up to eight Intel® Movidius® Myriad™ X VPUs. This allows the ZEUS-PUR0 to handle multiple AI processes in parallel, or the same inference across a broader range of inputs.
Features
- 4U Rackmount Server System
- Dual Intel® Xeon® Processor Skylake-SP and Cascade Lake –SP processor
- Intel® Communications Chipset C621
- DDR4 2133/2400/2666 MHz DIMM (8 DIMM Per CPU) RDIMM x 16, Up to 512 GB
- IPMI Support

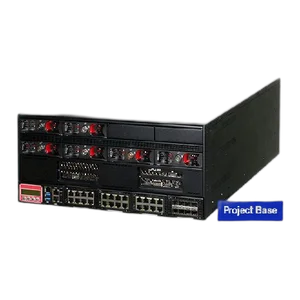

- Up to 32 Gigabit Ethernet Ports Via NIM (Project Base Up to 32 Gigabit Ethernet Ports Via NIM)
- 6 x 3.5″ SATA HDD or 2.5″ SATA HDD x 6, M.2 2260 Socket x 1
- Option Rear Side PCIe [x4] x 4 (or PCIe [x8] x 2) + PCIe [x8] x 2 (Or PCIe [x16] x 1)
- Option Front PCIe [x16] x 2
- Optional Parallel LCM with Keypad x 1
- RJ-45 Console x 1, USB 3.0 x 2, 1 GbE LAN x 2
- 800~1600W CRPS Redundant Power
Specifications [ZEUS-PUR0]
| SYSTEM | |
| FORM FACTOR | 4U Rackmount Server System |
| PROCESSOR | Intel® Xeon® Skylake-SP and Cascade Lake-SP Processors |
| SYSTEM MEMORY | DDR4 2133/2400/2666 R-DIMM, Up to 512 GB |
| CHIPSET | Intel® C621 |
| ETHERNET | Intel® i211 Gigabit Ethernet x 2 |
| BYPASS | Depend on NIM module |
| BIOS | AMI BIOS |
| SERIAL ATA | SATA II port x 6 |
| STORAGE | 2.5″ HDD x 6 or 3.5″ HDD x 6, M.2 x 1 |
| EXPANSION INTERFACE | NIM slot x 4 (Project Base NIM Slot x 8) Option front PCIe [x16] slots x 2 Option rear side PCIe [x4] x 4 (or PCIe [x8] x 2) + PCIe [x8] x 2 (Or PCIe [x16] x 1) M.2 Slot x 1 Mini PCIe x 1 |
| WATCHDOG TIMER | 1~255 steps by software programmable |
| RTC | Internal RTC |
| SYSTEM FAN | 5 |
| FRONT I/O PANEL | Power LED x 1, Status LED x 1, HDD Active LED x 1 |

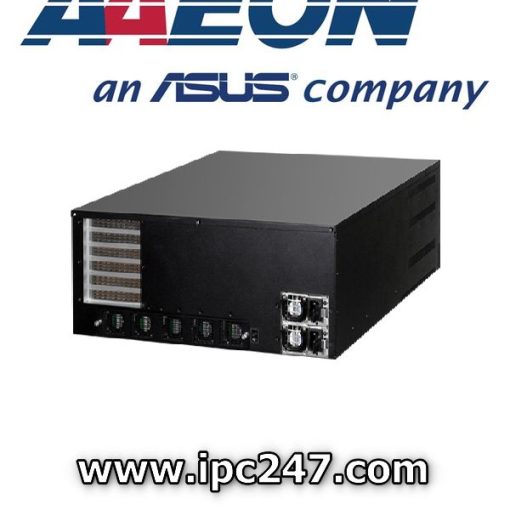

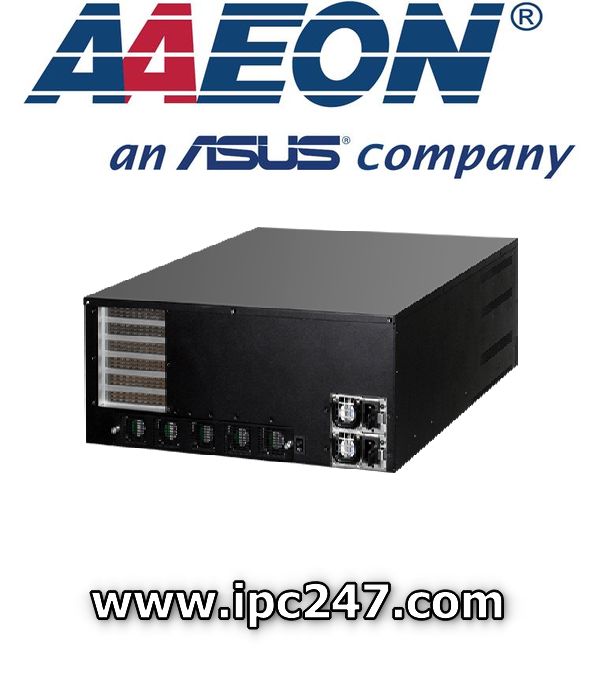

| REAR I/O PANEL | AC Power Input x 1, Power Switch x 1, VGA port (Optional), Rear Expansion Slot (Optional) |
| COLOR | Black |
| POWER SUPPLY | 800 ~1600W Redundant PSU |
| DIMENSION | (480mm x 600mm x 176mm) |
| POWER CONSUMPTION | TBD |
| MTBF (HOURS) | TBD |
| DISPLAY | |
| CHIPSET | Intel® C621 |
| GRAPHICS ENGINE | From IPMI or Mini PCIE Option |
| RESOLUTION | — |
| CONNECTOR | VGA Option |
| I/O | |
| SERIAL PORT | RJ-45 Console x 1 |
| KB MOUSE | N/A |
| USB | USB 3.0 x 2 |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | 32°F ~ 104°F (0°C ~ 40°C ) |
| STORAGE TEMPERATURE | -4°F ~ 140°F (-20°C ~ 60°C) |
| OPERATING HUMIDITY | 10% ~ 80% relative humidity, non-condensing |
| STORAGE HUMIDITY | 10% ~ 80% @40°C; non-condensing |
| VIBRATION | 0.5 g rms/ 5 ~ 500Hz / operation (2.5″ Hard Disk Drive) 1.5 g rms/ 5 ~ 500Hz / non operation |
| SHOCK | 10 G peak acceleration (11 m sec. duration), operation 20 G peak acceleration (11 m sec. duration), non operation |
