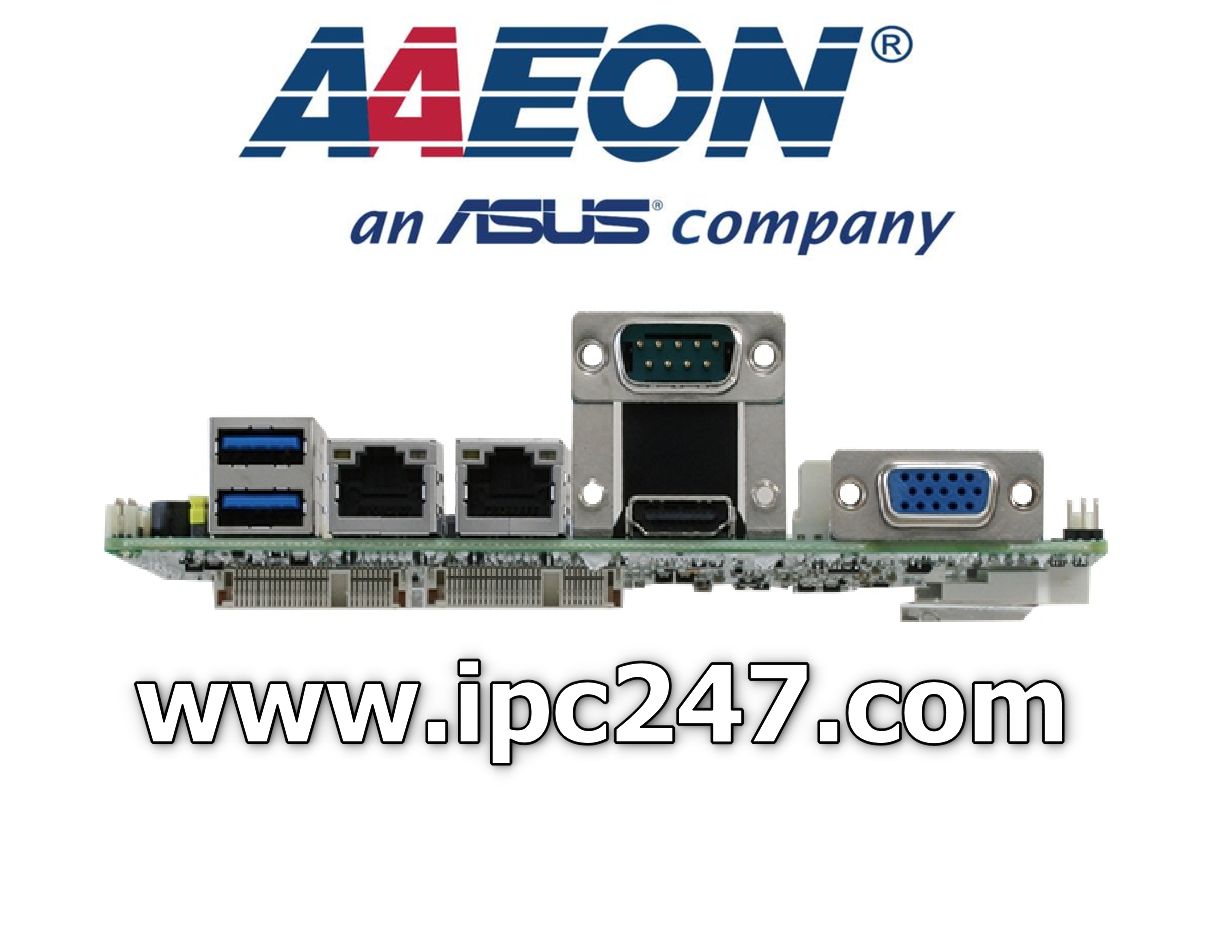

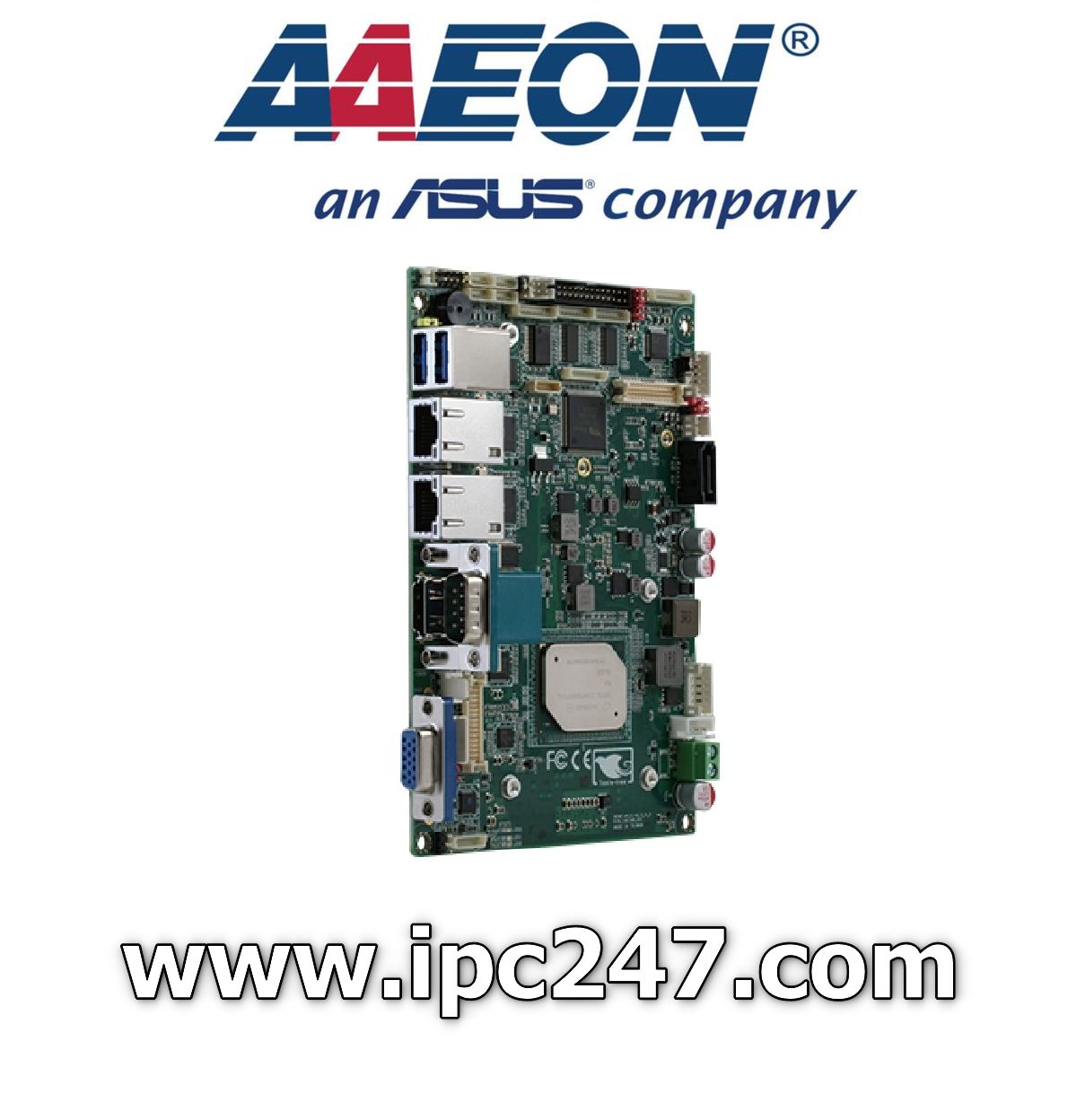

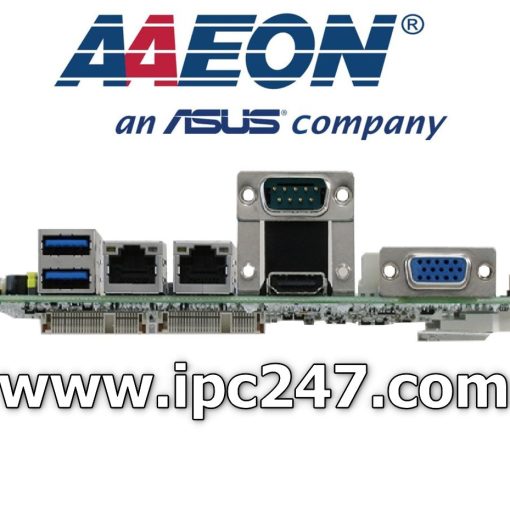

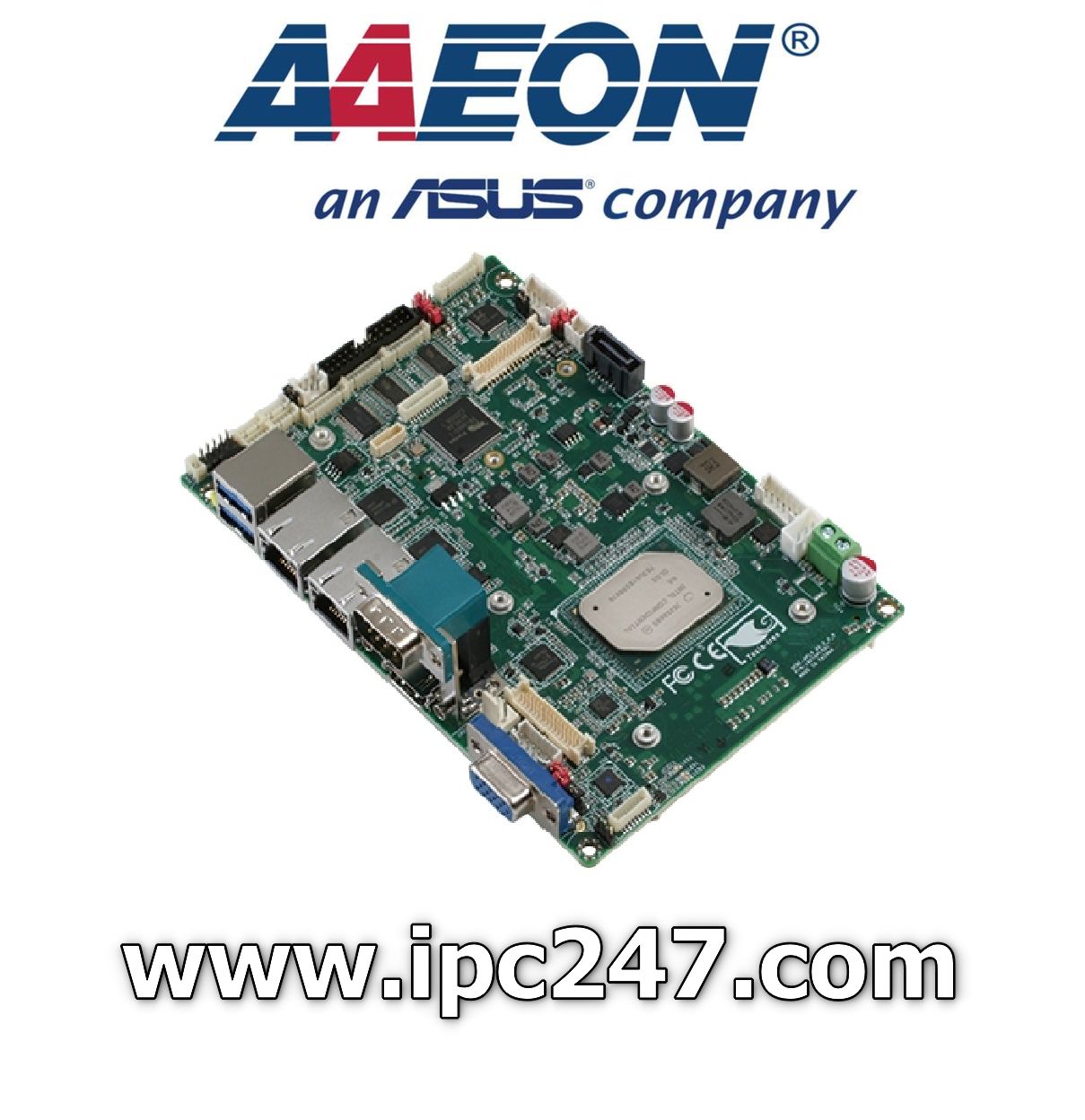

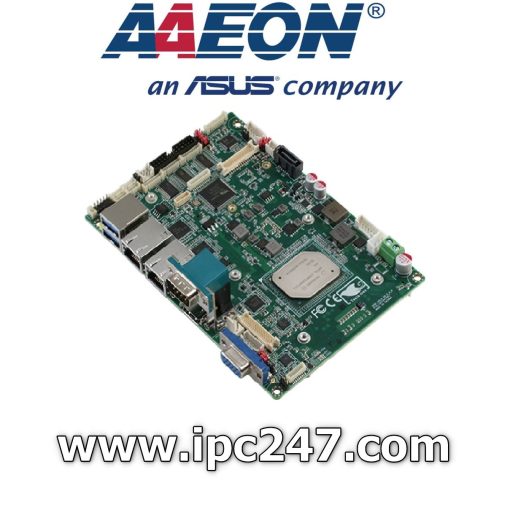

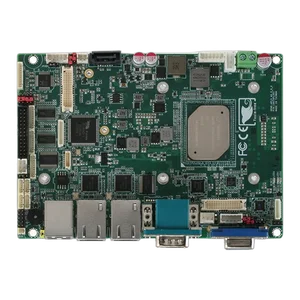

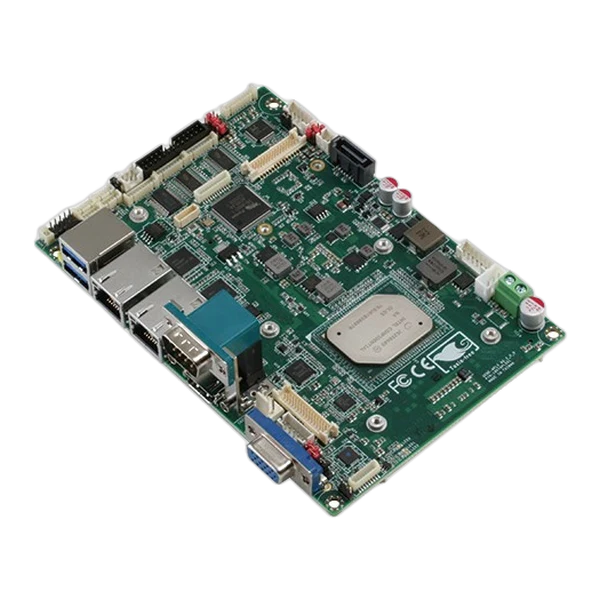

Bo mạch con 3.5 inch GENE-APL5
3.5” SubCompact Board with Intel® Pentium® N4200/ Celeron® N3350 Processor SoC
Overview
Introducing the all-new GENE-APL5
Small, powerful, and energy efficient.
Featuring the latest generation of Intel® low-power, 14 nm quad-core processors, dual gigabit LAN, and USB 3.0 for an energy efficient, easy-to-deploy, fan-less PC experience.
GENE-APL5 are powered by a high-performance 14nm Intel® Atom® N4200 quad-core 2.50 GHz processor (burst), with full support for USB keyboard/mouse input, and direct output via HDMI. The GENE-APL5 is fully 4K media playback capable with on-board HDMI output, making it ideal for deployment in IoT, kiosk, digital signage, and cubicle applications.
GENE-APL5 are a powerful, easy-to-use, and easy-to-manage solution suitable for a wide range of challenging deployment scenarios where size, noise, and management present difficulties.
Features
- Intel® Pentium® N4200/ Celeron® N3350 Processor SoC
- DDR3L 1866 MHz SODIMM x 1, up to 8 GB
- VGA/LVDS/LVDS2 (HDMI Co-layout with LVDS2 Optional)
- 2 CH Audio, SATA 6.0 Gb/s x 1
- Supports 8-bit Digital I/O , USB 2.0 x 4 , USB 3.2 Gen 1 x 2 , COM x 4
- Mini Card x 1 (Half-size), mSATA x 1 (Full size)
- DC 12V Only or +9~19V (Optional), AT/ATX Mode
- Supports TPM (Optional)
- 4/5/8-wire Resistive Touch Screen Controller (Optional)
Specifications [GENE-APL5]
| SYSTEM | |
| FORM FACTOR | 3.5″ SubCompact Board |
| CPU | Intel® Pentium® N4200/ Celeorn® N3350 Processor SoC |
| CPU FREQUENCY | Up to 2.5 GHz |
| CHIPSET | Intel® Pentium® N4200/ Celeron® N3350 Processor SoC |
| MEMORY TYPE | DDR3L 1866MHz, SODIMM x 1 |
| MAX. MEMORY CAPACITY | Up to 8GB |
| BIOS | UEFI |
| WAKE ON LAN | Yes |
| WATCHDOG TIMER | 255 Levels |
| POWER REQUIREMENT | +12V OR +9~19V (optional) |
| POWER SUPPLY TYPE | AT/ ATX |
| POWER CONSUMPTION (TYPICAL) | Intel® N4200, DDR3L 1600MHz 8GB, 1.57A@ +12V |
| DIMENSION (L X W) | 5.75″ x 4″ (146mm x 101.7mm) |
| OPERATING TEMPERATURE | 32°F ~ 140°F (0°C ~ 60°C) |
| STORAGE TEMPERATURE | -40°F ~ 176°F (-40°C ~ 81°C) |
| OPERATING HUMIDITY | 0% ~ 90% relative humidity, non-condensing |
| MTBF (HOURS) | 128,000 |
| CERTIFICATION | CE/FCC |
| DISPLAY | |
| VGA/LCD CONTROLLER | Intel® Atom™ N4200/ N3350 Processor SoC integrate |
| VIDEO OUTPUT | VGA/LVDS/ LVDS2 (co-layout with HDMI, optional) |
| BACKLIGHT INVERTER SUPPLY | Yes |
| I/O | |
| ETHERNET | Intel® i210/I211, 10/100/1000Base-TX, RJ-45 x 2 |
| AUDIO | High Definition Audio Interface |
| USB PORT | USB 3.2 Gen 1 x 2 USB 2.0 x 4 |
| SERIAL PORT | RS-232 x 2 , RS-232/422/485 x 2 |
| PARALLEL PORT | SPP/EPP/ECP x 1 (Option, Shared with DIO) |
| HDD INTERFACE | SATA 3.0 x 1 +5V SATA power connector x 1 |
| FDD INTERFACE | — |
| SSD | mSATA |
| EXPANSION SLOT | mSATA x 1 (Full-size) MiniCard x 1 (Half-size) |
| DIO | 8-bit |
| SIM | x 1 (uSIM) (Optional) |
| TPM | TPM2.0 x 1 (Optional) |
| TOUCH | x 1 (Optional) |
Ordering Information [GENE-APL5]
| PART NUMBER | GENE-APL5-A11-0001 | GENE-APL5-A11-0002 |
|---|---|---|
| CPU | N3350 | N3350 |
| FAN/FANLESS | Fanless | Fanless |
| DISPLAY | VGA/LVDS | VGA/LVDS/ LVDS2 |
| LVDS | 24bit,2CH | 24bit,2CH |
| STORAGE | SATA x 1, mSATA x 1 (Full-size) |
SATA x 1, mSATA x 1 (Full-size) |
| LAN | GbE x 2 | GbE x 2 |
| USB | USB 3.2 Gen 1 x 2, USB 2.0 x 4 |
USB 3.2 Gen 1 x 2, USB 2.0 x 4 |
| RS-232 | 2 | 2 |
| RS-232/422/485 | 2 | 2 |
| EXPANSION SLOT | MiniCard x 1 (half size) | MiniCard x 1 (half size) |
| POWER | 12V | 9~19V |
| POWER TEMP | 0°C ~ 60°C | 0°C ~ 60°C |
| OTHERS | DIO x 8 | Touch Controller, SIM, TPM, DIO x 8 |
Downloads [GENE-APL5]
1. Datasheet: Datasheet 1.0
2. BIOS: GENE-APL5 1.0
3. Driver
– Audio Driver:
– COM port Driver: Windows 10 , Windows 2016 server
-Chipset Driver: Win 7, Win 8, Win8.1, Win10, Win server 2008 R2(x64), Win server 2012(x64), Win server 2012 R2 (x64), Win server 2016 (x64)
– Graphics Driver: Win 7, Win 8, Win 8.1, Win 10, Win server 2008 R2, Win server 2012 R2, Win server 2008, Win server 2012, Vista
– LAN Driver: Win 10, Linux
– ME & TXE Driver: Win 7, Win 8, Win 8.1, Win 10
– Peripheral Driver: Win 7, Win 8, Win 10
– Peripheral Driver: Linux
4. Manual: GENE-APL5, Manual 4.0
Packing List
- GENE-APL5 with Heatsink
Optional Accessorie
| Part Number | Description | QTY |
| 1700050207 | (TF) USB CABLE.1*5P Pitch=1.25mm Housinh.20cm.for PFM-945C | 4 |
| 1701090150 | (TF) Flat Cable.D-Sub 9(M).9P Housing.9P 1.25mm pitch Housing.15cm | 3 |
| 1709100254 | (TF) PHONE JACK Cable.3P AUDIO JACK.1*10P 1.25mm HOUSING(F).25cm | 1 |
| 1709070500 | (TF) SATA CABLE.7P Pitch 1.27mm.50cm | 1 |
| 1701260200 | (TF) Flat Cable.25P D-SUB FEMALE.26P 2.00mm Pitch Housing.20cm | 1 |
| 170204010R | (TF) Power Cable.Double 4P 5.08mm Housing(M).10cm | 1 |
| 1702150155 | (TF) Power Cable.15P SATA(F).2P 2.0mm Housing(PH).15cm | 1 |
| 170220020B | (TF) Power Cable.20P ATX(M).4P 5.08mm Housing(F).+3P 2.5mm Housing(XH).20cm | 1 |
| 1700060157 | (TF) Cable.6P 2.0mm Housing.6P JACK W/SCREW KB&MS.15cm | 1 |
