Bo mạch con 3.5 inch GENE-BT05

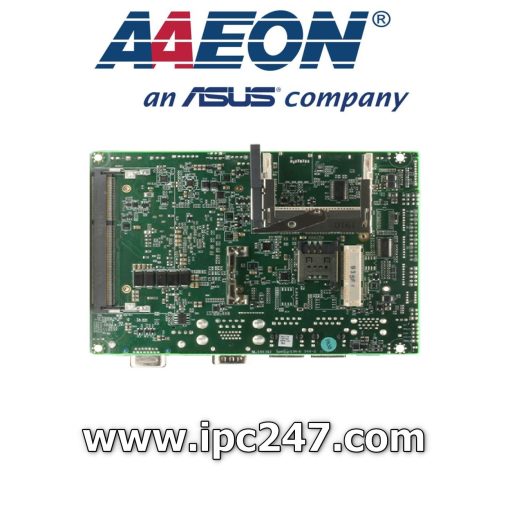

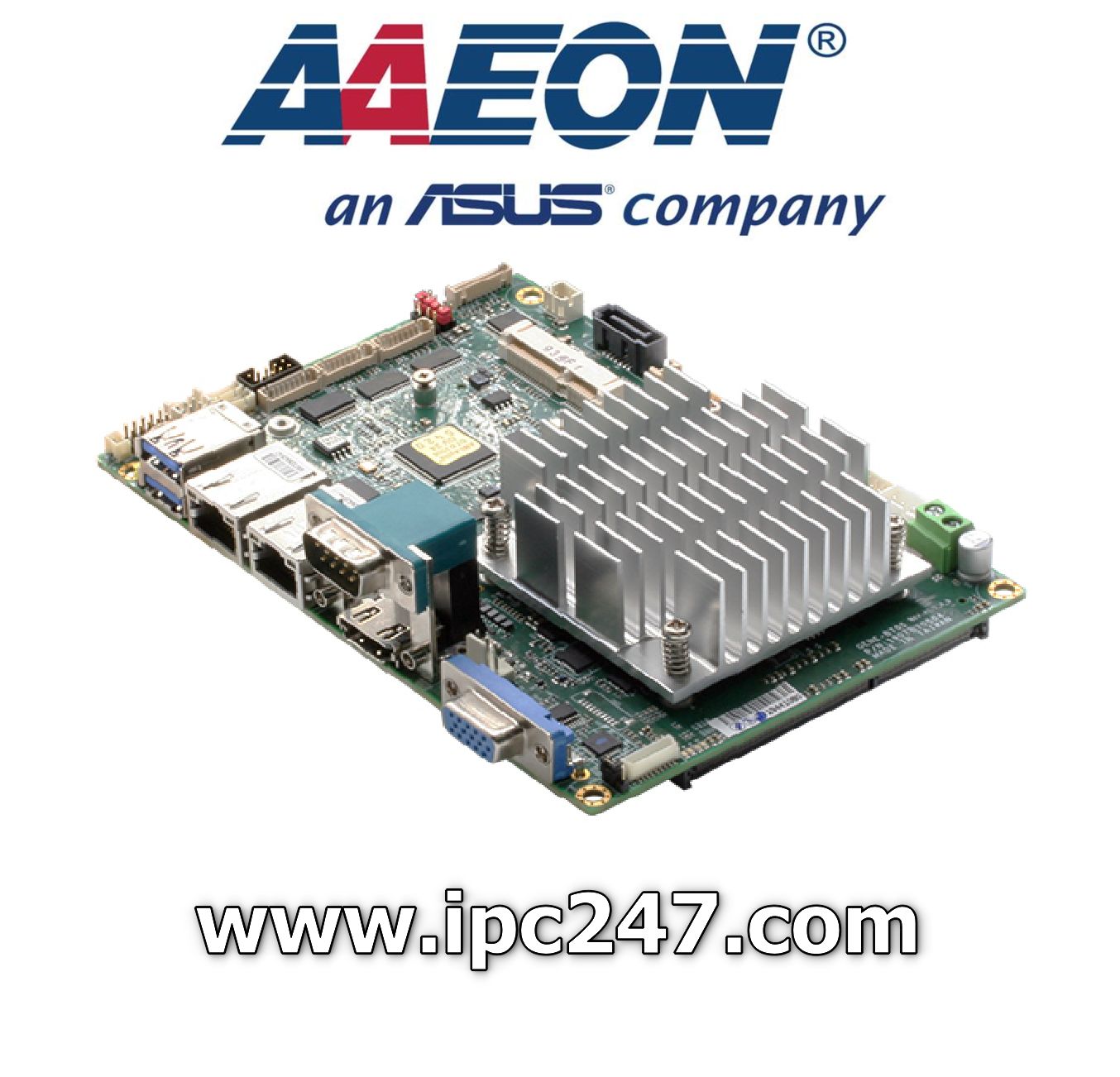

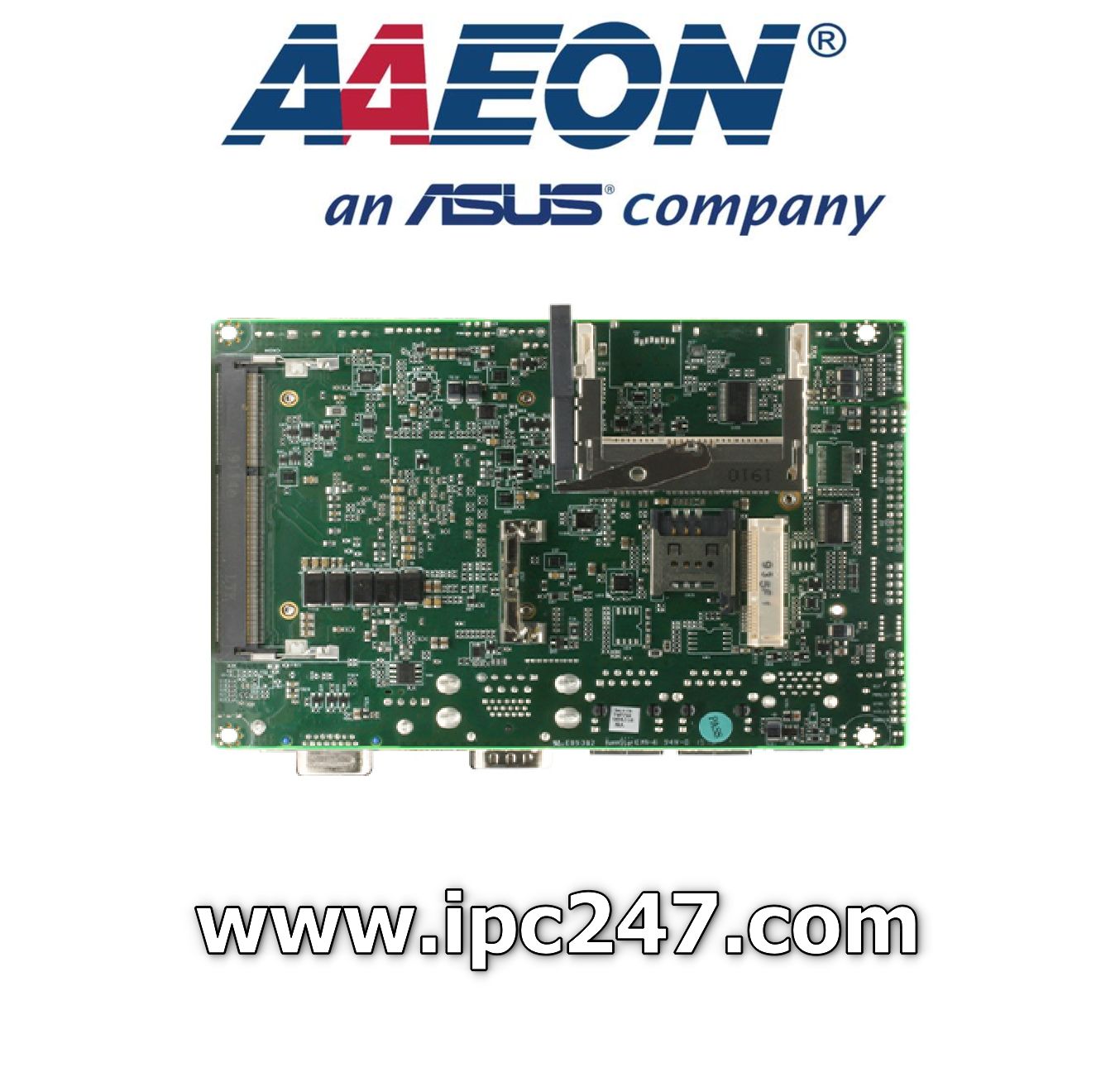

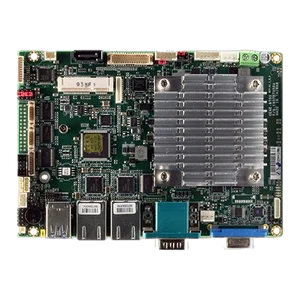

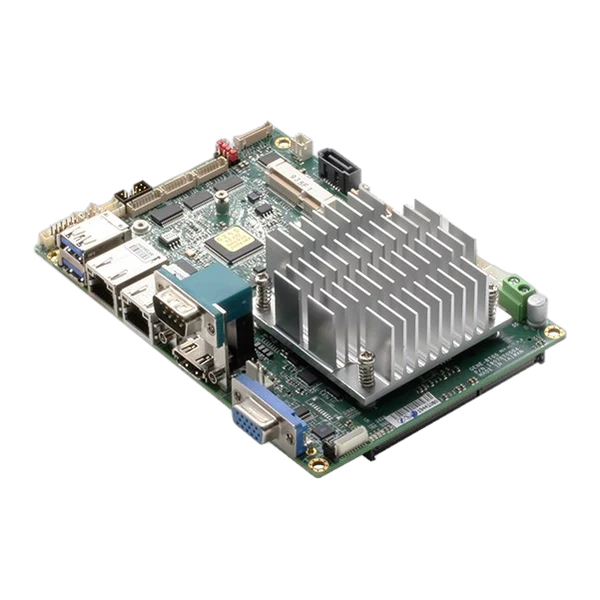

GENE-BT05,3.5” SubCompact Board with Intel® Atom™ and Celeron® Processor SoC
Overview
GENE-BT05 adopts Intel® Celeron® N2930/N2807 Processor. The system memory is deployed with 204-pin SODIMM DDR3L 1066/1333 up to 8 GB. In addition, Intel® I211 supports two 10/100/1000Base-TX that allows a faster network connections.
The display of GENE-BT05 supports CRT/LCD, HDMI/ LCD simultaneous and dual view displays. This model applies two Mini Card and LPC bus for flexible expansions. Moreover, one SATA 3.0Gb/s, one CFastTM, and optional Half-size mSATA provide ample storage. Three USB2.0, one USB3.0, four COM Ports (two RS-232, two RS-232/422/485) and 8-bit digital I/O are configured on the GENE-BT05 as well. Full functions make GENE-BT05 a flexible and user friendly solution. This brand new SubCompact board is developed to cater to the requirements of Automation, Medical, ticket machine, transportation, gaming, KIOSK, and POS/POI applications.
Applications
- Building/ Factory Automation
- KIOSK
- Medical Equipment
- Test & Measurement
Features
- Onboard Intel® Atom™ and Celeron® Processor SoC
- DDR3L 1066/1333 MHz SODIMM x 1, Up to 8 GB
- Gigabit Ethernet x 2, RJ-45 x 2
- CRT, 18/24-bit Dual-Channel LVDS LCD, HDMI
- 2CH HD Audio
- SATA 3.0 Gb/s x 1, CFast™ x 1
- USB 3.2 Gen 1 x 1, USB2.0 x 3, COM x 4, 8-bit Digital I/O
- Mini-Card x 2 (Full-size x 1, Half-size x 1)
- DC 12V, AT/ATX Mode
- Onboard 4/5/8-wire Resistive Touch Screen Controller (Optional)
- AAEON Hi-Safe/SDK/Utility Supported
- mSATA x 1 (Optional, Share Mini-Card Interface)
- Onboard Trusted Platform Module (Optional)
Specifications [GENE-BT05]
| SYSTEM | |
| FORM FACTOR | 3.5″ SubCompact Board |
| CPU | Intel® N2930/N2807/J1900/E3845/E3825 |
| CPU FREQUENCY | Up to 2.0GHz |
| CHIPSET | Intel® N2930/N2807/J1900/E3845/E3825 |
| MEMORY TYPE | DDR3L 1066/1333, SODIMM x 1 |
| MAX. MEMORY CAPACITY | Up to 8GB |
| BIOS | UEFI |
| WAKE ON LAN | Yes |
| WATCHDOG TIMER | 255 Levels |
| POWER REQUIREMENT | +12V |
| POWER SUPPLY TYPE | AT/ATX |
| POWER CONSUMPTION (TYPICAL) | Intel® N2930, DDR3L 1600MHz 8G, 0.65A@+12V |
| DIMENSION (L X W) | 5.75″ x 4″ (146mm x 101.6mm) |
| OPERATING TEMPERATURE | 32°F ~ 140°F (0°C ~ 60°C) or WiTAS 2 (E3825) |
| STORAGE TEMPERATURE | -40°F ~ 176°F (-40°C ~ 80°C) |
| OPERATING HUMIDITY | 0% ~ 90% relative humidity, non-condensing |
| MTBF (HOURS) | 111,000 |
| CERTIFICATION | CE/FCC |
| DISPLAY | |
| VGA/LCD CONTROLLER | Intel® N2930/N2807/J1900/E3845/E3825 |

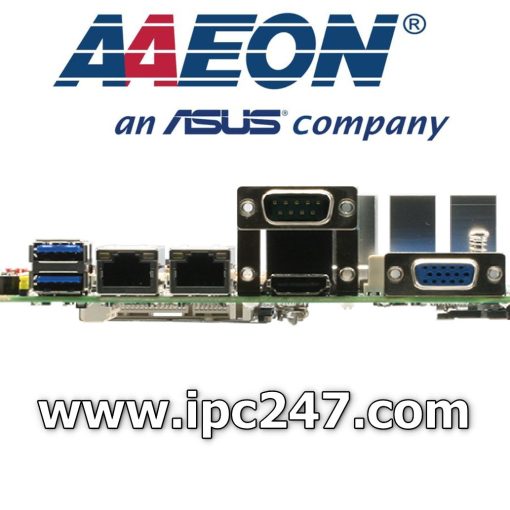

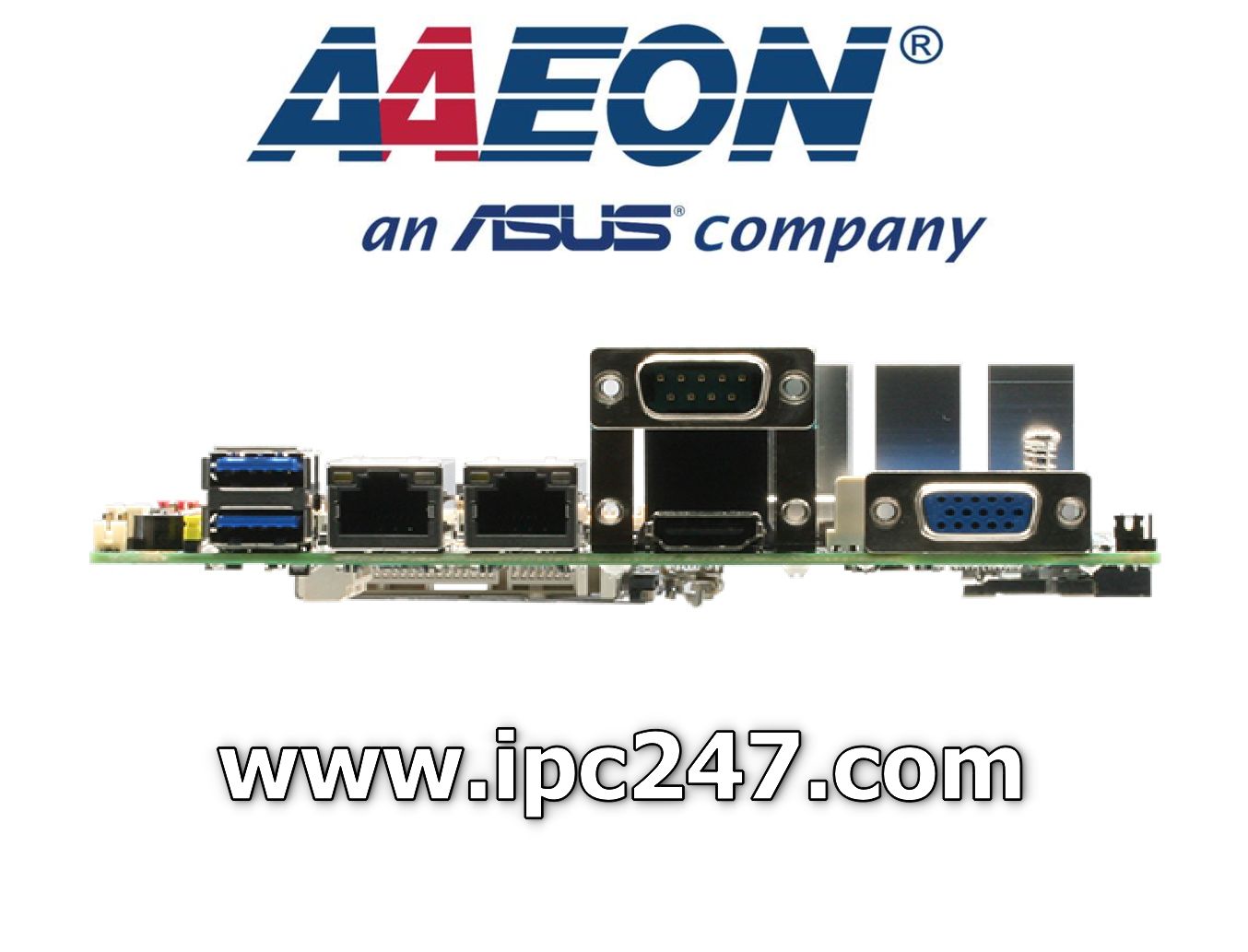

| VIDEO OUTPUT | CRT+LVDS, HDMI+LVDS , CRT+HDMI |
| BACKLIGHT INVERTER SUPPLY | Up to 24-bit dual-channel LVDS x 1 |
| I/O | |
| ETHERNET | Intel® I211 (or 210), 10/100/1000Base-TX, RJ-45 x 2 |
| AUDIO | High definition audio interface |
| USB PORT | USB 2.0 x 3, USB 3.2 Gen 1 x 1 |
| SERIAL PORT | RS-232 x 2 , RS-232/422/485 x 2 |
| PARALLEL PORT | — |
| HDD INTERFACE | SATA 2.0 x 1 |
| FDD INTERFACE | — |
| SSD | CFast™ (alternative with mSATA by BOM and also occupy one Mini-Card location) |
| EXPANSION SLOT | Mini-Card x 2(Full-size x 1, Half-size x 1) |
| DIO | 8-bit |
| SIM | x 1 |
| TPM | x 1 |
| TOUCH | x 1 |
Ordering Information [GENE-BT05]
| PART NUMBER | GENE-BT05-A11-0001 | GENE-BT05-A11-0002 | GENE-BT05-A11-0003 | GENE-BT05-A11-0004 | GENE-BT05-A11-0005 | GENE-BT05-A11-0006 | GENE-BT05-A11-0007 | GENE-BT05-A11-0008 | GENE-BT05-A11-0009 | GENE-BT05-A11-0010 | GENE-BT05W2-A11-0006 | GENE-BT05W2-A11-0008 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CPU | Intel® Celeron® N2930 | Intel® Celeron® N2930 | Intel® Celeron® N2807 | Intel® Celeron® N2807 | Intel® Atom™ E3845 | Intel® Atom™ E3845 | Intel® Atom™ E3825 | Intel® Atom™ E3825 | Intel® Celeron® J1900 | Intel® Celeron® J1900 | Intel® Atom™ E3845 | Intel® Atom™ E3825 |
| FAN/ FANLESS | Fanless | Fanless | Fanless | Fanless | Fanless | Fanless | Fanless | Fanless | Fanless | Fanless | Fanless | Fanless |
| DISPLAY | CRT + LVDS, LVDS + HDMI, HDMI + CRT | CRT + LVDS | CRT + LVDS, LVDS + HDMI, HDMI + CRT | CRT + LVDS | CRT + LVDS, LVDS + HDMI, HDMI + CRT | CRT + LVDS | CRT + LVDS, LVDS + HDMI, HDMI + CRT | CRT + LVDS | CRT + LVDS, LVDS + HDMI, HDMI + CRT | CRT + LVDS | CRT + LVDS | CRT + LVDS |
| LVDS | 24bit, 2CH | 24bit, 2CH | 24bit, 2CH | 24bit, 2CH | 24bit, 2CH | 24bit, 2CH | 24bit, 2CH | 24bit, 2CH | 24bit, 2CH | 24bit, 2CH | 24bit,2CH | 24bit,2CH |
| STORAGE | SATA x 1,CFast™ x 1 | SATA x 1,mSATA x 1 (Half Size) | SATA x 1, CFast™ x 1 | SATA x 1,mSATA x 1 (Half Size) | SATA x 1,CFast™ x 1 | SATA x 1,mSATA x 1 (Half Size) | SATA x 1,CFast™ x 1 | SATA x 1,mSATA x 1 (Half Size) | SATA x 1,CFast™ x 1 | SATA x 1,mSATA x 1 (Half Size) | SATA x 1,mSATA x 1 (Half Size) | SATA x 1,mSATA x 1 (Half Size) |
| LAN | Gbe x 2 | Gbe x 2 | Gbe x 2 | Gbe x 2 | Gbe x 2 | Gbe x 2 | Gbe x 2 | Gbe x 2 | Gbe x 2 | Gbe x 2 | Gbe x 2 | Gbe x 2 |
| USB | USB 3.2 Gen 1 x 1, UBS2.0 x 3 |
USB 3.2 Gen 1 x 1, UBS2.0 x 3 |
USB 3.2 Gen 1 x 1, UBS2.0 x 3 |
USB 3.2 Gen 1 x 1, UBS2.0 x 3 |
USB 3.2 Gen 1 x 1, UBS2.0 x 3 |
USB 3.2 Gen 1 x 1, UBS2.0 x 3 |
USB 3.2 Gen 1 x 1, UBS2.0 x 3 |
USB 3.2 Gen 1 x 1, UBS2.0 x 3 |
USB 3.2 Gen 1 x 1, UBS2.0 x 3 |
USB 3.2 Gen 1 x 1, UBS2.0 x 3 |
USB 3.2 Gen 1 x 1, UBS2.0 x 3 |
USB 3.2 Gen 1 x 1, UBS2.0 x 3 |
| RS-232 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| RS-232/ 422/485 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| EXPANSION SLOT | Mini Card x 2 (Full-Size x 1, Half-Size x 1) |
Mini Card x 1 (Full-Size) | Mini Card x 2 (Full-Size x 1, Half-Size x 1) |
Mini Card x 1 (Full-Size) | Mini Card x 2 (Full-Size x 1, Half-Size x 1) |
Mini Card x 1 (Full-Size) | Mini Card x 2 (Full-Size x 1, Half-Size x 1) |
Mini Card x 1 (Full-Size) | Mini Card x 2 (Full-Size x 1, Half-Size x 1) |
Mini Card x 1 (Full-Size) | Mini Card x 1 (Full-Size) | Mini Card x 1 (Full-Size) |
| POWER | +12V, AT/ATX | +12V, AT/ATX | +12V, AT/ATX | +12V, AT/ATX | +12V, AT/ATX | +12V, AT/ATX | +12V, AT/ATX | +12V, AT/ATX | +12V, AT/ATX | +12V, AT/ATX | +12V, AT/ATX | +12V, AT/ATX |
| POWER TEMP | 0°C ~ 60°C | 0°C ~ 60°C | 0°C ~ 60°C | 0°C ~ 60°C | 0°C ~ 60°C | 0°C ~ 60°C | 0°C ~ 60°C | 0°C ~ 60°C | 0°C ~ 60°C | 0°C ~ 60°C | WTAS 2(-40°C~85°C) | WTAS 2(-40°C~85°C) |
| OTHERS | TPM, Touch, SIM, DIO x 8 | DIO x 8 | TPM, Touch, SIM, DIO x 8 | DIO x 8 | TPM, Touch, SIM, DIO x 8 | DIO x 8 | TPM, Touch, SIM, DIO x 8 | DIO x 8 | TPM, Touch, SIM, DIO x 8 | DIO x 8 | DIO x 8 | DIO x 8 |
Downloads [GENE-BT05]
1. Datasheet: GENE-BT05, datasheet 1.0
2. BIOS:
– GENE-BT05 2.2
– GENE-BT05 | V1.0 1.0
– GENE-BT05 | V1.2 1.2
– GENE-BT05 | V1.4 1.4
– GENE-BT05 | V1.5 1.5
– GENE-BT05 | V1.6
3. Driver
– Chip Driver: Win 7, Win 8.1, Win 10(x64)
– Graphic Driver: Win 7, Win 8, Win 10
– AUDIO Driver: Win 2000, XP, Vista, Win 7, Win 8, Win 8.1, Win 10
– Lan Driver: Linux, Win 7, Win 8.1, Win 10
– ME & TXE Driver: Win 8
– USB Driver: Win 7
– COM Port Driver: Win 7, Win 8, Win 10
– Peripheral Driver: Win 7, Win 8, Win 10
– TPM Driver: Win 7, Win 8, Win 10
4. Manual: GENE-BT05, manual 9.0
5. SDK: GENE-BT05, sdk 1.0
Packing List
- GENE-BT05 with Passive Heatsink
Optional Accessorie
| Part Number | Description | QTY |
| 1700050207 | (TF)USB CABLE, 1*5P Pitch=1.25mm Housinh, 20cm, for PFM-945C | 2 |
| 1701090150 | (TF)Flat Cable, D-Sub 9(M), 9P Housing, 9P 1.25mm pitch Housing, 15cm | 3 |
| 1709100254 | (TF)PHONE JACK Cable, 3P AUDIO JACK, 1*10P 1.25mm HOUSING(F), 25cm | 1 |
| 1709070500 | (TF)SATA CABLE, 7P Pitch 1.27mm, 50cm | 1 |
| 1701260200 | (TF)Flat Cable, 25P D-SUB FEMALE, 26P 2.00mm Pitch Housing, 20cm | 1 |
| 170204010R | (TF)Power Cable, Double 4P 5.08mm Housing(M), 10cm | 1 |
| 1702150155 | (TF)Power Cable, 15P SATA(F), 2P 2.0mm Housing(PH), 15cm | 1 |
| 170220020B | (TF)Power Cable, 20P ATX(M), 4P 5.08mm Housing(F), +3P 2.5mm Housing(XH), 20cm | 1 |
| 1700060157 | (TF)Cable, 6P 2.0mm Housing, 6P JACK W/SCREW KB&MS, 15cm | 1 |
OS Support
| Part Number | Description |
| OS-W10E-600-DVD19-MUI | Win10 IoT Ent LTSC 2019.MultiLang Entry.64bit.PKEA.license W/product key.W/ OS DVD Disc |
| OS-WE8S-600-GBT5A-EN | Windows Embedded 8 Standard, x64 Full size English. |
| OS-WS7E-600-GBT5A-EN | Windows Embedded Standard 7, E SKU x64 Full size English. |
