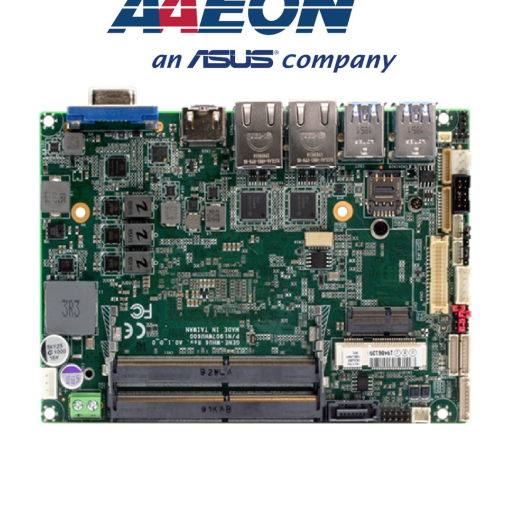

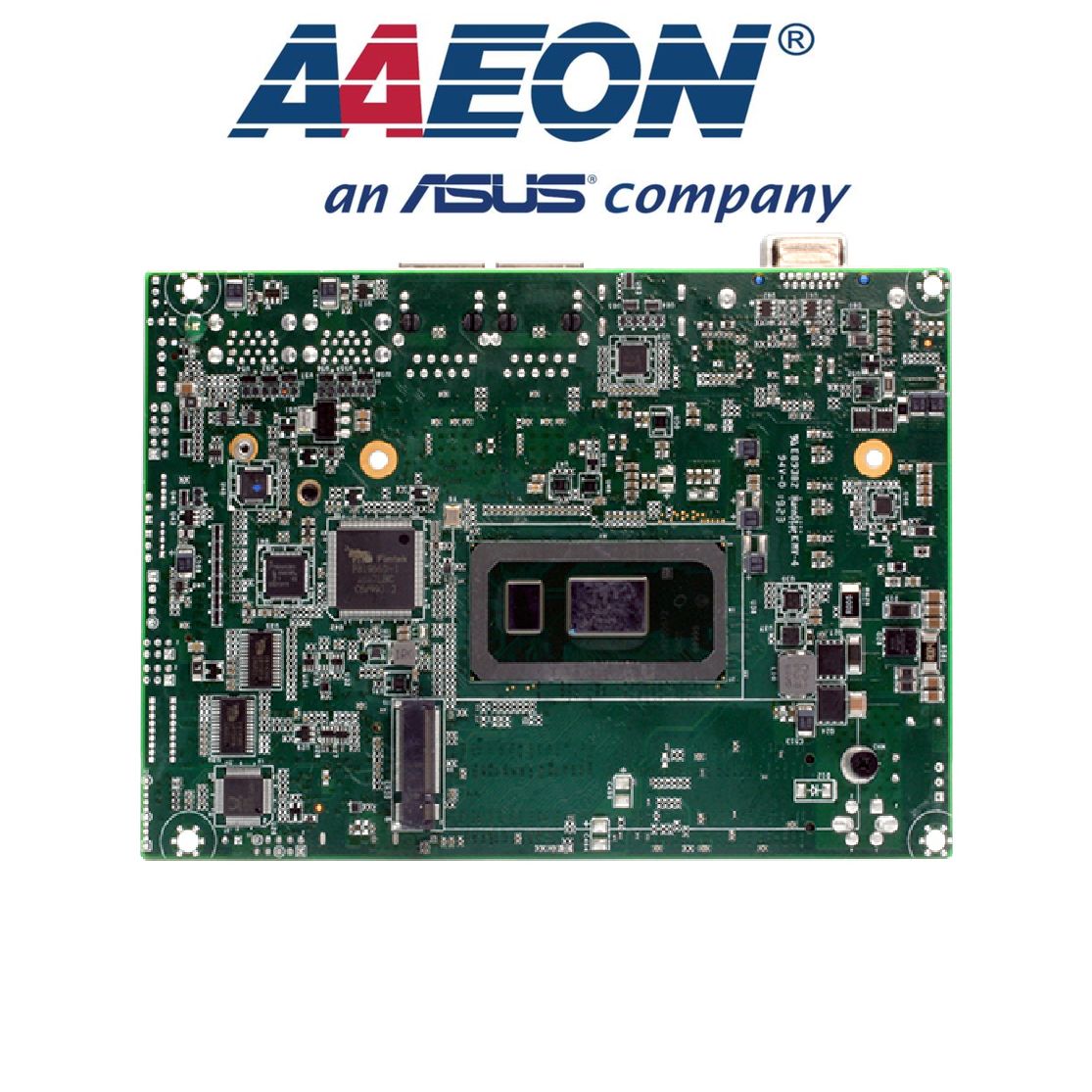

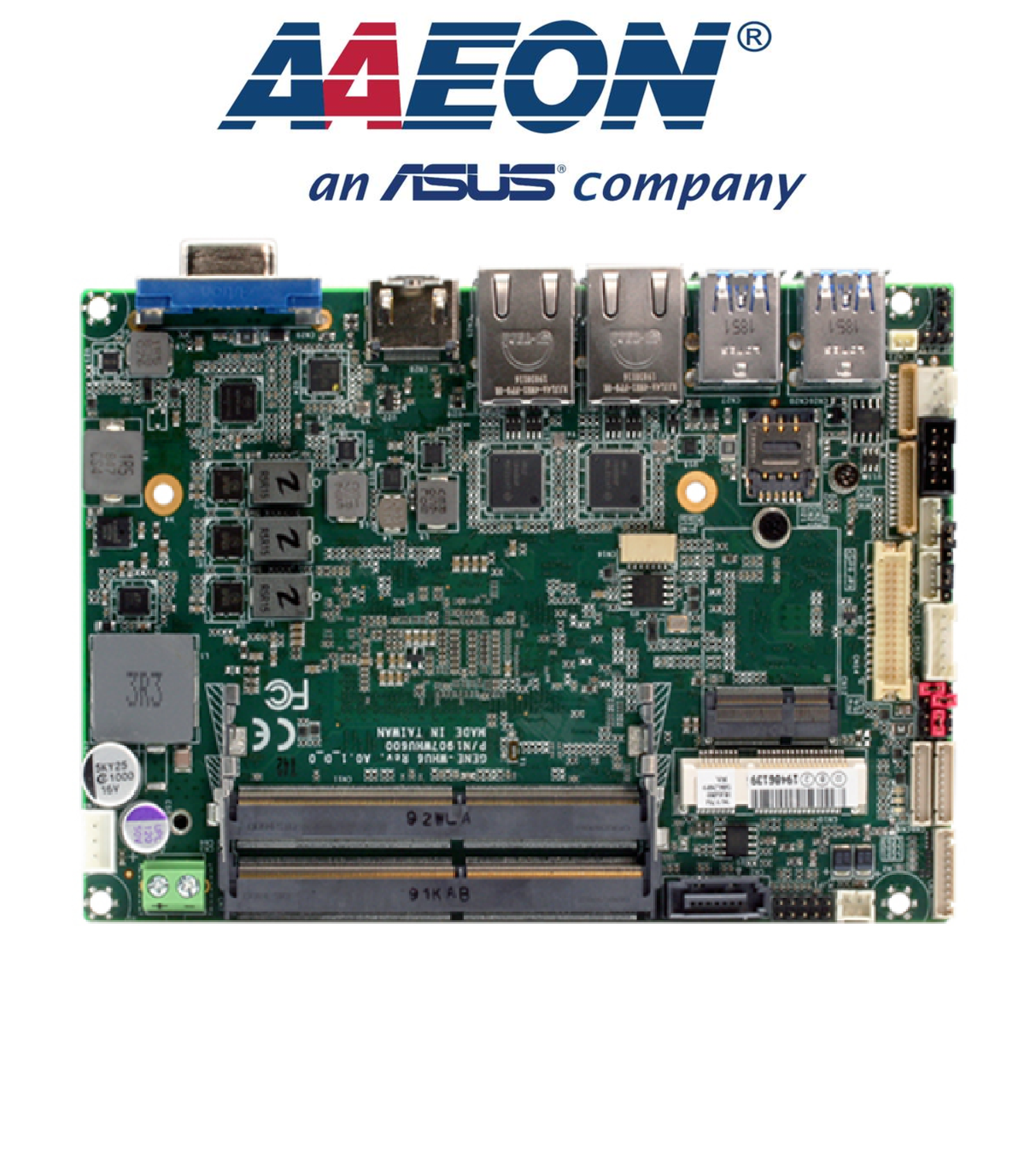

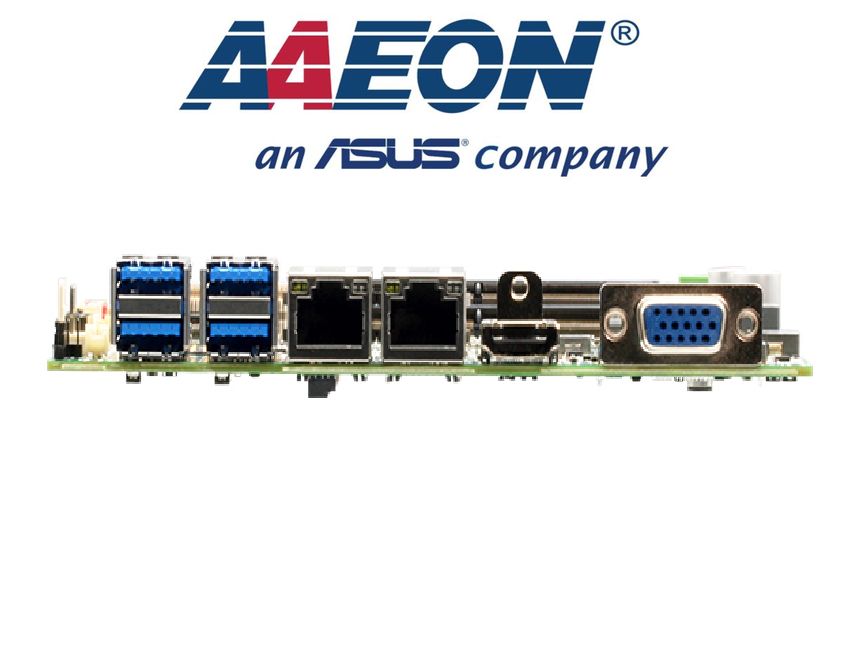

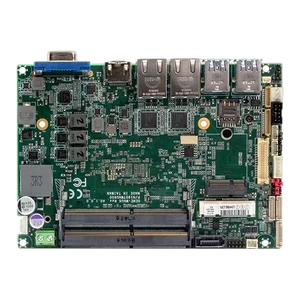

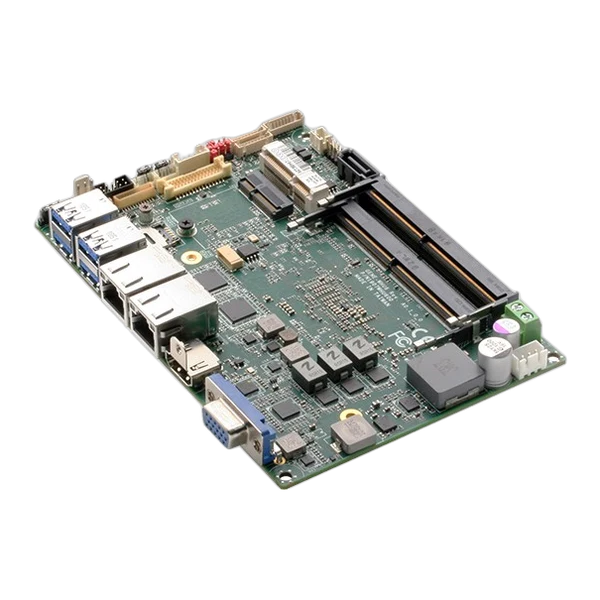

Bo mạch con 3.5 inch GENE-WHU6
3.5″ SubCompact Board System with 7th Generation Intel® Core™ i7/i5/i3/Celeron® Processor SoC
Overview
3.5″ SubCompact Board System with 7th Generation Intel® Core™ i7/i5/i3/Celeron® Processor SoC
Features
- 7th Generation Intel® Core™ i7/i5/i3/Celeron® Processor SoC
- DDR4 1866/2133, SODIMM x 1
- DVI x 1, DP x 1
- SATA 6.0 Gb/s x 1 & mSATA
- USB 2.0 x 2 , USB 3.2 Gen 1 x 4
- COM x 2 (RS-232 x 1, RS-232/422/485 x 1)
- Mini-Card Slot x 2, TPM, SIM
- Wide DC Support 9~36V, +12V Only (Optional)
- Solder Design for System Assembly and Thermal
Specifications [GENE-WHU6]
| SYSTEM | |
| FORM FACTOR | 3.5″ SubCompact Board System |
| CPU | 7th Generation Intel® Core™ i7/i5/i3/Celeron® Processor SoC |
| CPU FREQUENCY | Up to 3.9GHz |
| CHIPSET | 7th Generation Intel® Processor SoC |
| MEMORY TYPE | DDR4 1866/2133, SODIMM x 1 |
| MAX. MEMORY CAPACITY | Up to 16GB |
| BIOS | UEFI |
| WAKE ON LAN | Yes |
| WATCHDOG TIMER | 255 Levels |
| POWER REQUIREMENT | +9 ~ 36V or +12V |
| POWER SUPPLY TYPE | ATX |
| POWER CONSUMPTION (TYPICAL) | Intel® i7-7600U, DDR4 2400MHz 16GB, 1.85A@ +12V |
| DIMENSION (L X W) | 170mm x 137mm x 44.5mm |
| OPERATING TEMPERATURE | 32°F ~ 122°F (0°C ~ 50°C) |
| STORAGE TEMPERATURE | -40°F ~ 176°F (-40°C ~ 81°C) |
| OPERATING HUMIDITY | 0% ~ 90% relative humidity, non-condensing |
| MTBF (HOURS) | 123000 |
| CERTIFICATION | CE/FCC |
| DISPLAY | |
| VGA/LCD CONTROLLER | 7th Generation Intel® Processor SoC |
| VIDEO OUTPUT | DVI-D, DP (Default) |
| BACKLIGHT INVERTER SUPPLY | Yes |
| I/O | |
| ETHERNET | Intel® i210/i211, 10/100/1000Base-TX, RJ-45 x 2 |
| AUDIO | — |
| USB PORT | USB 3.2 Gen 1 x 4, USB 2.0 x 2 |
| SERIAL PORT | RS-232 x 1, RS-232/422/485 x 1 |
| PARALLEL PORT | — |
| HDD INTERFACE | SATA 3.0 x 1, +5V SATA power connector x 1 |
| FDD INTERFACE | — |
| SSD | mSATA (Shared with half-size MiniCard and Selected by BIOS) |
| EXPANSION SLOT | Mini-Card mSATA x 1 (Half-size, default), Mini-Card x 1 (Full-size) |
| DIO | — |
| SIM | x 1 |
| TPM | TPM 2.0 x 1 |
| TOUCH | — |
Ordering Information [GENE-WHU6]
| PART NUMBER | GENESYS-KBU6-A10-0001 | GENESYS-KBU6-A10-0002 | GENESYS-KBU6-A10-0003 |
|---|---|---|---|
| CPU | i7-7600U | i5-7300U | i3-7100U |
| FAN/FANLESS | Fanless | Fanless | Fanless |
| DISPLAY | VGA | VGA | VGA |
| STORAGE | DP x 1, DVI x 1 | DP x 1, DVI x 1 | DP x 1, DVI x 1 |
| LAN | GbE x 2 | GbE x 2 | GbE x 2 |
| USB | USB 3.2 Gen 1 x 4, USB 2.0 x 2 | USB 3.2 Gen 1 x 4, USB 2.0 x 2 | USB 3.2 Gen 1 x 4, USB 2.0 x 2 |
| RS-232 | 1 | 1 | 1 |
| RS-232/422/485 | 1 | 1 | 1 |
| EXPANSION SLOT | MiniCard x 1 (Full) | MiniCard x 1 (Full) | MiniCard x 1 (Full) |
| POWER | 9~36V | 9~36V | 9~36V |
| POWER TEMP | 0°C ~ 50°C | 0°C ~ 50°C | 0°C ~ 50°C |
| OTHERS | — | — | — |
Downloads [GENE-WHU6]
1. Datasheet
2. BIOS
3. Driver
– Audio Driver: Windows 7,Windows 8,Windows 10, 2020-03-19
– Chipset Driver: Windows 10, Windows Server 2012 R2(x64), Windows Server 2016(x64), 2020-03-19
– Graphics Driver: Windows 10, Windows 8, Windows 8.1, Windows server 2012, Windows Server 2012 R2, 2020-03-19
– I2C Driver, Windows 10, 2020-03-19
– LAN Driver: Windows 10, Windows 7, Windows 8.1, Windows Server 2008 R2, Windows 2012, Windows Server 2012 R2, 2020-03-19
– ME & TXE Driver: Windows 10, 2020-03-19
– Tcouch Controller Driver: Windows, 102020-03-19
4. Manual
Packing List
- GENE-WHU6 with Heatspreader
Optional Accessories
| Part Number | Description | QTY |
| 1702150155 | (TF)Power Cable.15P SATA(F).2P 2.0mm Housing(PH).15cm | 1 |
| 1709070500 | (TF)SATA CABLE.7P Pitch 1.27mm.50cm | 1 |
| 1702002010 | (TF)Power CABLE.1*2P Pitch=5.0mm Housing.10cm.for PFM-945C.(12V only) | 1 |
| 1709100254 | (TF)PHONE JACK Cable.3P AUDIO JACK.1*10P 1.25mm HOUSING(F).25cm | 1 |
| 170220020B | (TF)Power Cable.20P ATX(M).4P 5.08mm Housing(F).+3P 2.5mm Housing (XH).20cm | 1 |
| 1701090150 | (TF)Flat Cable.D-Sub 9(M).9P Housing.9P 1.25mm pitch Housing.15cm | 2 |
| 1700050207 | (TF)USB CABLE.1*5P Pitch=1.25mm Housinh.20cm.for PFM-945C | 2 |
| GENE-WHU6-FAN01 | CPU Cooler.146×78.6×23.5mm.3P.3600RPM.for GENE-WHU6 | 1 |
| GENE-WHU6-HSK01 | Heatsink.146*101.6*32.5mm.Silver. for GENE-WHU6(for i3 & Celeron) | 1 |
| GENE-WHU6-HSK02 | Heat Sink.72*28*10mm.GENE-WHU6.SODIMM DDR4 | 1 |
