Bo mạch PICO-BT01 (PICO-ITX)
Atom
Bo mạch PICO-BT01 (PICO-ITX)
- Onboard Intel® Atom™ E3800/ Celeron® J1900/N2807 Processor SoC
- Bảo hành chính hãng theo từng dòng máy, thời hạn ghi rõ trên báo giá
GiáLiên hệBáo giá theo cấu hình (CPU, RAM, ổ lưu trữ, hệ điều hành) trong 2 giờ làm việc. Xem bảng giá máy tính công nghiệp theo dạng máy.
Hiệu năng CPU
Điểm CPU Mark, đa nhânAtom E3825378
Celeron N2807492
Atom E38451.071
Celeron J19001.139
Tham khảo PassMark, 07/10/2026. Nguồn
- Chính hãng, bảo hành hãng
- Giao toàn quốc từ TP.HCM
- Kỹ thuật dựng máy & sửa chữa
- Báo giá trong 2 giờ làm việc
Thông số kỹ thuật
| Part Number · Description | Qty. |
|---|---|
| 1709070500 · SATA Cable | 1 |
| 1702150155 · SATA Power Cable | 1 |
| 1702040167 · Power/FAN Cable 16cm | 1 |
| PICO-BT01-FAN01 · CPU Cooler.84*53*22.2mm.Silver.used with HSP | 1 |
| PICO-BT01W1-HSK01 · Heatsink for E3845 WiTAS1. To be used with heat Spreader. | 1 |
| PICO-BT01-HSK01 · Heatsink for standand product.To be used with heat Spreader. | 1 |
| 1700050207 · USB Cable 20cm | — |
Mô tả Bo mạch PICO-BT01 (PICO-ITX)
Bo mạch PICO-BT01 (PICO-ITX)
Pico-ITX Board with Intel® Atom™/ Celeron® Processor SoC
Overview
The PICO-BT01 is the embedded board with PICO-ITX form factor AAEON developed. It supports Intel®’s Atom™ E3845/E3825 SoC Up to 1.91 GHz. Moreover, the Intel® Atom™ E3845/E3825 SoC offers a high performance computing platform with low power consumption. This new product supports DDR3L SODIMM at speeds of 1066/1333 MHz, up to 8 GB.
One half size Mini-Card and one mSATA interfaces provide ample storages (mSATA can be changed to full size Mini-Card by BOM). With one Gigabit Ethernet, two COM ports, and both USB 3.2 Gen 1 and USB2.0 ports, the PICO-BT01 meets the requirements of today’s demanding applications.
Display requirements are met with an abundance of interfaces such as VGA, DP and LVDS. The PICO-BT01 supports 18/24-bit LVDS with PWM function.
With all of its integrated features, the PICO-BT01 strikes a balance of performance and price. This versatile product targets Industrial Automation, Entertainment, Networking, KIOSK/POS, Transportation, Banking, Healthcare and Digital Signage, applications that require high performance and high reliability.

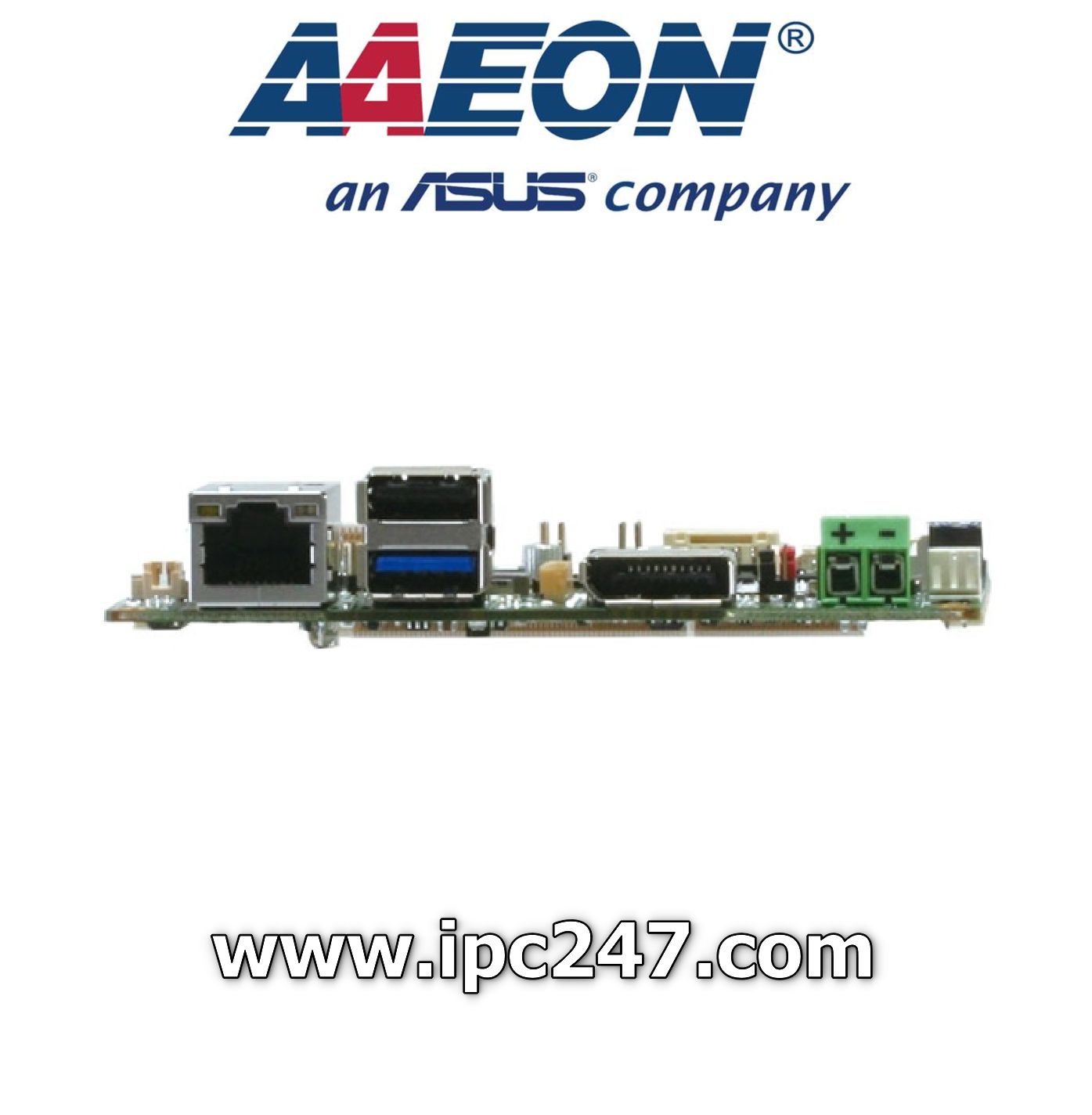

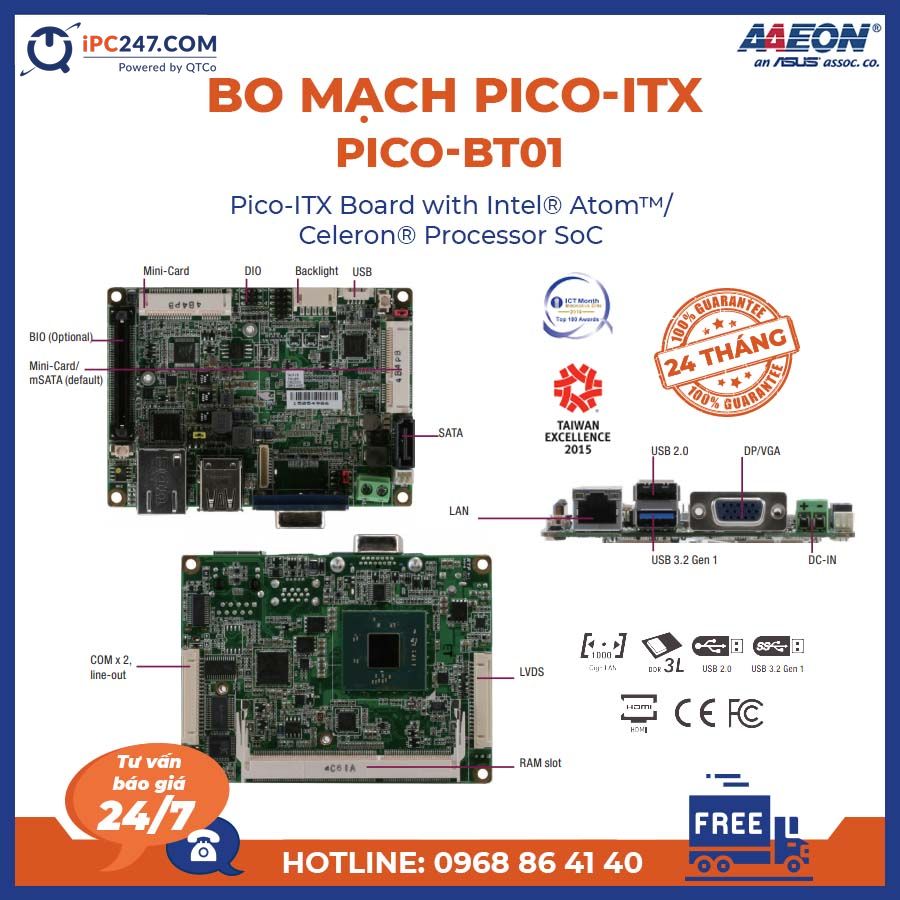

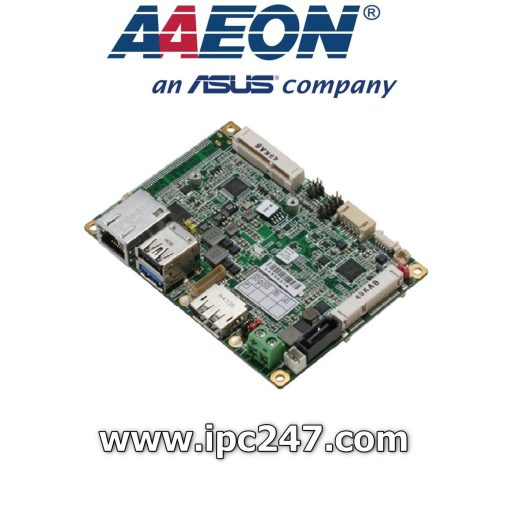

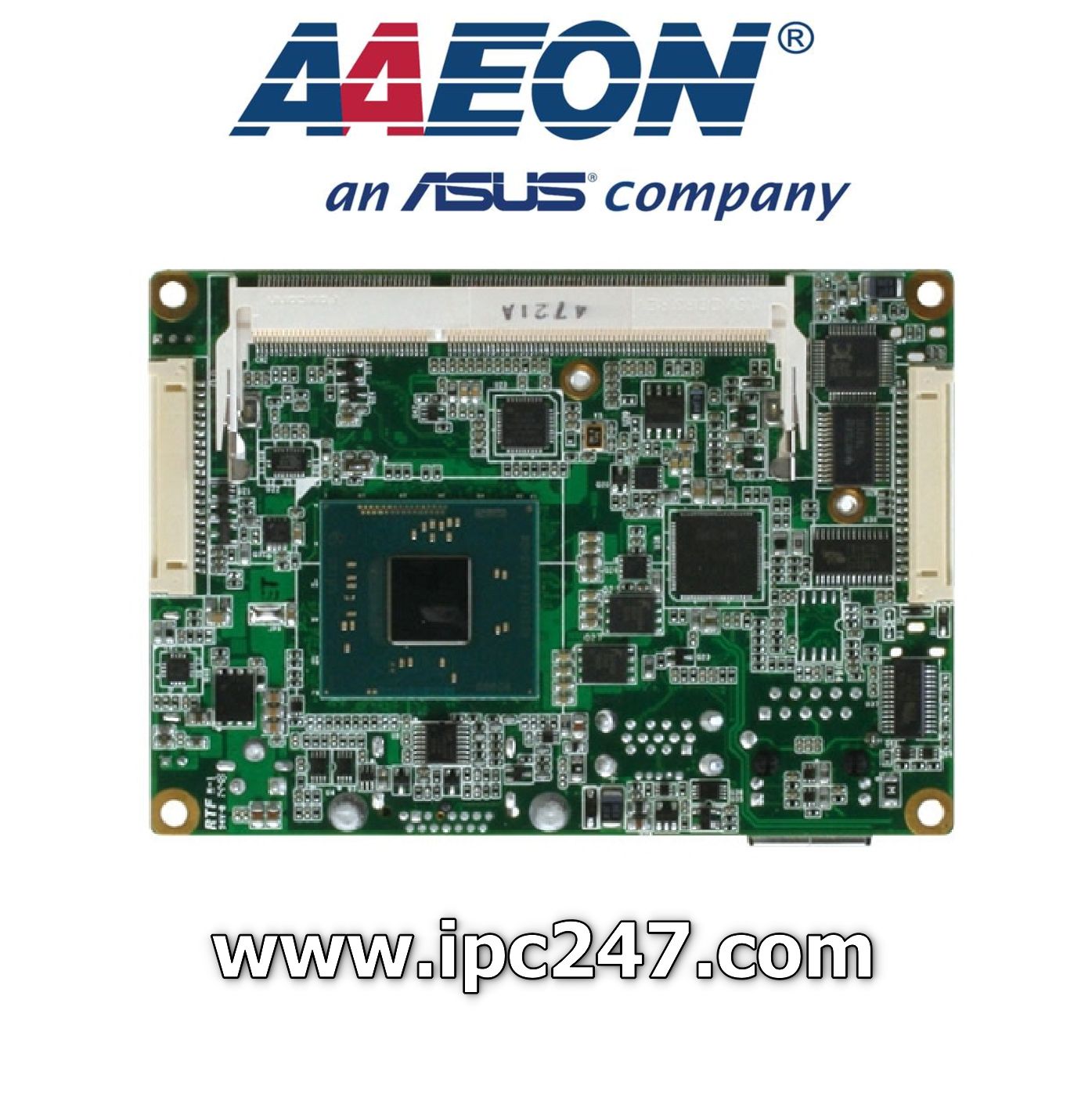

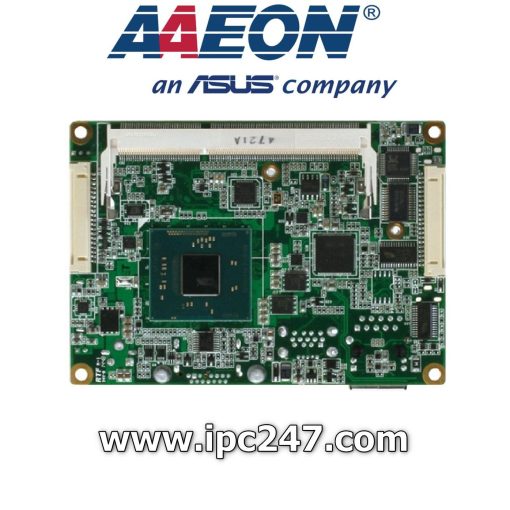

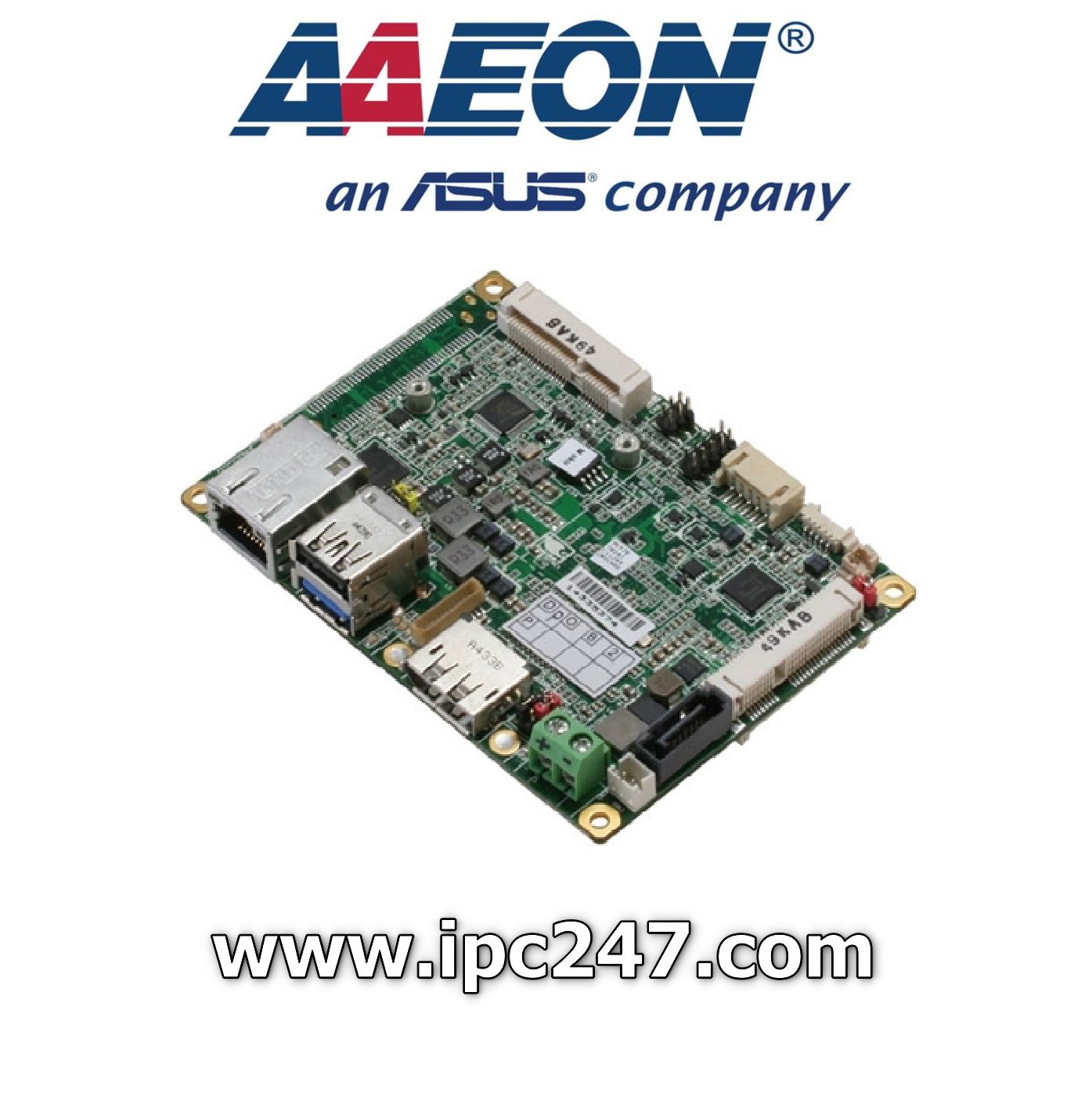

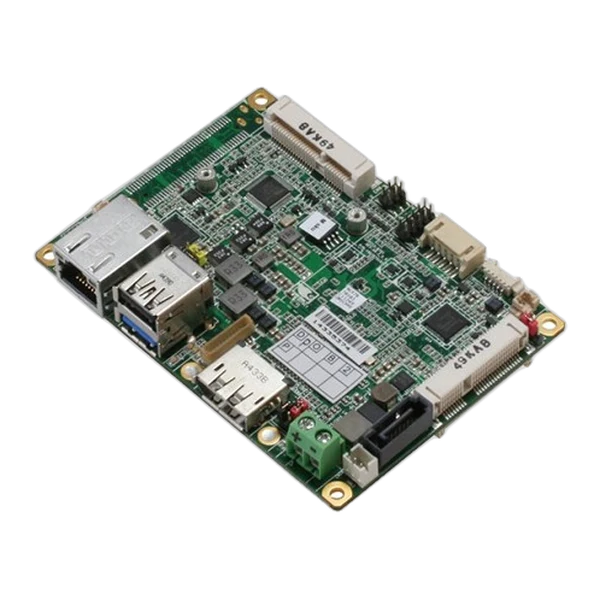

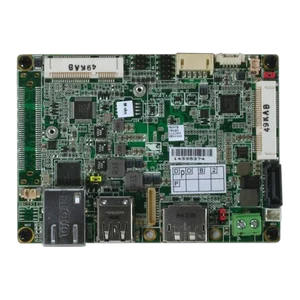

Bo mạch PICO-BT01 nhìn từ trên xuống
Applications
- Building/ Factory Automation
- Panel PC
- KIOSK
- Medical Equipment
- Test & Measurement
Features
- Onboard Intel® Atom™ E3800/ Celeron® J1900/N2807 Processor SoC
- DDR3L 1066/1333 MHz SODIMM x 1, Up to 8 GB
- 18/24-bit LVDS LCD, CRT Co-lay Display Port
- SATA 3.0Gb/s x 1, Mini-Card(Full size)/mSATA(default) x 1
- USB 3.2 Gen 1 x 1, USB 2.0 x 2
- Gigabit Ethernet x 1, RJ-45 x 1
- RS-232 x 1, RS-232/422/485 x 1
- Mini-card x 1 (Half size)
- 4-Bit Digital I/O
- BIO Connector for Daughter Board Optional
Specifications [PICO-BT01]
| SYSTEM | |
| FORM FACTOR | Pico-ITX |
| CPU | Onboard Intel® Atom™ E3845/ Celeron® J1900/N2807 Processor SoC |
| CPU FREQUENCY | Up to 2.0 GHz |
| CHIPSET | Intel® E3845/J1900/N2807 |
| MEMORY TYPE | 204-pin DDR3L SODIMM x 1, DDR3L 1066/1333, Max. 8GB |
| MAX. MEMORY CAPACITY | Up to 8GB |
| BIOS | AMI/SPI |
| WAKE ON LAN | Yes |
| WATCHDOG TIMER | 255 levels |
| POWER REQUIREMENT | +12VDC |
| POWER SUPPLY TYPE | AT/ATX (default) optional lockable connector |
| POWER CONSUMPTION (TYPICAL) | Intel® Celeron® J1900 2.0GHz , DDR3L 1333 MHz 8 GB 1.14A@+12V |
| SYSTEM COOLING | Heat-spreader, heatsink or cooler optional |
| DIMENSION | 3.94" x 2.84" (100mm x 72mm) |
| GROSS WEIGHT | 0.18 lb (0.08 kg) |
| OPERATING TEMPERATURE | 32°F ~ 140°F (0°C ~ 60°C) or WiTAS 2 (-40˚C ~ 85˚C) |
| STORAGE TEMPERATURE | -40˚F ~ 185˚F (-40˚C ~ 85˚C) |
| OPERATING HUMIDITY | 0% ~ 90% relative humidity, non-condensing |
| MTBF (HOURS) | 80,000 |
| CERTIFICATION | CE,FCC |
| DISPLAY | |
| CHIPSET | Intel® E3845/J1900/N2807 |
| RESOLUTION | VGA up to 2048 x 1152 @60Hz or DP up to 2560 x 1400 @60Hz LVDS (18/24-bit) up to 1400 x 900 @60Hz |
| LCD INTERFACE | 18/24-bit Single LVDS |
| I/O | |
| STORAGE/SSD | SATA 3.0Gb/s x 1, Mini-Card(Full-size)/mSATA(default) x 1 |
| ETHERNET | Intel Gigabit Ethernet, 10/100/1000Base-TX x 1 (Atom E series with I210IT, Celeron J/N series with I211AT) |
| USB PORT | USB 3.2 Gen 1 x 1 Rear IO, USB 2.0 x 1 Rear IO and x 1 Pin header |
| SERIAL PORT | RS-232 x 1, RS-232/422/485 x 1 (Ring /+5V/+12V) |
| AUDIO | Line-out x 1 |
| DIO | 4-bit (2-in, 2-out) |
| EXPANSION SLOT | Mini-Card (Half-size) x 1, BIO x 1 |
| SIM | Option by BIO Board |
Ordering Information [PICO-BT01]
| PART NUMBER | PICO-BT01-A11-0002 | PICO-BT01-A11-0003 | PICO-BT01-A11-0004 | PICO-BT01-A11-0005 | PICO-BT01W2-A11-0003 | PICO-BT01W2-A11-0004 |
|---|---|---|---|---|---|---|
| CPU | Celeron® N2807 (Dual Core) | Atom™ E3845 (Quad Core) | Atom™ E3825 (Dual Core) | Celeron® J1900 (Quad Core) | Atom™ E3845 (Quad Core) | Atom™ E3825 (Dual Core) |
| RAM | DDR3L, Max. 4GB | DDR3L, Max. 8 GB | DDR3L, Max. 8 GB | DDR3L, Max. 8 GB | DDR3L, Max. 8 GB | DDR3L, Max. 8 GB |
| FAN/FANLESS | Heat-spreader | Heat-spreader | Heat-spreader | Heat-spreader | Heat-spreader | Heat-spreader |
| DISPLAY | DP+LVDS | CRT+LVDS | DP+LVDS | CRT+LVDS | CRT+LVDS | DP+LVDS |
| LVDS | 24bit 1CH | 24bit 1CH | 24bit 1CH | 24bit 1CH | 24bit 1CH | 24bit 1CH |
| STORAGE | SATAII x 1, Mini-Card (Full size)/mSATA (default) x 1 | SATAII x 1, Mini-Card (Full size)/mSATA (default) x 1 | SATAII x 1, Mini-Card (Full size)/mSATA (default) x 1 | SATAII x 1, Mini-Card (Full size)/mSATA (default) x 1 | SATAII x 1, Mini-Card (Full size)/mSATA (default) x 1 | SATAII x 1, Mini-Card (Full size)/mSATA (default) x 1 |
| LAN | GbE x 1 | GbE x 1 | GbE x 1 | GbE x 1 | GbE x 1 | GbE x 1 |
| USB | USB 3.2 Gen 1 x 1, USB 2.0 x 2 | USB 3.2 Gen 1 x 1, USB 2.0 x 2 | USB 3.2 Gen 1 x 1, USB 2.0 x 2 | USB 3.2 Gen 1 x 1, USB 2.0 x 2 | USB 3.2 Gen 1 x 1, USB 2.0 x 2 | USB 3.2 Gen 1 x 1, USB 2.0 x 2 |
| RS-232 | 1 | 1 | 1 | 1 | 1 | 1 |
| RS-232/422/485 | 1 | 1 | 1 | 1 | 1 | 1 |
| EXPANSION SLOT | Mini-card x 1 (Half size), DIO 4-bit | Mini-card x 1 (Half size), DIO 4-bit | Mini-card x 1 (Half size), DIO 4-bit | Mini-card x 1 (Half size), DIO 4-bit | Mini-card x 1 (Half size), DIO 4-bit | Mini-card x 1 (Half size), DIO 4-bit |
| POWER | +12V (Terminal block) | +12V (Terminal block) | +12V (Terminal block) | +12V (Terminal block) | +12V (Terminal block) | +12V (Terminal block) |
| TEMP | 32°F ~ 140°F (0°C ~ 60°C) | 32°F ~ 140°F (0°C ~ 60°C) | 32°F ~ 140°F (0°C ~ 60°C) | 32°F ~ 140°F (0°C ~ 60°C) | WiTAS 2 (-40°C ~ 85°C) | WiTAS 2 (-40°C ~ 85°C) |
| OTHERS | Line-out | Line-out, BIO x 1 | Line-out | Line-out | Line-out, BIO x 1 | Line-out, BIO x 1 |
Downloads [PICO-BT01]
1. Datasheet: PICO-BT01, datasheet 2.0
2. Manual: PICO-BT01, Manual 10.0
Packing List
- PICO-BT01-HSP01: Heat Spreader
- 1703200153: COM x 2, Line-out Cable
- PICO-BT01
Optional Accessories
