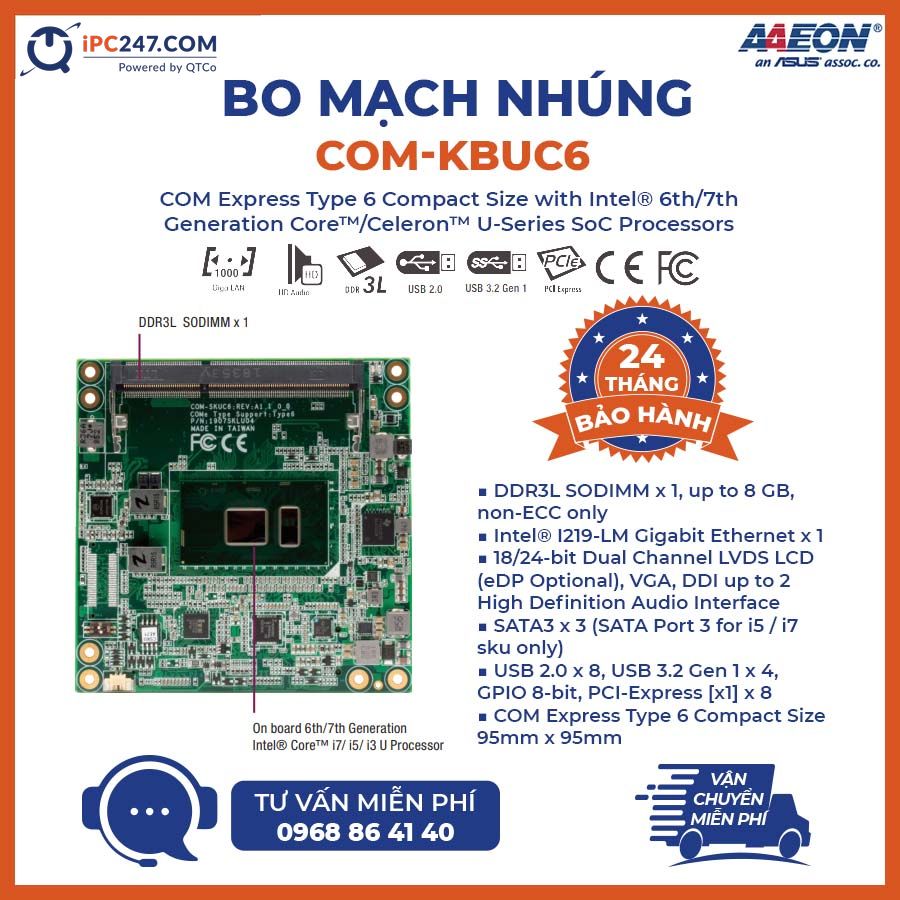

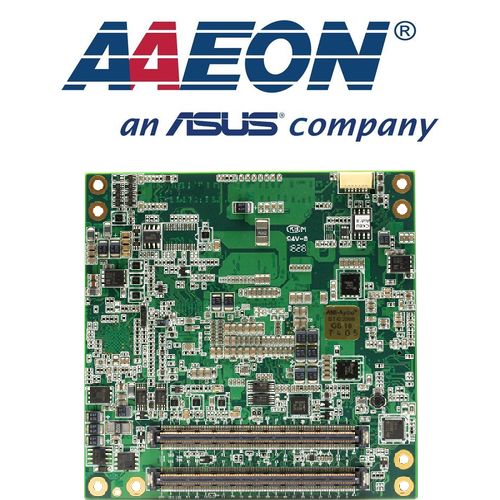

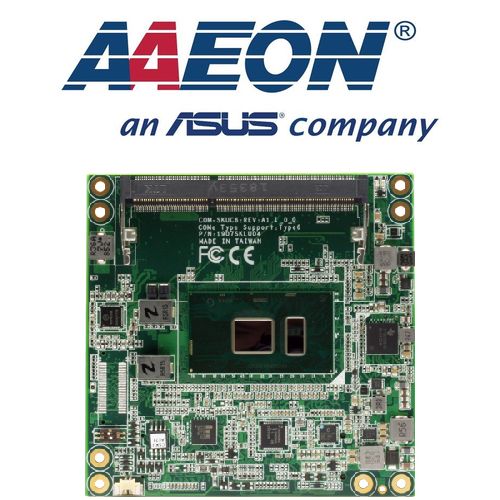

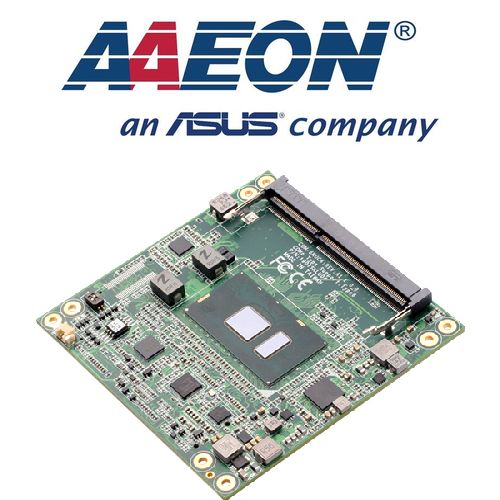

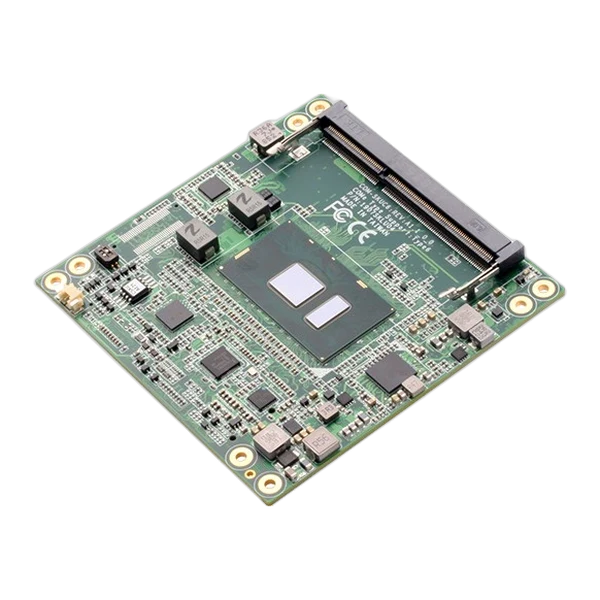

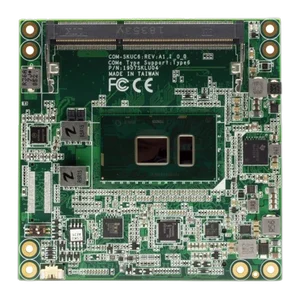

COM Express Modules COM-KBUC6
Overview
- COM Express Type 6 Compact Size with 6th/7th Gen Core U-series Processor
Features
- Intel® Core™ i3/i5/i7 U-series SoC
- DDR3L SODIMM x 1, up to 8 GB, non-ECC only
- Gigabit Ethernet x 1
- 18/24-bit Dual-Channel LVDS LCD / eDP, VGA , DDI up to 2, High Definition Audio Interface
- SATA x 3 (SATA Port 3 for i5 i7 sku only)
- USB 2.0 x 8, USB 3.2 Gen 1 x 4, GPIO 8-bit, PCI-Express Lanes x 8
- COM Express Type 6 Compact Size 95mm x 95mm
Specifications [COM-KBUC6]
| SYSTEM | |
| FORM FACTOR | COM Express Compact Size, Typ6 |
| CPU | Onboard 6th/7th Generation Intel® Core™ U-series Processor, BGA type |
| CPU FREQUENCY | Up to i7-7600U 2C/ 2.8 GHz |
| CHIPSET | Onboard 6th/7th Generation Intel® Core™ U-series Processor |
| MEMORY TYPE | DDR3L 1600, SODIMM x 1 |
| MAX. MEMORY CAPACITY | 8 GB |
| BIOS | AMI BIOS, Legacy Free |
| WAKE ON LAN | Yes |
| WATCHDOG TIMER | 255 levels |
| POWER REQUIREMENT | Standard: +12V |
| POWER SUPPLY TYPE | AT/ATX Selection |
| POWER CONSUMPTION (TYPICAL) | i7-7600U, 8GB DDR3L, full loading 1.32A@12V during 100% loading burn in test |
| DIMENSION (L X W) | 3.75″ x 3.75″ (95mm x 95mm) |
| OPERATING TEMPERATURE | 32˚F ~ 140˚F (0˚C ~ 60˚C) |
| STORAGE TEMPERATURE | -40°F ~ 185°F (-40°C ~ 85°C) |
| OPERATING HUMIDITY | 10% ~90% relative humidity, non-condensing |
| MTBF (HOURS) | 182306 |
| CERTIFICATION | CE/FCC Class A |
| DISPLAY | |
| VGA/LCD CONTROLLER | Onboard 6th Gen Intel® Core U-Series Processor, GT2-520/510 Onboard 7th Gen Intel® Core U-Series Processor, GT2-620/610 |
| VIDEO OUTPUT | VGA, LVDS/eDP, DDI x 1 (up to 2) |
| I/O | |
| ETHERNET | Intel® PHY i219LM Giga LAN (support Intel® AMT 12.0) x 1 |
| AUDIO | HD Audio |
| USB PORT | USB 2.0 x 8, USB 3.2 Gen 1 x 4 |
| SERIAL PORT | 2-Wire UART (Tx/Rx) x 2 |
| HDD INTERFACE | SATA3 x 2 ; i5 & i7 up to 3 |
| EXPANSION SLOT | PCIe [x1] x 8 、LPC x1、SMBUS x 1、I2C、2-wire UART x2 |
| GPIO | GPIO 8-bit |
| ONBOARD STORAGE | — |
| TPM | Optional |
Ordering Information [COM-KBUC6]
| PART NUMBER | COM-KBUC6-A11-0001 | COM-KBUC6-A11-0002 | COM-KBUC6-A11-0003 | COM-KBUC6-A11-0004 | COM-SKUC6-A11-0001 | COM-SKUC6-A11-0002 | COM-SKUC6-A11-0003 | COM-SKUC6-A11-0004 |
|---|---|---|---|---|---|---|---|---|
| FORM FACTOR | COM Express Type 6 | COM Express Type 6 | COM Express Type 6 | COM Express Type 6 | COM Express Type 6 | COM Express Type 6 | COM Express Type 6 | COM Express Type 6 |
| CPU | i7-7600U, 2.8 GHz | i5-7300U, 2.6 GHz | i3-7100U, 2.4 GHz | Celeron® 3965U, 2GHz | i7-6600U, 2.6 GHz. | i5-6300U, 2.4 GHz | i3-6100U, 2.3 GHz | Celeron® 3955U, 2GHz |
| MEMORY | DDR3L up to 8 GB, SO-DIMM x1 | DDR3L up to 8 GB, SO-DIMM x1 | DDR3L up to 8 GB, SO-DIMM x1 | DDR3L up to 8 GB, SO-DIMM x1 | DDR3L up to 8 GB, SO-DIMM x1 | DDR3L up to 8 GB, SO-DIMM x1 | DDR3L up to 8 GB, SO-DIMM x1 | DDR3L up to 8 GB, SO-DIMM x1 |
| DISPLAY | CRT, LVDS/eDP, DDI x1 | CRT, LVDS/eDP, DDI x1 | CRT, LVDS/eDP, DDI x1 | CRT, LVDS/eDP, DDI x1 | CRT, LVDS/eDP, DDI x1 | CRT, LVDS/eDP, DDI x1 | CRT, LVDS/eDP, DDI x1 | CRT, LVDS/eDP, DDI x1 |
| LVDS | 24bit, 2CH | 24bit, 2CH | 24bit, 2CH | 24bit, 2CH | 24bit, 2CH | 24bit, 2CH | 24bit, 2CH | 24bit, 2CH |
| STORAGE | SATA3 x 2 (up to 3) | SATA3 x 2 (up to 3) | SATA3 x 2 | SATA3 x 2 | SATA3 x 2 (up to 3) | SATA3 x 2 (up to 3) | SATA3 x 2 | SATA3 x 2 |
| LAN | GbE x 1 | GbE x 1 | GbE x 1 | GbE x 1 | GbE x 1 | GbE x 1 | GbE x 1 | GbE x 1 |
| USB | USB 3.2 Gen 1 x 4, USB 2.0 x 8 |
USB 3.2 Gen 1 x 4, USB 2.0 x 8 |
USB 3.2 Gen 1 x 4, USB 2.0 x 8 |
USB 3.2 Gen 1 x 4, USB 2.0 x 8 |
USB 3.2 Gen 1 x 4, USB 2.0 x 8 |
USB 3.2 Gen 1 x 4, USB 2.0 x 8 |
USB 3.2 Gen 1 x 4, USB 2.0 x 8 |
USB 3.2 Gen 1 x 4, USB 2.0 x 8 |
| UART | 2-wire (Tx/Rx) x 2 | 2-wire (Tx/Rx) x 2 | 2-wire (Tx/Rx) x 2 | 2-wire (Tx/Rx) x 2 | 2-wire (Tx/Rx) x 2 | 2-wire (Tx/Rx) x 2 | 2-wire (Tx/Rx) x 2 | 2-wire (Tx/Rx) x 2 |
| EXPANSION | PCIe[x1] x 8 | PCIe[x1] x 8 | PCIe[x1] x 8 | PCIe[x1] x 8 | PCIe[x1] x 8 | PCIe[x1] x 8 | PCIe[x1] x 8 | PCIe[x1] x 8 |
| POWER | +12V | +12V | +12V | +12V | +12V | +12V | +12V | +12V |
| TEMPERATURE | 0°C ~ 60°C | 0°C ~ 60°C | 0°C ~ 60°C | 0°C ~ 60°C | 0°C ~ 60°C | 0°C ~ 60°C | 0°C ~ 60°C | 0°C ~ 60°C |
| OTHER | LPC, GPIO 8 bit, I2C, SMBus |
LPC, GPIO 8 bit, I2C, SMBus |
LPC, GPIO 8 bit, I2C, SMBus |
LPC, GPIO 8 bit, I2C, SMBus |
LPC, GPIO 8 bit, I2C, SMBus |
LPC, GPIO 8 bit, I2C, SMBus |
LPC, GPIO 8 bit, I2C, SMBus |
LPC, GPIO 8 bit, I2C, SMBus |
Packing List
- COM-SKUC6 or COM-KBUC6
Optional Accessories
| Part Number | Description |
| ECB-920A-A10-0001 | COM Express Type 1/6/10 Carrier Board, Gigabit Ethernet, USB, 2 COM, 4 SATA, PCIe, AT/ATX, Legacy Free, Rev. A1.0 |
| COM-FAN02 | CPU Cooler, 95 x 95 x 26.5mm, Silver, use with HSP |
| COM-KBUC6-HSP01 | Heatspreader, For COM-KBUC6/SKUC6, Onboard CPU |
