Máy tính công nghiệp AAEON AEC-204B
Overview
- 4-slot Industrial Wallmount IPC System Half-size CPU Cards Support

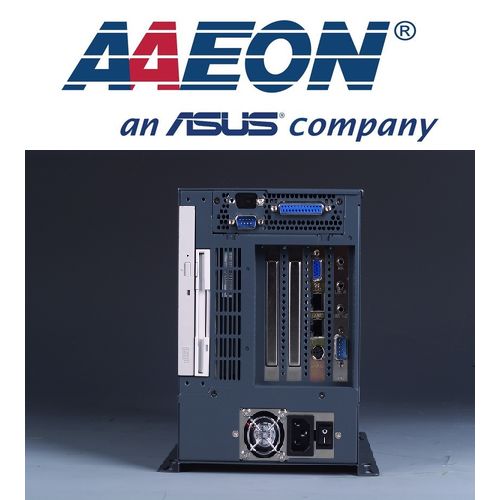

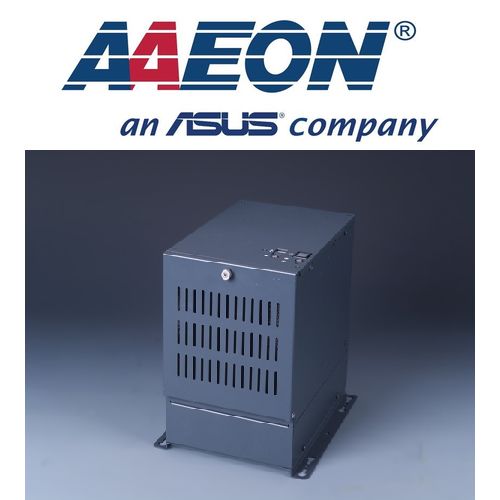

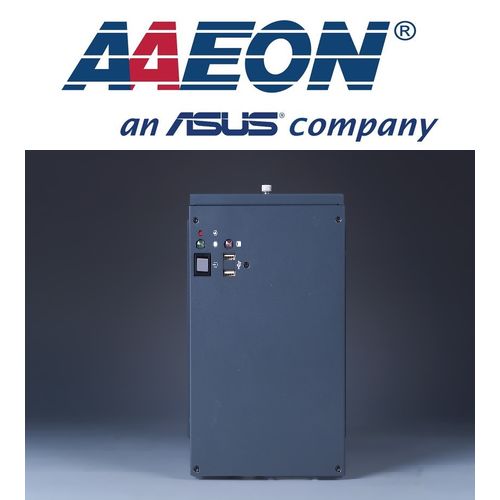

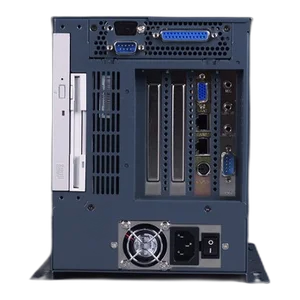

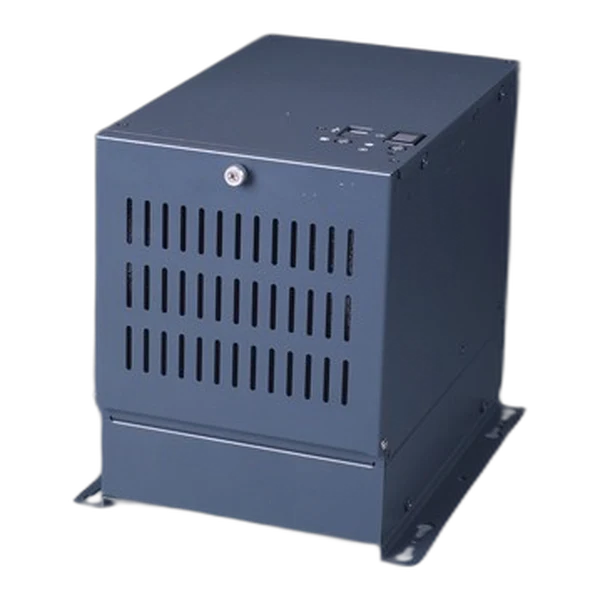

- The AEC-204B is a 4-slot industrial wallmount chassis designed to provide an environmentally secure housing for embedded control system and other space critical applications. It supports PCI, PCISA and ISA passive backplane and can accept most half-size ISA/ PCISA bus CPU cards. AEC-204B reserves two RS-232 ports and one parallel port and has room for both a 3.5″ internal hard-drive and an external 3.5″ from a floppy-drive (or one slim FDD, slim CD-ROM). It is also equipped with both DC and AC 150-watt power supply. Its rugged, sturdy, fully-sealed steel chassis and well-ventilated design can withstand shock and constant vibration associated with harsh environments.
Applications
- Automation
- Transportation
- Banking Machine

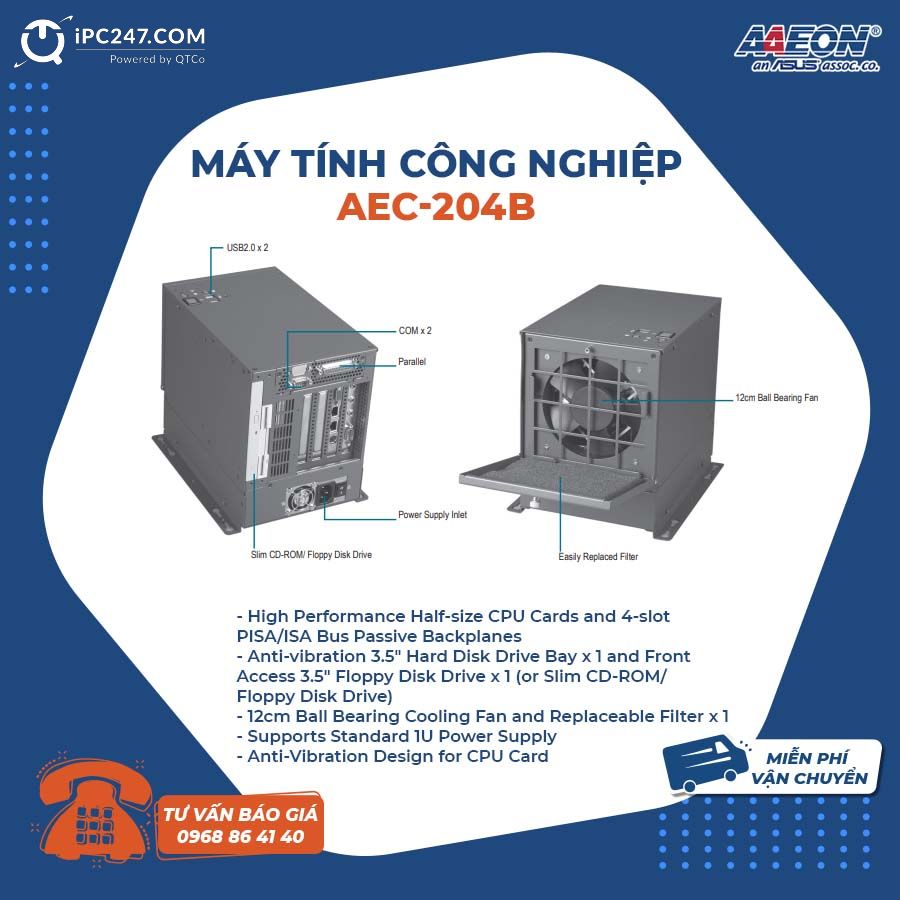

Features
- High Performance Half-size CPU Cards and 4-slot PISA/ISA Bus Passive Backplanes
- Anti-vibration 3.5″ Hard Disk Drive Bay x 1 and Front Access 3.5″ Floppy Disk Drive x 1 (or Slim CD-ROM/Floppy Disk Drive)
- 12cm Ball Bearing Cooling Fan and Replaceable Filter x 1
- Supports Standard 1U Power Supply
- Anti-Vibration Design for CPU Card
Ordering Information [AEC-204B]
| Part Number | TF-AEC-204B-B |
|---|---|
| description | Wallmount, 4-Slot Chassis Bare, 1U Power (20.5cm), PS_SW(ATX), Black |
Optional Accessories
Power Supply Options
| P/N | TYPE | PFC Support | Input Voltage | Watt | Size |
| TF-PW-H150-A-00 | ATX | Active PFC | Auto 115-230V | 150W | 1U (18.5cm) |
Passive Backplane Options
| P/N | Description | Master Interface | Slots | Power Connector, ATX Extend Function |
| BP-204SI | Wallmount, ISA 4-slot, Backplane, 4 ISA, Single Segment, AT, A1.3 | ISA | 0/4/0 (PCI/ ISA/ PICMG) | AT |
| TF-BP-204SS-P1 | Wallmount, PISA 4-slot, Backplane, 1 PCI, 2 ISA, Single Segment, AT/ATX | PCISA | 1/2/2 (PCI/ ISA/ PISA) | AT |
| TF-BP-204SS-P2 | Wallmount, PISA 4-slot, Backplane, 2 PCI, 1 ISA, Single Segment, AT | PCISA | 1/1/1/1 (PCI/ ISA/ PISA/ PICMG_PCI) | ATX, 6-pin ATX extend |
| TF-BP-204SP-P3 | Wallmount, PCI 4-slot, Backplane, 3 PCI, Single Segment, AT/ATX, Bulk Pack | PCI | 3/0/1 (PCI/ ISA/ PICMG_PCI) | ATX, 3-pin ATX extend |
CPU Cards Options
| P/N | Description | Master Interface |
| TF-HSB-965P | Socket 478, Core™ 2 Duo (533/667/800MHz) | PCI |
| TF-HSB-811P | Onboard Celeron® M (600MHz); Socket 479 P-M (1.2 GHz)/ Celeron® M (900MHz) | PCI |
| TF-HSB-813S | Socket 479 P-M (2.0 GHz)/ Celeron® M (900MHz) | PCISA |
| TF-HSB-910I | Onboard Celeron® M (600MHz)(400MHz) | ISA |
| TF-HSB-668I | Onboard VIA CoreFusion 533 MHz CPU | ISA |
Accessories Options
| P/N | Description |
| 9741204000 | Accessory CD-ROM for AEC-204 |
