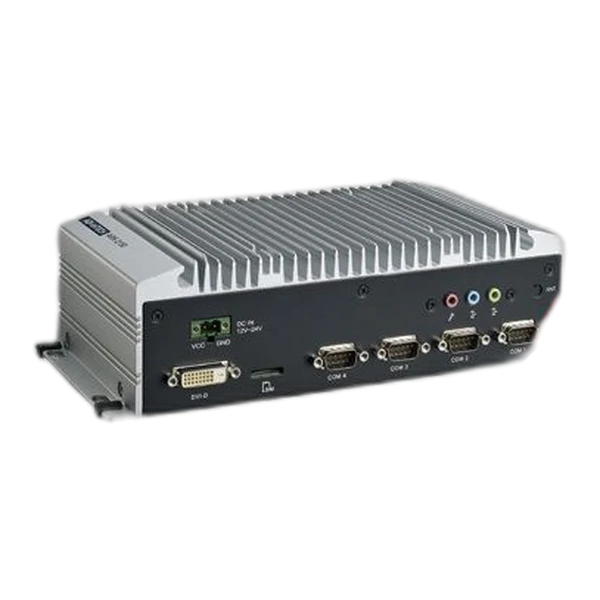

Máy tính công nghiệp không quạt ARK-2150F
Overview
3rd Generation Intel® Core™ i7 with 4 x GbE, Isolated DIO & wide range power Fanless Box PC
Features
- Intel® Core™ i7 processors + Intel QM77 PCH
- 1 x DDR3/DDR3L SO-DIMM, support up to 8 GB
- DirectX11, OpenGL3.1, OpenCL1.1
- Supports Intel AMT8.0
- Supports 4 x Intel GbE
- Support 4ch digital input and 4ch digital output with 2.5KV isolation
- Supports 3 x USB 3.0, 3 x USB 2.0, 4 COMs ports
- Supports 1 x internal mSATA socket and 1 x 2.5″ SATA HDD Bay
- 12~24V wide range DC input with lockable connector
- Supports iManager, SUSIAccess and Embedded Software APIs
Specifications [ARK-2150F]
| Part Number |
ARK-2150F-S7A1E
|
| Processor | |
|
CPU
|
Intel ULV 3rd Gen Core i7 3517UE
|
| Core Number |
2
|
| Frequency |
Dual Core 1.7 GHz (Max Turbo Frequency 2.8 GHz)
|
| L3 Cache |
4 MB
|
| Chipset |
Intel QM77
|
| BIOS |
AMI EFI 64Mbit
|
|
Memory
|
|
|
Technology
|
DDR3 1600MHz, DDR3L 1333 MHz
|
| Max. Capacity |
8 GB
|
| Socket |
1 x 204-pin SODIMM
|
|
Graphics
|
|
|
Chipset
|
Intel QM77 Integrated GFX Gen 7
|
| Graphic Engine |
DirectX11, OpenGL 3.1, and Open CL 11; Hardware decode acceleration: AVC/H.264, MPEG-2, VC-1
|
| VGA |
Integrated 340.4MHz RAMDAC, Max resolution up to 2048 x 1536 @ 75Hz
|
| HDMI |
Supports HDMI 1.4 for HD Video playback (no hotplug support); Max resolution up to 2560 x 1600 @ 60Hz on DisplayPort, Max resolution up to 1920 x 1200 @ 60Hz on HDMI
|
| DVI-D |
Max resolution up to 1920 x 1200
|
| Dual Display |
Yes, VGA+HDMI/DisplayPort, VGA+HDMI/DVI-D, VGA+DVI-D, HDMI/DisplayPort+DVI-D
|
|
Ethernet
|
|
|
LAN1
|
10/100/1000 Mbps Intel 82579LM GbE, support Wake On Lan
|
| LAN2/LAN3/LAN4 |
10/100/1000 Mbps Intel 82583V GbE
|
|
Audio
|
|
|
Interface
|
Realtek ALC892, High Definition Audio. Line-out,Mic-in, Line-in
|
|
I/O Interface
|
|
|
Serial Port
|
4 x RS-232/422/485 port with auto flow control
|
| USB Interface |
3 x USB 3.0 ports and 3 x USB 2.0 ports
|
|
Other
|
|
|
Digital IO
|
4ch digital input and 4ch digital output with 2.5KV isolation
|
| Watchdog Timer |
255 levels timer interval, setup by software
|
|
Expansion
|
|
|
Mini PCIe
|
2 x Full-size Mini PCIe (Supports mSATA & SIM); 1 x Half-size Mini PCIe
|
|
Storage
|
|
|
HDD
|
Supports one SATA 2.5″ HDD Bay (Compatible with 12.5mm height HDD) (Max. Data Transfer Rate 600 MB/s)
|
| SSD |
Supports one internal mSATA socket
|
|
Software Support
|
|
|
Microsoft Windows
|
Windows 7, Windows 7 Embedded, XP Professional, XP Embedded
|
| Linux |
Ubuntu 12.04
|
|
Power
|
|
|
Power Type
|
AT/ATX
|
| Input Voltage |
12 ~ 24 VDC
|
| Power Adaptor |
AC to DC, DC19 V/3.42 A, 65 W (Optional)
|
| Consumption |
Typical 10.3 Watt, Max. 25.7 Watt
|
|
Mechanical
|
|
|
Construction
|
Aluminum housing
|
| Mounting |
Din-Rail mounting, Desk/wall-mounting, VESA mounting
|
| Dimensions |
264.5 x 75.1 x 133.0 mm (10.41″ x 2.96″ x 5.24″)
|
| Weight |
2.8kg (6.17lb)
|
|
Environment
|
|
|
Operational Temperature
|
With extended temperature peripherals: -20 ~ 60° C (-4 ~ 140° F) with 0.7m/s air flow; With 2.5-inch hard disk 0 ~ 45° C (32 ~ 112° F) with 0.7m/s air flow
|
| Storage Temperature |
-40 ~ 85° C (-40 ~ 185° F)
|
| Relative Humidity |
95% @ 40° C (non-condensing)
|
| Vibration during Operation |
With SSD: 5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis.
|
| Shock During Operation |
With SSD: 50 G, IEC 60068-2-27, half sine, 11 ms duration
|
|
Certification
|
|
|
EMC
|
CE, FCC Class A, CCC, BSMI
|
| Safety Certifications |
UL, CCC, BSMI
|
