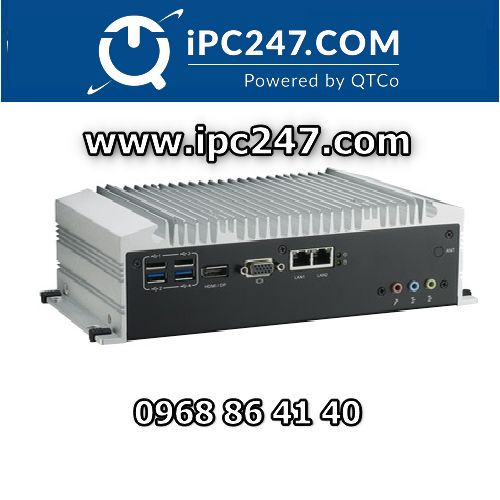

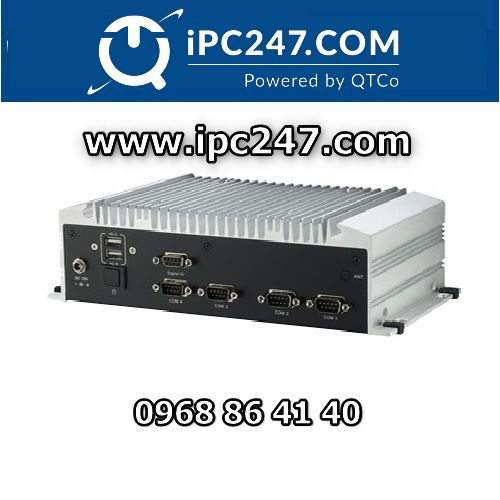

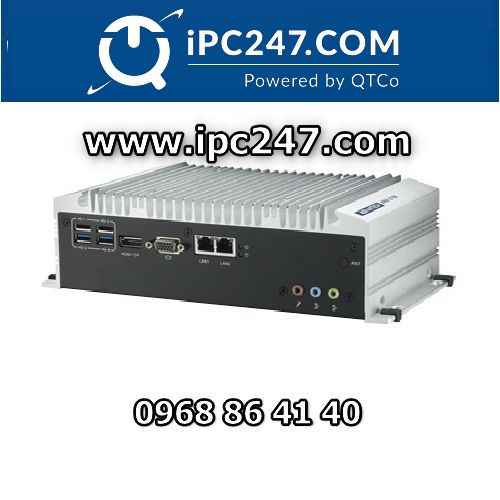

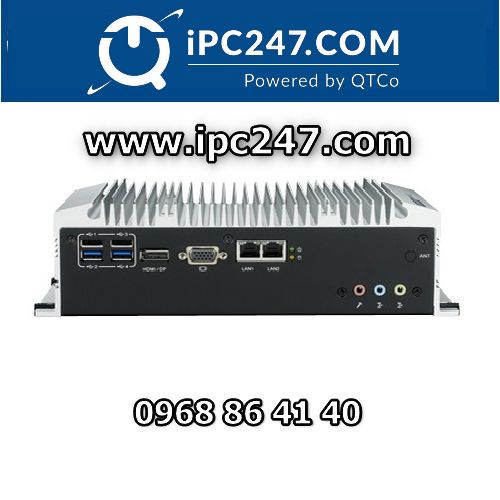

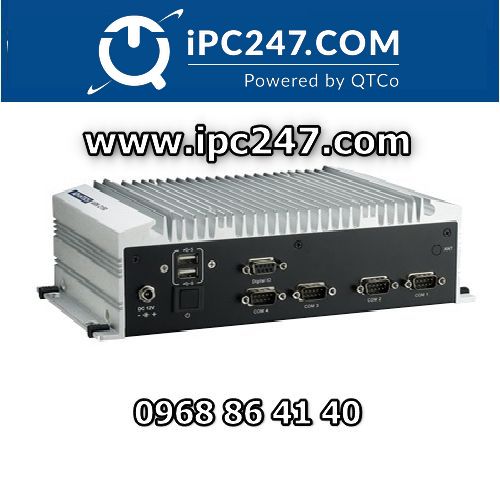

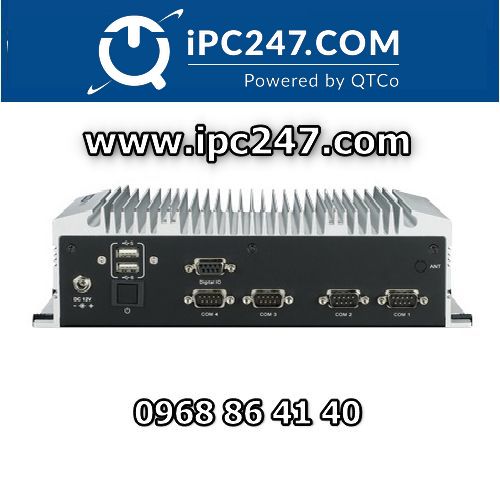

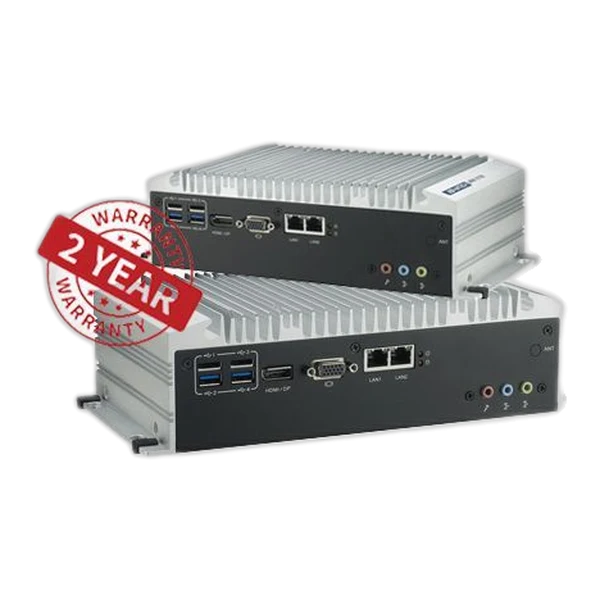

Máy tính công nghiệp không quạt ARK-2150L
Overview
3rd Generation Intel® Core™ i3/i7 with Dual Independent Display Fanless Box PC
Features
- Intel® Core i7, i3 and Celeron processors + Intel QM77 PCH
- 1 x DDR3/DDR3L, SO-DIMM support up to 8 GB
- DirectX11, OpenGL3.1, OpenCL1.1, dual independent display: VGA + HDMI/ DisplayPort*
- Supports Intel AMT8.0
- Supports up to 2 x GbE, 2 x USB 3.0, 4 x USB 2.0 and 4 x COMs ports
- Supports 1 x internal mSATA socket and 1 x 2.5″ SATA HDD Bay
- Lockable DC jack design
- Supports iManager, SUSIAccess and Embedded Software APIs
Specifications [ARK-2150L]
| Part Number | ARK-2150L-S4A1E | ARK-2150L-S6A1E | ARK-2150L-S7A1E |
|
Processor
|
|||
|
CPU
|
Intel Celeron 1047UE
|
Intel ULV 3rd Gen Core i3 3217UE | Intel ULV 3rd Gen Core i7 3517UE |
| Core Number |
2
|
2
|
2
|
| Frequency |
1.4 GHz
|
1.6 GHz | 1.7 GHz (up to 2.8GHz) |
| L3 Cache |
2 MB
|
3 MB | 4 MB |
| Chipset |
Intel QM77
|
Intel QM77
|
Intel QM77
|
| BIOS |
AMI EFI 64Mbit
|
AMI EFI 64Mbit
|
AMI EFI 64Mbit
|
|
Memory
|
|||
|
Technology
|
DDR3 1600MHz, DDR3L 1333 MHz
|
DDR3 1600MHz, DDR3L 1333 MHz
|
DDR3 1600MHz, DDR3L 1333 MHz
|
| Max. Capacity |
8 GB
|
8 GB
|
8 GB
|
| Socket |
1 x 204-pin SODIMM
|
1 x 204-pin SODIMM
|
1 x 204-pin SODIMM
|
|
Graphics
|
|||
|
Chipset
|
Intel QM77 Integrated GFX Gen 7
|
Intel QM77 Integrated GFX Gen 7
|
Intel QM77 Integrated GFX Gen 7
|
| Graphic Engine |
DirectX11, OpenGL 3.1, and Open CL 11; Hardware decode acceleration: AVC/H.264, MPEG-2, VC-1
|
DirectX11, OpenGL 3.1, and Open CL 11; Hardware decode acceleration: AVC/H.264, MPEG-2, VC-1 | DirectX11, OpenGL 3.1, and Open CL 11; Hardware decode acceleration: AVC/H.264, MPEG-2, VC-1 |
| VGA |
Integrated 340.4MHz RAMDAC, Max resolution up to 2048 x 1536 @ 75Hz
|
Integrated 340.4MHz RAMDAC, Max resolution up to 2048 x 1536 @ 75Hz | Integrated 340.4MHz RAMDAC, Max resolution up to 2048 x 1536 @ 75Hz |
| HDMI |
Supports HDMI 1.4 for HD Video playback (no hotplug support); Max resolution up to 2560 x 1600 @ 60Hz on DisplayPort, Max resolution up to 1920 x 1200 @ 60Hz on HDMI
|
Supports HDMI 1.4 for HD Video playback (no hotplug support); Max resolution up to 2560 x 1600 @ 60Hz on DisplayPort, Max resolution up to 1920 x 1200 @ 60Hz on HDMI | Supports HDMI 1.4 for HD Video playback (no hotplug support); Max resolution up to 2560 x 1600 @ 60Hz on DisplayPort, Max resolution up to 1920 x 1200 @ 60Hz on HDMI |
| Dual Display |
Yes, VGA + HDMI or VGA + DisplayPort
|
Yes, VGA + HDMI or VGA + DisplayPort
|
Yes, VGA + HDMI or VGA + DisplayPort
|
|
Ethernet
|
|||
|
LAN1
|
10/100/1000 Mbps Intel 82579LM GbE, support Wake On Lan
|
10/100/1000 Mbps Intel 82579LM GbE, support Wake On Lan | 10/100/1000 Mbps Intel 82579LM GbE, support Wake On Lan |
| LAN2 |
10/100/1000 Mbps Intel 82583V GbE, support Wake On Lan
|
10/100/1000 Mbps Intel 82583V GbE, support Wake On Lan | 10/100/1000 Mbps Intel 82583V GbE, support Wake On Lan |
|
Audio
|
|||
|
Interface
|
Realtek ALC892, High Definition Audio. Line-out,Mic-in,Line-in
|
Realtek ALC892, High Definition Audio. Line-out,Mic-in,Line-in | Realtek ALC892, High Definition Audio. Line-out,Mic-in,Line-in |
|
I/O Interface
|
|||
|
Serial Port
|
2 x RS-232 ports, 2 x RS-232/422/485 port with auto flow control
|
2 x RS-232 ports, 2 x RS-232/422/485 port with auto flow control | 2 x RS-232 ports, 2 x RS-232/422/485 port with auto flow control |
| USB Interface |
2 x USB 3.0 ports and 4 x USB 2.0 ports
|
2 x USB 3.0 ports and 4 x USB 2.0 ports | 2 x USB 3.0 ports and 4 x USB 2.0 ports |
|
Other
|
|||
|
Digital IO
|
8-bits programmable general purpose input/output
|
8-bits programmable general purpose input/output | 8-bits programmable general purpose input/output |
| Watchdog Timer |
255 levels timer interval, setup by software
|
255 levels timer interval, setup by software | 255 levels timer interval, setup by software |
|
Expansion
|
|||
|
Mini PCIe
|
2 x Full-size Mini PCIe (One supports mSATA & the other with SIM holder); 1 x Half-size Mini PCIe
|
2 x Full-size Mini PCIe (One supports mSATA & the other with SIM holder); 1 x Half-size Mini PCIe | 2 x Full-size Mini PCIe (One supports mSATA & the other with SIM holder); 1 x Half-size Mini PCIe |
|
Storage
|
|||
|
HDD
|
Supports one SATA 2.5″ HDD Bay (Compatible with 12.5mm height HDD) (Max. Data Transfer Rate 600 MB/s)
|
Supports one SATA 2.5″ HDD Bay (Compatible with 12.5mm height HDD) (Max. Data Transfer Rate 600 MB/s) | Supports one SATA 2.5″ HDD Bay (Compatible with 12.5mm height HDD) (Max. Data Transfer Rate 600 MB/s) |
| SSD |
Supports one internal mSATA socket
|
Supports one internal mSATA socket
|
Supports one internal mSATA socket
|
|
Software Support
|
|||
|
Microsoft Windows
|
Windows 7, Windows 7 Embedded, XP Professional, XP Embedded
|
Windows 7, Windows 7 Embedded, XP Professional, XP Embedded | Windows 7, Windows 7 Embedded, XP Professional, XP Embedded |
| Linux |
Ubuntu 12.04
|
Ubuntu 12.04 | Ubuntu 12.04 |
|
Power
|
|||
|
Power Type
|
AT/ATX
|
AT/ATX
|
AT/ATX
|
| Input Voltage |
12 VDC, ± 10%
|
12 VDC, ± 10%
|
12 VDC, ± 10%
|
| Power Adaptor |
AC to DC, DC12V/5A, 60 W (Optional)
|
AC to DC, DC12V/5A, 60 W (Optional)
|
AC to DC, DC12V/5A, 60 W (Optional)
|
| Consumption |
Typical 9.4 W, Max. 24.96 W (with Intel Core i7 3517UE CPU and 2 GB memory)
|
Typical 9.4 W, Max. 24.96 W (with Intel Core i7 3517UE CPU and 2 GB memory) | Typical 9.4 W, Max. 24.96 W (with Intel Core i7 3517UE CPU and 2 GB memory) |
|
Mechanical
|
|||
|
Construction
|
Aluminum housing
|
Aluminum housing
|
Aluminum housing
|
| Mounting |
Din-Rail mounting, Desk/wall-mounting, VESA mounting
|
Din-Rail mounting, Desk/wall-mounting, VESA mounting
|
Din-Rail mounting, Desk/wall-mounting, VESA mounting
|
| Dimensions |
264.5 x 75.1 x 133.0 mm (10.41″ x 2.96″ x 5.24″)
|
264.5 x 75.1 x 133.0 mm (10.41″ x 2.96″ x 5.24″) | 264.5 x 75.1 x 133.0 mm (10.41″ x 2.96″ x 5.24″) |
| Weight |
2.3 kg (5.07 lb)
|
2.3 kg (5.07 lb)
|
2.3 kg (5.07 lb)
|
|
Environment
|
|||
|
Operational Temperature
|
With extended temperature peripherals: -20 ~ 60° C (-4 ~ 140° F) with 0.7m/s air flow; With 2.5-inch hard disk 0 ~ 45° C (32 ~ 112° F) with 0.7m/s air flow
|
With extended temperature peripherals: -20 ~ 60° C (-4 ~ 140° F) with 0.7m/s air flow; With 2.5-inch hard disk 0 ~ 45° C (32 ~ 112° F) with 0.7m/s air flow | With extended temperature peripherals: -20 ~ 60° C (-4 ~ 140° F) with 0.7m/s air flow; With 2.5-inch hard disk 0 ~ 45° C (32 ~ 112° F) with 0.7m/s air flow |
| Storage Temperature |
-40 ~ 85° C (-40 ~ 185° F)
|
-40 ~ 85° C (-40 ~ 185° F)
|
-40 ~ 85° C (-40 ~ 185° F)
|
| Relative Humidity |
95% @ 40° C (non-condensing)
|
95% @ 40° C (non-condensing)
|
95% @ 40° C (non-condensing)
|
| Vibration during Operation |
With SSD: 5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis.
|
With SSD: 5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis. | With SSD: 5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis. |
| Shock During Operation |
With SSD: 50 G, IEC 60068-2-27, half sine, 11 ms duration
|
With SSD: 50 G, IEC 60068-2-27, half sine, 11 ms duration | With SSD: 50 G, IEC 60068-2-27, half sine, 11 ms duration |
|
Certification
|
|||
|
EMC
|
CE, FCC Class A, CCC, BSMI
|
CE, FCC Class A, CCC, BSMI
|
CE, FCC Class A, CCC, BSMI
|
| Safety Certifications |
UL, CCC, BSMI
|
UL, CCC, BSMI
|
UL, CCC, BSMI
|
