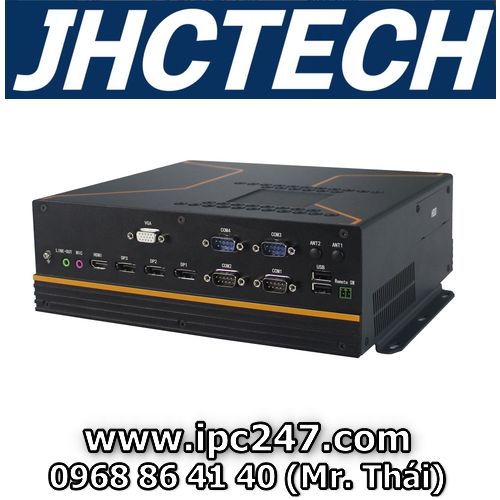

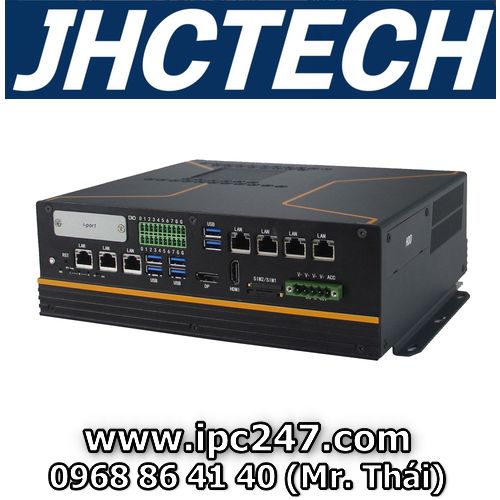

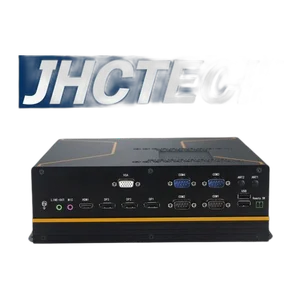

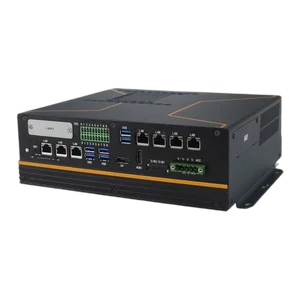

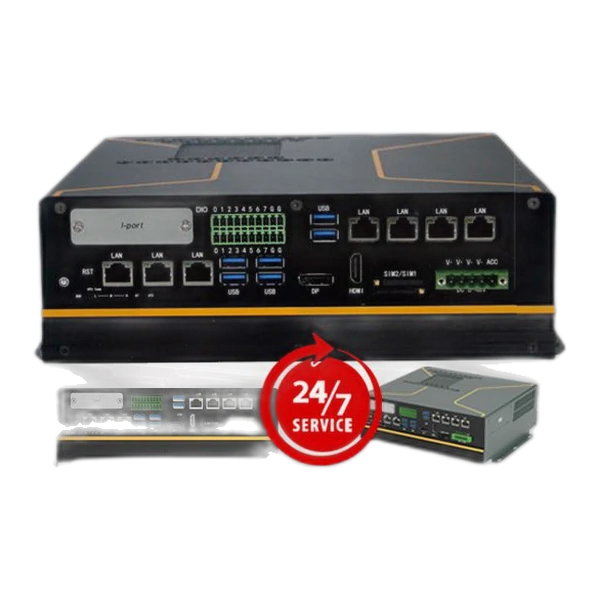

Máy tính công nghiệp không quạt BRAV-7302/S002
Feature:
- CPU and GPU fan cooling, independent air passage
- Intel Kabylake-S/Skylake-S Core I3/I5/I7 CPU 2*DDR4 1866/2133 MHz SODIMM, Up to 32GB
- 1*MXM 3.1 socket, support NVIDIA/AMD GPU
- Intel 1*DP+1*HDMI+1*VGA, GPU 3*DP+1*HDMI
- 7*Gig LAN,6*USB3.0,3*USB2.0,4*COM,16DIO,Audio
- 1*Mini PCIe(PCIe+USB),1*M.2 2242 B-Key
- 1*mSATA, 2*2.5″ SATA, suppprt Raid0,1
- Support Intel iVpro and TPM2.0 DC 6~48V Wide Power Input
Specifications:
| System | |
| CPU | Gen.6th Intel Skylake-S/gen. 7th Intel Kabylake-S Celeron/Pentium/Core I3/I5/I7 CPU, LGA 1151 socket , all degree of consumption: TDP 35W/54W/65W/91W |
| RAM | 2*260-Pin SODIMM, daul channel DDR4 1866/2133MHz, Max 32GB |
| Expansion | 1*Full size Mini PCIe with PCIe +USB signal and SIM slot,1*M.2 2242 B-key with PCIeX1+SATA3+USB signal, 1*Full size mSATA(SATA3+USB), support 4G LTE and Wifi/BT wireless module |
| Graphics | Gen. 9th Intel HD Graphics, HEVC/H265 HW HD en/decoder, DP1.2 max. res. 4096*2304@60Hz, HDMI1.4b max. res. 3840*2160@30Hz, VGA max. res. 2650*1600@60Hz, 3 independed display |
| GPU | MXM3.1 NVIDIA GTX/AMD RX series GPU module,support 3*DP1.2/1.3 and 1*HDMI1.4b/2.0 4K/5K display |
| Audio | Realtek ALC662VD controller, Audio out and MIC |
| LAN | 6*Intel I210AT PCIe Gig. Ethernet, 10/100/1000Mbps；1*Intel I219LM PCIe Gig. Ethernet |
| Storage | 2*2.5″ HDD/SSD bay, dual SATA 6.0Gbps support RAID0/1; 1*mSATA; 1*M.2 2242 B-key |
| DIO | 16 bit TTL signal, programmable input and output |

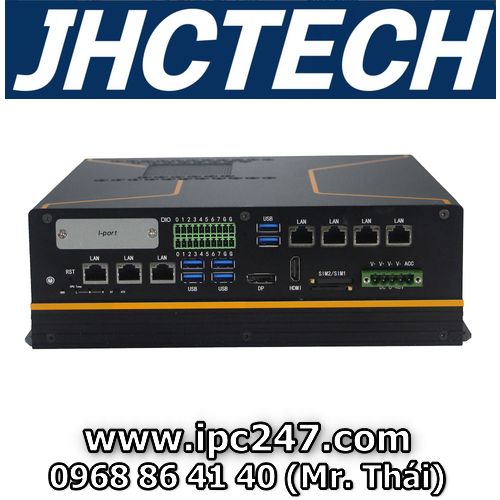

| I/O Ports | 7*RJ45 Gig-LAN(Front) |
| 6*USB3.0 Type A (Front); 2*USB 2.0 Type A(Rear) ,1*USB2.0 Type A(Inside) 16 bit DIO 2*10-pin terminal(Front) | |

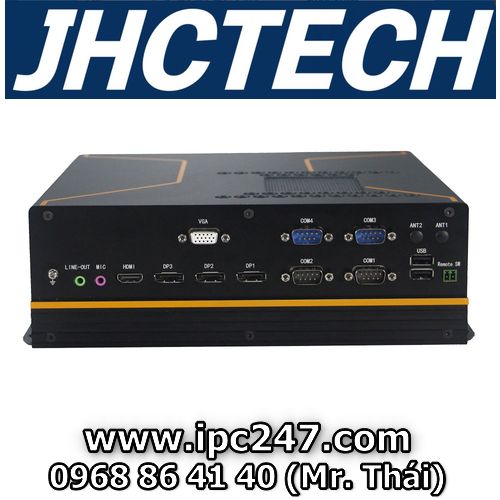

| 2*RS232/422/485 DB9(Rear), 2*RS232 DB9(Rear) | |
| 1*Audio-out and 1*MIC, 3.5mm phone jack(Rear) | |
| 1*HDMI +1*DP+1*VGA(Front); 3*DP+1*HDMI(Rear) | |
| LED | 1*Power LED, 1*HDD LED, 3*CPU term. LED（Red is warning , Yellow is high, Green is normal) |
| Control SW | 1*Power button (Front Rear), 1*Reset button(Front Rear),1*2pin ter. power-on signal(Rear), 1*AT/ATX select dip(Front) |
| Power Supply | DC 6~48V Input, 5-pin ter. connector(Front), with 24V/9.17A power adapter, Consumption: TBD |
| Watchdog Timer | Watchdog timeout programmable via software from 1 to 255 seconds |
| OS Support | Windows 7, Windows 10, Linux Fedora Ubuntu |
| Mechanical | |
| Structure | Aluminum and SGCC chassis |
| Color | Silver and Black |
| Mounting | Desktop mounting |
| Dimension | (W*H*D)：255*225.5*84mm |
| Weight | TBD |
| Environmental | |
| Operation temperature | -10°C～50°C – Fanless, 65W CPU+78W GPU |
| -10°C～40°C – Fanless, 91W CPU+120W GPU | |
| Storage temperature | -40°C ~ 85°C |
| Storage humidity | 10~90%@40°C, non-condensing |
| Vibration | 5 grms/5~500Hz/random/in working status(SSD); 1 grms/5~500Hz/random/in working status(HDD) |
| Shock | 50g peak acceleration(11ms duration)(SSD); 20g peak acceleration(11ms duration)(HDD） |
| EMC | CE /FCC Class A |
| Ordering info | |
| BRAV-7302/S002 | GPU Box Computer, Intel Skylake-S/Kabylake-S LGA1151 CPU, MXM3.1 GPU, 7*LAN, 6*USB3.0, 3*USB2.0, 4*COM,16 bit DIO, 1*M.2, |
| 1*Mini PCIe,2 *HDMI,4*DP,1*VGA, Audio, 1*I-port, 2*2.5″ SATA bay,1*mSATA, DC 6~48V | |
| NVIDIA GTX 1050TI | MXM3.1 Type A, NVIDIA GTX 1050TI, GDDR5 4GB, 128bit, 768 cuda cores |
| NVIDIA GTX 1070 | MXM3.1 Type B, NVIDIA GTX 1070, GDDR5 8GB, 256bit, 2048 cuda cores |
| AMD RX 480-4GB | MXM3.1 Type B, AMD RX 480, GDDR5 4GB, 256bit, 2304 cuda cores |
| PA-220DC24 | AC/DC power adapter, DC 24V/9.17A 220W |
| PA-120DC19 | AC/DC power adapter, DC 19V/6.32A 120W |
