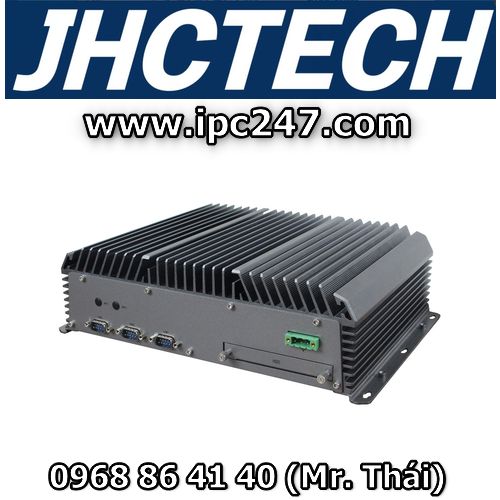

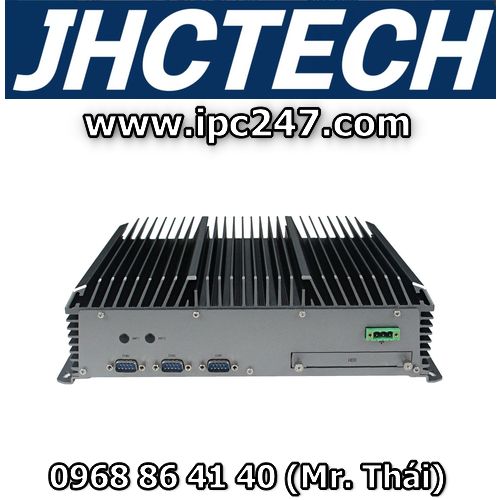

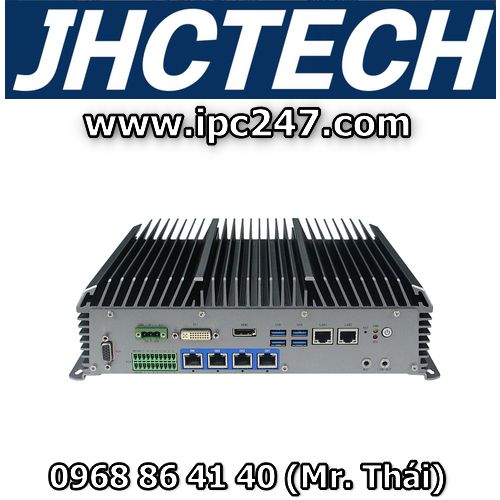

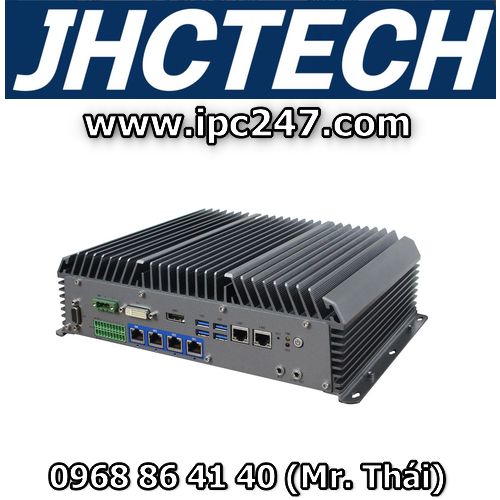

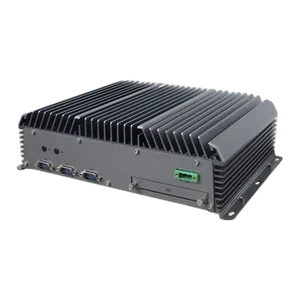

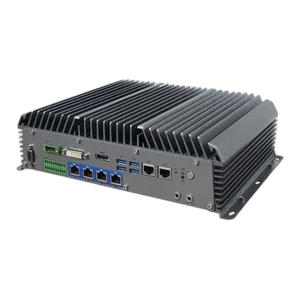

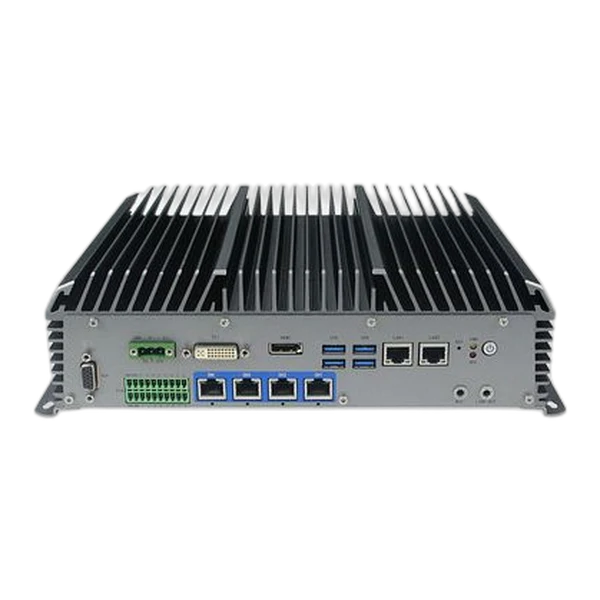

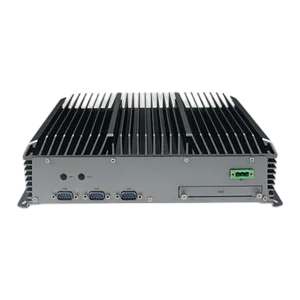

Máy tính công nghiệp không quạt KMDA-3601/T001
Feature:

- Aluminum chassis, fanless design
- Intel® Kabylake-S/Skylake-S Core I3/I5/I7 CPU
- 2*DDR4 1866/2133MHz SODIMM, Max 32GB
- 4*CH GbE PoE and 2*Gig LAN
- 1*DP, 1*HDMI and 1*VGA, Audio out and Mic
- 4*USB3.0, 5*USB2.0, 4*COM, 16bit Isolated DIO
- 1*Mini PCIe(PCIe+USB),1*Mini PCIe(SATA+USB)
- 2*2.5″ SATA3 HDD Bay, 1*mSATA
- DC 9~36V Wide Power Input
Specifications:
System | |
CPU | 6th Gen. Intel Skylake-S Core I3/I5/I7 CPU, LGA 1151 socket, TDP 35W Fanless, TDP 65W Fan Cooling |
7th Gen. Intel ® Kabylake-S Core I3/I5/I7 CPU, LGA 1151 socket, TDP 35W Fanless, TDP 65W Fan Cooling | |
RAM | 2*260-Pin SODIMM, daul channel DDR4 1866/2133MHz, Max 32GB |
Expansion | 1*full size Mini PCIe with PCIe X1+USB signal; 1*haif size Mini PCIe with USB+SATA3 signal |
Graphics | Intel ® Gen. 9 HD Graphics, DP resolution up to 4096*2304@60Hz, HDMI resolution up to 4096*2160@24Hz; |
VGA resolution up to 1920*1200@60Hz. OpenGL 5.0, DirectX 12, OpenCL 2.1, HEVC/H265 HD de/encode | |
Audio | Realtek ALC888S-VD2-G high definition, Audio out and Mic |
LAN | 1* Intel ® I211AT PCIe Gigabit Ethernet and 1*Intel I219V with iAMT11.0 PCIe Gigabit Ethernet |
Storage | 2*2.5″HDD SATA3 Bay(One is remove able docking bay) , 1*mSATA, integrated AHCI controller |
I/O Ports | 2*RJ45 LAN+4*RJ45 PoE ( Rear ); Optioal 2 or 6 * RJ45 LAN ( Rear ) |
1*HDMI+1*DP+1*VGA(Rear); 1*Audio out and Mic 3.5mm phone jack(Rear) | |
4*USB3.0 Type A and 2*USB2.0 Type A( Rear ), 2 *USB2.0 Type A(Front Rear), 1*USB2.0 Type A(Insyde) | |
4*RS232/422/485 DB9 male(Front Rear) | |
16 bit DIO 20-pin terminal(Rear); 8 bit DI 10-pin terminal+8 bit DO 10-pin terminal(Rear) | |
1*4-pin terminal fan connecter (Rear) | |
LED | 1*Power LED, 1*HDD LED (Front Rear) |
Control SW | 1*Power button (Front Rear), 1*Reset button(Front Rear) |
Power Supply | DC 9~36V input, 3-pin terminal connector; Power consumption: TBD |
Watchdog Timer | Watchdog timeout programmable via software from 1 to 255 seconds |
OS Support | Windows 7, Windows 10, Linux Fedora Ubuntu |
Mechanical | |
Structure | Aluminum and SGCC chassis |
Color | Silver |
Mounting | Desktop mounting |
Dimension | 284*221.4*83.2mm |
Weight | TBD |
Environmental | |
Operation temperature | -20°C ~ 65°C – Fanless with 35W CPU + wide operating temperature SSD |
-10°C ~ 40°C – Fan l ess with 54-65W CPU +HDD; -10°C ~ 55 °C – Fan cooling with 54-65W CPU +HDD | |
Storage temperature | -40°C ~ 85°C |
Storage humidity | 10~90%@40°C, non-condensing |
Vibration | 5 grms/5~500Hz/random/in working status(SSD); 1 grms/5~500Hz/random/in working status(HDD) |
Shock | 50g peak acceleration(11ms duration)(SSD); 20g peak acceleration(11ms duration)(HDD) |
EMC | CE /FCC Class A |
Ordering info | |
KMDA-3601/T001 | Fanless Embedded Box Computer, Intel ® Skylake-S/Kabylake-S Core I3/I5/I7 LGA1151 CPU, 2*LAN, 4*PoE, 4*USB3.0, 5*USB2.0, 4*COM, 16bit Iso. DIO, 2*Mini PCIe, 1*HDMI+DP+VGA, Audio,1*I-port,2*2.5″ HDD Bay, DC 9~36V |
Fan-8038DC12 | Fan 80*80*38mm, DC12V/200mA |
PA-60DC12 | AC/DC power adapter, DC19V/9.47A 180W |
