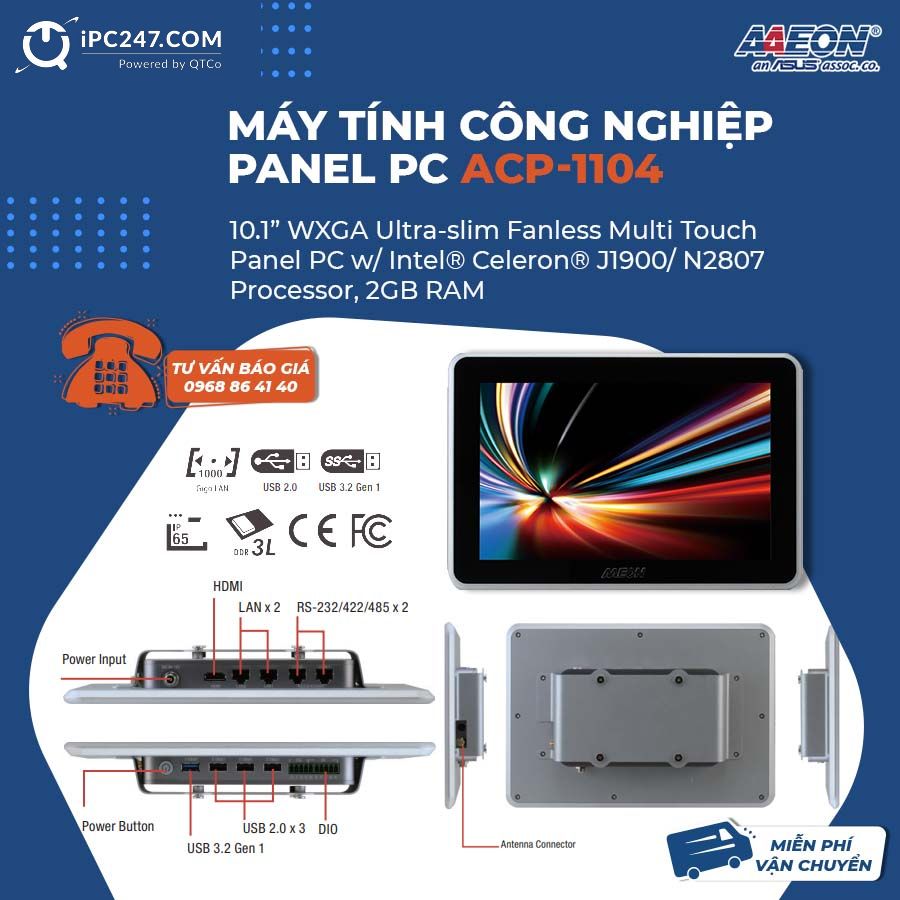

Máy tính công nghiệp Panel PC ACP-1104
Overview
The 10.1″ ACP-1104 continues to feature a projected capacitive touchscreen with a 7H scratchproof glass and an ultra-slim profile that is proved to be popular among users of its predecessor, the ACP-1103. However, though physically similar, the ACP-1104 is powered by the advanced quad-core J1900 processor by Intel, effectively boosting its general performance and also broadening its usuable OS.
Additional features such as more LAN ports for system redundancy and Digital I/Os make the panel an ideal choice for applications in factory automation and monitoring, machine vision, and the burgeoning IoT solutions.
Features
- 10.1″ WXGA (1280 x 800) Color TFT LCD Display
- Intel® Celeron® J1900/ N2807 Processor
- Aluminum Design
- P-CAP Multi-touch (2-point)
- Fanless Operation
- VESA 75/ Panel Mount/ Stand Support
- IP65 Compliant Front Beze
Specifications [ACP-1104]
| SYSTEM | |
| PROCESSOR | Intel® J1900 processor, 2 GHz Intel® N2807 processor, 1.58 GHz |
| SYSTEM MEMORY | 204-pin DDR3L 1333MHz SODIMM x 1, default 2 GB, up to 8 GB (J1900) 204-pin DDR3L 1333MHz SODIMM x 1, default 2 GB, up to 4 GB (N2807) |
| LCD/CRT CONTROLLER | — |
| ETHERNET | 10/100/1000Base-TX, RJ-45 x 2 |

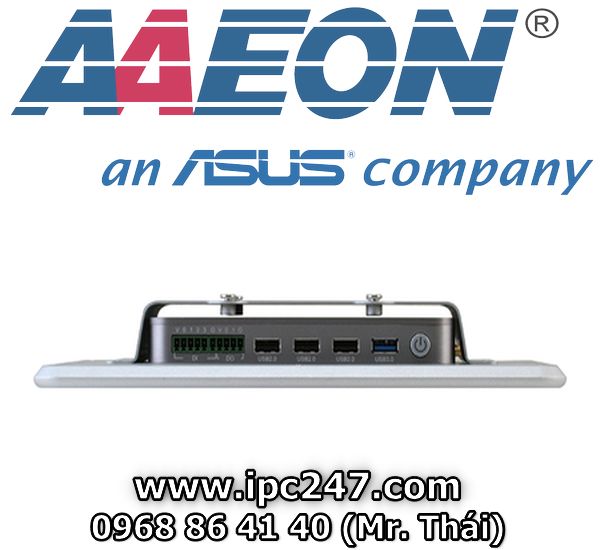

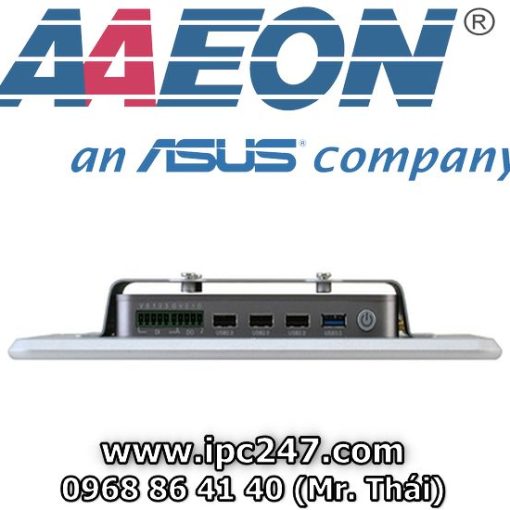

| I/O PORT | RS-232/422/485 x 2 ( RJ-45 connector ) USB 2.0 type A x 3 USB 3.0 type A x 1 HDMI x 1 DI/O (4 DI, 2 DO) BIOS selection Power button x 1 Lockable power connector x 1 |
| STORAGE DISK DRIVE | Half size mSATA x 1 (Installation by AAEON recommeded) |
| EXPANSION SLOT | Full size Mini-Card x 1 |
| OS SUPPORT | Window® 7, Window® 8.1, Linux kernel 2.6.3 or above, Android 4.4.4 |
| MECHANICAL | |
| CONSTRUCTION | Aluminum Design |
| MOUNTING | VESA 75/ Panel mount/ Stand |
| DIMENSION | 10.47” x 7.22” x 1.81” (266 x 183.5 x 30mm) |
| CARTON DIMENSION | 13.58” x 7.87” x 9.65” (345 x 200 x 245mm) |
| GROSS WEIGHT | 5.5 lb (2.5 kg) |
| NET WEIGHT | — |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | 32°F ~ 113°F (0°C ~ 45°C) without airflow 32°F ~ 122°F (0°C ~ 50°C) with airflow |
| STORAGE TEMPERATURE | -4°F ~ 158°F (-20°C ~ 70°C) |
| STORAGE HUMIDITY | 5%~90% @40°C, non-condensing |
| VIBRATION | 1 Grms/ 5~ 500Hz/ operation – with HDD |
| SHOCK | 15 G peak acceleration (11 msec. duration) – with HDD |
| EMC | CE/FCC class A |
| POWER SUPPLY | |

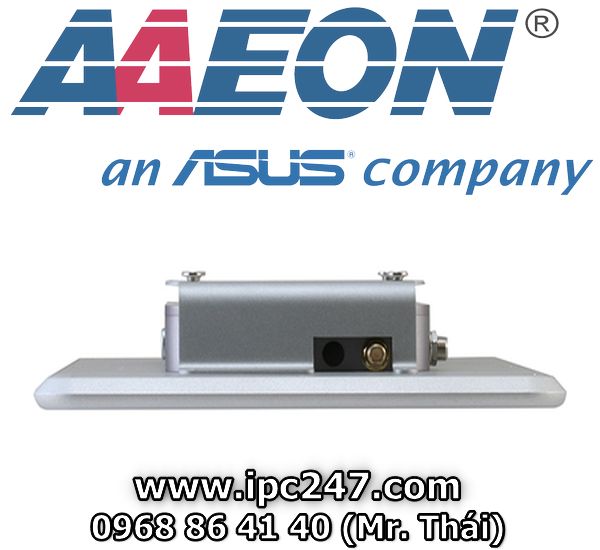

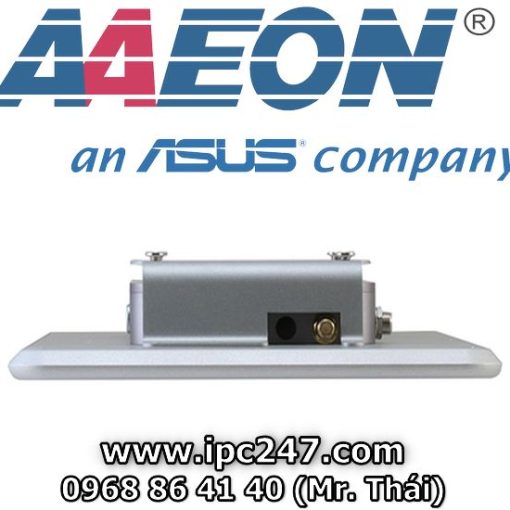

| DC INPUT | DC 12V with lockable power adapter |
| LCD | |
| DISPLAY TYPE | 10.1″ TFT-LCD, LED |
| MAX. RESOLUTION | 1280 x 800 |
| MAX. COLORS | 262k |
| LUMINANCE | 250 cd/m2 |
| VIEWING ANGLE | 160°(H), 160°(V) |
| BACK LIGHT | LED |
| BACK LIGHT MTBF (HOURS) | — |
| TOUCHSCREEN | |
| TYPE | Projected capacitive multi-touch (2-point) |
| LIGHT TRANSMISSION | — |
Ordering Information [ACP-1104]
| PART NUMBER | ACP-1104HTT-A1-1011 | ACP-1104HTT-A3-1011 | ACP-1104HTT-B1-1011 | ACP-1104HTT-B3-1011 |
|---|---|---|---|---|
| DISPLAY TYPE | 10.1″ TFT- LCD | 10.1″ TFT- LCD | 10.1″ TFT- LCD | 10.1″ TFT- LCD |
| MAX. RESOLUTION | 1280 x 800 | 1280 x 800 | 1280 x 800 | 1280 x 800 |
| LUMINANCE | 2 | 2 | 2 | 2 |
| VIEW ANGLE | 160(H), 160V | 160(H), 160V | 160(H), 160V | 160(H), 160V |
| BACKLIGHT MTBF | 20,000 | 20,000 | 20,000 | 20,000 |
| CPU | Intel® Celeron® J1900, 2.0 GHz |
Intel® Celeron® N2807, 1.58 GHz |
Intel® Celeron® J1900, 2.0 GHz |
Intel® Celeron® N2807, 1.58 GHz |
| LAN | 2 | 2 | 2 | 2 |
| USB | USB 3.0x 1, USB 2.0 x 3 | USB 3.0 x 1, USB 2.0 x 3 | USB 3.0 x 1, USB 2.0 x 3 | USB 3.0 x 1, USB 2.0 x 3 |
| RS- 232 | — | — | — | — |
| RS- 232/422/485 | 2 | 2 | 2 | 2 |
| STORAGE | Half size mSATA HDD | Half size mSATA HDD | Half size mSATA HDD | Half size mSATA HDD |
| RAM | 2GB | 2GB | 2GB | 2GB |
| DISPLAY | HDMI x 1 | HDMI x 1 | HDMI x 1 | HDMI x 1 |
| EXPANSION | — | — | WiFi | WiFi |
| MOUNTING | VESA 75/ Stand | VESA 75/ Stand | VESA 75/ Stand | VESA 75/ Stand |
| POWER | DC 12V | DC 12V | DC 12V | DC 12V |
| TEMP. | 32°F ~ 113°F (0°C ~ 45°C) (mSATA, w/o airflow ) 32°F ~ 122°F (0°C ~ 50°C) ( mSATA, w/ airflow ) |
32°F ~ 113°F (0°C ~ 45°C) (mSATA, w/o airflow ) 32°F ~ 122°F (0°C ~ 50°C) ( mSATA, w/ airflow ) |
32°F ~ 113°F (0°C ~ 45°C) (mSATA, w/o airflow ) 32°F ~ 122°F (0°C ~ 50°C) ( mSATA, w/ airflow ) |
32°F ~ 113°F (0°C ~ 45°C) (mSATA, w/o airflow ) 32°F ~ 122°F (0°C ~ 50°C) ( mSATA, w/ airflow ) |
| TOUCH | Projective capacitive touch (2-point) | Projected capacitive touch (2-point) | Projected capacitive touch (2-point) | Projected capacitive touch (2-point) |
Chính sách bán hàng
- Bảo hành 24 tháng
- Miễn phí dịch vụ lắp đặt, tư vấn sử dụng tại Tp. Hồ Chí Minh
- Miễn phí dịch vụ bảo trì on-site trong vòng 1 năm tại Tp. Hồ Chí Minh (không bao gồm các huyện ngoại thành). Phản hồi trong vòng 24 tiếng kể từ khi nhận được thông báo.
- Dịch vụ lắp đặt, bảo trì on-site tại các tỉnh thành khác vui lòng liên hệ để được báo giá.
