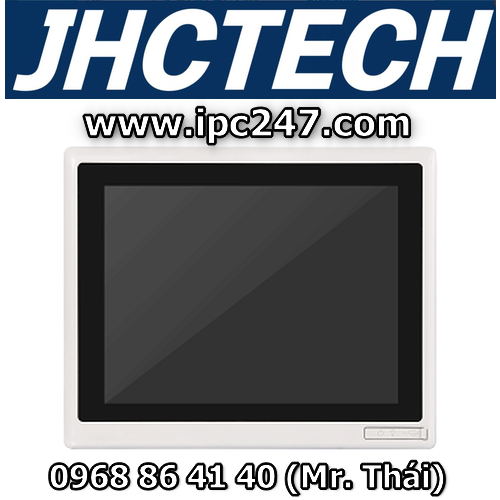

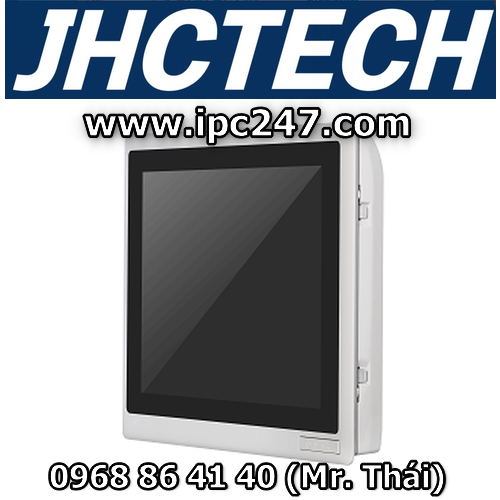

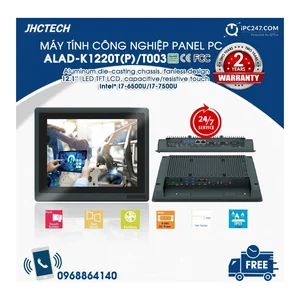

Máy tính công nghiệp Panel PC ALAD-K1220T(P)/ T003
Đặc điểm
- Khung nhôm đúc, thiết kế không quạt
- Màn hình LCD TFT 21,5″, cảm ứng điện dung
- CPU Intel® Skylake-U Core I3/I5/I7
- 1* DDR4 2133 SODIMM tối đa 16GB
- 1* Mini PCIe (PCIe + USB hoặc mSATA)
- 4* COM, 2* LAN, 4* USB3.0, 1* USB2.0
- HDD 2,5”, 1* M.2
- Nút ATX & nút điều khiển từ xa
- Đầu vào nguồn DC 9~36V

Thông số kỹ thuật
System | |||
CPU | Intel Skylake Core I7-6500U 2.3GHz, 2C4T, TDP 15W | ||
Chipset | Intel SOC | ||
System Memory | 1*DDR4 2133 MHz SODIMM Max 16GB | ||
BIOS | Insyde SPI 64Mbit Flash | ||
Storage | 1*2.5′ SATA HDD bay, support SATA3.0 6Gbps HDD/SSD, 1*M.2 (2242 B-Key) | ||
Display | 12.1″ LED bright TFT LCD and HDMI( , dual display, Intel HD Graphics | ||
Touch | projected capacitive touch,USB control | ||
Expansion | 1*Mini PCIe(PCIe&USB signal) | ||

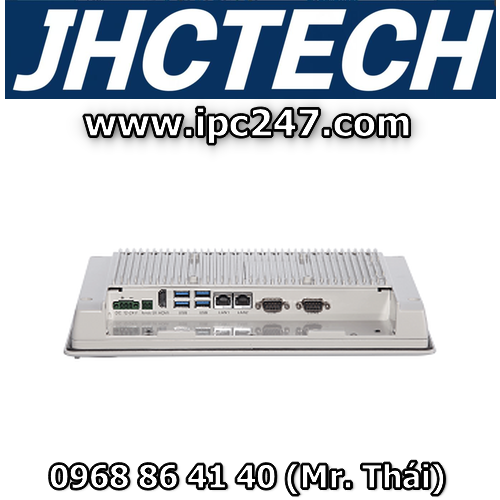

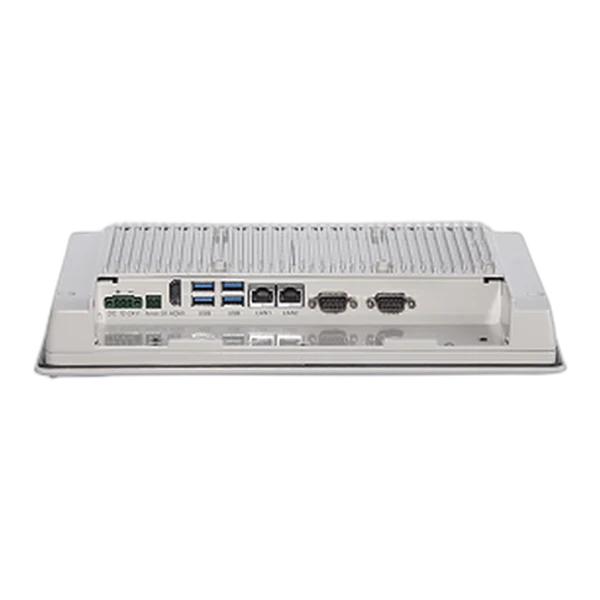

Real I/O | 2*COM: 2*RS232/422/485, DB9,4*USB3.0 Type A,1*HDMI,2*RJ45 | ||
Front I/O | 1*USB2.0 Type A | ||
LAN | Intel I211AT Chip, 10/100/1000 Mbps | ||
Control SW | Power button, 2-pin connecter with power switch signal | ||
Power Supply | DC to DC: 9~36V input, consumption: TDP 12V/2.75A | ||
OS Supply | Windows 7, Windows 8.1, Windows 10, Linux | ||
Mechanical & Environmental | |||

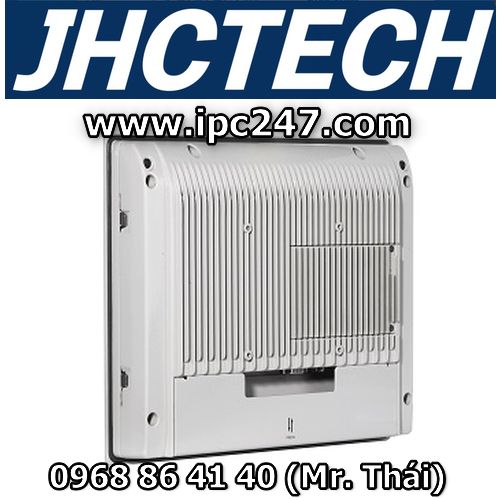

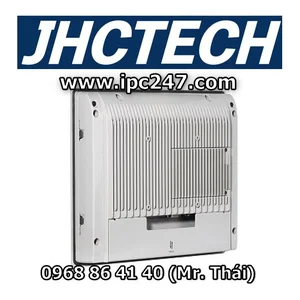

Construction | Aluminum die-casting front bezel and chassis, fin-shaped radiator shell | ||
Operating Temperature | 0~50℃ -HDD(-10~55℃ -SSD ), with airflow | ||
Storage Temperature | -20~60 ℃ | ||
Operating Humidity | 10~95%@40 ℃, non-condensing | ||
Shock | 10g peak acceleration(duration 11ms), in operating with HDD | ||
Vibration | 1g 5~500Hz in operating with HDD | ||
Mounting | Panel mounting, VESA 100*100 | ||
Dimension | (W*H*D): 315*259*51mm; mounting cut out(W*H): 303*247mm | ||
Net Weight | 2.8kg | ||
EMC | CE, FCC Class A | ||
LCD | |||
Type | 12.1″ TFT LED | ||
Resolution | 1024*768 | ||
Color | 16.2M colors | ||
Pixel Pitch(mm) | 0.240*0.240 | ||
Brightness(cd/m2) | 500 | ||
Viewing Angle | 80 Degree(left), 80 Degree(right), 70 Degree(up), 70 Degree(down) | ||
Operating Temperature | -30~70℃ | ||
Backlight Lifetime | 50, 000 Hours | ||
Touch | |||
Type | projected capacitive touch | ||
Resolution | gapless | ||
Light Transmittance | 90% | ||
Interface | USB | ||
Consumption | +5V @ 300mA | ||
OS | Windows/Linux | ||
Click Lifetime | 3 billion times | ||
Ordering information | |||
NO. | CPU | TOUCH | Industry panel computer,12.1′ TFT LCD, HDMI, 2*COM(2*RS232/422/485), 5*USB, 2*LAN, 1*Mini PCIe, 2*3W speaker, 1*2.5′ SATA Bay, 1*M.2, DC 9~36 power input. |
ALAD-K1220T/ T001 | Intel Core I3-6100U | projected capacitive touch | |
ALAD-K1220T/ T002 | Intel Core I5-6200U | projected capacitive touch | |
ALAD-K1220T/ T003 | Intel Core I7-6500U | projected capacitive touch | |
ALAD-K1220T/ T004 | Intel Celeron 3855U | projected capacitive touch |
Chính sách bán hàng
- Bảo hành 24 tháng
- Miễn phí vận chuyển toàn quốc
- Miễn phí dịch vụ lắp đặt, tư vấn sử dụng tại Tp. Hồ Chí Minh
- Miễn phí dịch vụ bảo trì on-site trong vòng 1 năm tại Tp. Hồ Chí Minh (không bao gồm các huyện ngoại thành). Phản hồi trong vòng 24 tiếng kể từ khi nhận được thông báo.
- Dịch vụ lắp đặt, bảo trì on-site tại các tỉnh thành khác vui lòng liên hệ để được báo giá.
