Thiết bị mạng Rackmount (FWS-7360)
- 1U Rackmount 7 LAN Network Appliance with Intel® Atom™ C3758 SoC Processor
Overview
The AAEON FWS-7360 is a 1U enterprise-grade network appliance powered by the Intel Atom C3000 processor series. This high-grade CPU offers Intel QuickAssist Technology (QAT), giving users access to some of the most powerful cryptographic software on the market. Thanks to a unique design feature, the device has two channels with an inbuilt capability to serve as either Mini PCIe slots or 1G LAN ports. The FWS-7360 also boasts DDR4 memory and a range of storage and expansion options, meaning it has both the capacity and the flexibility you need from your next network solution.

SDN/NFV/vCPE Suitable
-Designed with SDN, NFV, and vCPE application in mind
-Its WiFi and 4G LTE capabilities mean it serves employees working without a wired connection.
Onboard Fiber Optic Ports
-The FWS-7360 features built-in 10GbE SFP+ fiber cable ports.
-The ports are connected directly to the CPU, so users have additional expansion slots.
16-Core Processors
-The FWS-7360 can call on up to 16 processing cores, removing the danger of bottlenecks.
-The advanced CPU also reduces the risk of cyber attacks and data loss.
Dual Mini PCIe/LAN Capabilities
-2 ports with both LAN and Mini PCIe functionality
-AAEON can deliver the setup buyers prefer without delays for system redesigns.
-The FWS-7360 is the only rackmount network appliance with this NFV-specific feature.
Features
- Intel® Atom™ C3758 SoC Processor, Optional Support up to 16 Core
- DDR4 Slot x 4, Support UDIMM/ECC, up to 64GB
- 5 Copper (2 From 88E1543/ 3 From Intel® I211)
- 2 10Gb SFP+ (From CPU)
- Onboard 2 Pairs Bypass
- Mini-Card Socket (Full-Size) x 1, Mini-Card Socket (Full-Size) with SIM Socket x 1 (Optional)
- Internal 2.5” SATA HDD x 2
- LCM with Keypad x 1, RJ-45 Console x 1, USB 3.2 Gen 1 x 2
- 100W Flex ATX PSU
- TPM (Optional)
Specifications [FWS-7360]
PLATFORM | |
FORM FACTOR | 1U Rackmount Network Platform |
PROCESSOR | Intel® C3758 processor SoC, optional support up to 16 core |
CHIPSET | SoC |
SYSTEM MEMORY | DDR4/1866/2133/2400 ECC Up to 64GB 218-pin DIMM/RDIMM X4 |
NETWORK | |
ETHERNET | Intel®X553 RJ45 x 2, Intel® i211 GbE x 3, SFP+ x 2 from CPU |
BYPASS | Onboard 2 pairs bypass, others depend on NIM module |
NIM SLOT | 1 |
DISPLAY | |
GRAPHICS CONTROLLER | — |
CONNECTOR | — |
STORAGE | |
HDD | 2.5” HDD Bay x 2 |
CF/CFAST/MSATA | Default SATA III port x 2 (MSATA Slot X 2 Optional) |
EXPANSION/INTERNAL INTERFACE | |
PCIE SLOT | PCIe [x8] slot x 1, cannot use w/ NIM |
MINI-CARD | Default Mini-Card socket (full-size) x1 (Mini-Card socket (full-size) with SIM socket x 1 Optional) |
IPMI | — |
KB MOUSE | — |
USB | USB 3.2 Gen 1 x 2 |
MISCELLANEOUS | |
RTC | Internal RTC |
WATCHDOG TIMER | 1~255 steps by software programmable |
SOFTWARE BUTTON | GPIO Programmable Button x 1 |
TPM | Optional TPM v1.2 / TPM v2.0 |
GPIO | 4 bits input, 4 bits output |
FAN | System Fan x 1 |
MTBF (HOURS) | 142,412 |
COLOR | Black |
PHYSICAL & ENVIRONMENTAL SPEC | |
POWER REQUIREMENT | 100W Flex ATX PSU |
OPERATING TEMPERATURE | 32°F ~ 104°F (0°C ~ 40°C) |
STORAGE TEMPERATURE | -4°F ~ 140°F (-20°C ~ 60°C) |
OPERATING HUMIDITY | 10%~80% relative humidity, non-condensing |
STORAGE HUMIDITY | 10%~80% @40°C; non-condensing |
VIBRATION | 0.5 Grms/ 5 ~ 500Hz/ operation (2.5” HDD) 1.5 Grms/ 5 ~ 500Hz/ non operation |
SHOCK | 10G peak acceleration (11 m sec. duration), operation 20G peak acceleration (11 m sec. duration), non operation |
DIMENSION (W X D X H) | 16.93” x 12.01” x 1.73” (430mm x 305mm x 44mm) |
I/O INTERFACE | |

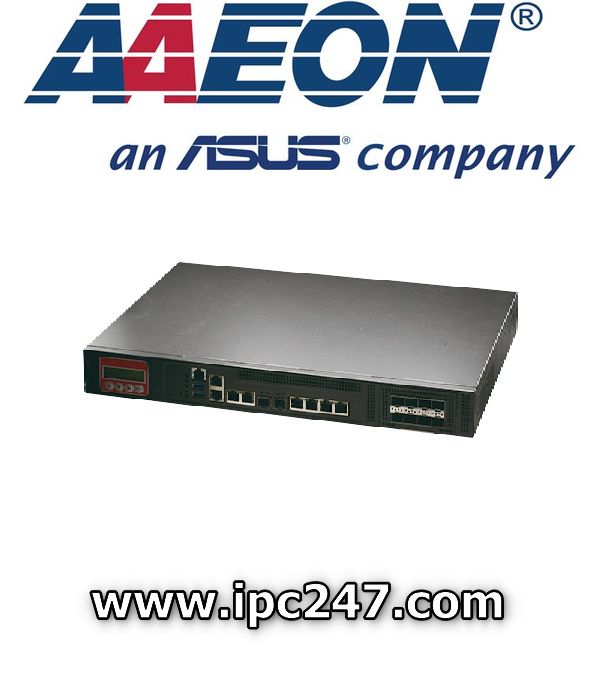

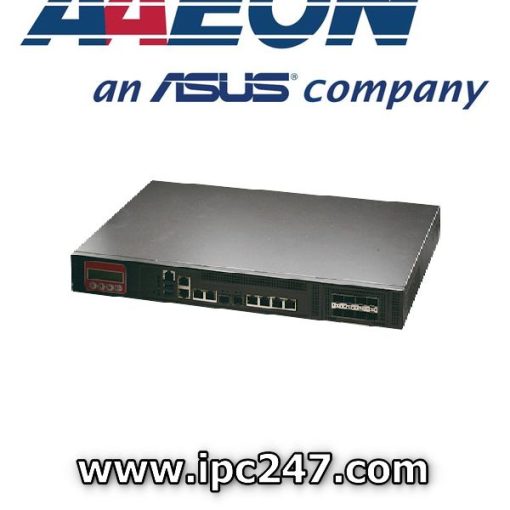

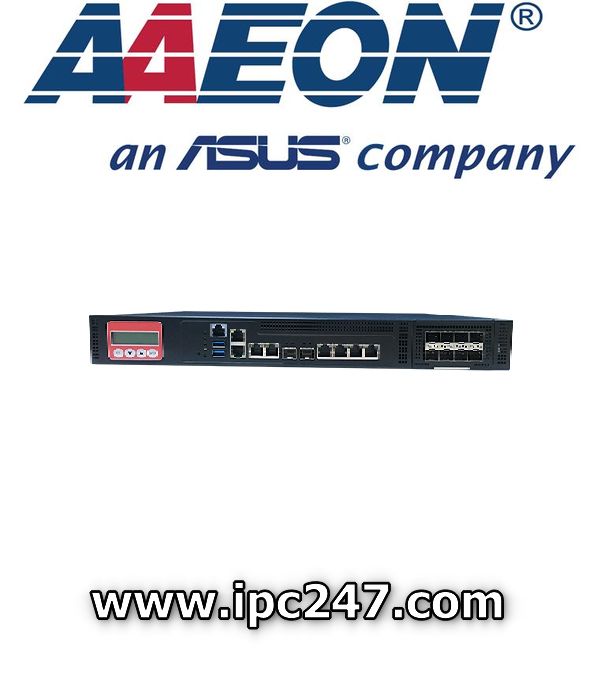

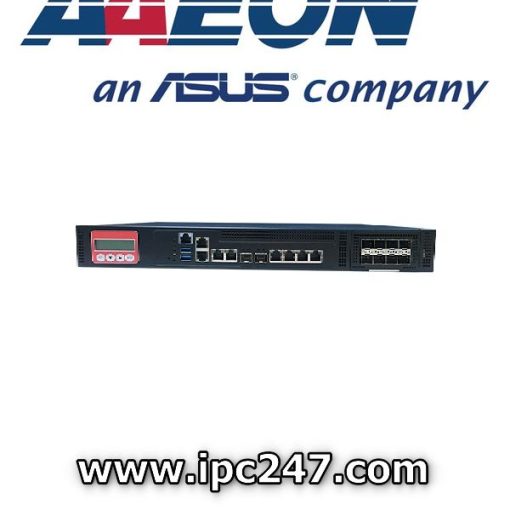

FRONT PANEL | SFP+ with LED x 2 RJ45 Ethernet Port with LED x 5 USB 3.2 Gen 1 x 2 RJ45 Console x 1 Software Programmable Button x 1 Parallel LCM Display and 4 Keypad x 1 LED for Power/HDD/ Status/ Bypass x 5 NIM Slot x 1 Bypass LED x 2 Power LED x1 HDD LED x1 Status LED x1 |

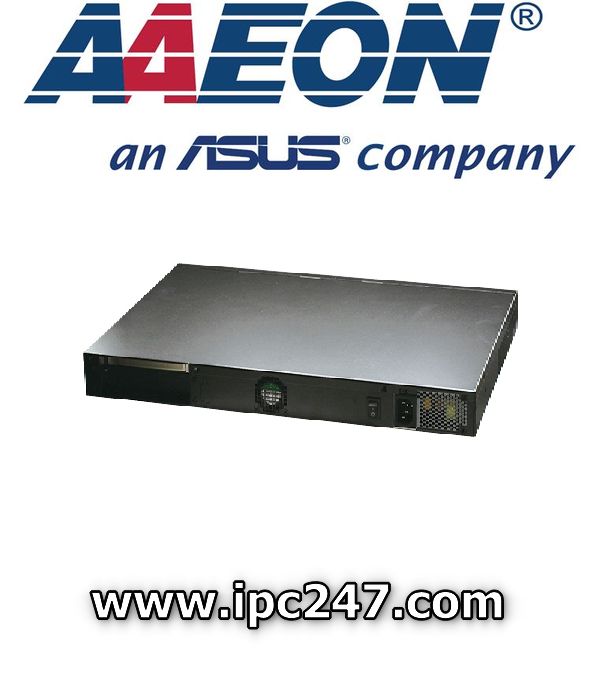

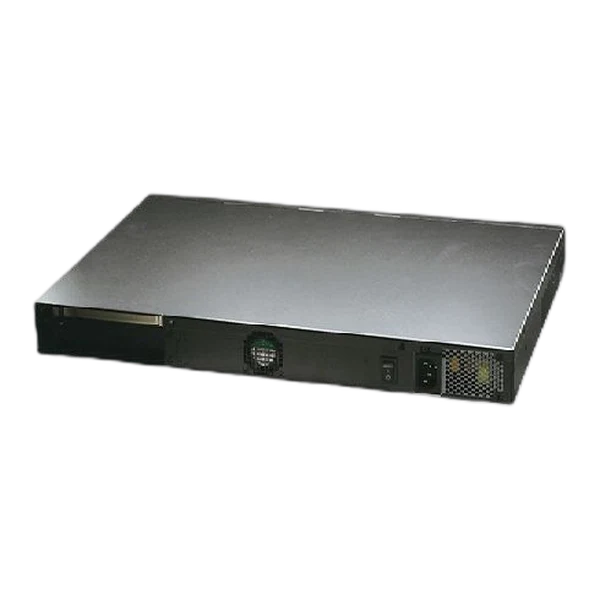

REAR PANEL | Power Switch x 1 AC Power Input x 1 Rear Expansion Slot x 1 |
Ordering Information [FWS-7360]
PART NUMBER | FWS-7360E7-A10-000 |
---|---|
CPU | Intel® Atom® C3758 |
MEMORY | DDR4 UDIMM/ECC slot x 4 |
MINI-CARD SLOT | Full Size x 1 (PCIe + USB) |
STORAGE | 2.5” HDD Bay x 2 |
LAN | RJ45 x 5, SFP+ x 2 |
USB | USB 3.2 Gen 1 x 2 |
CONSOLE | RJ-45 x 1 |
BYPASS | 2 pairs onboard |
NIM SLOT | 1 (Note 1) |
EXPANSION SLOT | 1 (Note 2) |
TPM | — |
DISPLAY | — |
Downloads [FWS-7360]
Packing List
- Console Cable
- Ear Brackets
- FWS-7360
Optional Accessories
M02666600 | Slide x 2, for Rackmount Usage |
1702031803 | Power Cord, 3P-250V/10A, 180D, 1.8M, VDE, YP22/ YP12 |
1702031802 | Power Cord, 3P-250V/10A, 180D, 1.8M, USA, YP22/ YP12 |
170203180E | Power Cord, 3P-25V/7A, 180D, 1.8M, PSE, YP12/YP12 |
PER-R40X | NIM LAN Module Riser Card |
NIM-S26C-A10-T40-0002 | Intel® Fortville XL710 PCI-Express 10G SFP+ 4 Ports Module for FWS-7821 |
NIM-S26B-A10-F20-0002 | Intel® Fortville XL710 PCI-Express 40G QSFP 2 Ports Module for FWS-7821 |
NIM-S13B-A10-G80-0002 | Intel® 82580EB PCI-Express 1G SFP 8 Ports Module for FWS-7820 |
NIM-S13D-A10-G40-0002 | Intel® 82580EB PCI-Express 1G SFP 4 Ports Module for FWS-7820/7821 |
NIM-C13B-A10-G82-0001 | Intel® 82580EB PCI-Express 1G Copper Ethernet 8 Ports Module for FWS-7821 w/ 2Pair bypass |
NIM-C13D-A10-G42-0002 | Intel® 82580EB PCI-Express 1G Copper Ethernet 4 Ports Module for FWS-7821 w/ 2Pair bypass |
NIM-S13E-A10-G82-0002 | LAN Module, Intel® 82580EB, 8 x 1GbE SFP, 2 Bypass, FWS-7820/7821, Rev. A.1.0 |
