Overview

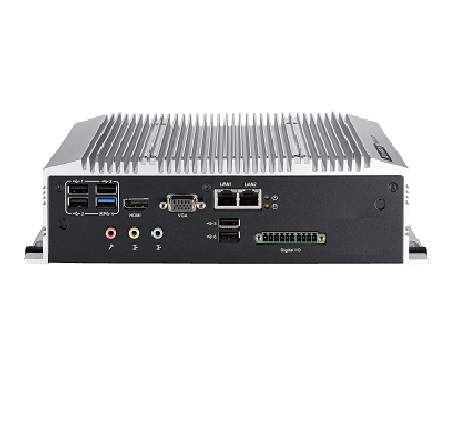

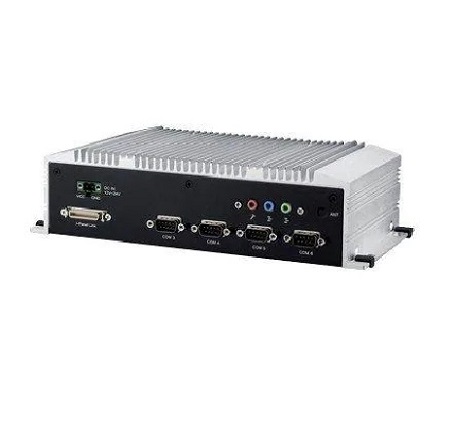

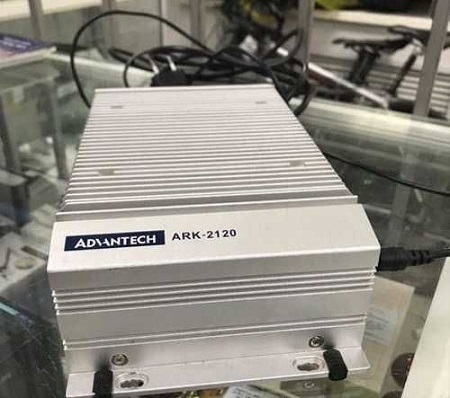

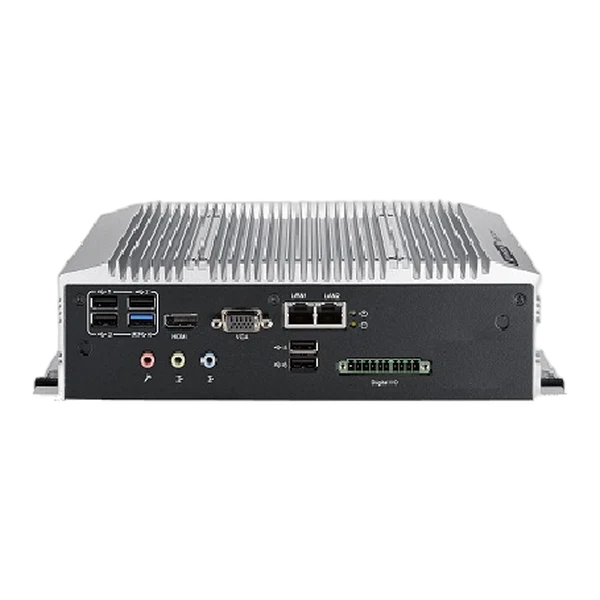

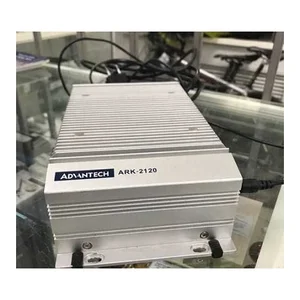

Intel® Atom™ Dual Core D2550 with 3 GbE, 6 COM & Wide Range Power Fanless Box PC
Features
- Intel® Atom™ Dual Core D2550 1.86 GHz, DDR3 memory supports up to 4 GB
- VGA, HDMI, 48-bit LVDS, support dual independent display and DirectX 9
- Mini PCIe expansion with SIM holder for communication module, i.e. HSDPA, WLAN
- Supports up to 3 x GbE, 5 x USB 2.0 and 6 x COMs ports
- Supports external CFast socket and 1 x 2.5″ SATA HDD Bay
- Supports 12 ~ 24V wide range DC input
- Lockable DC jack design
- Supports iManager, SUSIAccess and Embedded Software APIs
- Phase out, last order date: March 31, 2018
Specifications [ARK-2250L]
Part Number
|
ARK-2120F-S8A1E |
Processor | |
CPU
|
Intel Atom D2550
|
Frequency |
1.86 GHz (Dual Core)
|
L2 Cache |
1 MB
|
System Chipset | D2550 + Intel NM10 |
BIOS |
ARK-2120F-S8A1E
|
Memory
|
|
Technology
|
DDR3 1066 MHz (D2550)
|
Max. Capacity |
4 GB
|
Socket |
1 x 204-pin SO-DIMM
|
Graphics
|
|
Chipset
|
Intel Atom D2550
|
Graphic Engine |
DirectX 9 and OpenGL3.0 support
Hardware decode H/W acceleration: MPEG2 H/W Decode/Acceleration: H.264/VC1/WMV9 |
VGA |
Up to 1920 x 1200
|
HDMI |
Supports 1920 x 1200, Max data rate: up to 1.65 Gb/s, Supports HDMI v1.3 Up to 1080p support
|
LVDS |
Supports 48-bit LVDS, up to 2560 x 1600 (D2550)
|
Dual Display |
Yes, (VGA + HDMI, VGA + LVDS, HDMI + LVDS)
|
Ethernet
|
|
LAN1
|
10/100/1000 Mbps Intel 82583V GbE, support Wake On Lan |
LAN2 | 10/100/1000 Mbps Intel 82583V GbE, support Wake On Lan |
LAN3 | 10/100/1000 Mbps Intel 82583V GbE, support Wake On Lan |
Audio | |
Interface
|
Realtek ALC892, High Definition Audio. Line-out, Mic-in, Line-in
|
I/O Interface
|
|
Serial Port
|
2 x RS-232 ports, 4 x RS-232/422/485 port with auto flow control (by BIOS setting)
|
USB Interface |
5 x USB ports, USB 2.0 Compliant
|
Other
|
|
Digital IO | 8-bit |
Watchdog Timer | 255 levels timer interval, setup by software |
Expansion | |
Mini PCIe
|
1 x full size Mini PCIe with SIM holder
|
Storage
|
|
HDD
|
Supports one SATA 2.5″ SATA HDD Bay (Compatible with 12.5mm height HDD) (Max. Data Transfer Rate 300 MB/s)
|
SSD |
Supports one external CFast socket
|
Software Support
|
|
Microsoft Windows
|
Windows 7 32bit, Windows 7 Embedded 32bit (XP Professional & XP Embedded support by project)
|
Power
|
|
Power Type
|
AT/ATX
|
Input Voltage |
12 VDC ~ 24 VDC
|
Minimum Power Input |
12 V ~ 24 V, 3.0 A ~ 1.5 A
|
Power Adaptor |
AC to DC, DC19 V/4.73A, 90 W (Optional)
|
Consumption | |
Typical
|
9.2 Watt (with Intel Atom D2550 at 1.8 GHz)
|
Max
|
11.59 Watt (with Intel Atom D2550 at 1.8 GHz)
|
Mechanica | |
Construction | Aluminum housing |
Mounting |
Din-Rail mounting, Desk/wall-mounting, VESA mounting
|
Dimensions (W x H x D) |
264.50 x 68.39 x 133.0 mm (10.41″ x 2.69″ x 5.24″)
|
Weight | 2.5 kg (5.51 lb) |
Environment
|
|
Operating Temperature
|
With extended temperature peripherals: -20 ~ 60° C (-4 ~ 140° F) with air flow With 2.5-inch hard disk 0 ~ 45° C (32 ~ 112° F) with air flow |
Storage Temperature | – 40 ~ 85° C ( -40 ~ 185° F) |
Relative Humidity | 95% @ 40° C (non-condensing) |
Vibration during Operation | With SSD: 5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis. |
Shock During Operation | With SSD: 50 G, IEC 60068-2-27, half sine, 11 ms duration |
EMC | CE/FCC Class A, CCC, BSMI |
Safety Certifications | UL, CCC, BSMI |
