Máy tính công nghiệp không quạt KMDA-2602/S002
Feature:

- Compact Aluminum Chassis, Fanless Design Intel Baytrail Celeron J1900 2.0-2.42G CPU
- 1*DDR3L 1333 MHz SODIMM , Up to 8GB
- 4*Intel I210-AT PCIe Gig. LAN
- 1*HDMI and 1*VGA, Audio Line out
- 1*USB3.0, 6*USB2.0,6*COM, 8 bit DIO
- 1*Mini PCIe(PCIe+USB),1*Mini PCIe(SATA+USB) 1*2.5″ SATA3 Bay and 1*mSATA
- DC 9~36V Wide Power Input
Specifications
System | |
---|---|
CPU | Intel Baytrail-D Celeron J1900 , 2.0~2.42GHz, 4cores, 4threads, 2M cache, 22nm, TDP 10W |
RAM | 1*DDR3L 1333MHz SODIMM, Up to 8GB |
Expansion | 1*Full size Mini PCIe with PCIe X1(4LAN Non PCIe) and USB with SIM slot, support 4G
LTE /Wifi/BT etc.;1*Full size Mini PCIe with USB+SATA3 signal use to be mSATA |
Graphics | Intel HD Graphics, VGA resolution 1920 *1200@60Hz, HDMI resolution1920*1080@60Hz, Dual independent display, Support OpenGL 3.2, DirectX 11, OpenCL 1.2, MPGE2/H.264 |
Audio | Realtek ALC662 HD Audio , 5.1 sound channel, Inside 3W left/right amplify speaker header |
LAN | 4*Intel I210AT PCIe Gigabit Ethernet, Integrated 10/100/1000M transceiver |
KB & MS | USB keyboard and mouse |
Storage | 1*2.5″ HDD bay, SATA3 6.0Gbps, cooling by aluminum cover; 1*mSATA full size, dual AHCI |
DIO | 8 bit TTL signal, Programmable input and output |

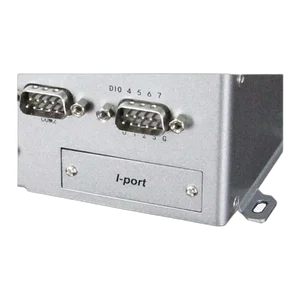

I-port | Optional 1*USB2.0 or Mini PCIe module I/O ports(such as CAN Bus, Gig LAN etc.) |

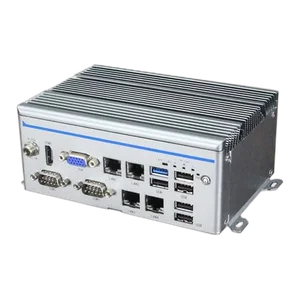

I/O Ports | 4*RJ45 LAN with LED(Front rear)

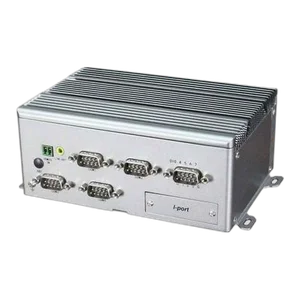

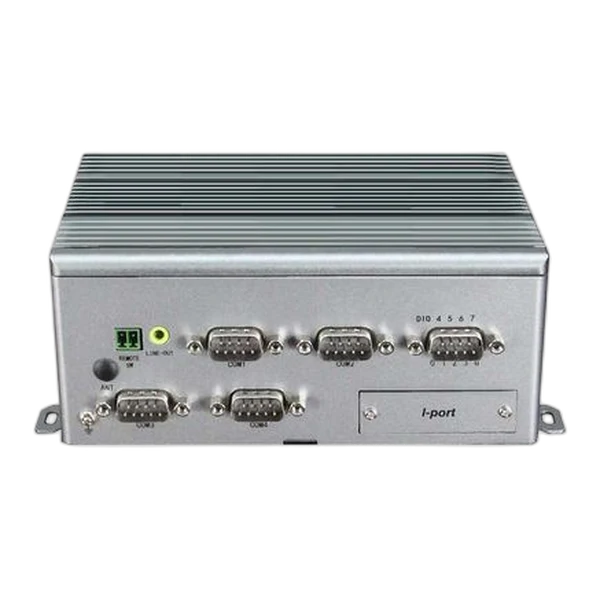

1*USB3.0 Type A and 5*USB2.0 T ype A(Front rear) ,1*USB2.0 Type A (Inside) 1*DB9 connector 8bit DIO (Back rear); 2*RS232/422/485 and 2*RS232 Db9 connector(Back rear), 2*RS232/485 Db9 (Front rear) 1*HDMI and 1*VGA(Front rear); 1*Line-out, 3.5mm phone jack(Back rear) 1*2pin terminal connector, with power sw signal (Back rear) |

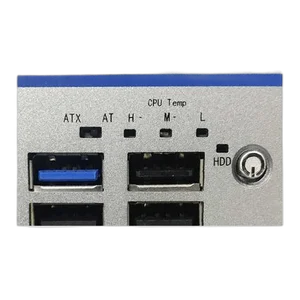

LED | 1*Power on LED, 1*HDD Run LED, 3*CPU temp. LED (Red: High, Yellow: Typical, Green: Low) |
Control SW | 1*Power sw(Front rear), 1*2pin term. power sw (Back rear), 1*AT/ATX Select dip (Front rear) |
Power Supply | DC 9~36V Input, D-Jack with M8 screw (Front rear); Consumption: TBD |
Watchdog Timer | Watchdog timeout programmable via software 1 to 255 second |
OS Support | Windows 7, Windows 8.1, Windows 10, Linux Fedora Ubuntu |
Mechanical | |
---|---|

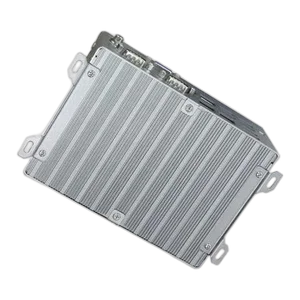

Structure | Top/bottom Aluminum Chassis, SGCC frame |
Color | Silver |
Mounting | Desktop and VESA 100*100mm mounting |
Dimension | (W*H*D):155*111.8*65 mm |
Weight | TBD |
Environmental | |
---|---|
Operation temperature | -20°C~65°C – Fanless with wide operating temp. SSD, AirfloW
-10°C~55°C – Fanless with HDD, Airflow |
Storage temperature | – 4 0 ° C ~ 85°C |
Storage humidity | 10~90%@40°C, non-condensing |
Vibration | 5 grms/5~500Hz/Random/in working status(SSD); 1 grms/5~500Hz/Random/in working status(SSD) |
Shock | 50g peak acceleration(11ms duration)(SSD); 20g peak acceleration(11ms duration)(HDD) |
EMC | CE /FCC Class A |
Ordering info | |
---|---|
KMDA-2602/S002 | Fanless embedded Box Computer, Intel®J1900 CPU, 4*LAN, 1*USB3.0, 6*USB2.0,6*COM, 8bit DIO, 1*HDMI, 1*VGA, Audio out , 1*Mini PCIe, 1*I-port, 1*2.5″ HDD bay, DC 9~36V |
PA-60DC12 | AC/DC power adapter, DC12V/5A 60W |
